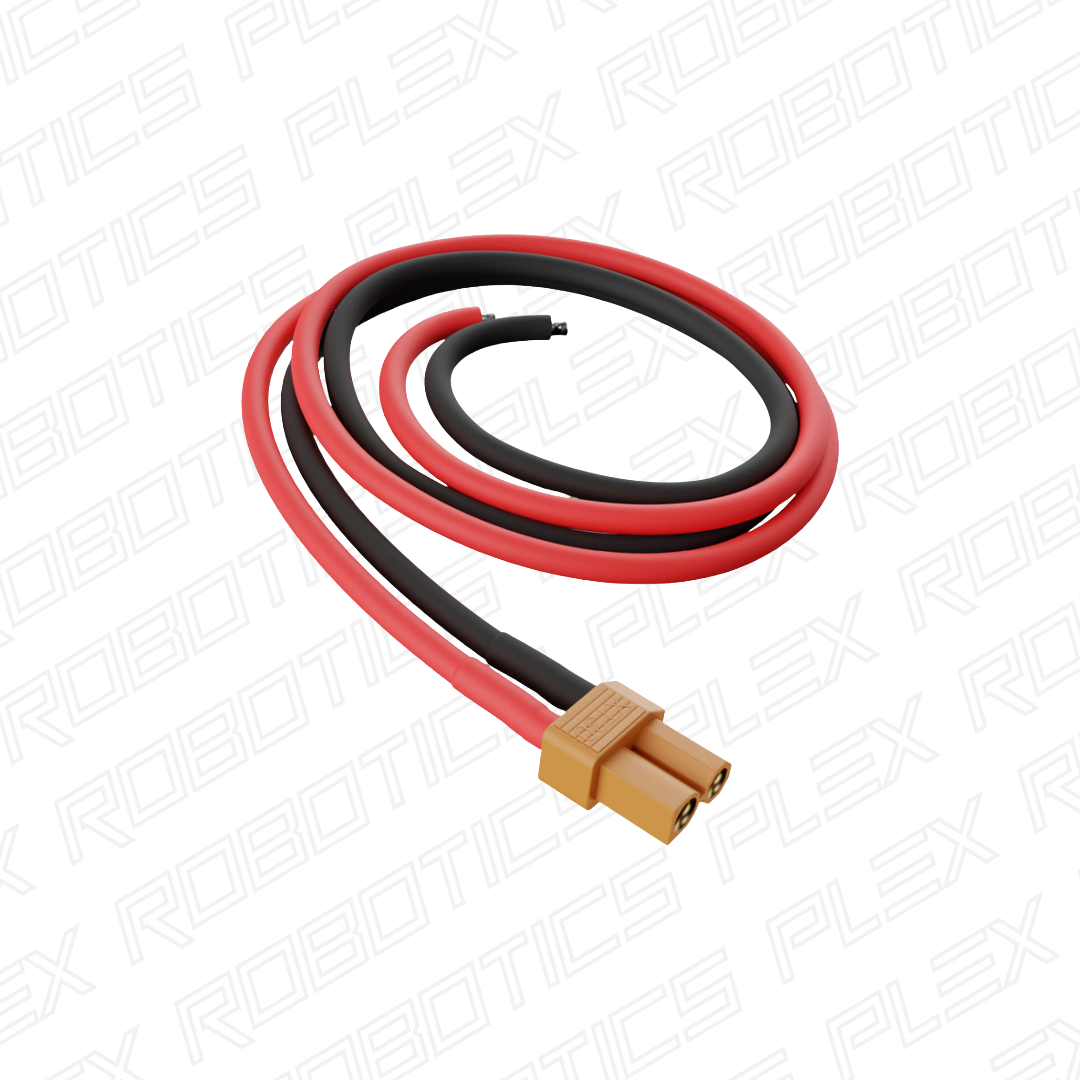

XT30 Lead (16AWG Wire, MH-FC, 150mm Length)

This XT30 power lead is designed for high-efficiency DC power transmission in robotics, drones, RC vehicles, and embedded systems. It features 150mm of bonded 16AWG silicone-insulated copper wire, terminated on one end with a reliable XT30 (MH-FC) connector and stripped/tinned bare wires on the opposite end for flexible integration.

The XT30 connector (Male Housing – Female Contact) is widely used as a standard for battery and power system connections, offering secure engagement, low contact resistance, and compact form factor ideal for tight installations. The bare wire end allows direct soldering into PCBs, screw terminals, power distribution boards, or when converting legacy connectors like Deans, Tamiya, or Anderson.

The 16AWG cable is rated for high current loads (up to 30A for short bursts) and is sheathed in flexible, heat-resistant silicone, ensuring easy routing and durability even in mobile or high-vibration environments.

Technical Specifications:

• Cable Length: 150 mm
• Wire Gauge: 16 AWG (Stranded Copper, Silicone Insulation)
• Connector Type: XT30 (MH-FC – Male Housing, Female Contact)
• Opposite End: Stripped and tinned bare wires
• Max Current (short bursts): Up to 30A
• Recommended Current (continuous): ~15–20A
• Connector Material: Gold-plated brass contacts, flame-retardant nylon housing
• Temperature Rating: -20°C to +120°C
• Application Use: Power leads for RC batteries, robotics, embedded systems, ESCs, chargers, and custom harnesses
