V-Guide Lead Screw Dolly Kit
V-Guide Lead Screw Dolly Kit
3205-0003-0001Regular price
164,10 lei
Regular price
205,10 lei
Sale price
164,10 lei
Unit price
/
per
Tax included.
Couldn't load pickup availability

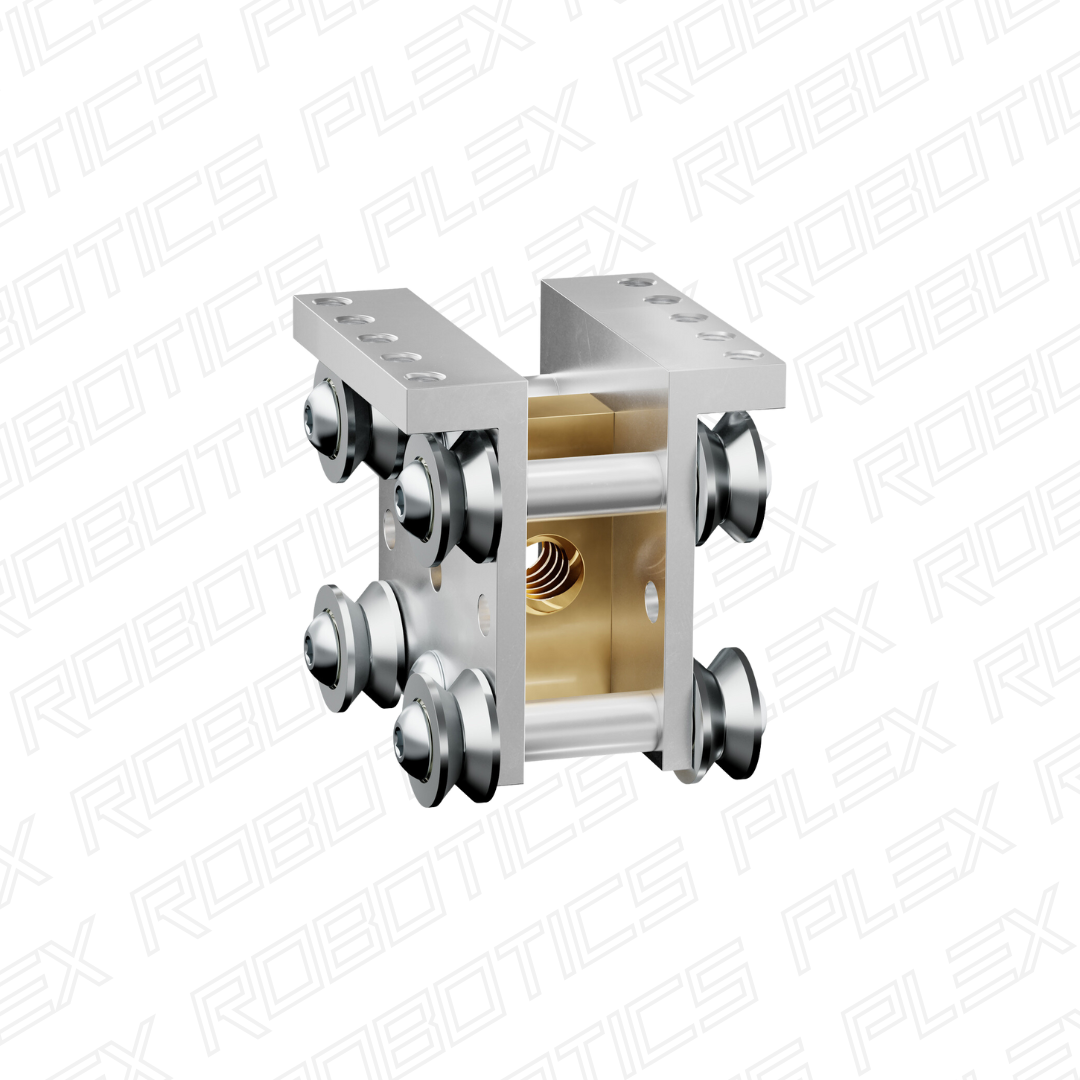

This Dolly Kit is built specifically with V-Guide in mind. Four V-Groove Bearings get mounted on each side of the aluminum plates, and are properly spaced so that they align with V-Guide mounted inside of 1120 Series U-Channel. These bearings play the role of supporting the load, allowing the lead screw nut inside the dolly to create the linear motion without having to support the load. The lead screw nut has an 8mm lead which is compatible with any of the 3501 Series 8mm Lead Screws. Threaded holes on the tops of the Aluminum Angle Mounts make attaching channel and other components a breeze.
Kit Contents:
| SKU | Qty | Name |
|---|---|---|
| 1501-0006-0140 | 1 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 14mm Length) - 4 Pack |
| 2807-0407-0250 | 1 | 2807 Series Stainless Steel Shim (4mm ID x 7mm OD, 0.25mm Thickness) - 12 Pack |
| 2807-0407-0500 | 1 | 2807 Series Stainless Steel Shim (4mm ID x 7mm OD, 0.50mm Thickness) - 12 Pack |
| 1609-0613-0004 | 4 | 1609 Series V-Groove Bearing (4mm ID x 13mm OD, 6mm Thickness) - 2 Pack |
| 2802-0004-0016 | 1 | 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 16mm Length) - 25 Pack |
| 2802-0004-0008 | 1 | 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 8mm Length) - 25 Pack |
| 1211-0001-0001 | 2 | 1211 Series Angle Mount (1-1) |
| 3508-0804-1432 | 1 | 3508 Series Lead Screw Nut for V-Guide (8mm Lead, 4 Start, 14mm Width, 32mm Height) |
