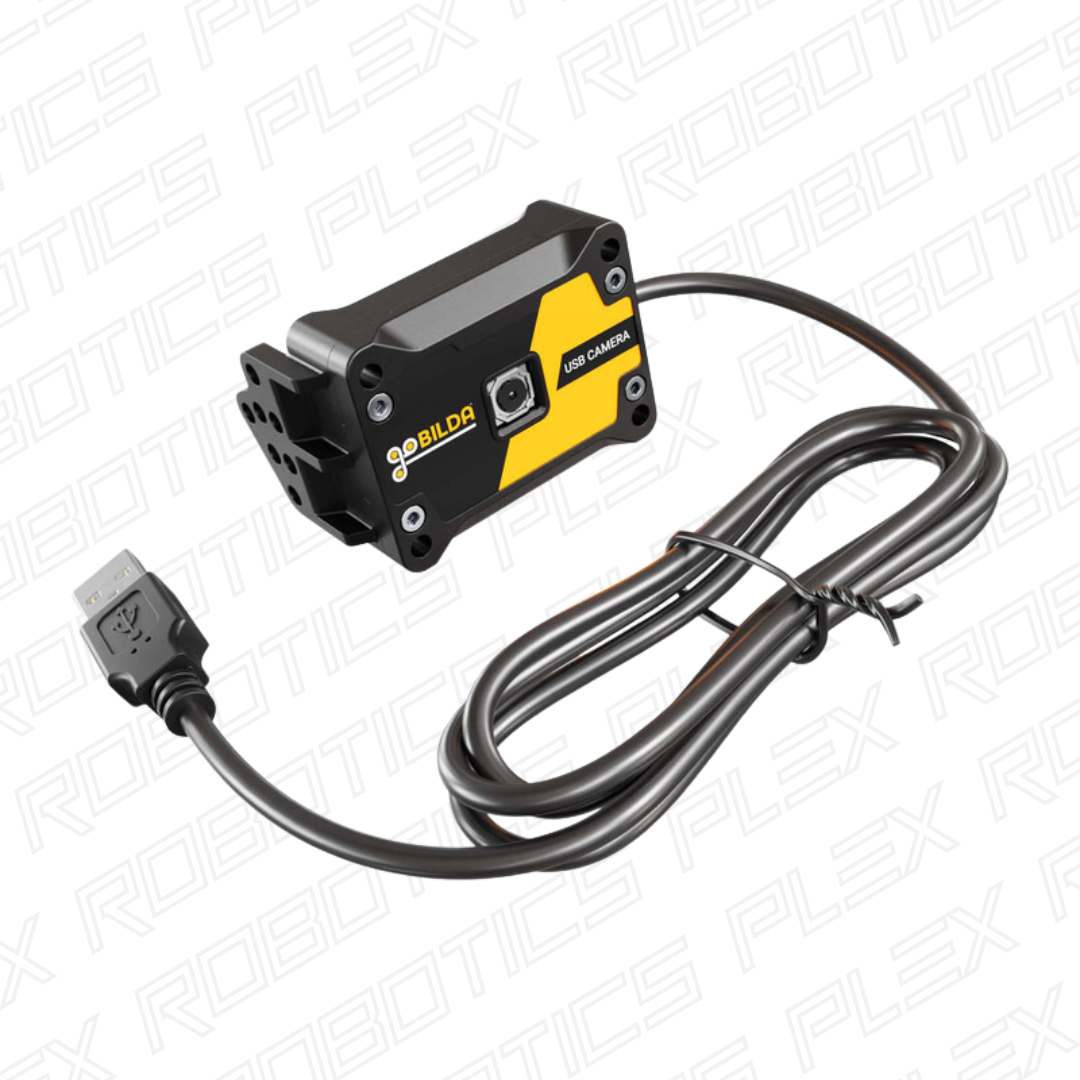

USB Camera with goBILDA® Case (Autofocus, 8 Megapixel, USB Type A)
USB Camera with goBILDA® Case (Autofocus, 8 Megapixel, USB Type A)
3122-0003-0001📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 3122-0003-0001
Couldn't load pickup availability
Help your bot get a clear view of its position on the field with a webcam that’ll be right where you need it every time! This USB Camera comes in a goBILDA®-designed case for versatile attachment to your robot.
In order to facilitate plug-and-play action in FTC, it comes with a calibration file that helps it talk to your REV Control Hub from the get-go with optimized optics for tracking objects and localizing your robot. (Check out the User Guide below to help set it up with your robot!) It arrives pre-assembled in its goBILDA® case with its USB-A connector cable.
Included M4 hardware allows you to attach this camera to your robot right out of the box. The multiple attachment angle options are made possible by a clever arrangement of goBILDA® 8mm linear pattern thru-holes.
Downloads
Specs
| Weight | 60g (w/ Included Hardware and Cable) |
|---|---|
| Output Connector | USB Type A |
| Included Hardware | 12mm Length M4 Socket Head Screw x 2, M4 Nylock Nut x 2 |
| Image Sensor | Sony IMX179 |
| Operating Voltage | 5.0V |
| Operating Current | 160mA~260mA |
| Connection Interface | USB2.0 High Speed |
| Wire Length | 975mm |
