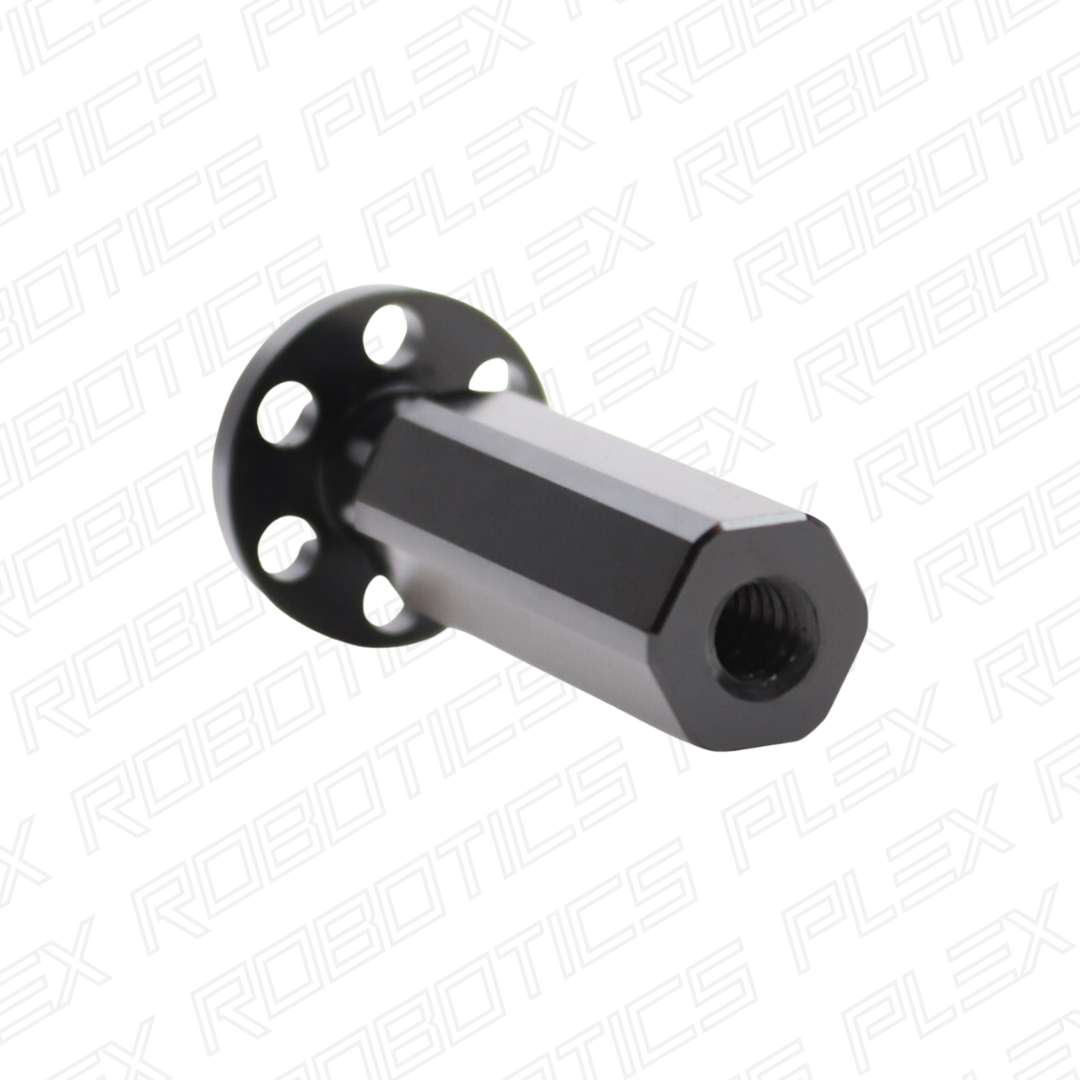

UltraPlanetary 1/2in Hex Adapter

The UltraPlanetary 1/2in Hex Adapter is designed to face mount to the UltraPlanetary gearbox and provide a convenient 1/2in hex output shaft that is commonly used in the FIRST Robotics Competition. The recommended hardware for mounting the UltraPlanetary 1/2in Hex Adapter to the UltraPlanetary Female 5mm Hex Output Cartridge would be M3x8mm Socket Cap screws, although any M3x8mm hardware can be used.

Specifications

• Material: 7075 Aluminum
• Hex Size: 1/2in (flat to flat)
• Compatible with both 1/2in hex bearings and 13.75mm round bearings
• 1/4-20 Tapped End Hole

CAD & Drawings

• REV-41-1620 STEP File
• REV-41-1620 Onshape
• REV-41-1620 Drawing
