goBILDA

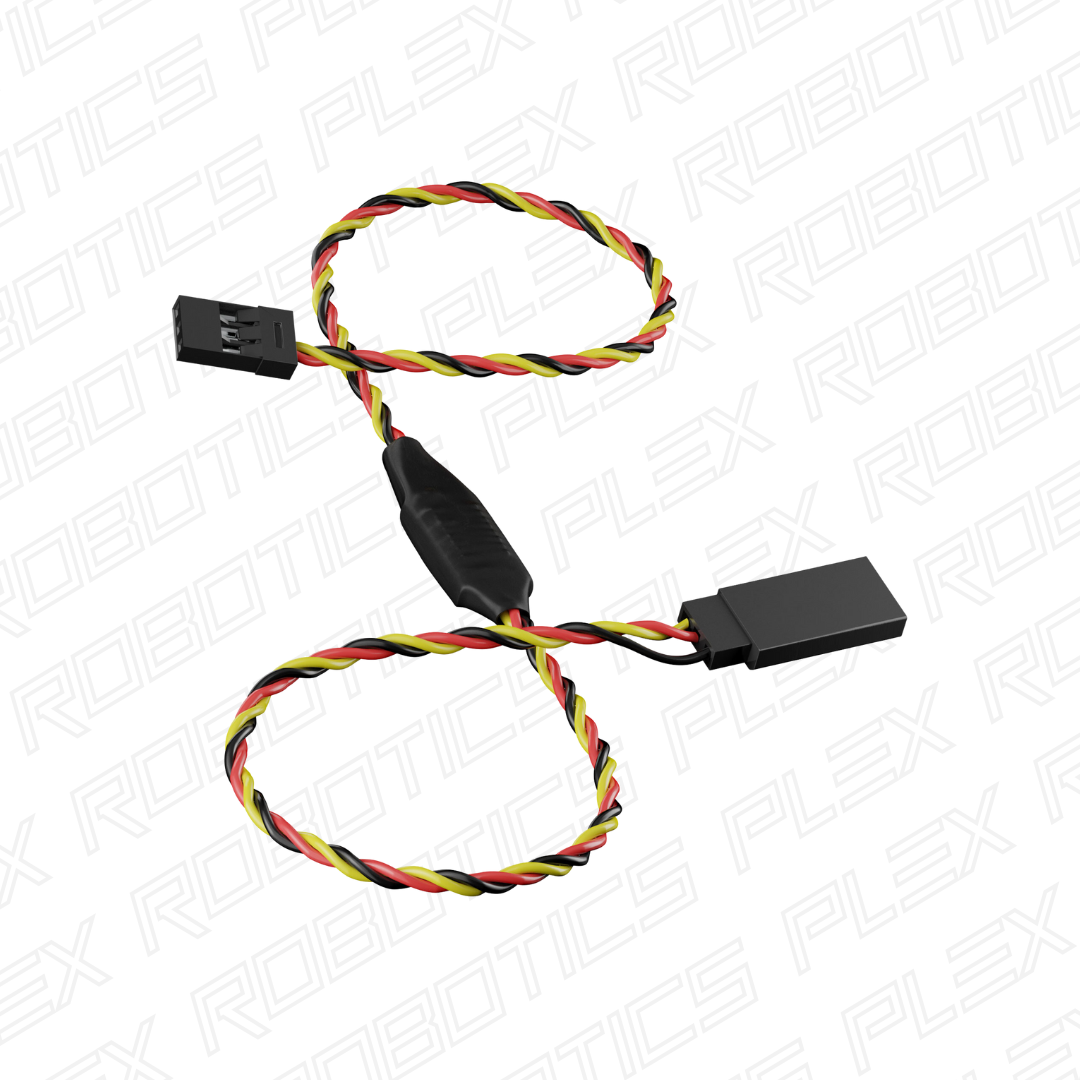

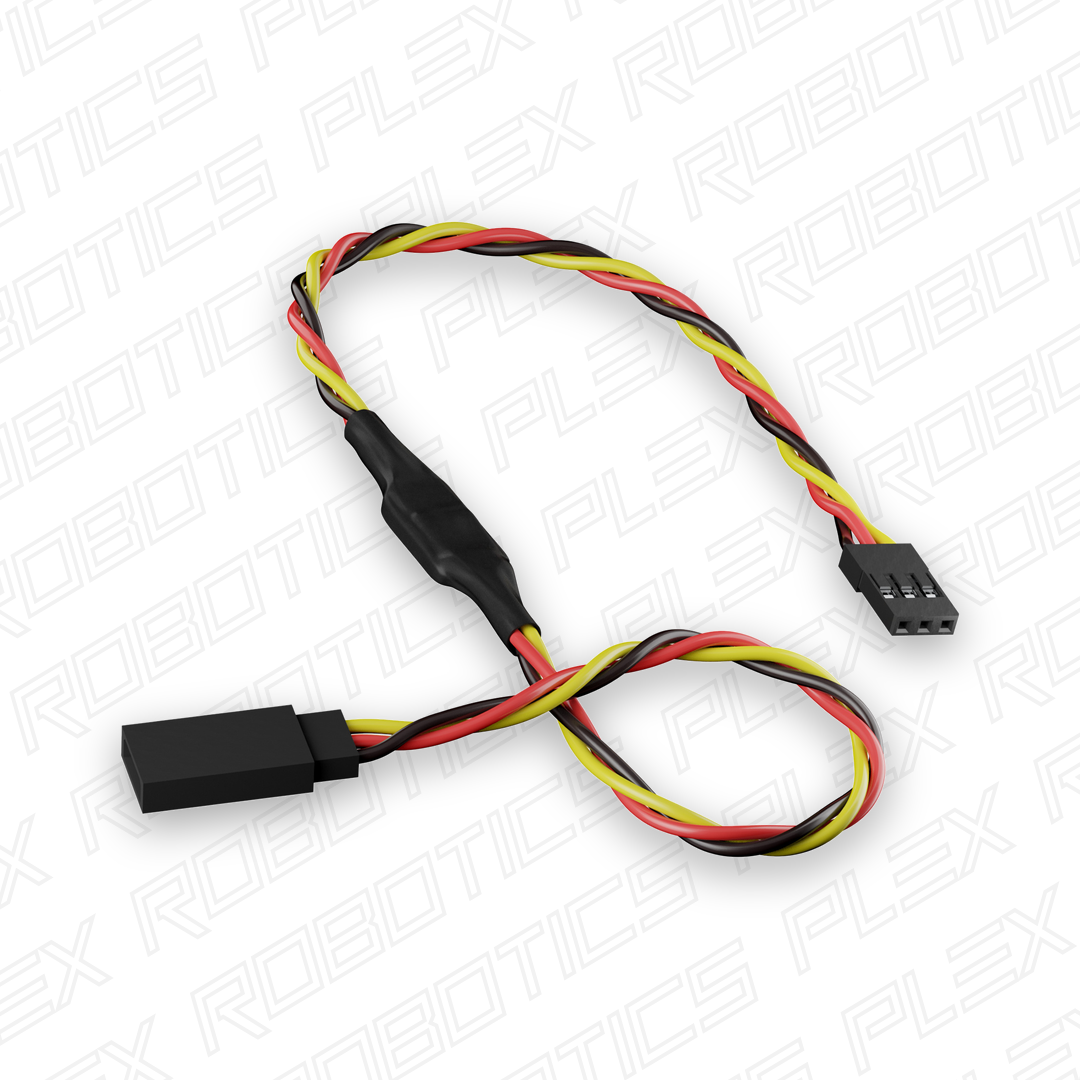

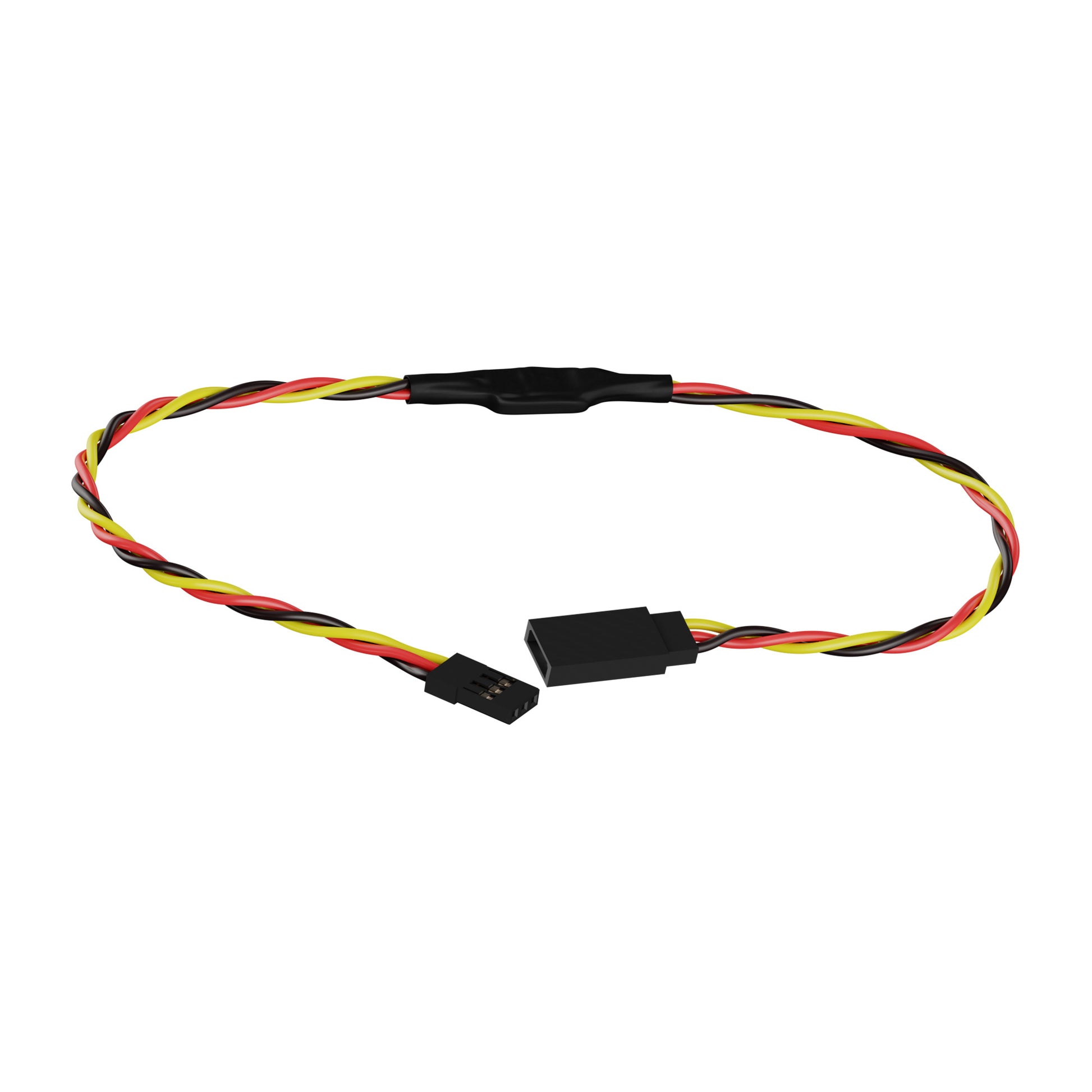

Signal-Boosting Servo Extension (3-Pos TJC8, MH-FC to FH-MC, 300mm Length)
Signal-Boosting Servo Extension (3-Pos TJC8, MH-FC to FH-MC, 300mm Length)
3116-1718-0300Regular price
72,20 lei
Sale price
72,20 lei
Unit price
/
per
Tax included.
⚠️ This product is available on backorder. Estimated delivery time is 3-12 business days after payment confirmation, based on the shipping option chosen at checkout (Economy, Standard or Priority).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 3116-1718-0300
Couldn't load pickup availability

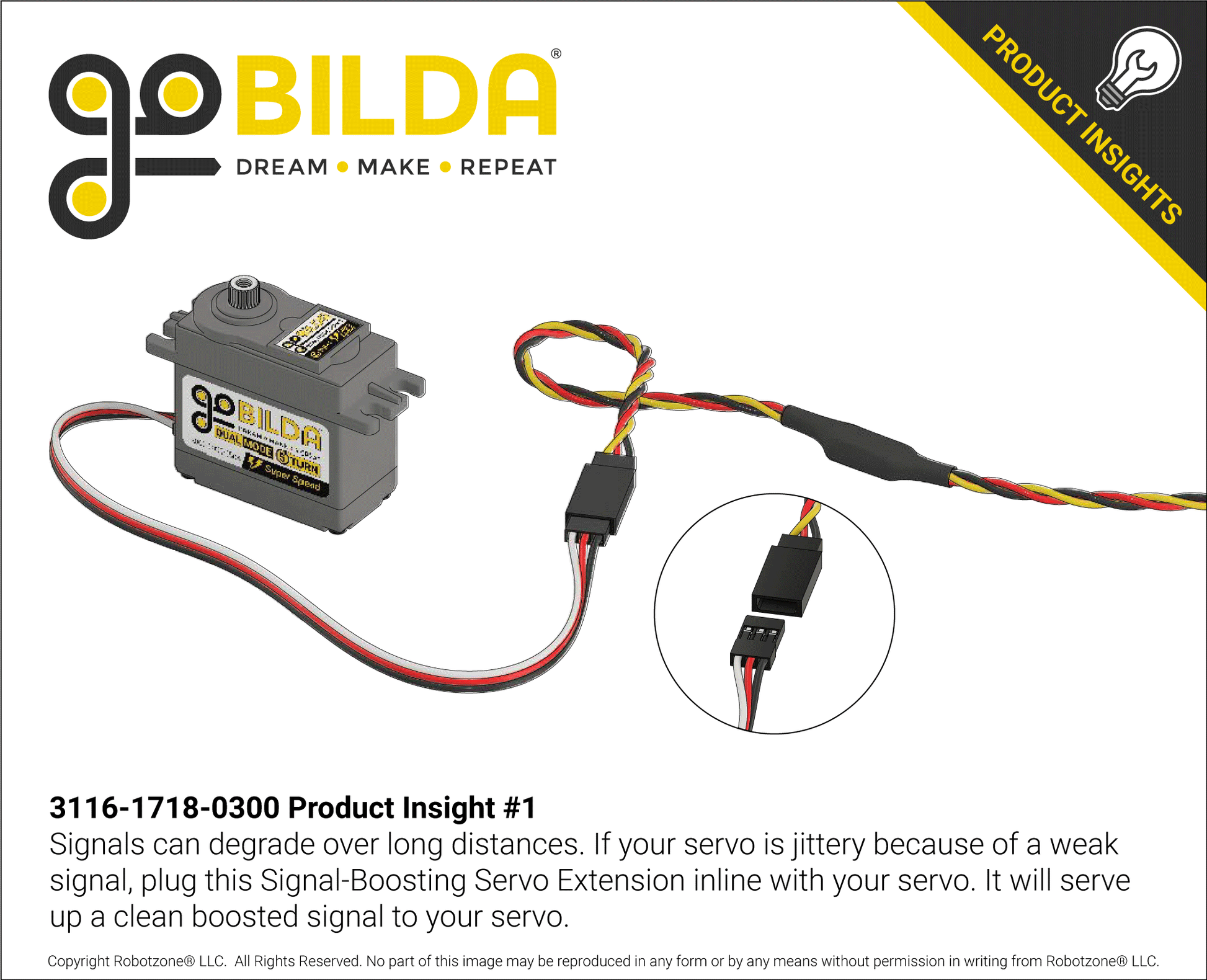

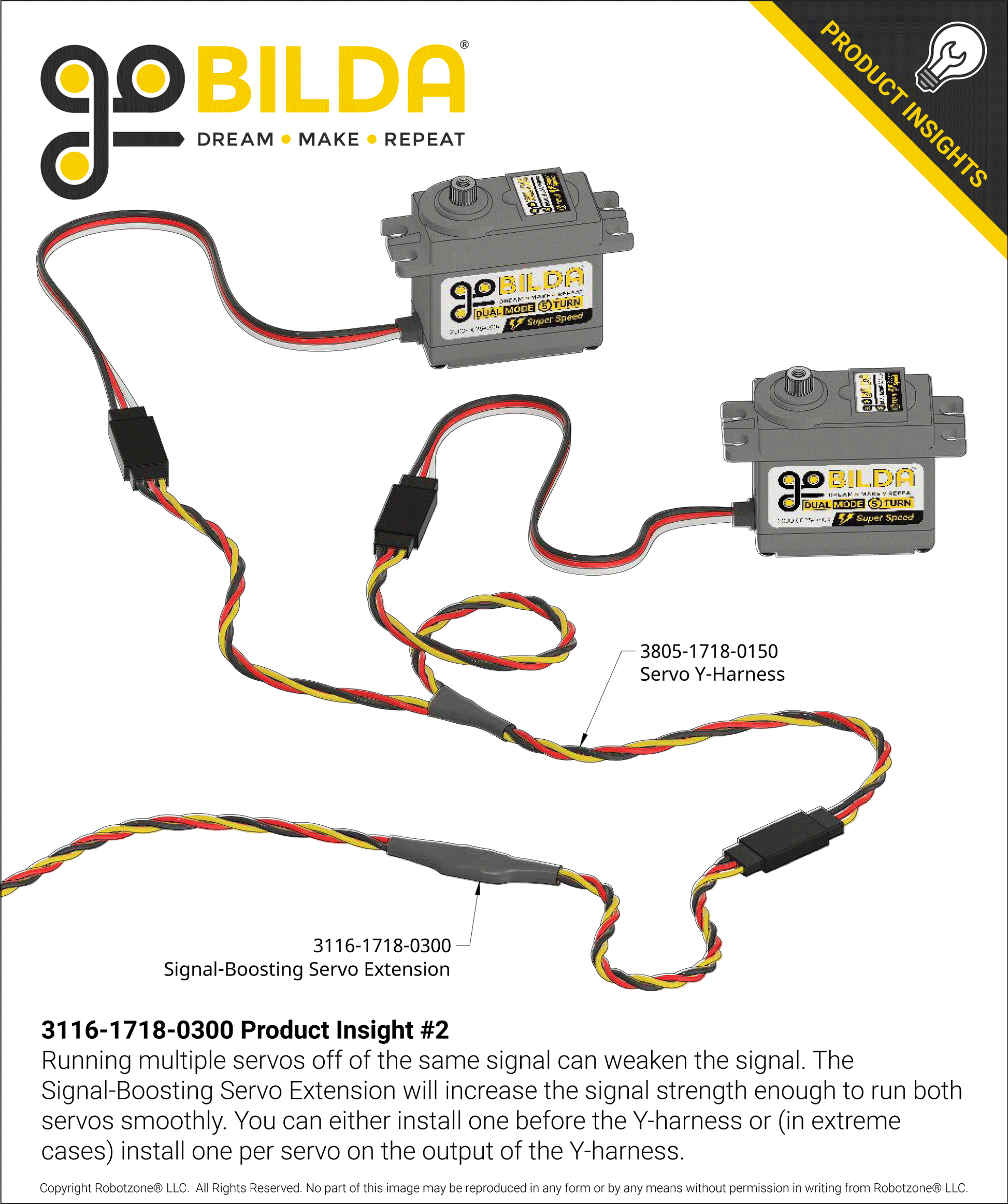

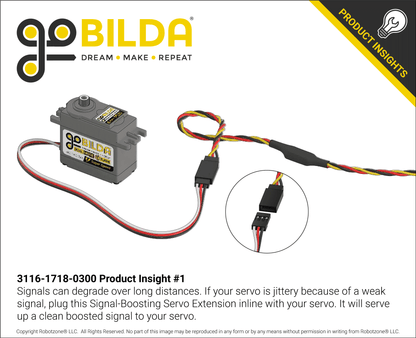

Sometimes servo control signals can weaken over a long distance of wire or by being shared by multiple servos. A weak signal causes servos to jitter. The Signal-Boosting Servo Extension restores the signal by boosting the signal amplitude back up to the voltage sent from your battery or power supply. Simply plug-in the Signal-Boosting Servo Extension near your servo, and say farewell to jitters!
Tech Tip
Both our Boosted Servo-Extension and 4 Channel Servo Extension via CAT6 offer a way to control your servos at longer distances while addressing any signal issues. Take your pick based on your projects’ needs!
- The Signal-Boosting Servo Extension is great to have in your toolbox for any project. It performs excellently as a plug-and-play signal strength solution for a single channel.
- The 4 Channel Servo Extension via CAT6 is a long-distance and multiple-servo wire management solution that maintains signal strength. It allows you to use whatever CAT6 cable length (up to 100 ft) suits your use-case! It also provides the option to power the servos from the extension’s receiving board, nearest the servos.

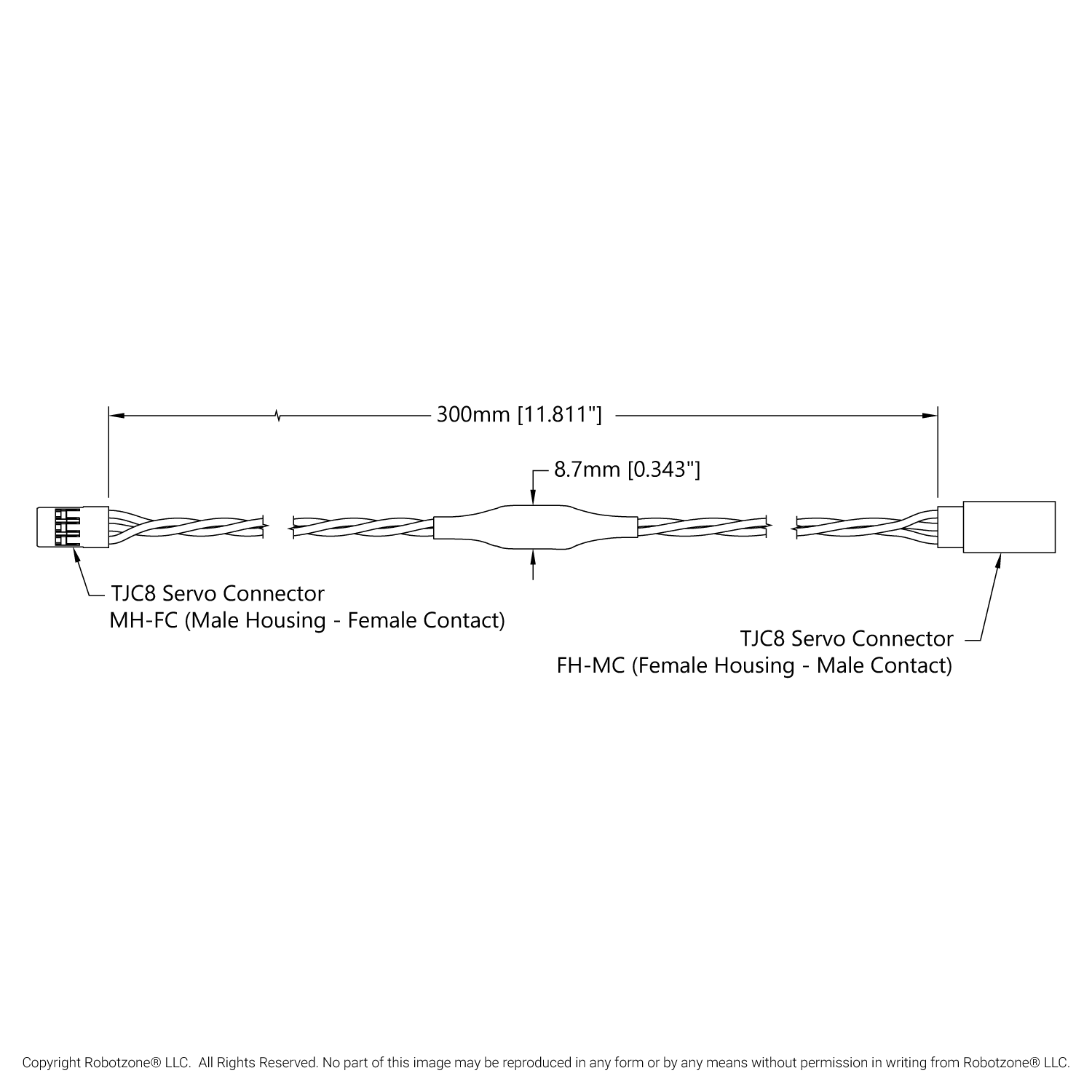

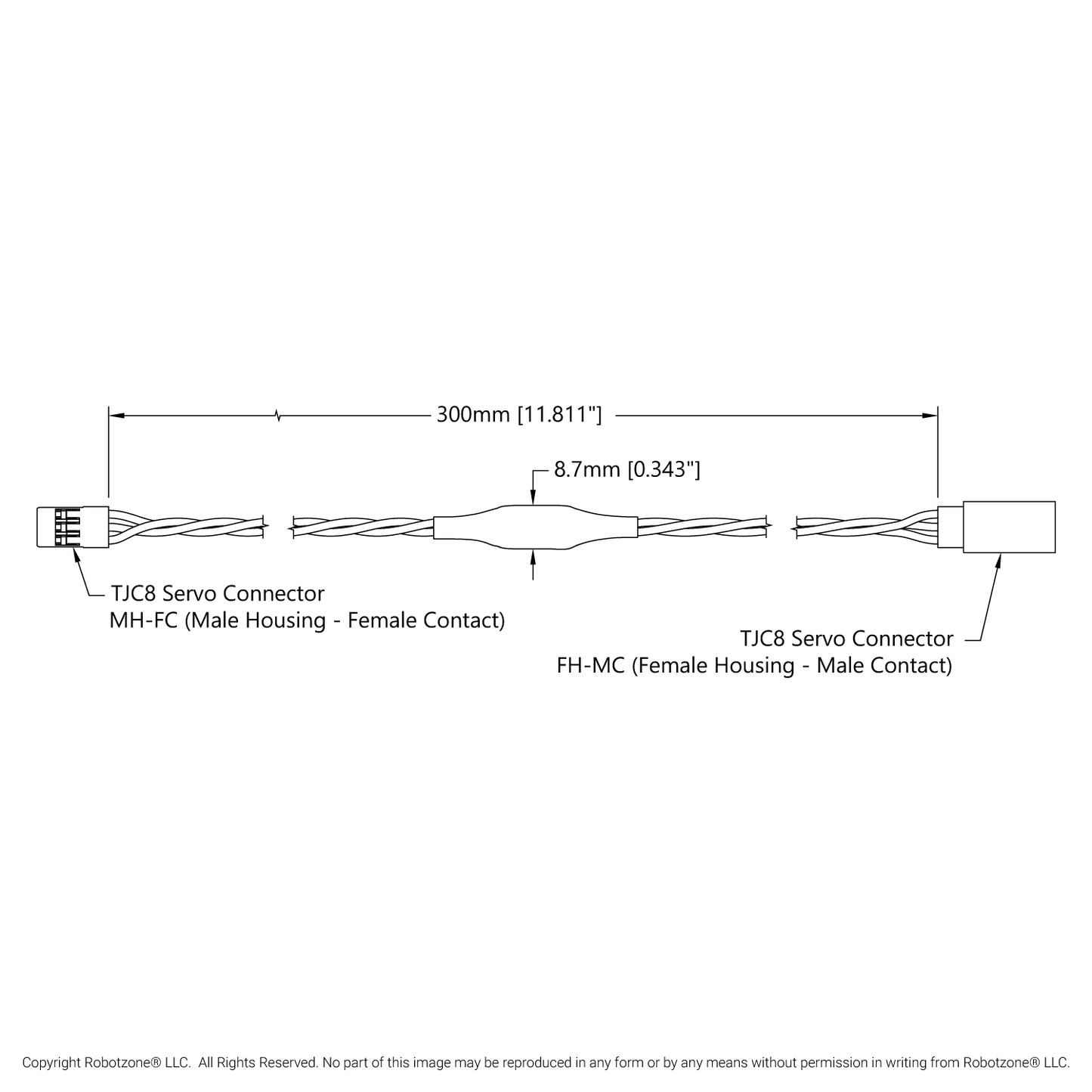

Specs
| Connector | Male 3-Pos TJC8 / Female 3-Pos TJC8 |
|---|---|
| Wire Gauge | 22 AWG |
| Wire Length | 300mm |
| Weight | 8.8g (0.31oz) |
| Wire Insulation Material | ABS Plastic |
| Source / Sink Current | 2A |
| Absolute Max Voltage Range | 4 - 20V |
| Recommended Voltage Range | 5V-16V |
| Input Pulldown Resistor | 100K |
