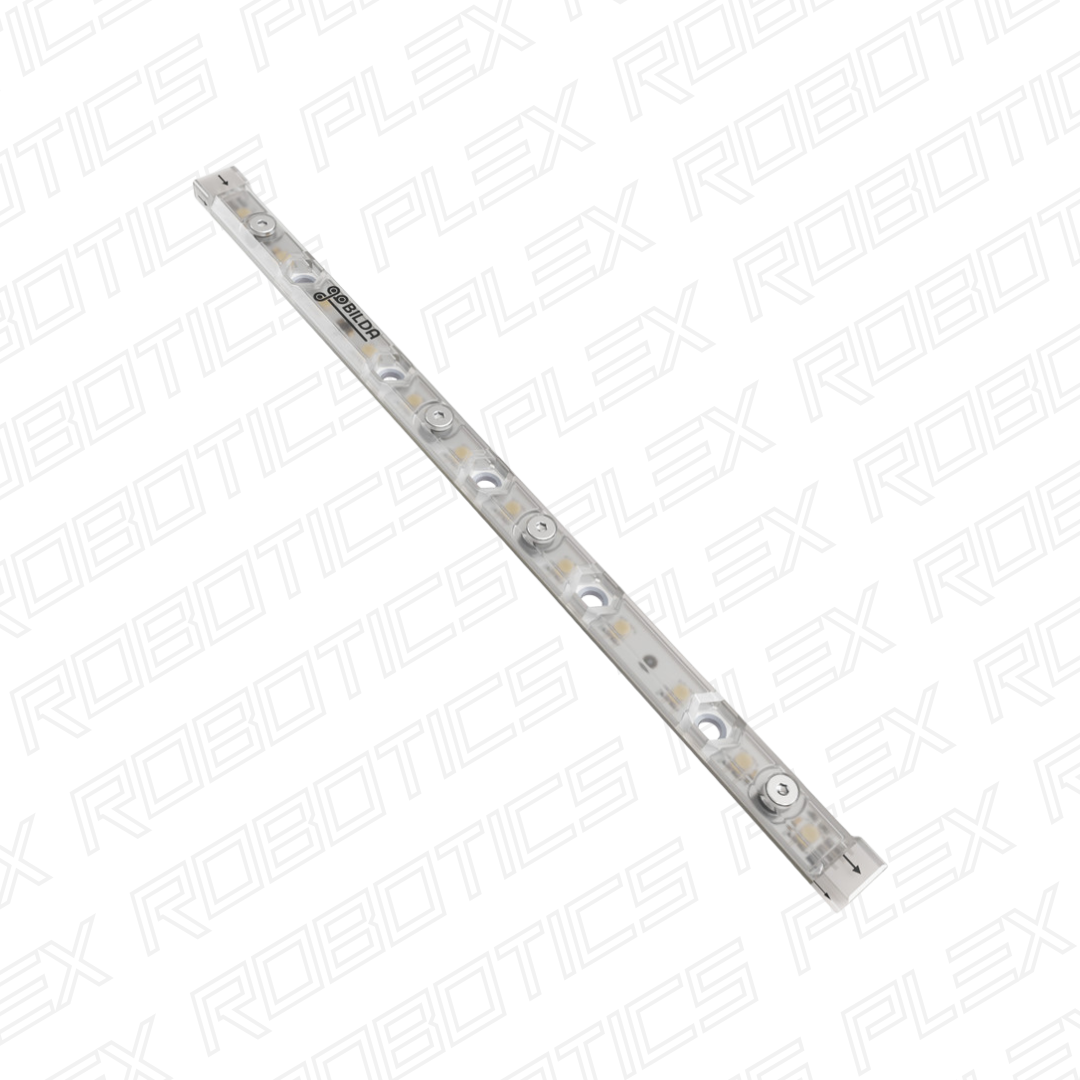

Prism RGB LED Strip (200mm Length, 12 LEDs) - 2 Pack
Prism RGB LED Strip (200mm Length, 12 LEDs) - 2 Pack
3118-5555-0002📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 3118-5555-0002
Couldn't load pickup availability
Light up your robot or project with this 200mm Length RGB LED Strip! It features 12 LEDs you can command using the goBILDA® Prism RGB LED Driver to create customizable color sequences and animations. You can daisy-chain it with other Prism RGB LED Strips via its 3-Pos JST PH connectors and included 300mm length wire to create exactly the illumination your project needs.
Participating in the FIRST® Tech Challenge? You’ll be happy to know that Prism RGB LED Strips take the rigors of the FTC game field into consideration—their clear plastic is rock-solid, allowing you to rest easy while they shine according to your heart’s design on your robot’s undercarriage, sides, or wherever!
This Prism RGB LED Strip rocks thru-holes on the goBILDA® pattern that make it easy to attach to goBILDA® components like 1120 Series U-Channel and 1121 Series Low-Side U-Channel. The thru-holes also feature hex-counterbores for an easy one-tool installation.
Downloads
Specs
| Weight | 54g (including mounting hardware and wiring components) |
|---|---|
| Input Voltage Range | 5V |
| Input Connector | 3-Pos JST PH [FH-MC] |
| Output Connector | 3-Pos JST PH [FH-MC] |
| Included Hardware | 9mm Length M4 Socket Head Screw x 6, M4 Nylock Nut x 6 |
| Included Wiring | JST PH Cable (3-Pos JST PH, MH-FC to MH-FC, 300mm Length) x2 |
| Power Draw at Max Brightness | 0.75W |
