goBILDA
Micro Limit Switch - 2 Pack
Micro Limit Switch - 2 Pack
3103-0001-0001Regular price
22,40 lei
Sale price
22,40 lei
Unit price
/
per
Tax included.
⚠️ This product is available on backorder. Estimated delivery time is 3-12 business days after payment confirmation, based on the shipping option chosen at checkout (Economy, Standard or Priority).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 3103-0001-0001
Couldn't load pickup availability

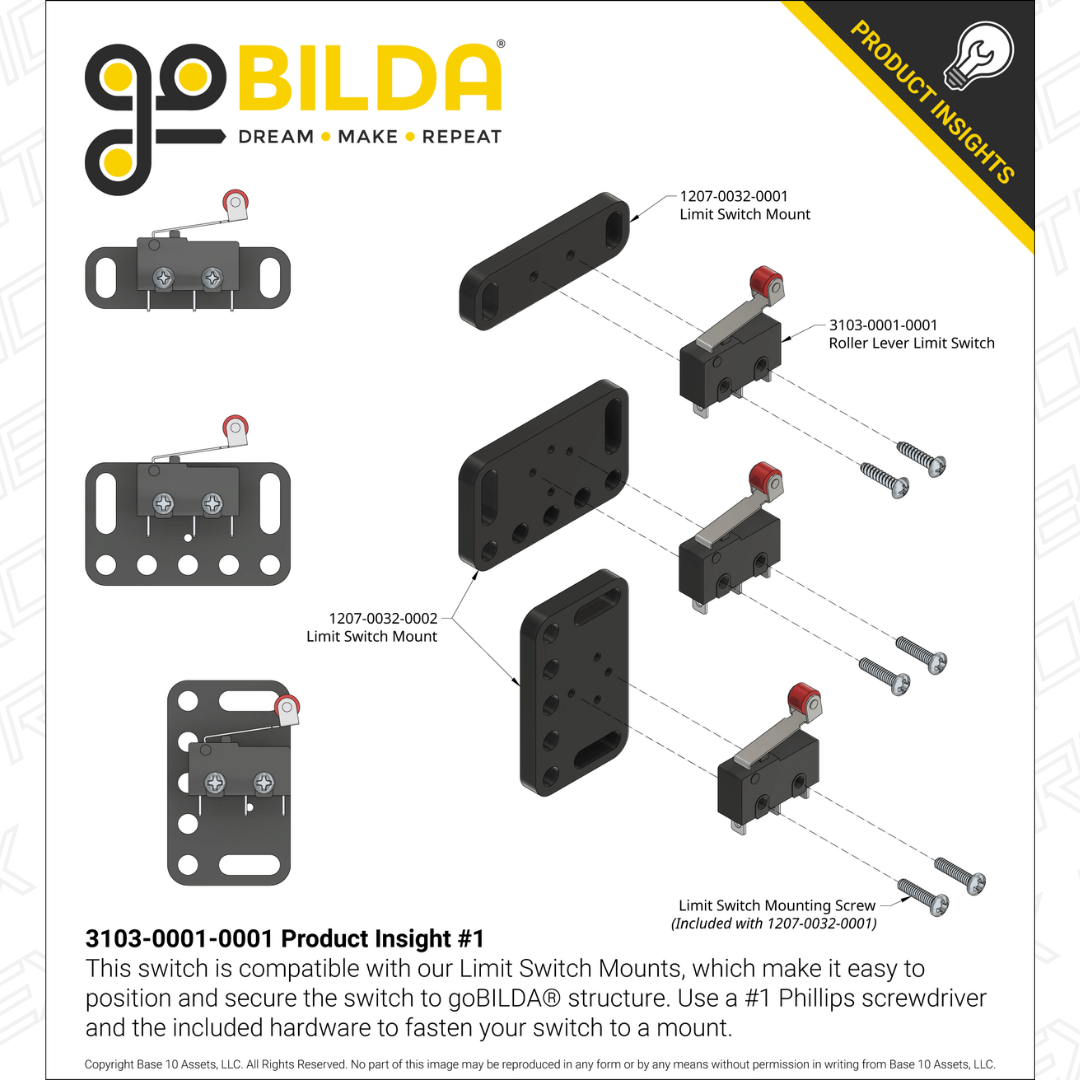

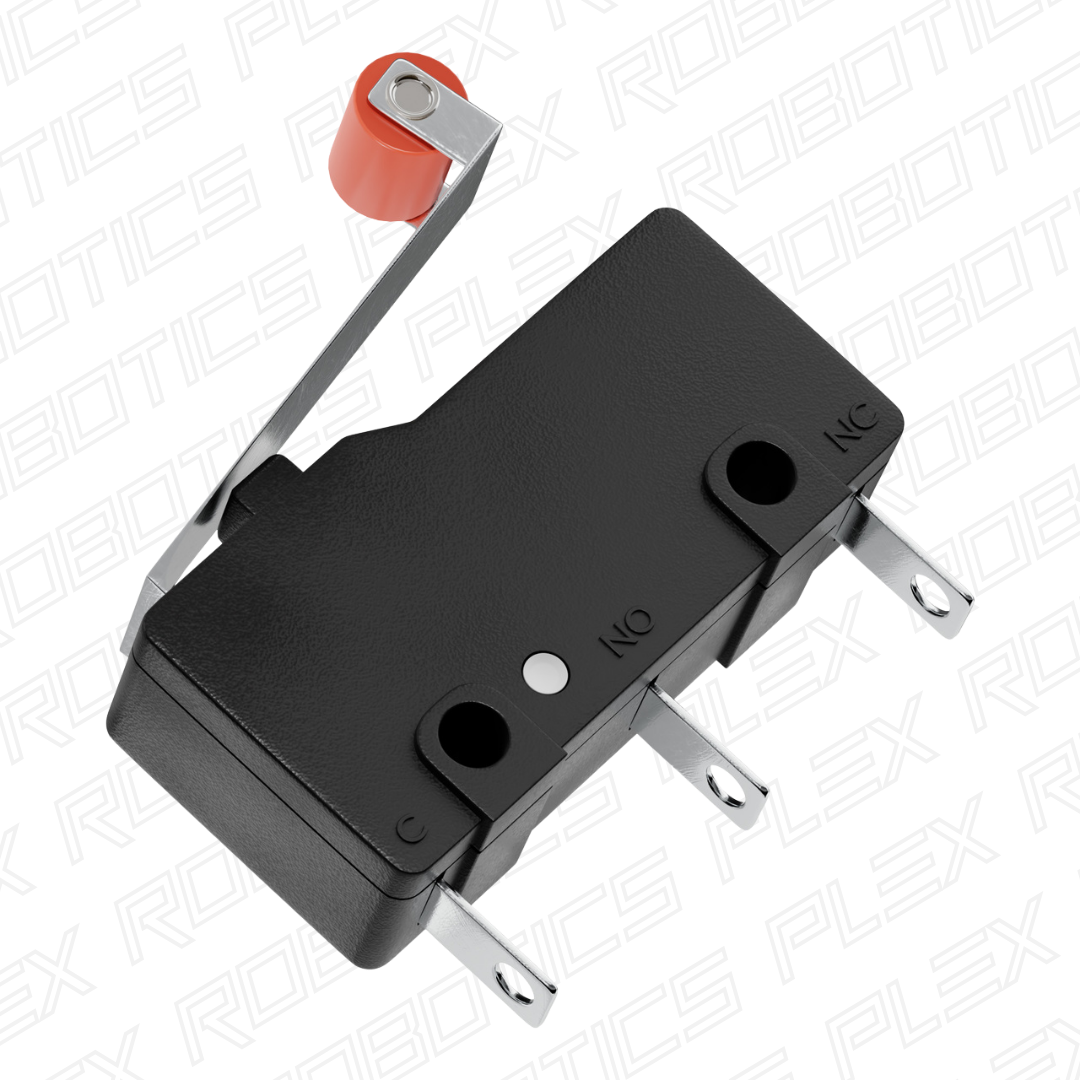

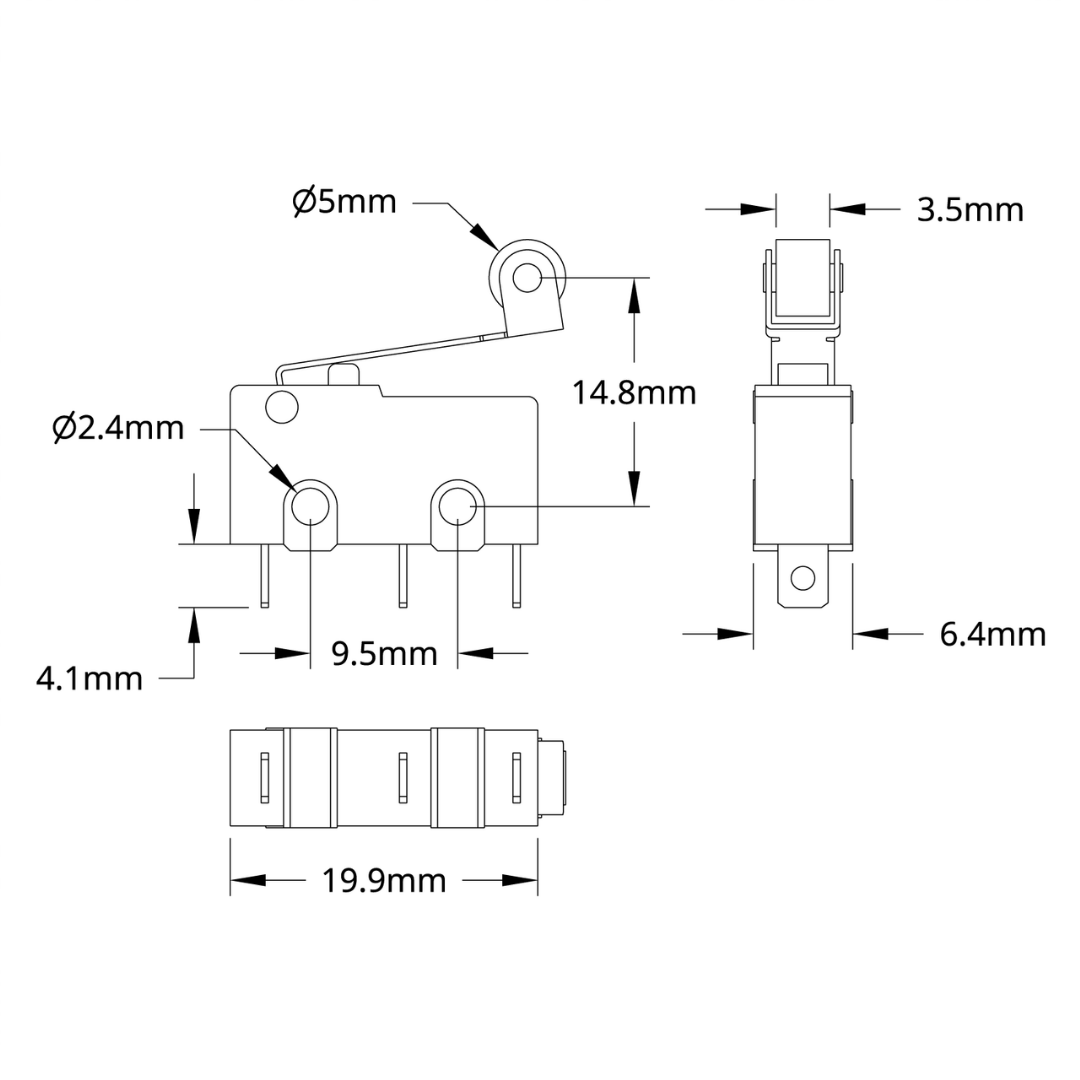

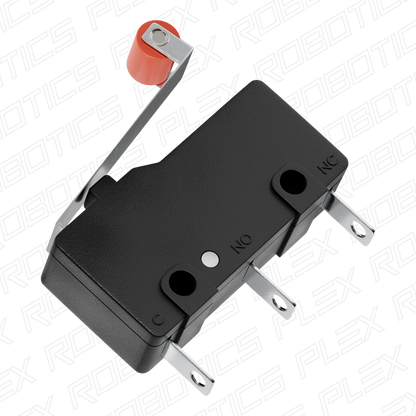

Roller Lever
These awesome little 5 amp units are perfect to use in conjunction with our goBILDA® components. Besides this style, we offer three other limit switches to cover just about any need you have, whether you’re building a slider, a 3D printer or a killer robot. Make sure you check out our limit switch mounts, too!
Downloads
Specs
| Weight | 2.2g Each |
|---|---|
| Switch Style | SPDT Momentary Limit Switch |
| Max Current | 6A |
| Max Voltage | 250VAC |
| Connector Style | 3.2mm Width Spade Terminals |
| Continuous Current | 2A |
| Switching Life | 200,000 Cycles |
| Environmental Temperature | -25-85℃ |
| Contact Resistance | ≤0.02Ω |
| Insulation Resistance | ≥100MΩ |

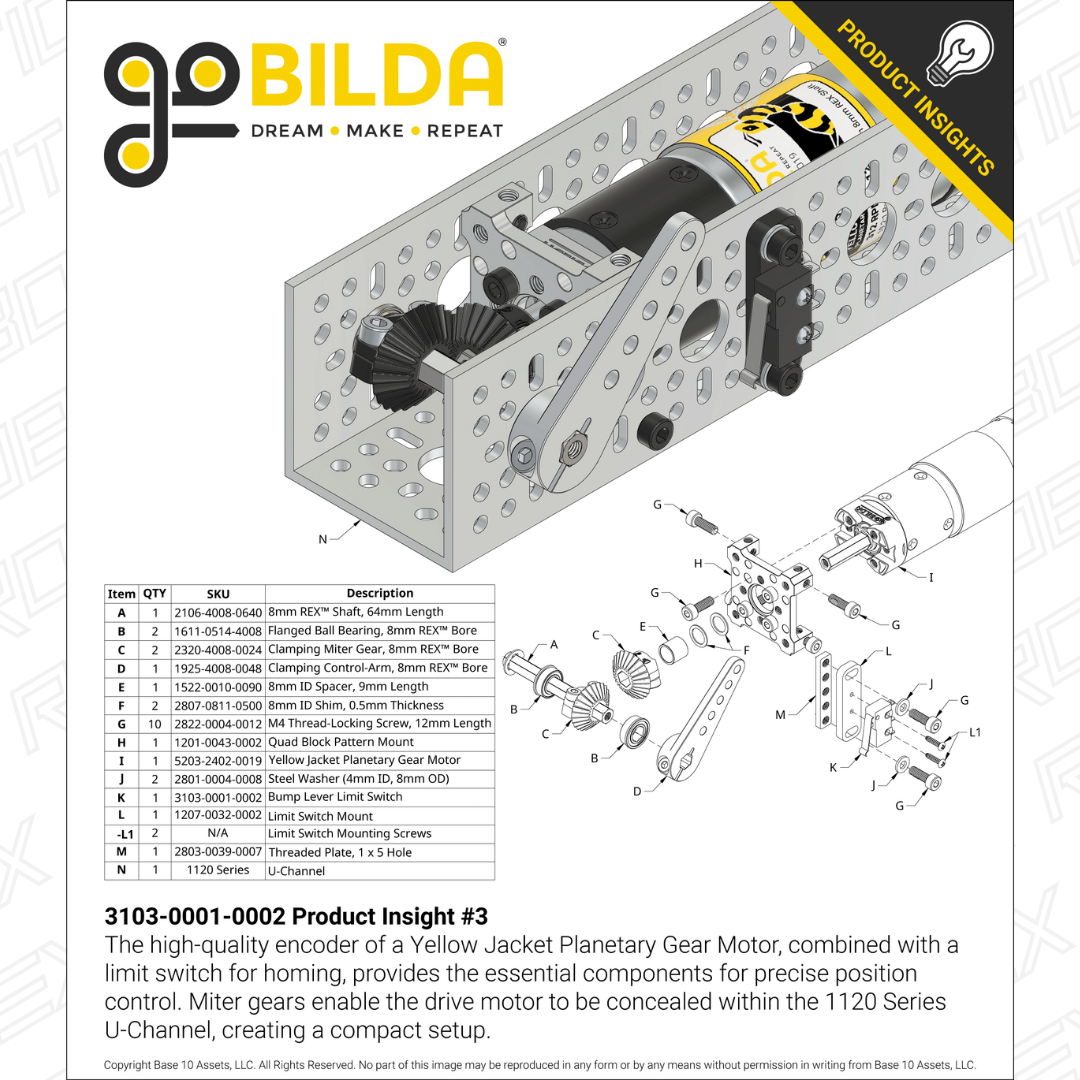

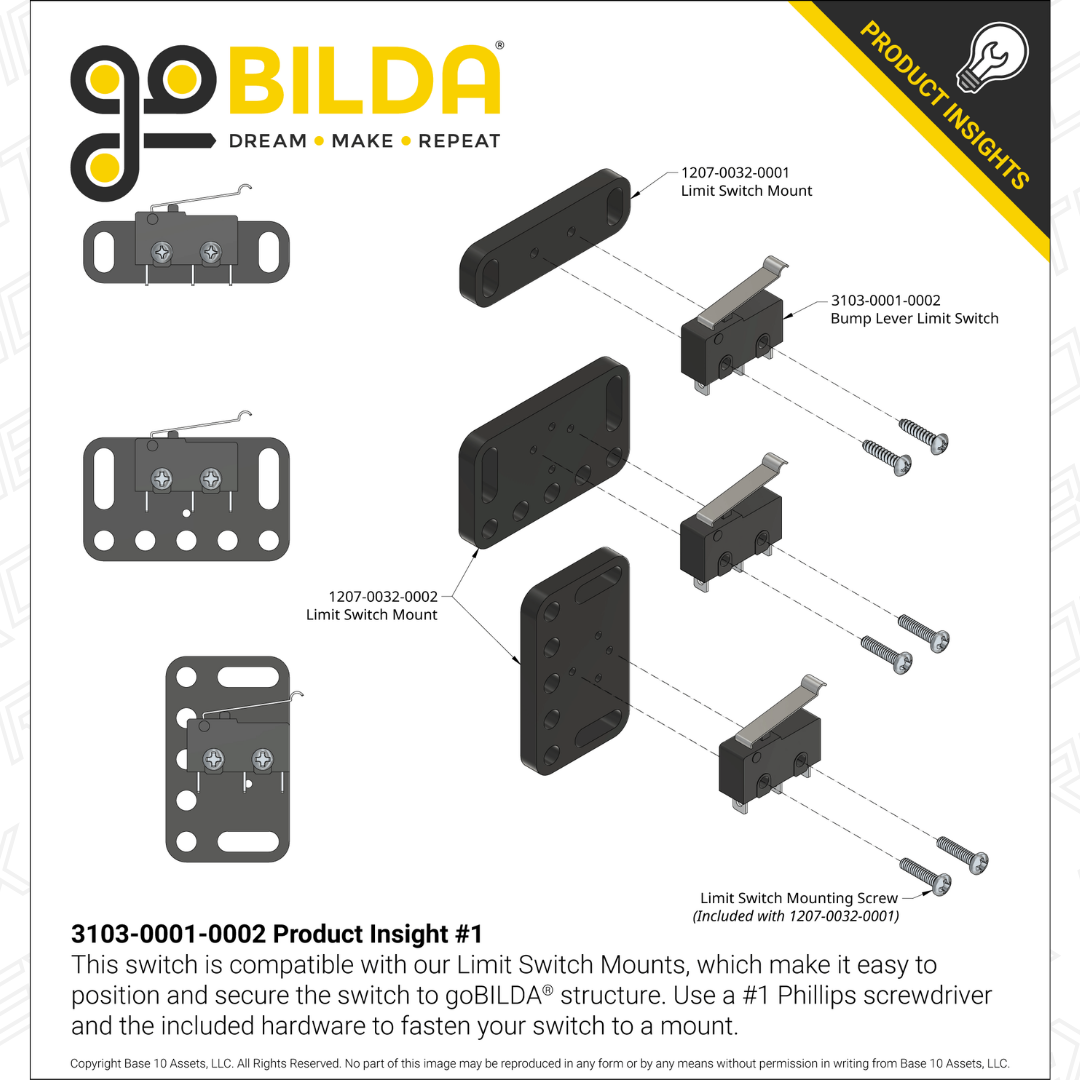

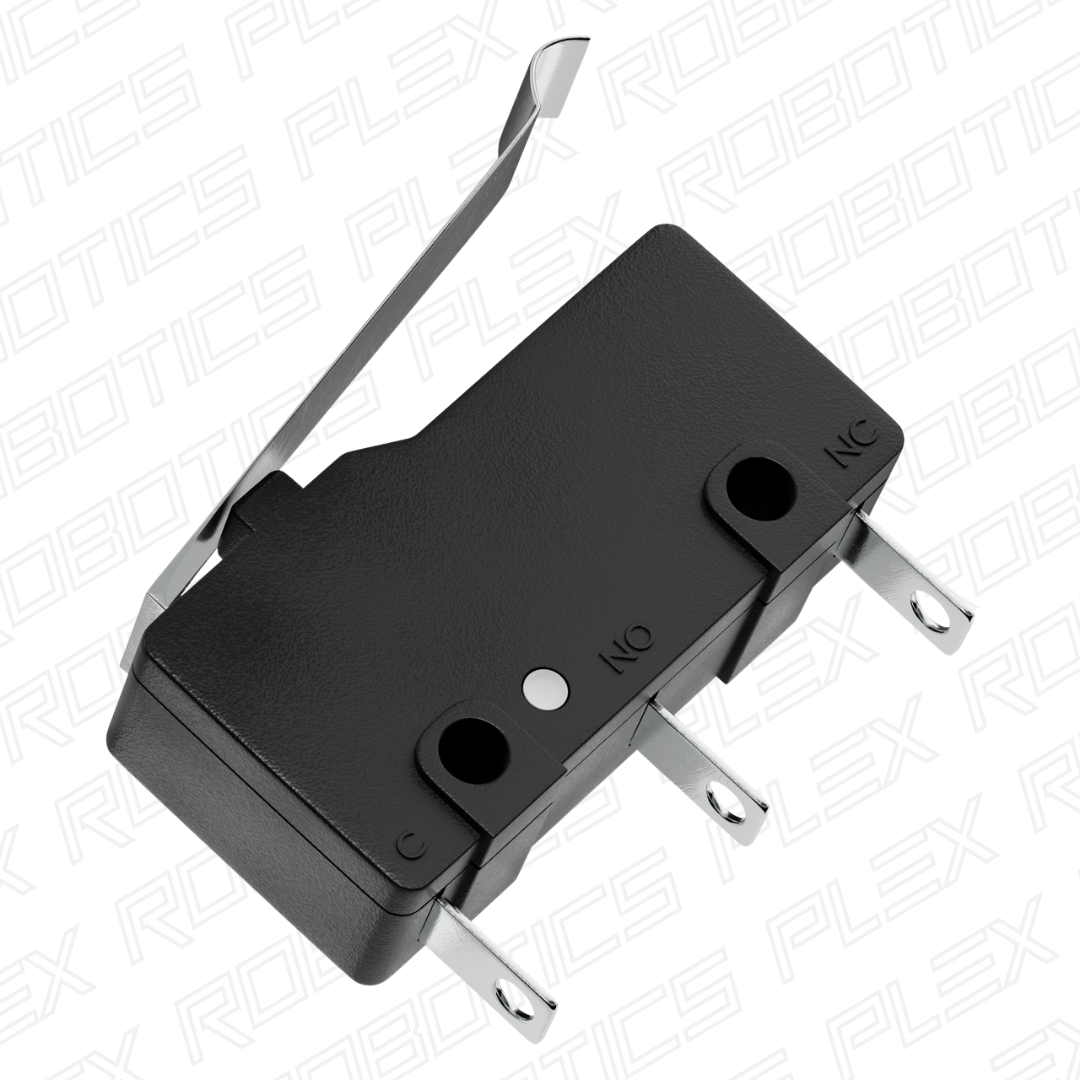

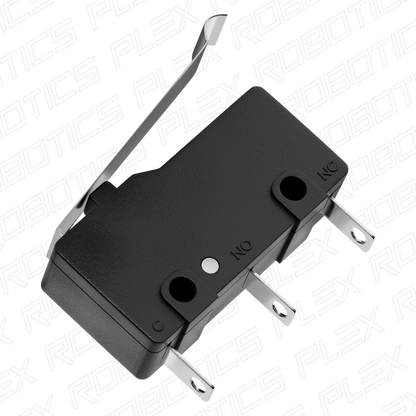

Bump Lever
This switch has a bump, sometimes referred to as an imitation roller, on the end of the lever. The bump creates a consistent point of contact for accurate switch actuation.
Downloads
Specs
| Weight | 2.0g Each |
|---|---|
| Switch Style | SPDT Momentary Limit Switch |
| Max Current | 6A |
| Max Voltage | 250VAC |
| Connector Style | 3.2mm Width Spade Terminals |
| Continuous Current | 2A |
| Switching Life | 200,000 Cycles |
| Environmental Temperature | -25-85℃ |
| Contact Resistance | ≤0.02Ω |
| Insulation Resistance | ≥100MΩ |
