REV Robotics
Magnetic Limit Switch
Magnetic Limit Switch
REV-31-1462Regular price
121,80 lei
Regular price
152,30 lei
Sale price
121,80 lei
Unit price
/
per
Tax included.
Couldn't load pickup availability

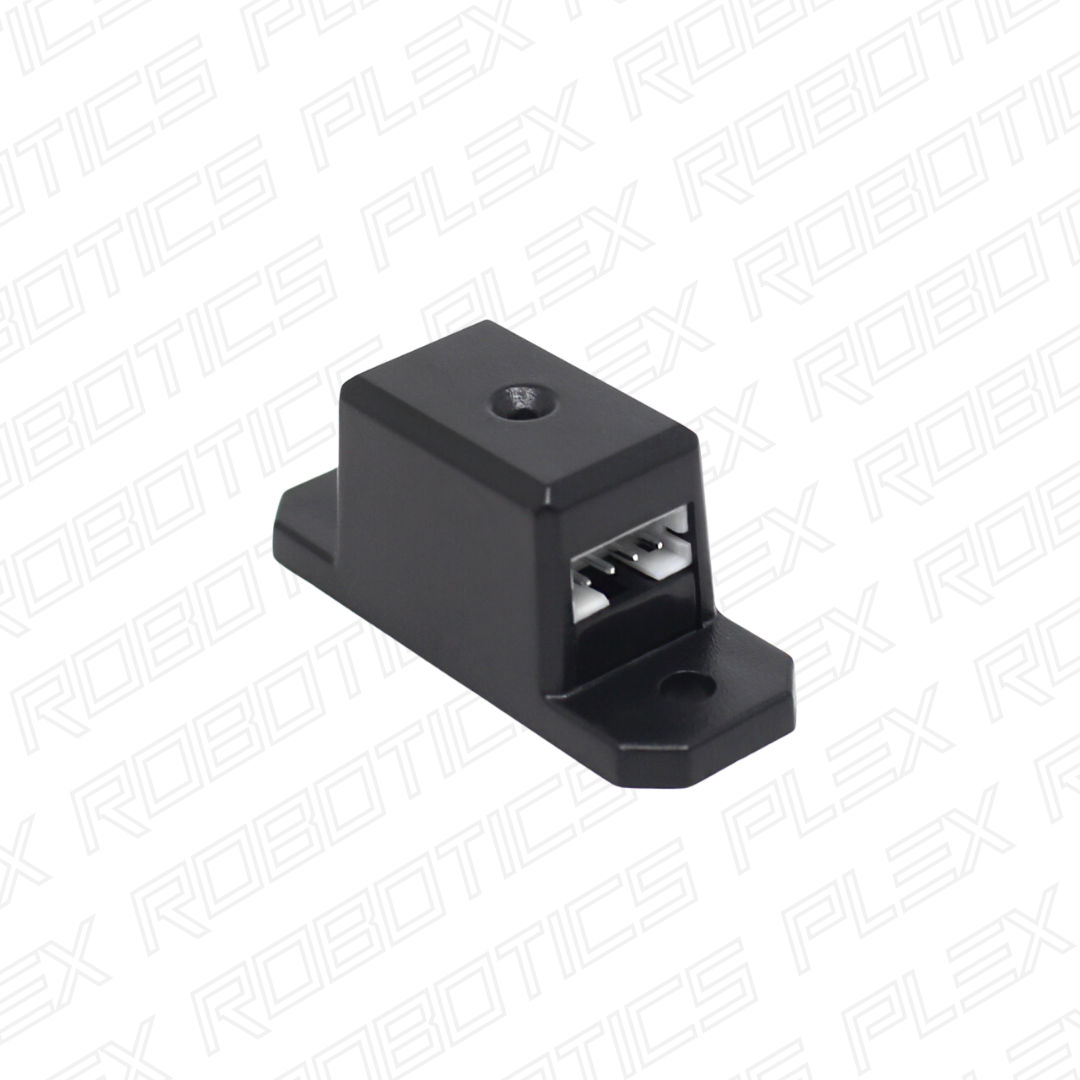

The Magnetic Limit Switch is a three-sided active-low digital hall effect switch with three internal hall effect elements located on the top and sides of the sensor. The three elements are connected in parallel so that any one of them will trigger the sensor.
Hall effect sensors detect the presence of magnetic fields. The Magnetic Limit Switch is an omnipolar momentary switch meaning it will trigger when there is sufficient field strength of either magnetic pole (north or south) detected.
Specifications
- Sensor Type: Digital, Active-low
- Voltage Range: 3.3V - 5.0V
- Signal Pinout: n & n+1
- Magnetic Polarity: Omnipolar (both north & south)
- Typical Trigger Distances*
- Top: 10mm
- Side: 5mm
- Typical Hysteresis*: 5mm
- Typical Included Magnet Strength: 4300G (0.43T)
*Using the included magnet
Kit Contents
| SKU | PRODUCT NAME | QUANTITY |
| REV-31-1462 | Magnetic Limit Switch | QTY 1 |
| Magnet with Mounting Tabs | QTY 2 | |
| REV-31-1407 | JST PH 4-pin Sensor Cable - 30cm | QTY 1 |
