HSR-1425CR Servo
HSR-1425CR Servo
31425CRRegular price
176,00 lei
Regular price
Sale price
176,00 lei
Unit price
per
Tax included.
SKU: 31425CR
Couldn't load pickup availability

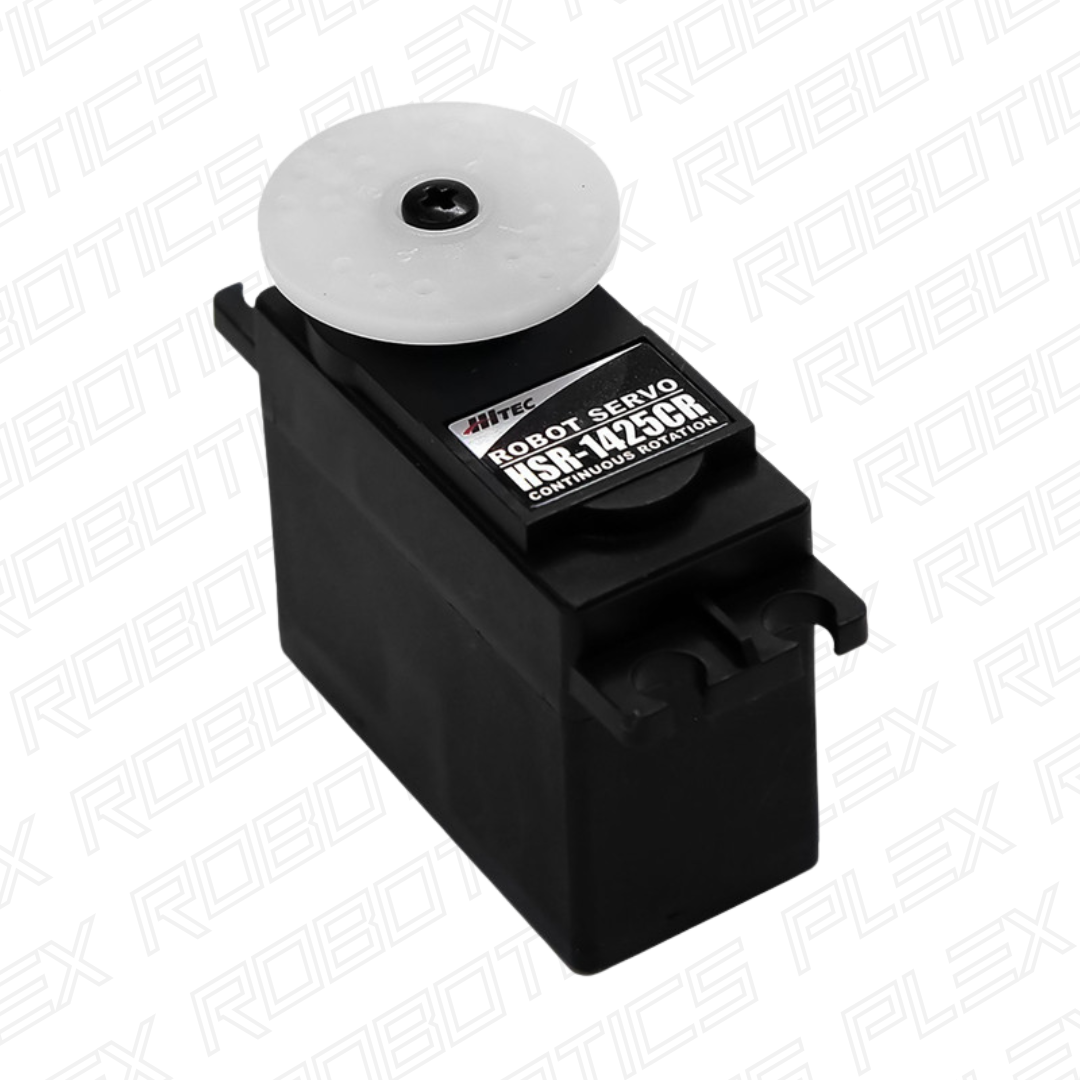

The HSR-1425CR is the continuous rotation version of the HS-425BB. The speed is proportional meaning that the further the PWM signal deviates from the idle signal (approximately 1500usec) the faster the servo will rotate. If you're looking for the smoothest continuous rotation servo, be sure to check out the HSR-2645CRH or HSR-2648CR 25 tooth spline servo.
Tech Tips
Specs
| Output Shaft Style | C24T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 44 rpm |
| No-Load Speed (6.0V) | 52 rpm |
| Stall Torque (4.8V) | 38.8 oz-in (2.8 kg-cm) |
| Stall Torque (6.0V) | 42 oz-in (3.1 kg-cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 3mA |
| Current Drain - idle (6.0V) | 3mA |
| Continuous Rotation Modifiable | Completed (stock) |
| Direction w/ Increasing PWM Signal | Clockwise |
| Motor Type | Brushed |
| Feedback Style | This servo does not have position feedback |
| Output Shaft Support | Dual Ball Bearing MR106 |

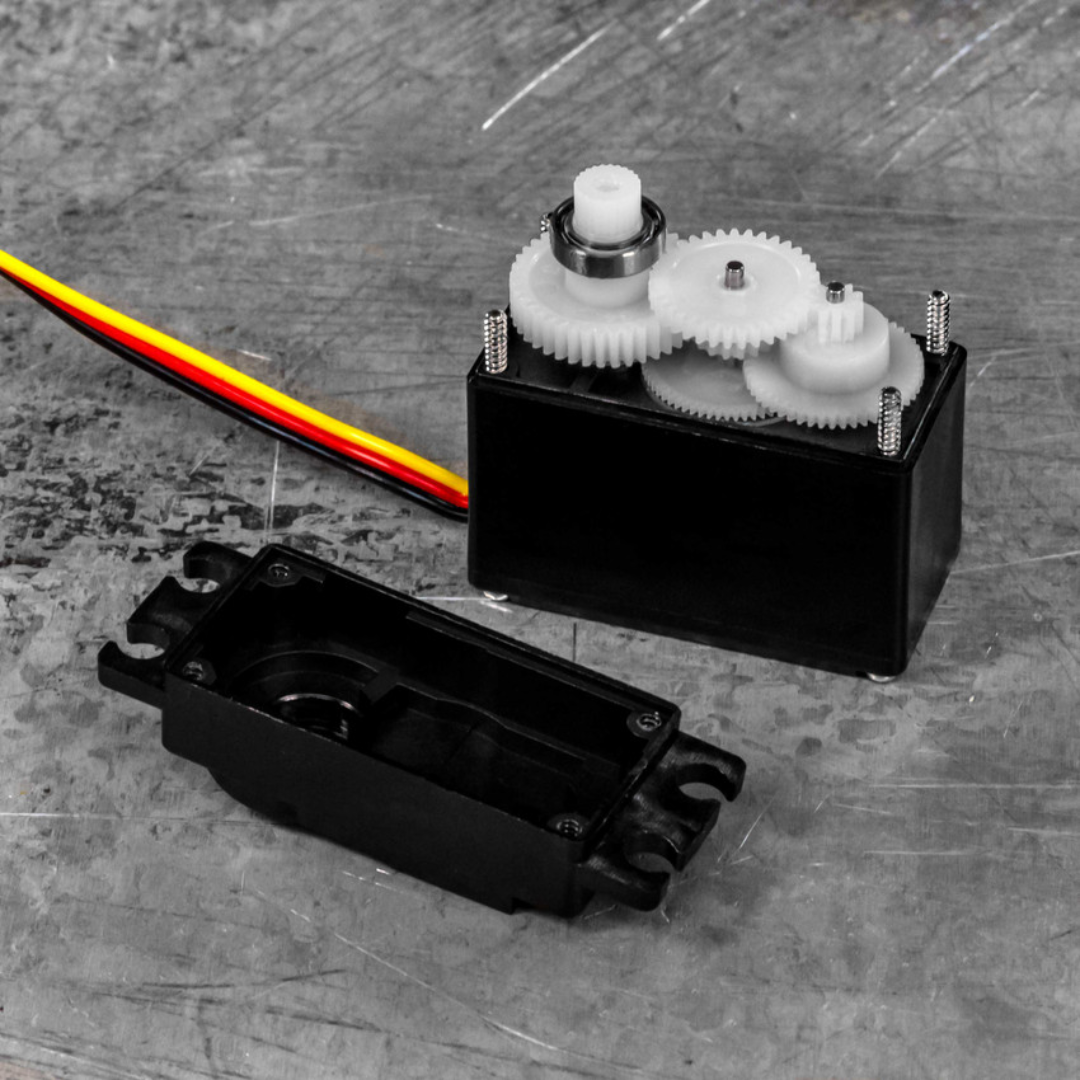

| Gear Material | Nylon |
| Wire Length | 7" (178mm) |
| Weight | 1.47oz (41.7g) |
| Wire Gauge | 25AWG |
| Servo Size | Standard |
| Max PWM Signal Range | 1200-1800µsec |
