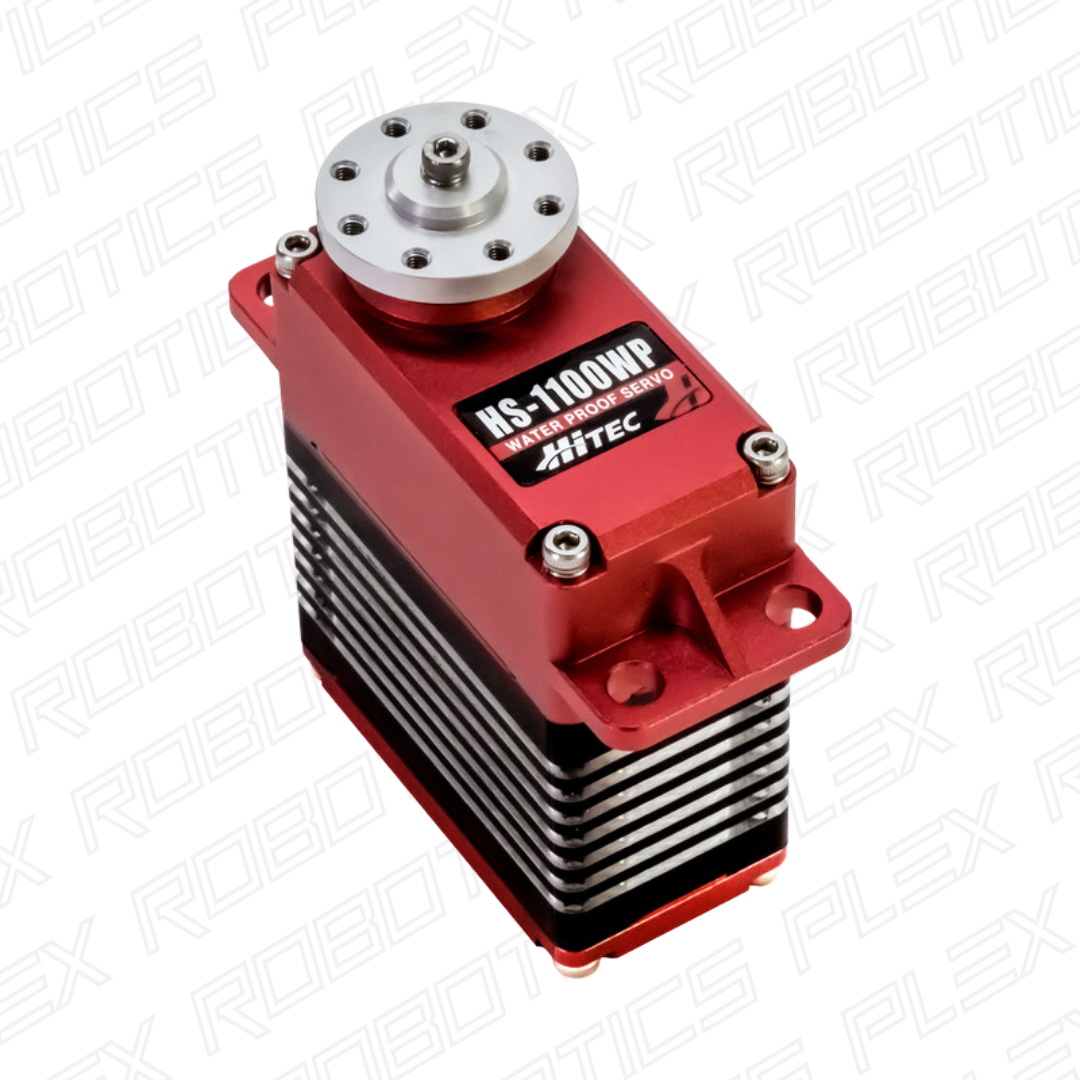

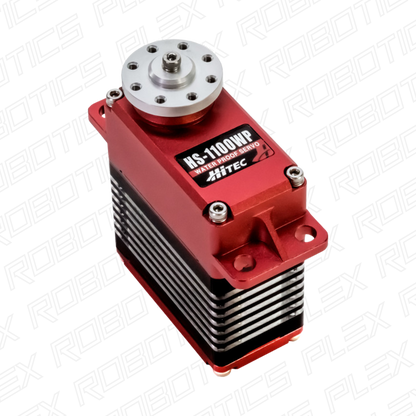

HS-1100WP Servo
HS-1100WP Servo
34110SKU: 34110
Couldn't load pickup availability
Giant scale servos, watch out! Hitec's HS-1100WP waterproof, heavy-duty digital giant brings out-of-this-world torque performance and strength to all your large scale vehicles, airplanes and robotic projects. Made with impressively durable steel gears, robust EMI-shielded cases and an IP-67* rated code for maximum underwater protection, this addition to our giant servo line has Hitec's unrivaled industrial digital circuitry and engineering. Your world just got BIGGER with the HS-1100WP!
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
89°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
139°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
139°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Features

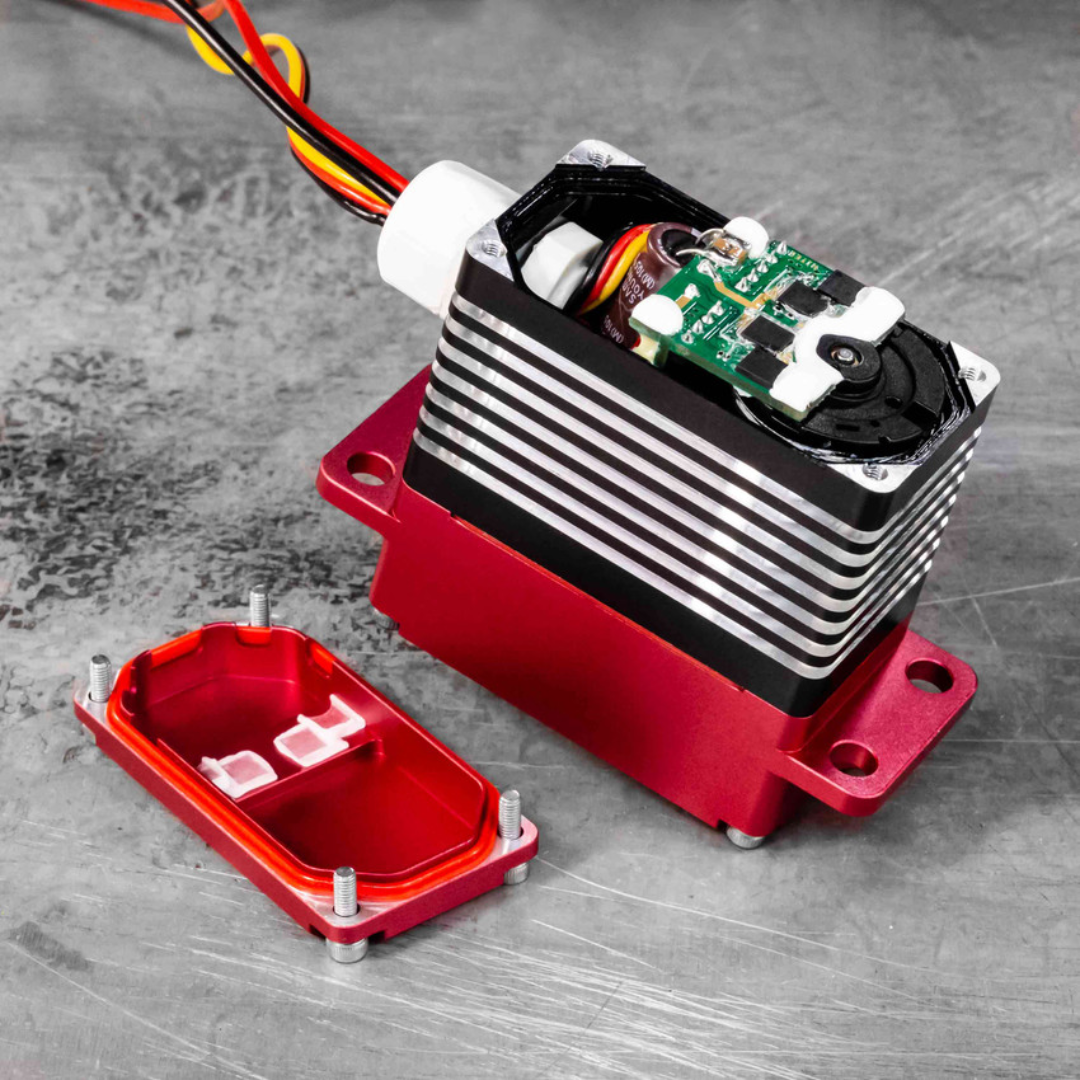

- Non-programmable, Industrial Digital Circuitry
- EMI-shielded Cases
- Water Resistant (IP67)

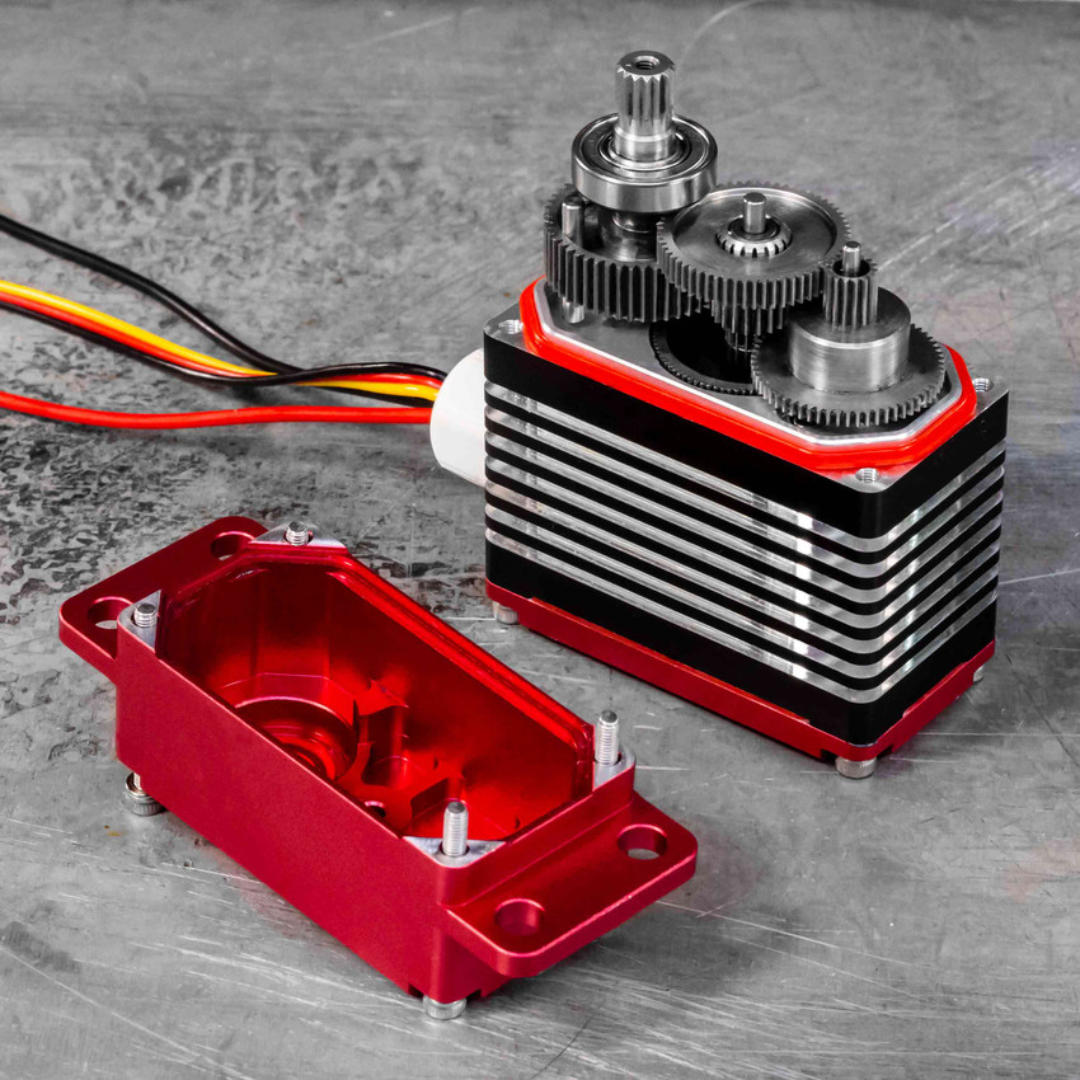

- Durable Steel Gears
- 4S LiPo Compatible
- 5-Pole Carbon Brushed Motor
Tech Tips
Specs
| Output Shaft Style | D15T Spline |
|---|---|
| Voltage Range | 11.1V - 14.8V |
| No-Load Speed (11.1V) | 0.26 sec/60° |
| No-Load Speed (14.8V) | 0.19 sec/60° |
| Stall Torque (11.1V) | 1167 oz-in (84 kg.cm) |
| Stall Torque (14.8V) | 1528 oz-in (110 kg.cm) |
| Motor Type | 5-Pole Carbon Brushed Motor |
| Gear Material | Steel |
| Weight | 12.80 oz (363g) |
| IP Rating | IP67 |
| Servo Size | Large |
| Max Rotation | 139° |
| Travel per µs | 0.099°/μsec |
| Max PWM Signal Range | 800-2200µsec |
