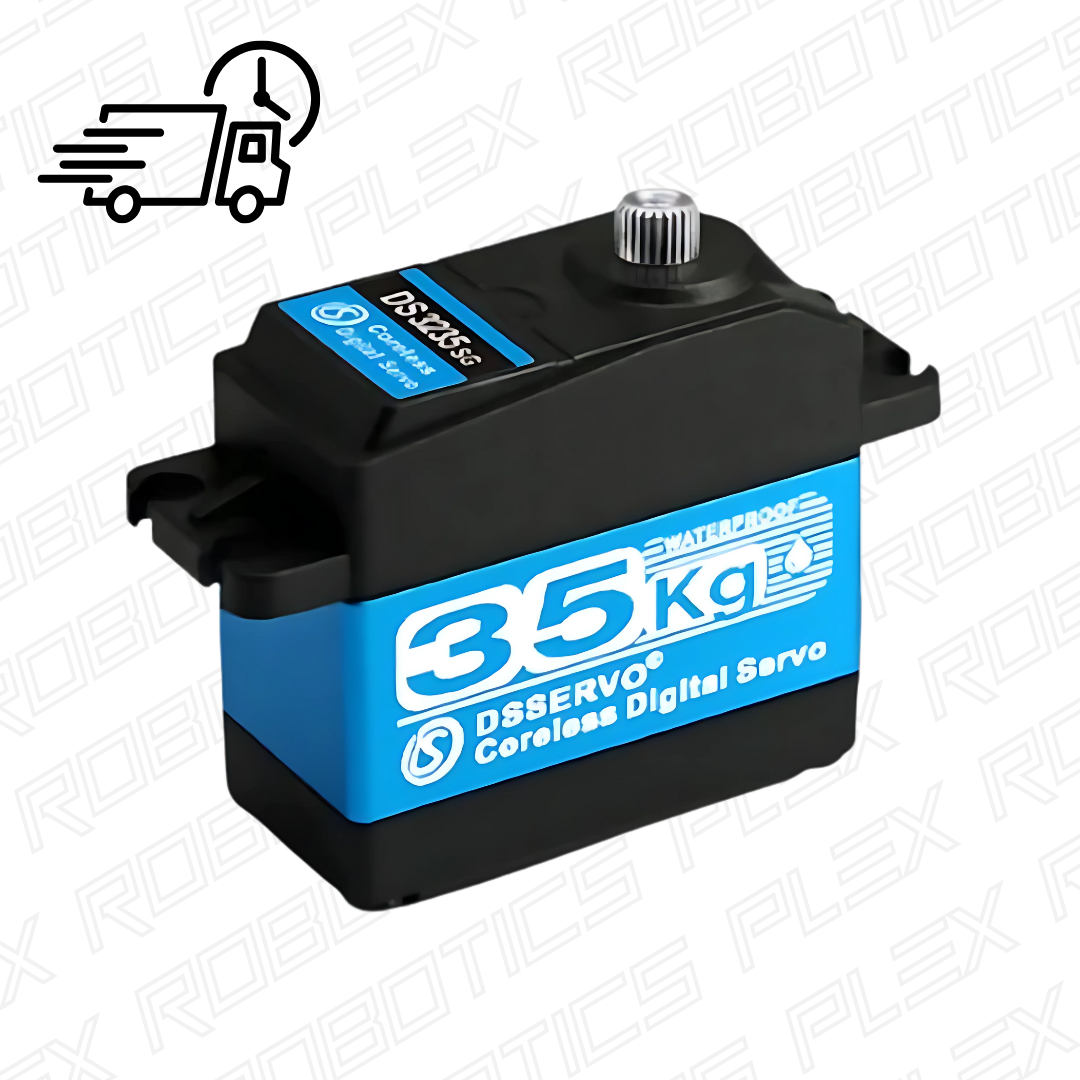

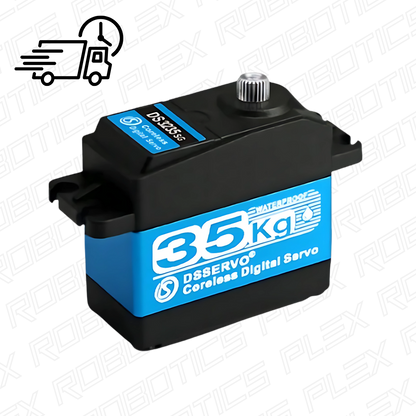

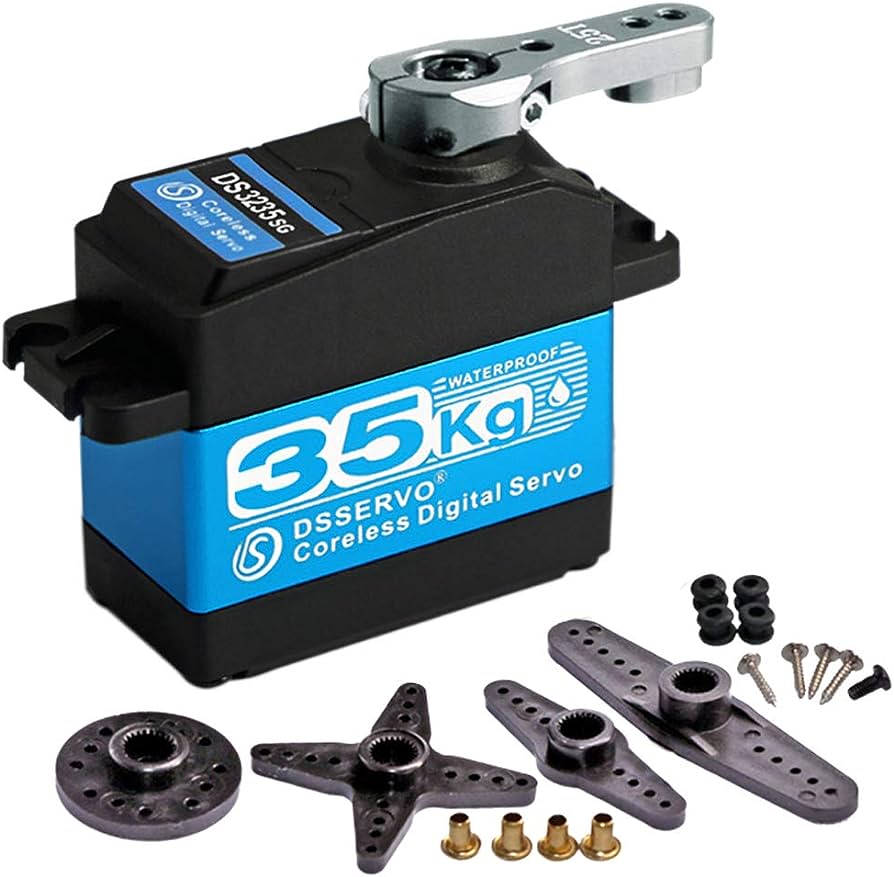

DSServo DS3235SG Servo

FTC-Legal for FIRST Tech Challenge competition robots

The DSServo DS3235SG is a high-performance waterproof servo designed for 1/10 and 1/8 scale RC vehicles, including crawlers, buggies, and trucks. It features precision potentiometers and a high-resolution digital chip, providing smooth, interference-free control. With a full IP66 waterproof rating, this servo is well-suited for water game challenges and wet environments. Its stainless steel and aluminum geartrain ensures reliable durability under demanding conditions, while the coreless motor offers fast response, high speed, excellent efficiency, and reduced power consumption—delivering a top-tier experience in both RC and competitive robotics.

If continuously powered after initialization (such as through a dedicated servo power module), the servo will retain its last known position. To reset, simply power cycle the robot.

Technical Specifications

• Operating Voltage: 5.0 ~ 7.4V DC
• Stall Torque: 32 kg-cm (6V), 35 kg-cm (7.4V)
• Speed: 0.13 sec/60° (6V), 0.12 sec/60° (7.4V)
• Stall Current: 1.9A (5V), 2.1A (6V), 2.3A (7.4V)
• PWM Range: 500~2500 μsec
• Operating Angle: 270°
• Dead Band: 3 μsec
• Rotation Direction: Counterclockwise (500–2500 μsec)
• Motor Type: Coreless
• Gearbox: Stainless Steel and Aluminum
• Output Spline: 25T, M3 thread
• Weight: 60g
• Cable Length: 45 mm (1.77 in)

Note: Torque and speed values are measured under ideal conditions and do not account for transmission efficiency losses.

.STEP (CAD)
