DFRobot Huskylens AI Camera

Legal for the FIRST Tech Challenge robotics competition, according to the 2023-2024 Legal and Illegal Parts List (Page 12).

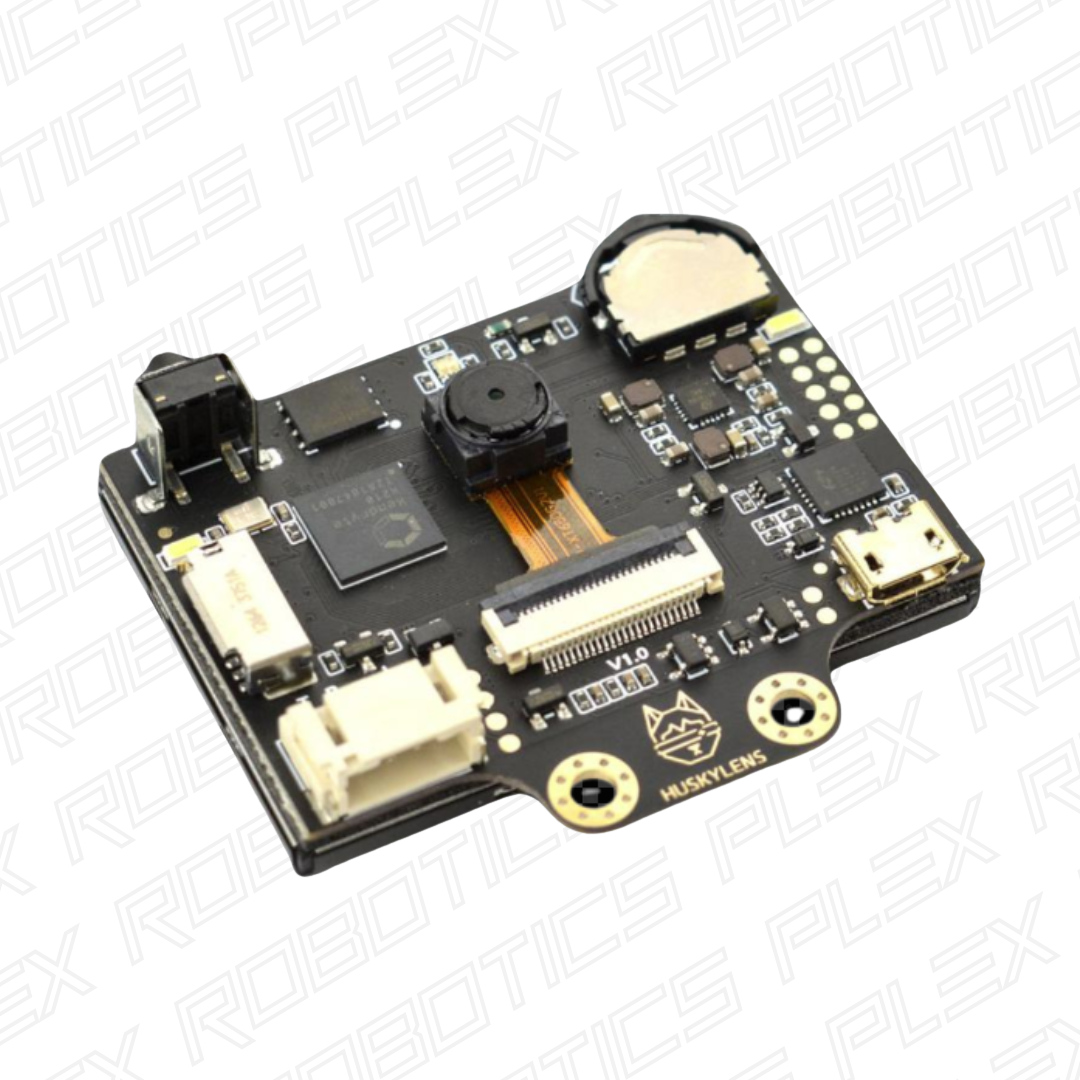

Huskylens is an easy-to-use AI camera / sensor. Huskylens is equipped with several functions such as face recognition, object tracking, object recognition, line tracking, color recognition and tag (QR code) recognition.

Through the UART / I2C port, HuskyLens can connect to popular main control boards such as Arduino, micro:bit, Raspberry Pi and LattePanda to help you make very creative projects without complicating yourself with complex algorithms.

The HuskyLens AI Camera is designed to be intelligent. It has built-in machine learning technology that allows HuskyLens to recognize faces and objects. Moreover, by long-pressing the learning button, HuskyLens can continuously learn new things, even from different angles and at different intervals. The more it learns, the more accurate it is.

Huskylens adopts the new generation specialized AI chip Kendryte K210. The performance of this special AI chip is 1,000 times faster than the STM32H743 when running a neural network algorithm. With these excellent performances, it is able to capture even fast-moving objects.

With HuskyLens, your projects have new ways to interact with you or the environment, such as interactive gesture control, autonomous robot, intelligent access control and interactive toy. There are so many new apps for you to explore.

Technical specifications:
Processor: Kendryte K210
Image Sensor: OV2640 (2.0 Megapixels)
Operating Voltage: 3.3~5.0V
Current Consumption: 320mA@3.3V, 230mA@5.0V
Connection Interface; UART, I2C
Display: 2.0-inch IPS (320x240)
Integrated Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition
Dimensions: 52mm * 44.5mm / 2.05 x 1.75inch
Official Documentation
FTC HUSKYLENS Java Example
