Auxiliary Switch for goBILDA® Smart Dock (with Mounting Plate)
Auxiliary Switch for goBILDA® Smart Dock (with Mounting Plate)
3103-0004-0001📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 3103-0004-0001
Couldn't load pickup availability

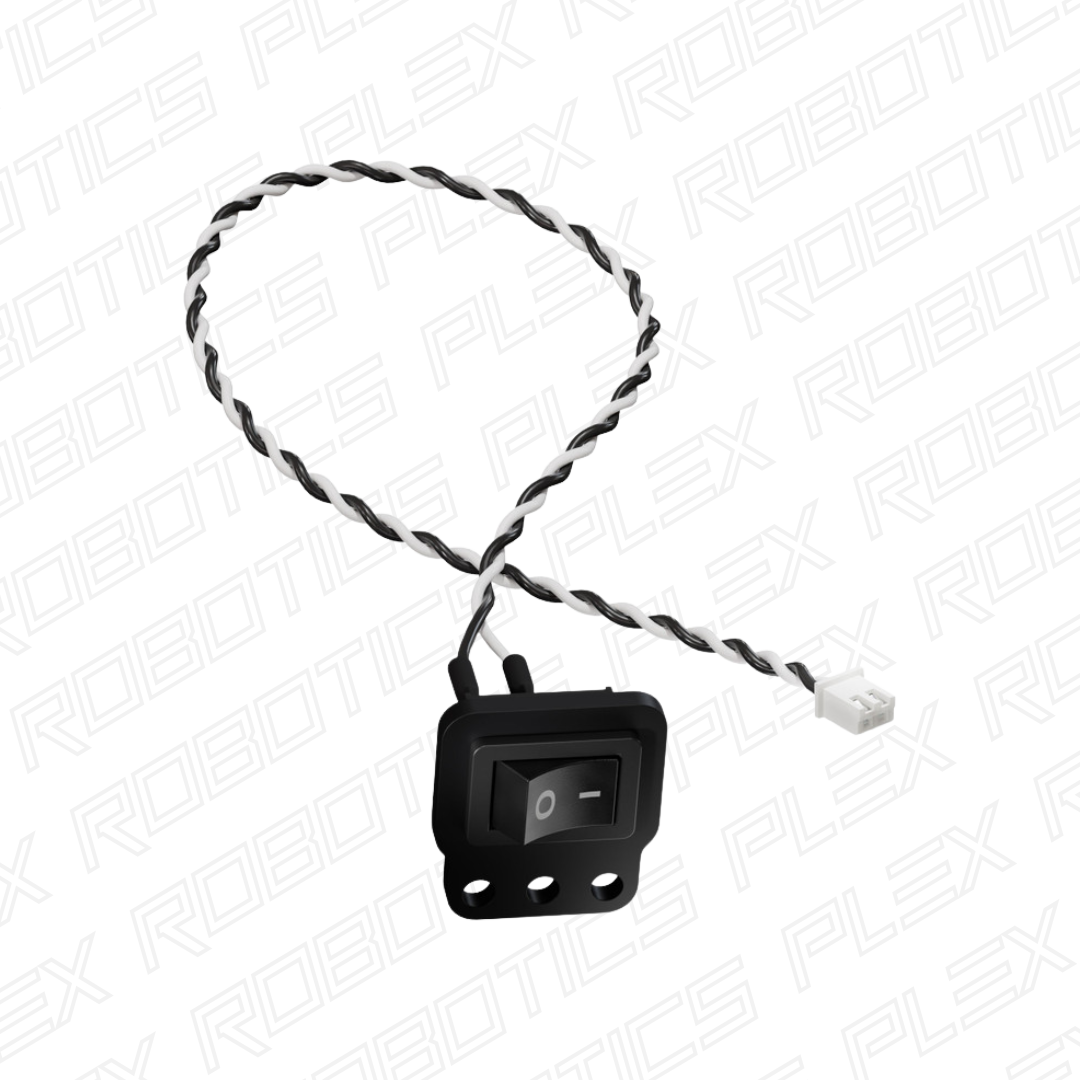

This remote switch is useful when your battery is nestled down inside your project. The switch simply plugs into the side of the goBILDA® Smart Dock via the auxiliary “SWITCH” connector and allows you to turn the Dock’s power on and off from afar.
A mounting plate with holes on the goBILDA® 8mm linear pattern is included to help you implement this switch directly into the structure of your project!
If you're using the switch without the included mounting plate, the spring-tabs of the panel mount switch allow the switch to securely snap down in a rectangular cutout for a clean and finished appearance. While that rectangular cutout will always be 12.9 - 13.1mm wide, its length required will vary according to the thickness of your material:
- 18.9 - 19.1mm length for 0.7 - 1.25mm thick
- 19.1 - 19.2mm length for 1.25 - 2.0mm thick
- 19.3 - 19.4mm length for 2.0 - 3.0mm thick
Downloads
Specs
| Weight | 9.8g (with Mounting Plate) |
|---|---|
| Wire Length | 300mm |
| Wire Guage | 22AWG |
| Jacket Material | Silicone |
| Wire Material | Copper |
| Max Voltage | 250VAC/VDC |
| Max Current | 3A (NOTE: When connected to the goBILDA® Smart Dock via the Dock's AUX port, the Switch is not subjected to the current that is drawn from the battery.) |
| Connector Style | 2- Pos JST XH (Male Housing, Female Contact) |
