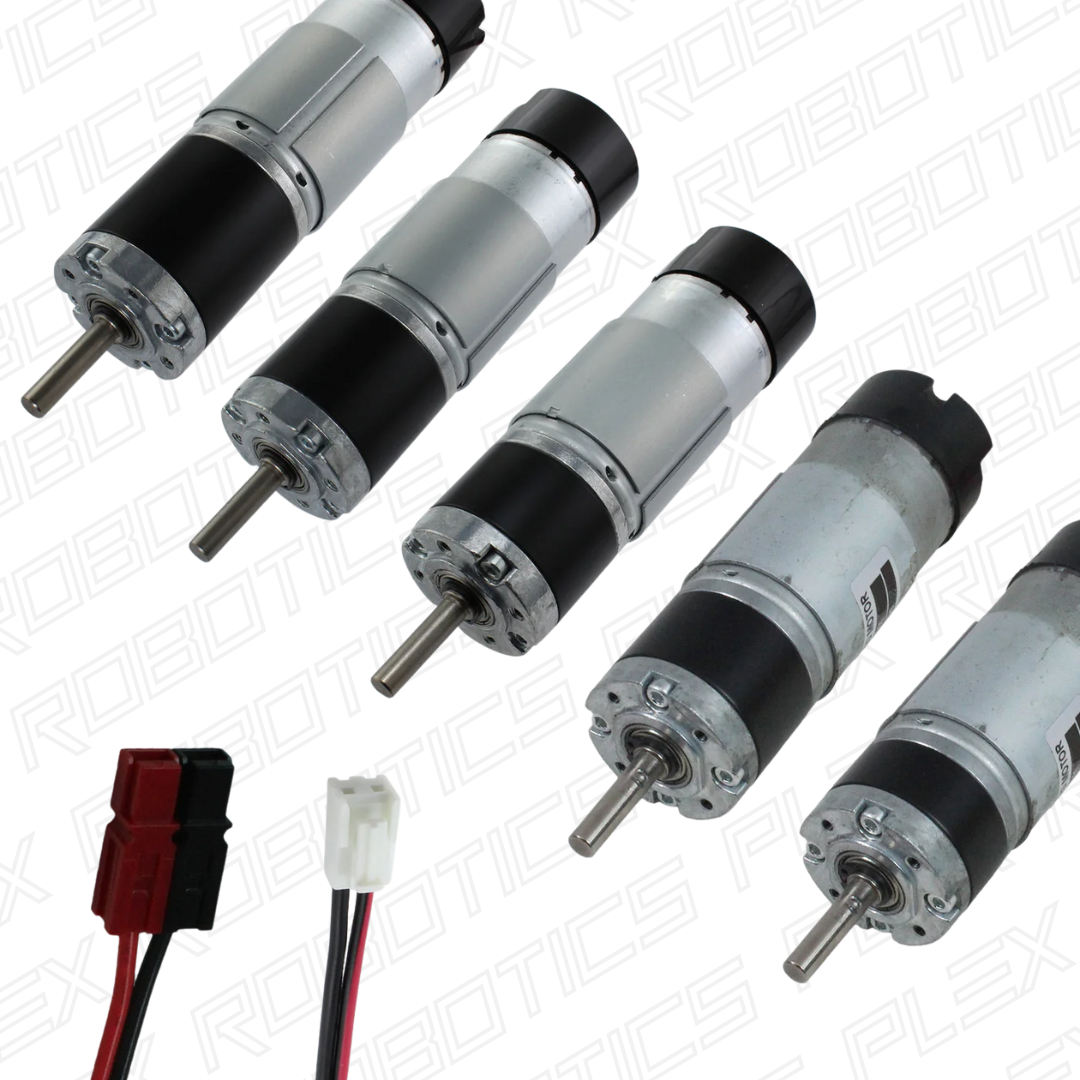

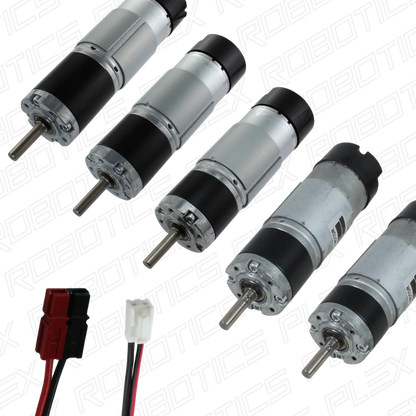

AndyMark NeveRest Orbital Gearmotors

With many ratios to choose from you can find the right motor for you, from a fast spinning intake to a high reduction arm, all are possible with NeveRest Orbitals. They have a pre-installed encoder and an output shaft directly in the center of the output face. The shaft is a 6 mm D and the gearbox housing is 37 mm in diameter.

The power cable which feeds into the black encoder housing has two different options that are already crimped to the end of the cable.

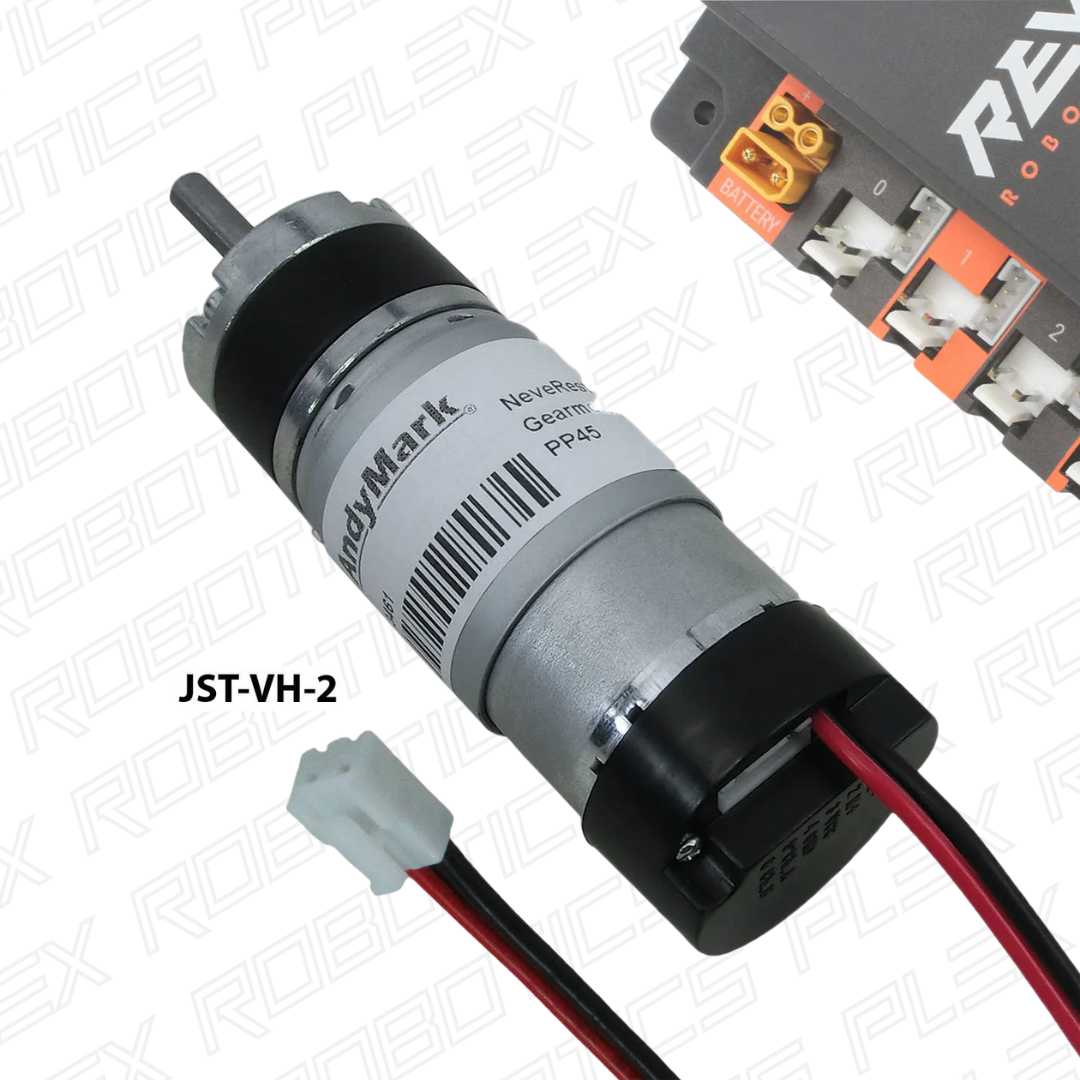

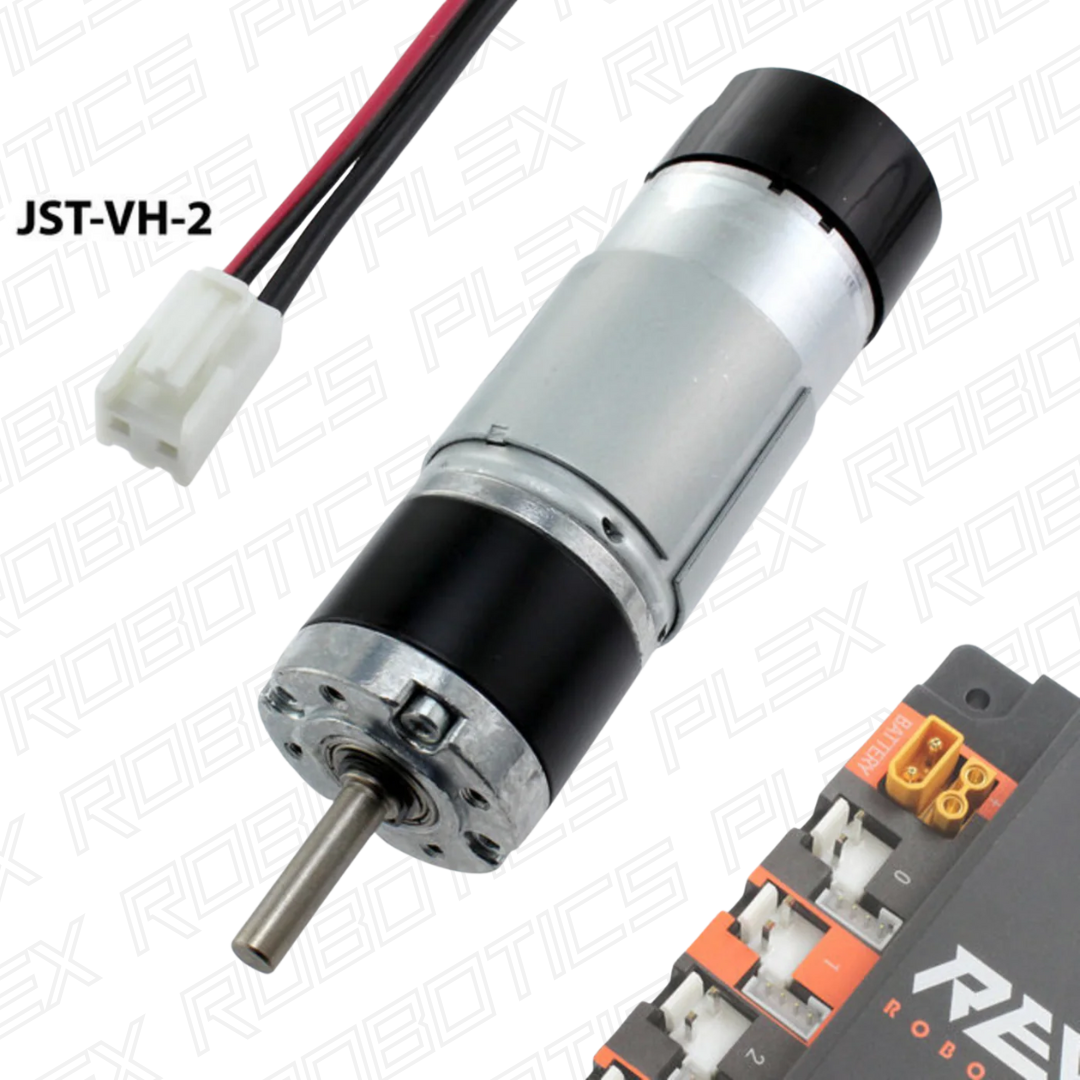

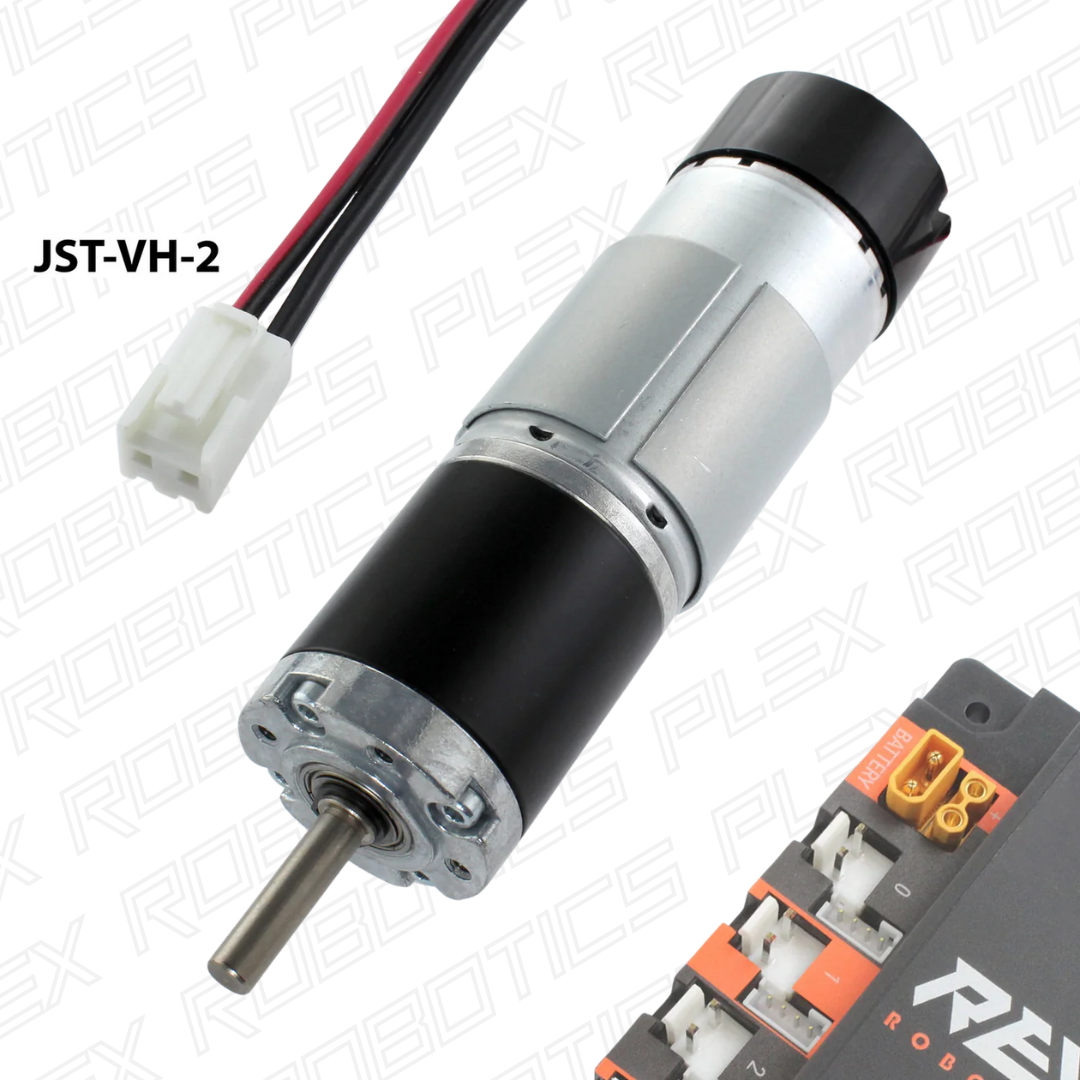

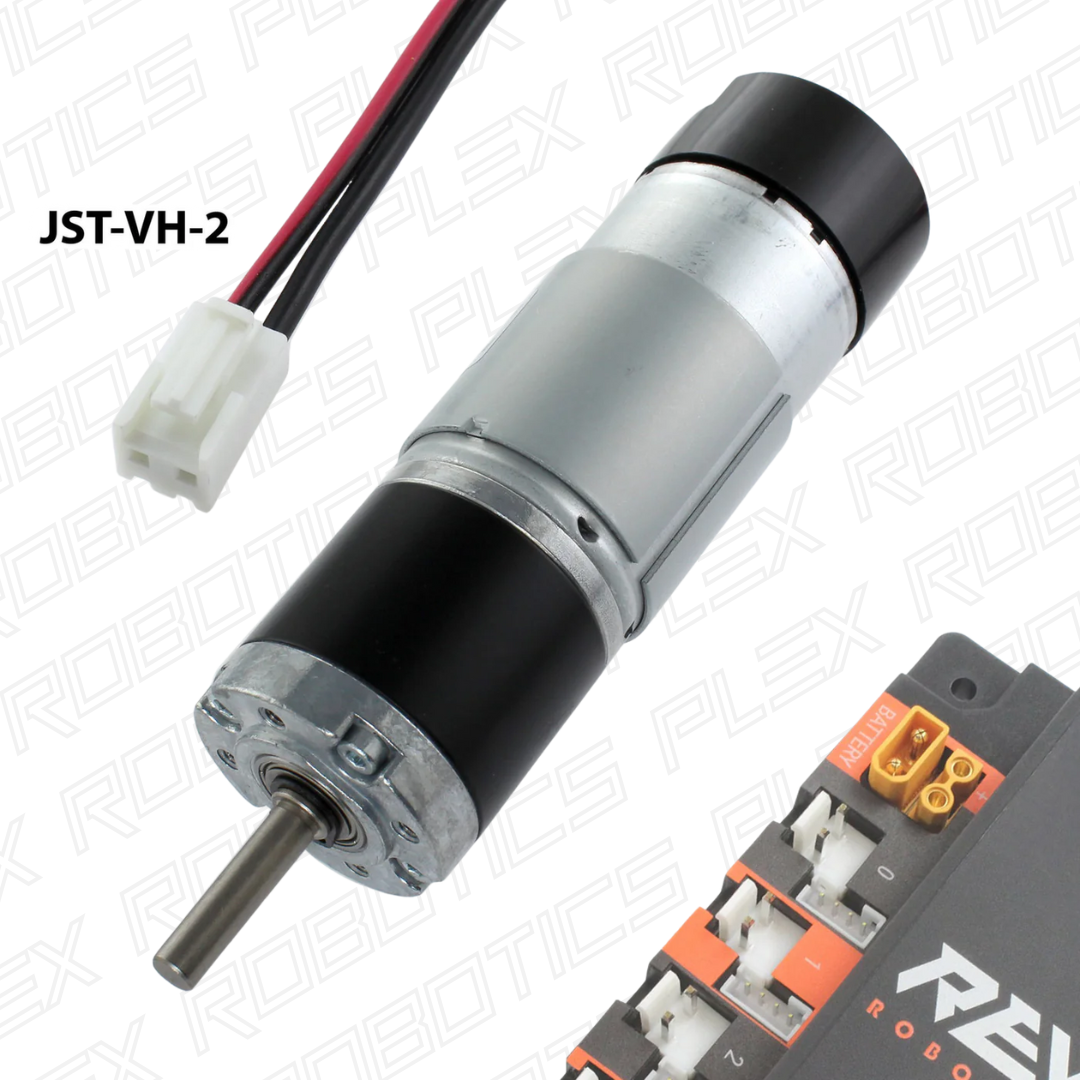

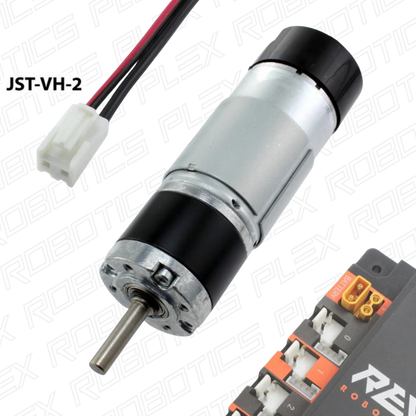

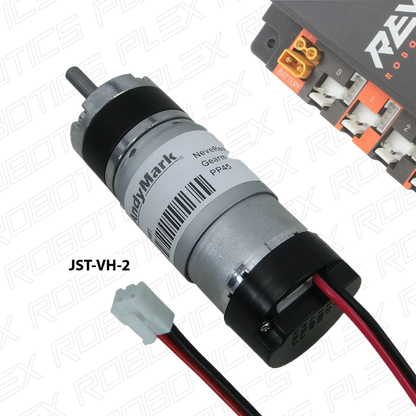

1. JST-VH-2 connectors: this option plugs directly into the FIRST Tech Challenge REV Controller

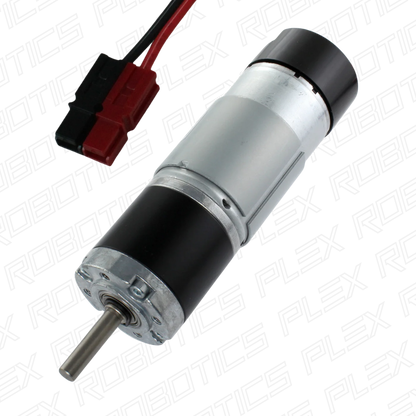

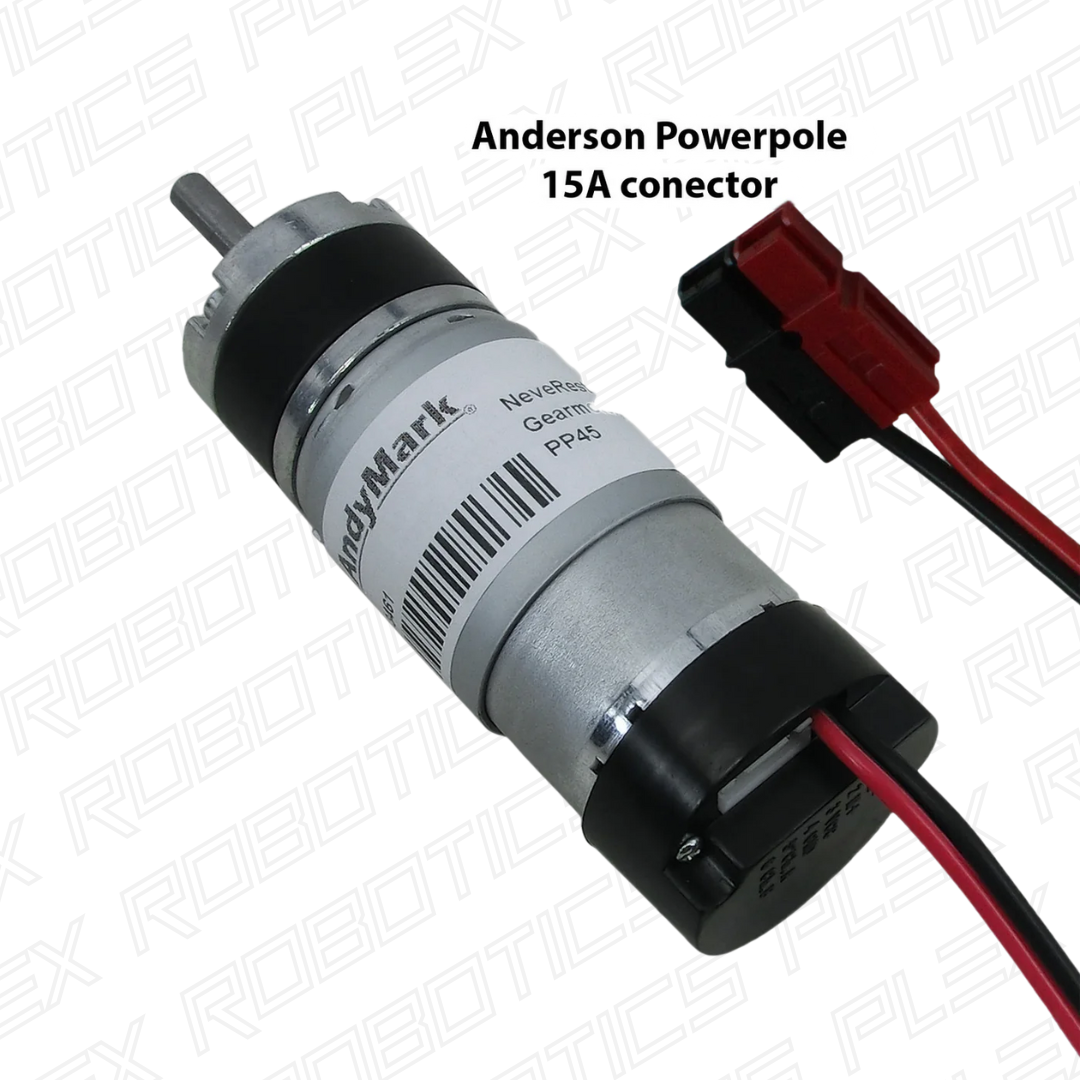

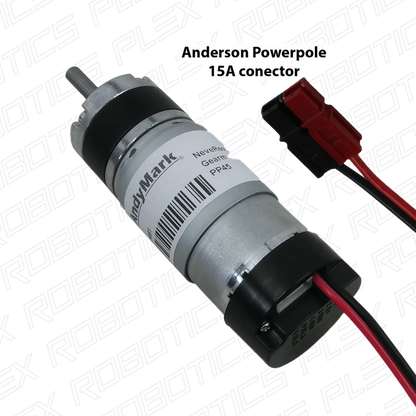

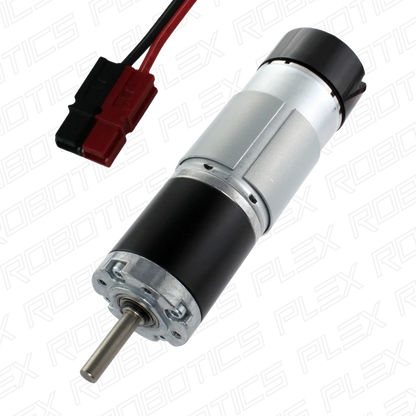

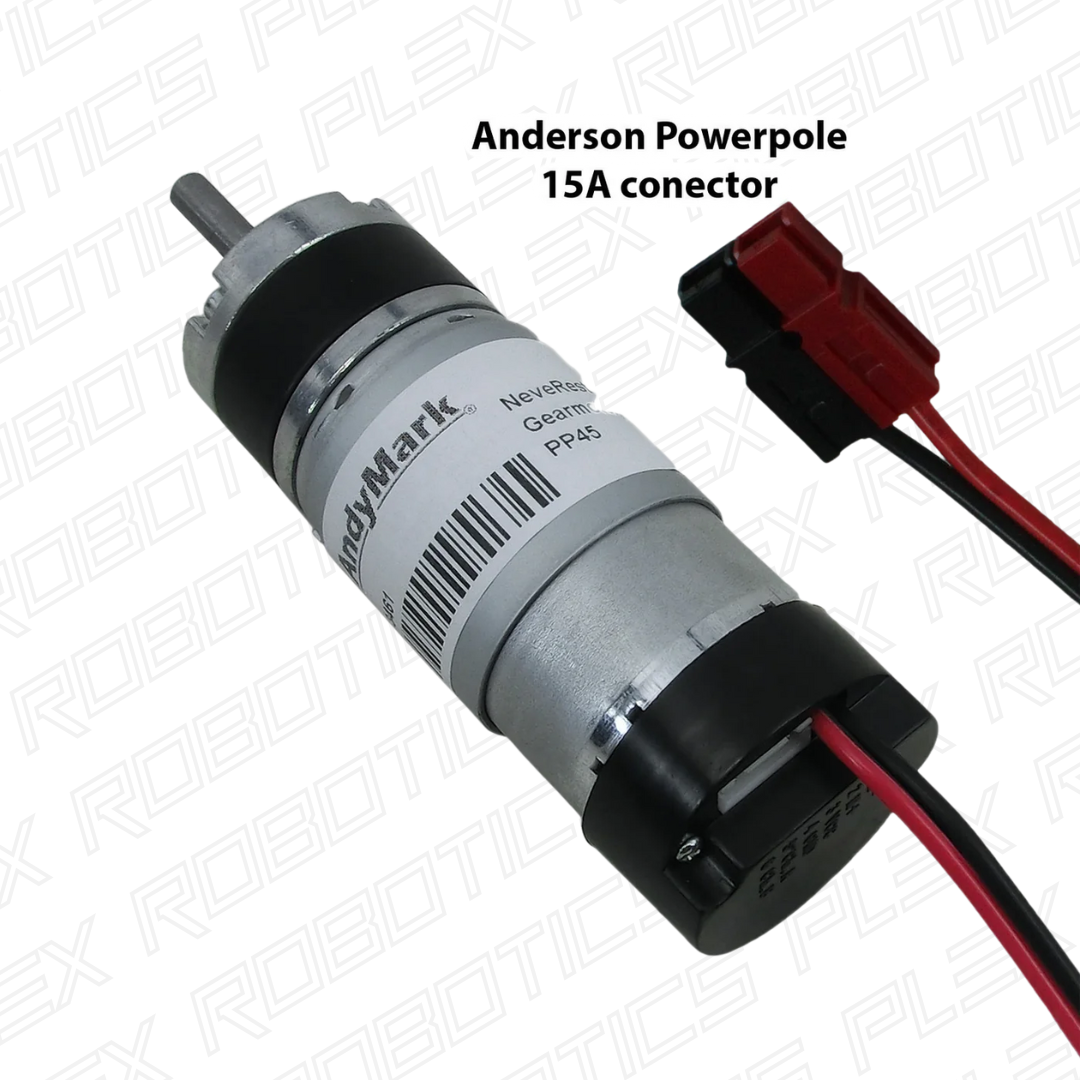

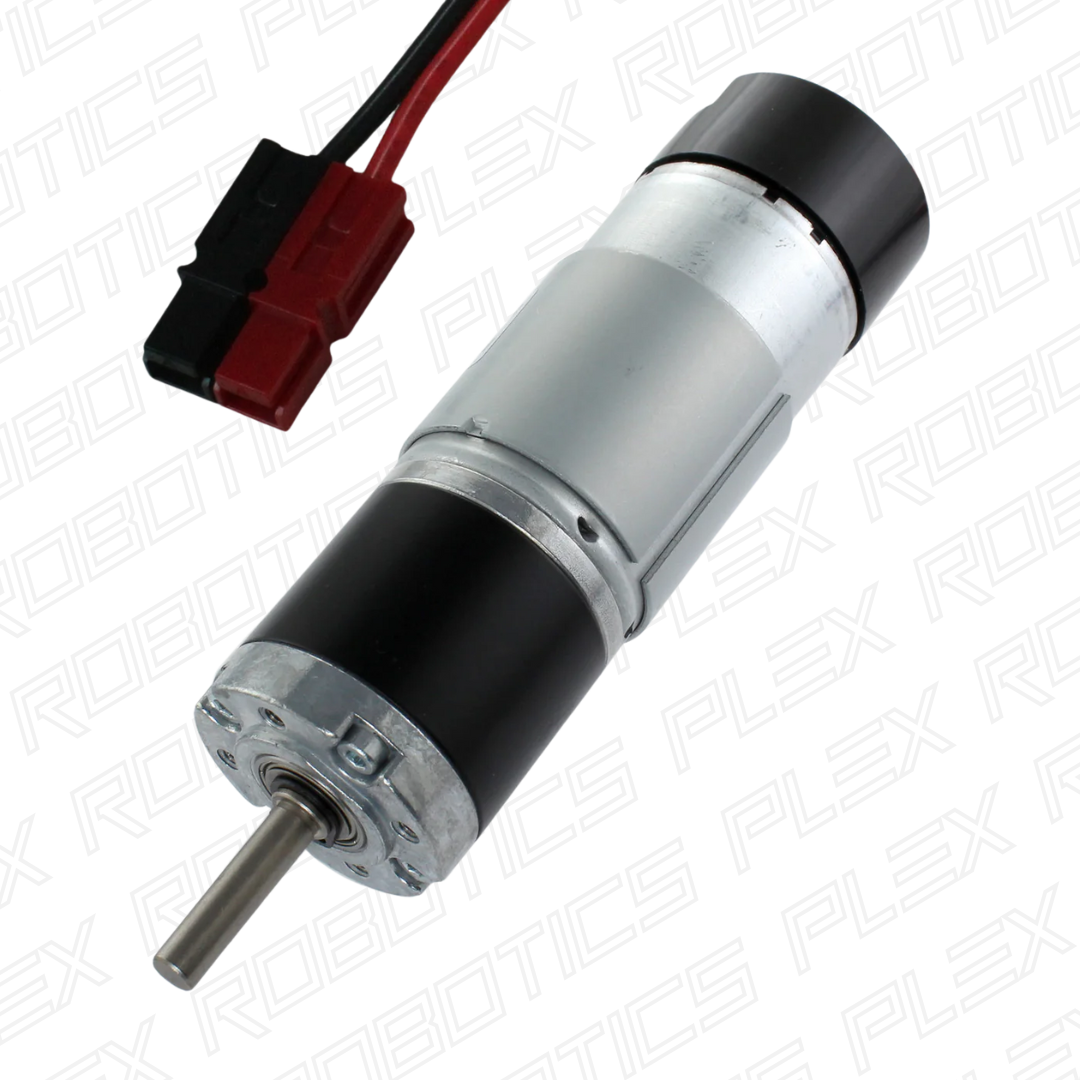

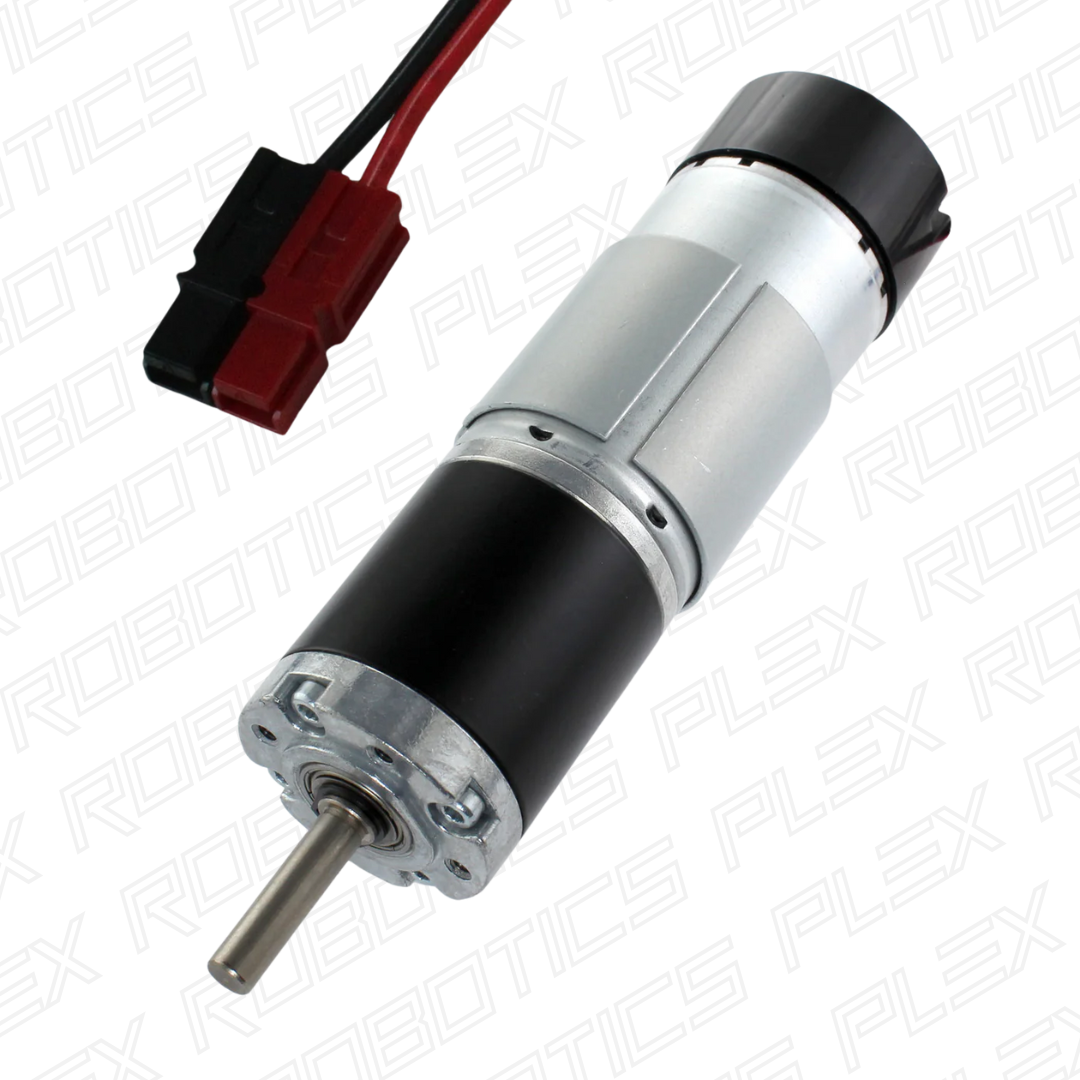

2. Anderson Powerpole 15A connectors: This is another popular connector with FTC and FRC teams.

FIRST Legality:

• According to the FIRST Tech Challenge Game Manual, all versions of the NeveRest motor are legal in FTC.
• According to the FIRST Robotics Competition Game Manual, all versions of the NeveRest motor are legal in FRC as it uses the NeveRest am-3104 motor.

Usage:

• PicoBox LEO (am-3614). This gearbox is used for creating chain drives for mechanisms like arms.
• PicoBox GEO (am-3616). This gearbox combines two NeveRest Orbital motors into a single output shaft allowing for combined power at a low ratio.
• PicoBox MEO (am-3615). This gearbox accepts one NeveRest motor and allows for gear changing through PicoBox gearing.

Encoder:
There is an encoder mounted to the backside of this motor. It is a 7 pulse per revolution (PPR), hall effect encoder. Multiply the ratio by 7 to get the PPR of the output shaft. For example the NeverRest 3.7 output shaft provides 25.9 PPR.

Encoder Cable Options:
NeveRest motors do not come with an encoder cable as we offer 3 cable options:

am-2992 has the 4 encoder pins joined in one housing using standard 0.1 in. spacing.
