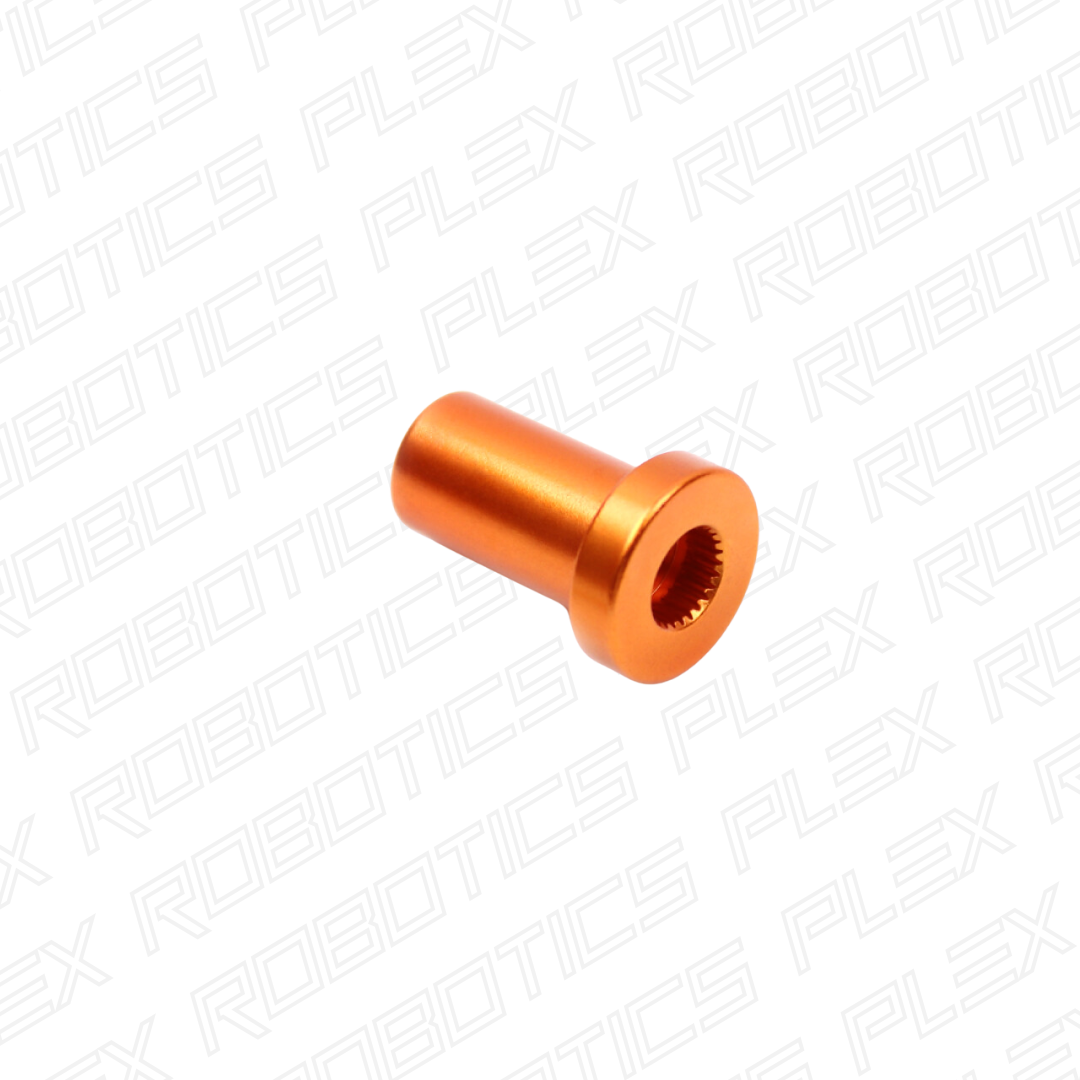

Aluminum Servo Shaft Adapter

This Servo Shaft Adapter makes it possible to drive a 5mm hex shaft with any 25T output servo including the Smart Robot Servo. The adapter attaches to the servo spline like any common servo horn and accepts a 5mm hex shaft on the opposite end. This product is the same as the plastic version, but can carry quite a bit more load.

Specifications

• Material: 6061 Aluminum
• Servo Spline Type: 25T
• ID: 5mm hex
• Inside Hex Depth: 12mm

CAD & Drawings

• REV-41-1558 STEP File
• REV-41-1558 Onshape
• REV-41-1558 Drawing
