Aluminum Servo Horn V2

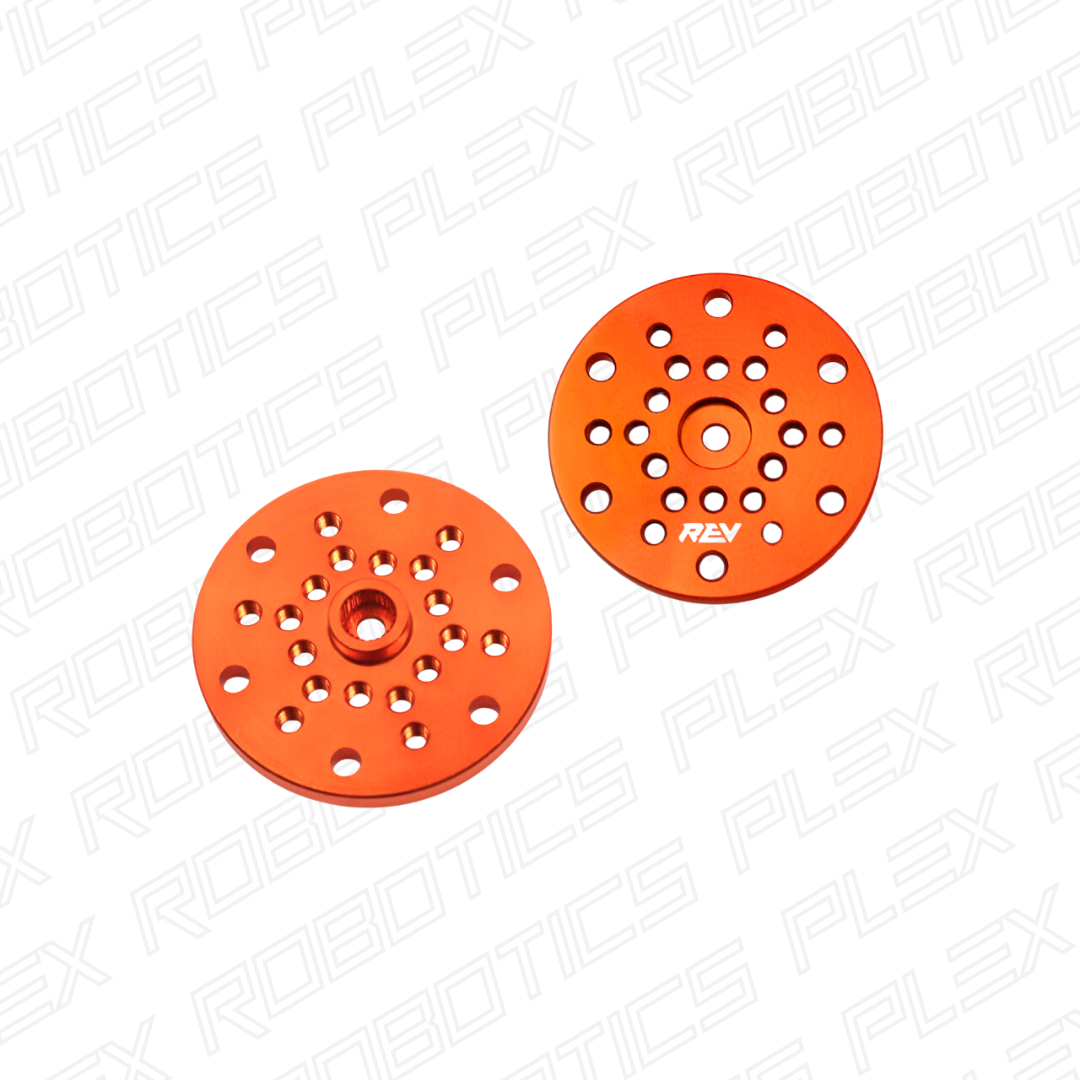

The Aluminum Servo Horn V2 is compatible with the REV Smart Robot Servo and any other servos with a standard 25T spline. Updates from the original Aluminum Servo Horn include additional tapped M3 Holes for more mounting options, 6 M3 Clearance Holes on a 16mm diameter circle to allow additional compatibility with the REV Extended Motion pattern, and a counter-bore center hole to allow the mounting screw to sit below the face of the servo horn. Lightweight but strong, for use under high and low torque applications.

Specifications

• Material: 6061 Aluminum
• Spline: 25T

Kit Contents

• QTY 1 - Aluminum Servo Horn V2
• QTY 1 - Servo Horn Screw

Documentation

• DUO Build System Guide
• DUO Build System - Servo Basics
• ION Build System Guide
• ION Build System - Servo Basics

CAD & Drawings

• REV-41-1828 STEP File
• REV-41-1828 Onshape
• REV-41-1828 Drawing
