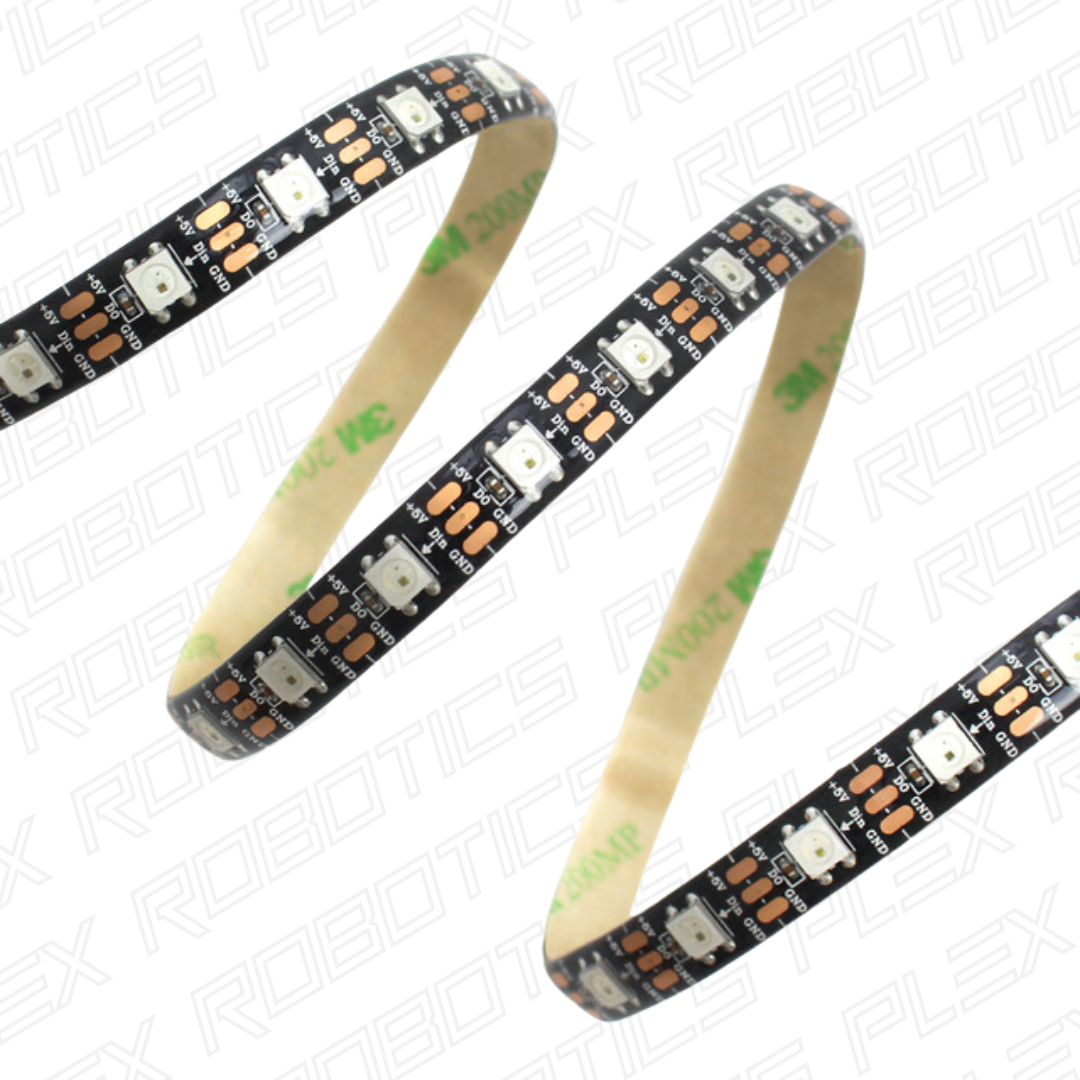

5V Addressable LED Strip - 1m

This 5V WS2812B Addressable RGB LED Strip is compatible with the REV Blinkin LED Driver (REV-11-1105). Each LED contains an integrated driver IC and three LEDs; a red, green, and blue LED. Each individual LED can be controlled to create colorful patterns.

Specifications

• 5V Supply Voltage
• WS2812B LED
• 60 LEDs/m
• One LED per segment
• 1m Strip Length
• JST SM 3-pin Connector
• IP65 - Rubberized coating
• Adhesive Backing
• 10mm Width
• Approximately 3 Amps per meter (all LEDs at full brightness)

Documentation

• Building System Guide

CAD & Drawings

• REV-11-1198 STEP File
