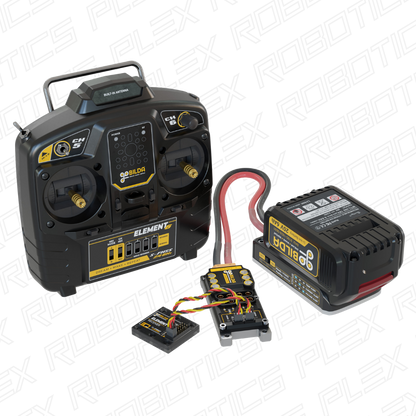

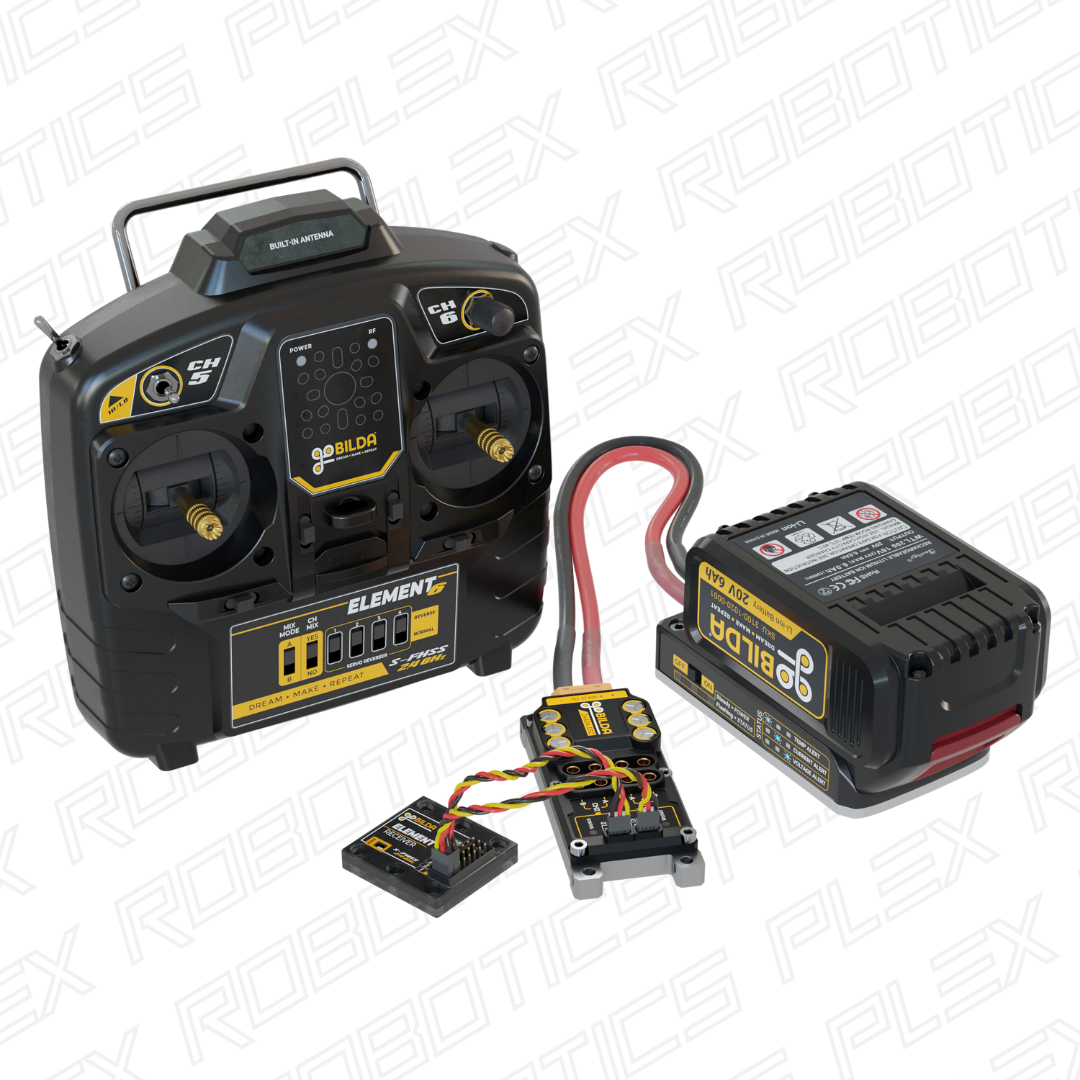

20V Radio Control Bundle

Featuring a house-curated selection of electronics, the 20V Radio Control Bundle gives you everything you need to get your chassis up and running with heavy-duty 20V action!

Element-6 Transmitter & Receiver

The tried-and-true Element-6 Radio Control System allows you to send wireless signals to the motor controller to proportionally control the speed and direction of up to four connected motors.

20V Li-ion Battery and Smart Dock

The 20V 6Ah Li-ion battery supplies power to the motor controller via the goBILDA® Smart Dock. When the battery runs low, just plug it into the included charger (with built-in overcharge and short-circuit protection!).

2x40A Motor Controller

The 2x40A Motor Controller facilitates the proportional speed and directional control of up to four brushed DC motors (two motors per channel) that have 3.5mm bullet connectors. It also sends 6.2V to the receiver via its built-in BEC.

Wiring

No soldering required—this bundle is plug-and-play! All the wiring you need to get your chassis up and running is included in the bundle.

Hardware

We've included hardware of the perfect lengths to fasten the Smart Dock, motor controller, and receiver to goBILDA® channel.

Compatibility

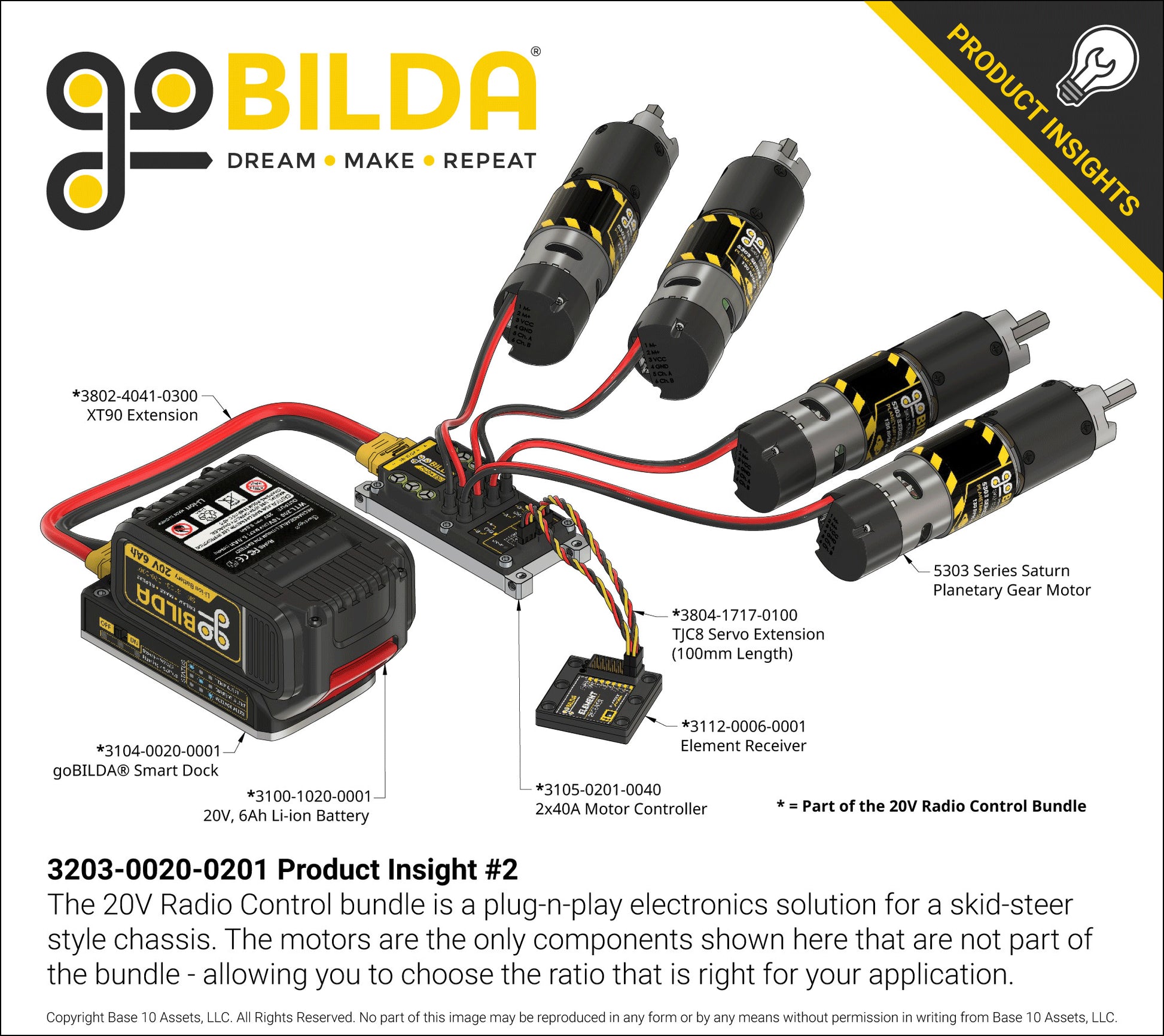

This bundle is designed to control a chassis with two or four bidirectional brushed DC motors driving in a skid-steer (four-wheel drive) or differential steer (two-wheel drive) configuration.

The heavy-duty, 20V-compatible goBILDA® Saturn Planetary Gear Motors are a perfect match for this bundle (see the Related Products section below). To use this bundle with motors that don't have 3.5mm bullet connectors, you can purchase 3.5mm bullet leads (3800-0012-0300) and solder them to your motors.

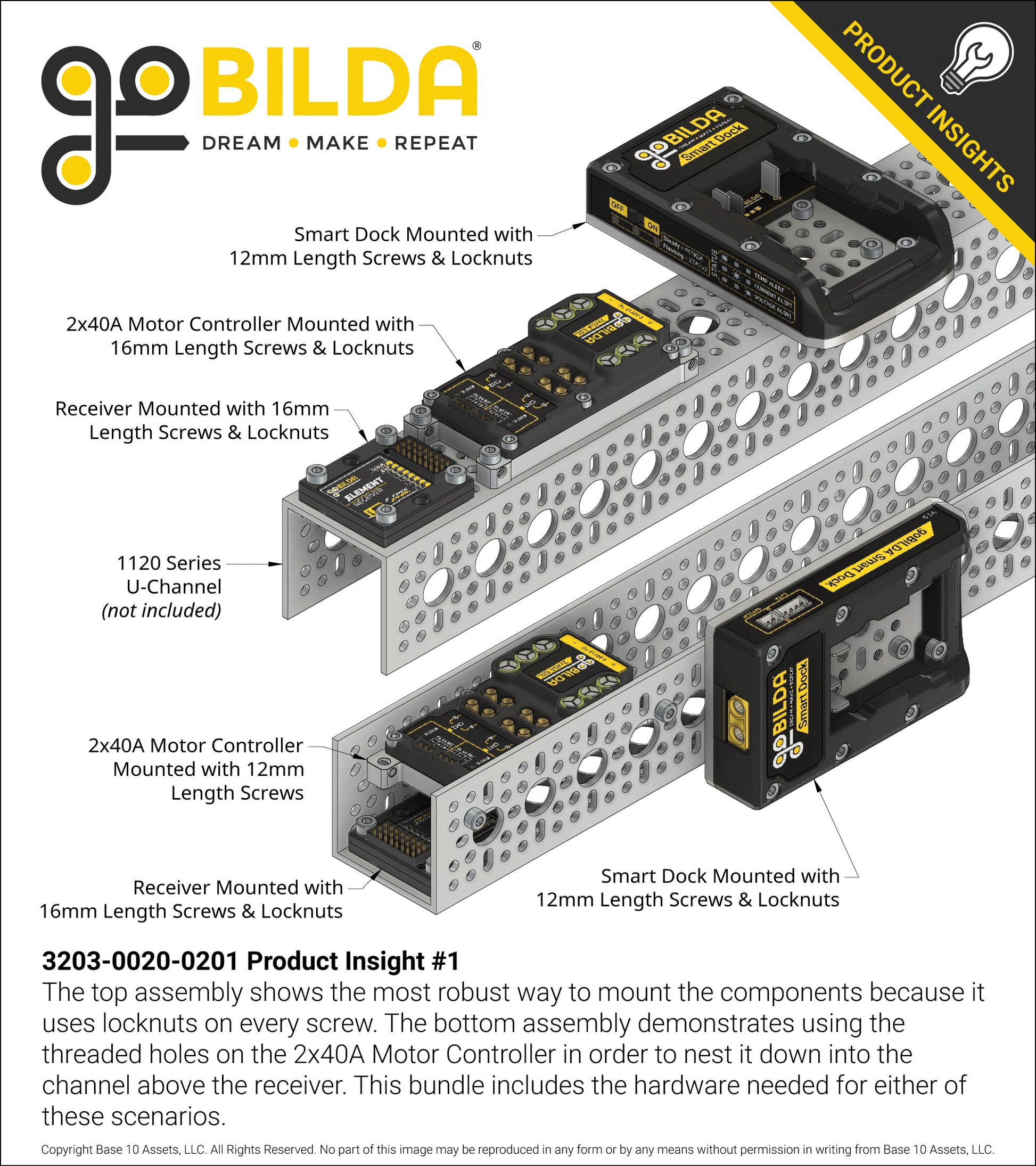

The receiver, motor controller, and Smart Dock each have holes on the goBILDA® 32mm pattern. That’s why it’s easy to bolt them to your build, especially if your project makes use of the extensive goBILDA® system!

⚠️Li-ion Battery Safety Notice:Lithium ion batteries can be dangerous. Please read these safety instructions as well as our warranty and return policy for Li-ion batteries.
