goBILDA

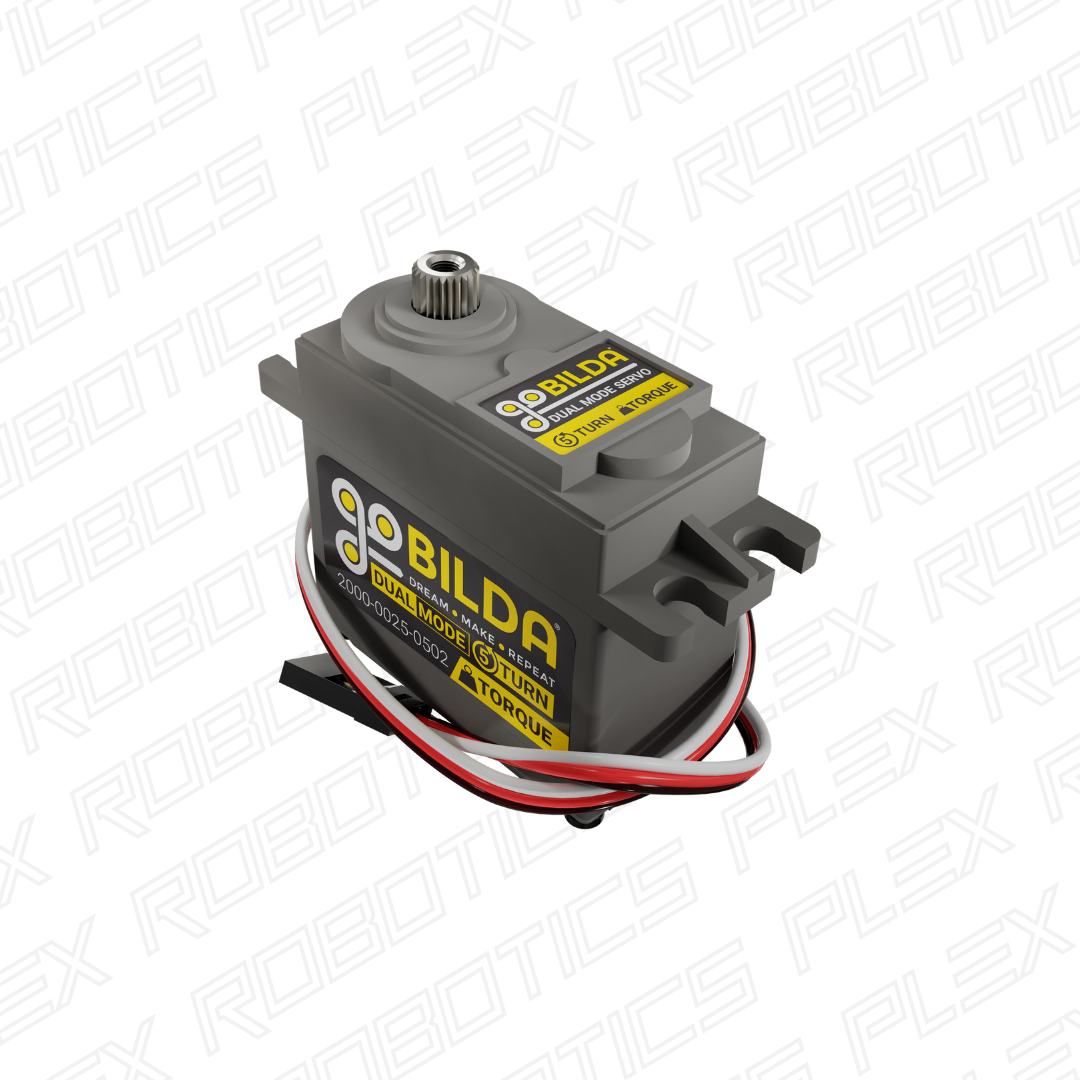

2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
2000-0025-0502Regular price
258,40 lei
Sale price
258,40 lei
Unit price
/
per
Tax included.
⚠️ This product is available on backorder. Estimated delivery time is 3-12 business days after payment confirmation, based on the shipping option chosen at checkout (Economy, Standard or Priority).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 2000-0025-0502
Couldn't load pickup availability
Like the other 2000 Series goBILDA Servos, the 2000-0025-0502 boasts two different modes. In the default mode, the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
Downloads
Specs
| Weight | 64g |
|---|---|
| Gear Ratio | 300:1 |
| Output Shaft Style | 25 Tooth Spline |
| Voltage Range | 4.8V ~ 7.4V |
| No-Load Speed (4.8V) | 0.25sec/60° (40RPM) |
| No-Load Speed (6.0V) | 0.20sec/60° (50RPM) |
| No-Load Speed (7.4V) | 0.17sec/60° (60RPM) |
| Stall Torque (4.8V) | 17.2 kg.cm (240 oz-in) |
| Stall Torque (6.0V) | 21.6 kg.cm (300 oz-in) |
| Stall Torque (7.4V) | 25.2 kg.cm (350 oz-in) |
| No-Load Current (4.8V) | 150mA |
| No-Load Current (6.0V) | 160mA |
| No-Load Current (7.4V) | 200mA |
| Stall Current (4.8V) | 2,000mA |
| Stall Current (6.0V) | 2,500mA |
| Stall Current (7.4V) | 3,000mA |
| Max PWM Range | 500 - 2500 µsec |
| Max PWM Range (Continuous) | 900 - 2100 µsec |
| Travel per µsec (out of box) | 0.90°/µsec |
| Pulse Amplitude | 3-5V |
| Direction | Clockwise w/ Increasing PWM Signal |
| Deadband Width | 4 μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Steel |
| Wire Length | 300mm |
| Wire Gauge | 22 AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Max Rotation (Default Mode) | 5 Turns (1800°) |
| Max PWM Range (Continuous) | 900-2100µsec |
