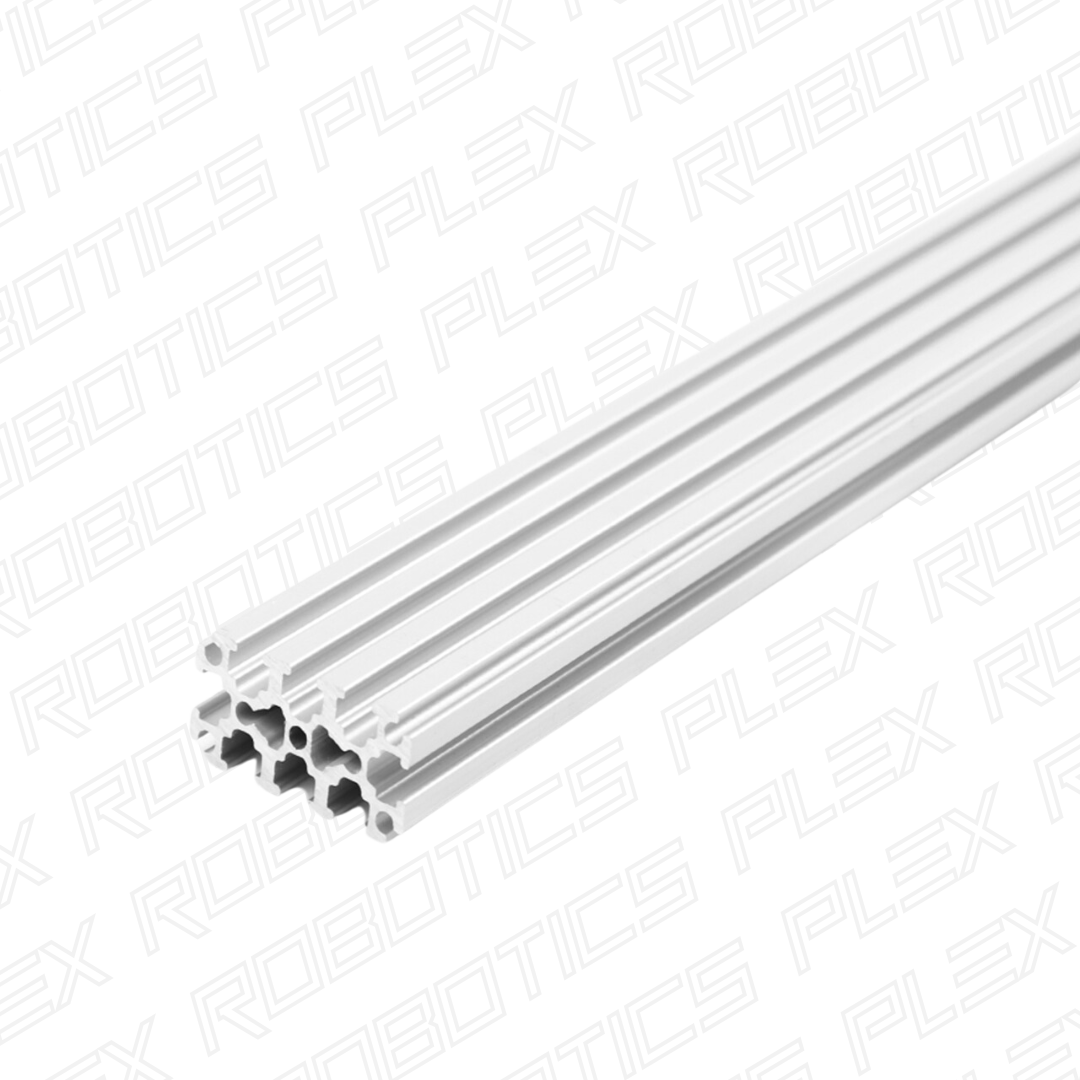

15mm x 30mm Extrusion - 1m - 90° Ends

REV Building System also comes in a 15mm x 30mm square extrusion. The slots are designed to fit standard M3 hardware rather than expensive t-nuts. Use the 15mm x 30mm extrusion when more strength is needed for an application.

Features

• All holes can be tapped with an M3 tap
• Slots are compatible with standard M3 hex nuts and M3 hex-head cap screws as studs

Specifications

• Material: 6063 Aluminum
• Height: 15mm
• Width: 30mm
• Length: 1m

Documentation

• Structure Basics

CAD & Drawings

• REV-41-1093 STEP File
• REV-41-1093 Onshape
• REV-41-1093 Drawing
