15mm Metal 12mm Ball Bearing Mount V2 - 4 Pack

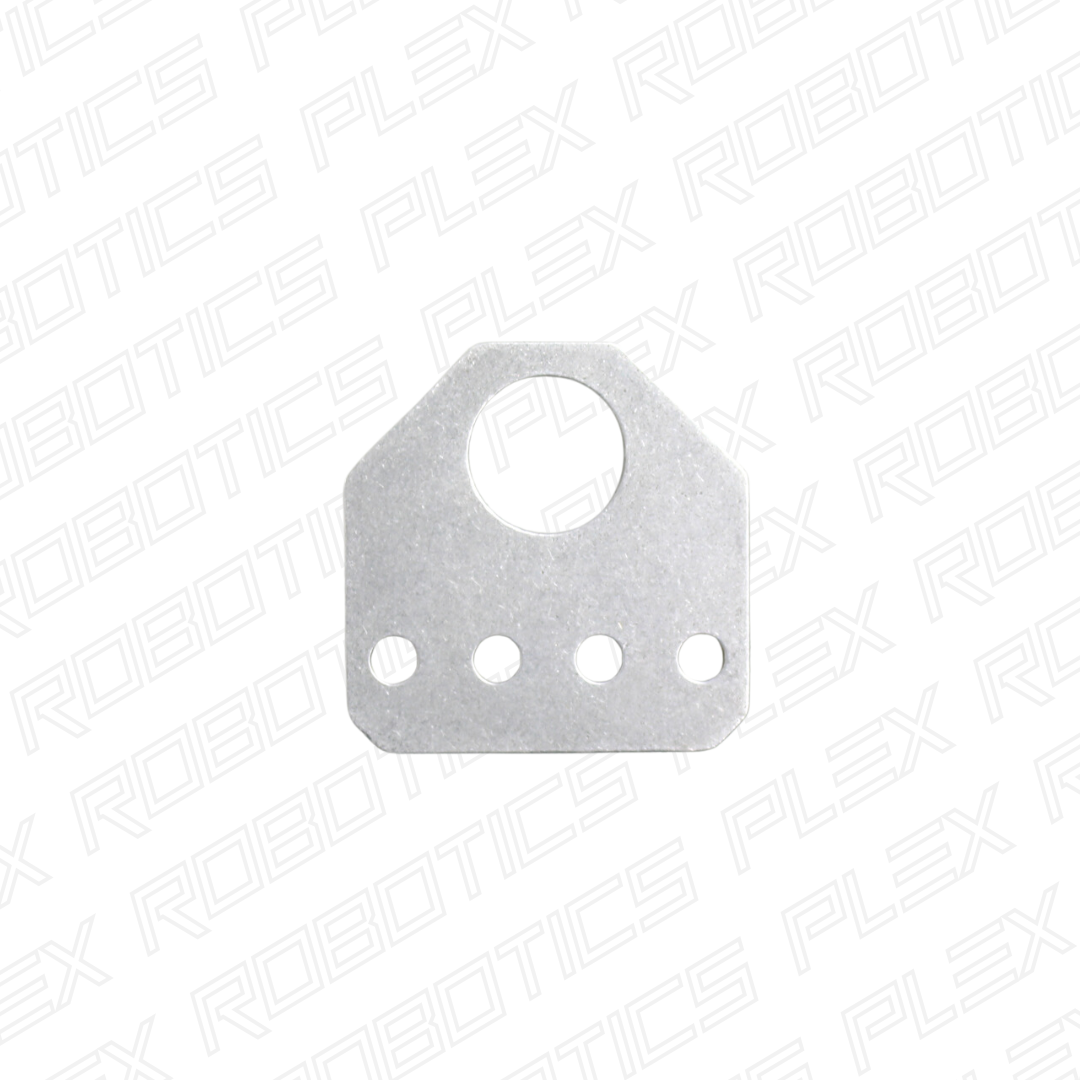

This metal ball bearing mount bracket is used with the REV DUO System 15mm Extrusion. Version 2 brackets offer many improvements over our previous metal brackets, including holes on an 8mm grid that is compatible with many other building systems. This bracket is used to mount 12mm OD bearings to the REV DUO 15mm Extrusion.

Specifications

• Material: 6061 Aluminum
• Thickness: 3.2mm
• Mounting Holes: 3.4mm diameter on 8mm grid

Documentation

• DUO Build System Guide

CAD & Drawings

• REV-41-1452 STEP File
• REV-41-1452 Onshape
• REV-41-1452 Drawing
