15mm Hinge Kit

Custom hinge system used to create compact, simple hinges using REV DUO 15mm Extrusion. Hinges come in left, right, and center pieces, and are attached together using standard M3 hardware.

Specifications

• Hole Diameter: M3 clearance
• Hole Spacing: 8mm

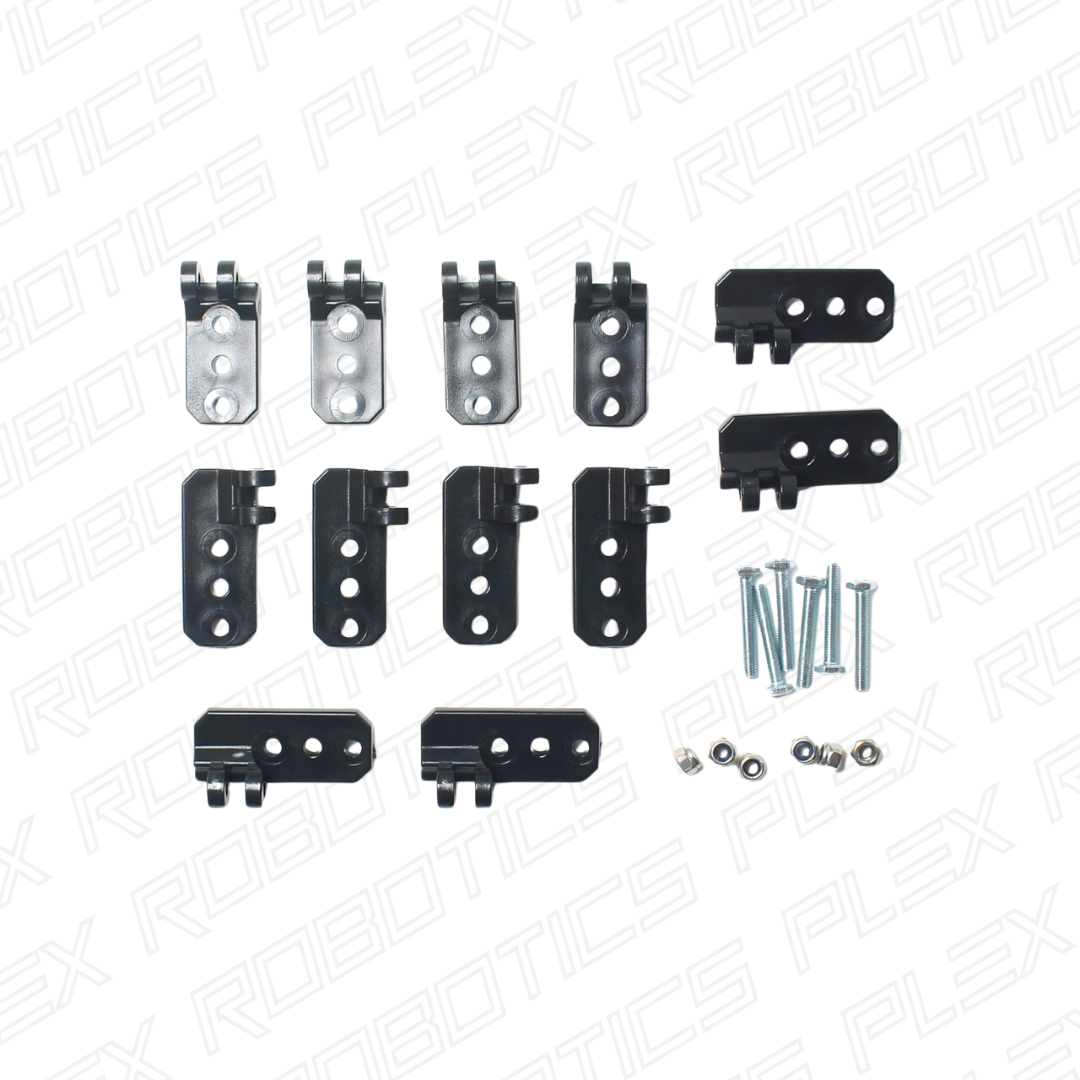

Kit Contents

• QTY 4 - Left Hinges
• QTY 4 - Right Hinges
• QTY 4 - Center Hinges
• QTY 6 - M3 x 20mm Hex Cap Screws
• QTY 6 - M3 Nylon Lock Nuts

Documentation

• 15mm Extrusion System Hinge Left Drawing
• 15mm Extrusion System Hinge Right Drawing
• 15mm Extrusion System Hinge Center Drawing

CAD & Drawings

• REV-45-1259 STEP File
• REV-45-1259 Onshape
• REV-45-1259 Drawing
