REV Robotics

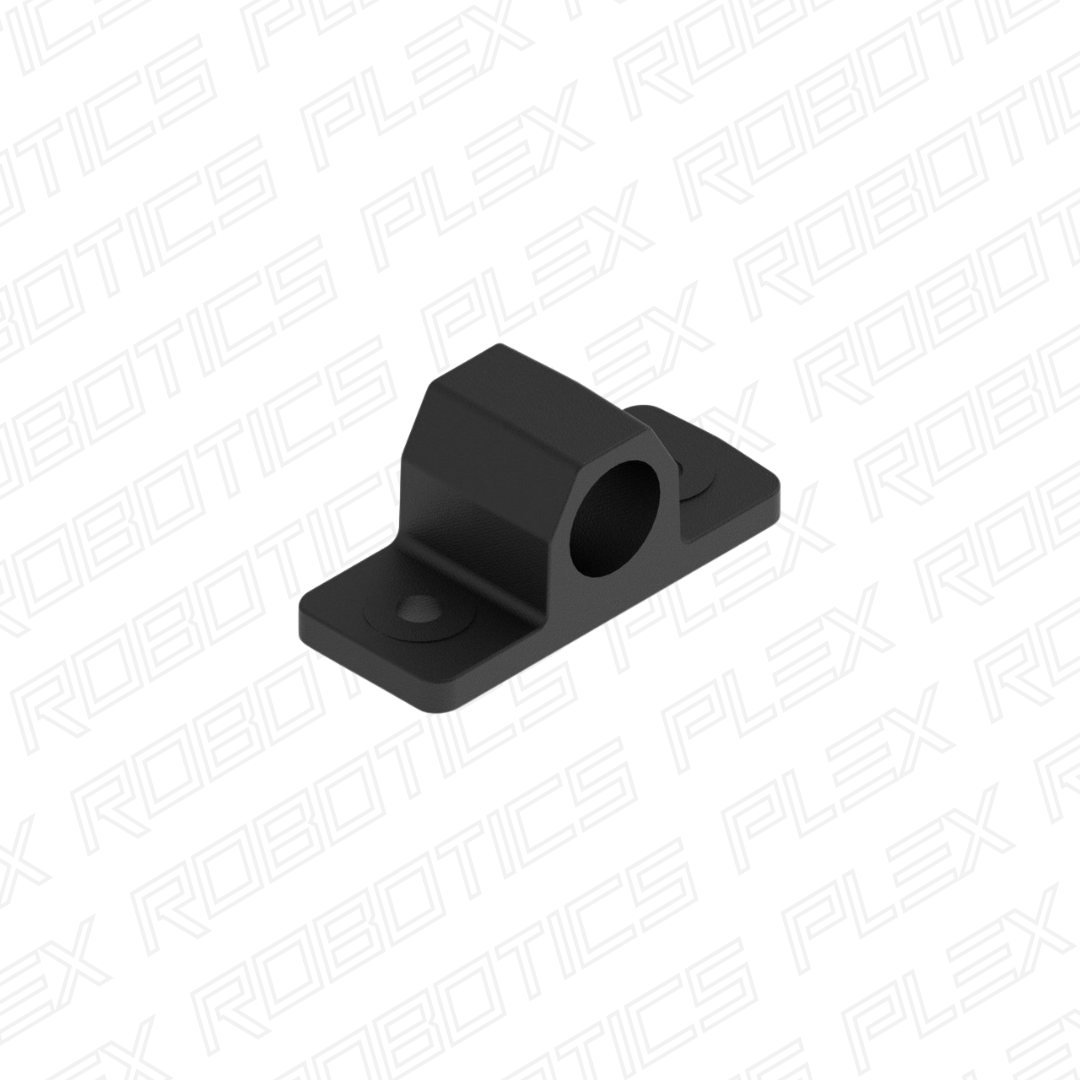

15mm Bearing Pillow Block - 8 Pack

15mm Bearing Pillow Block - 8 Pack

REV-41-1317-PK8
Regular price 53,20 lei
Regular price 66,50 lei Sale price 53,20 lei
Sale Sold out
Tax included.

This bearing pillow block bracket is used with the DUO Build System 15mm Extrusion. The 9mm center hole is use with either the Long Through-bore Bearing (REV-41-1329) or the End Cap Bearing (REV-41-1322) to provide a low friction shaft support. This bracket has alignment ribs on the bottom which help align the bracket with the extrusion channel.

Specifications

  • Material: Nylon (PA66)
  • Bolt Area Thickness: 3mm
  • Hole Diameter: M3 clearance
  • Hole Spacing: 24mm
  • Overall Length: 36mm

Documentation

CAD & Drawings
