goBILDA
1120 Series U-Channel
1120 Series U-Channel
1120-0001-0048Regular price
20,60 lei
Sale price
20,60 lei
Unit price
/
per
Tax included.
⚠️ This product is available on backorder. Estimated delivery time is 3-12 business days after payment confirmation, based on the shipping option chosen at checkout (Economy, Standard or Priority).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 1120-0001-0048
Couldn't load pickup availability

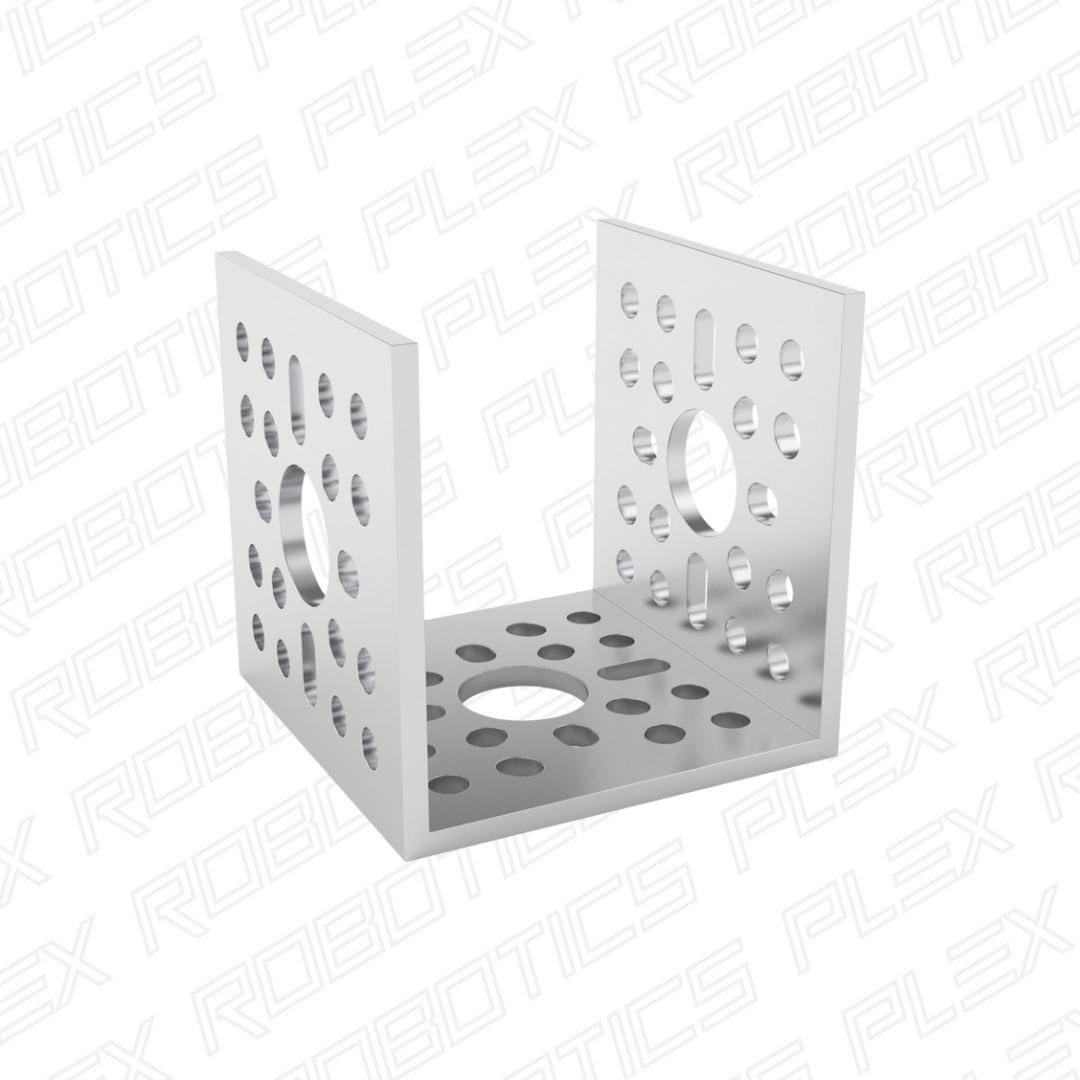

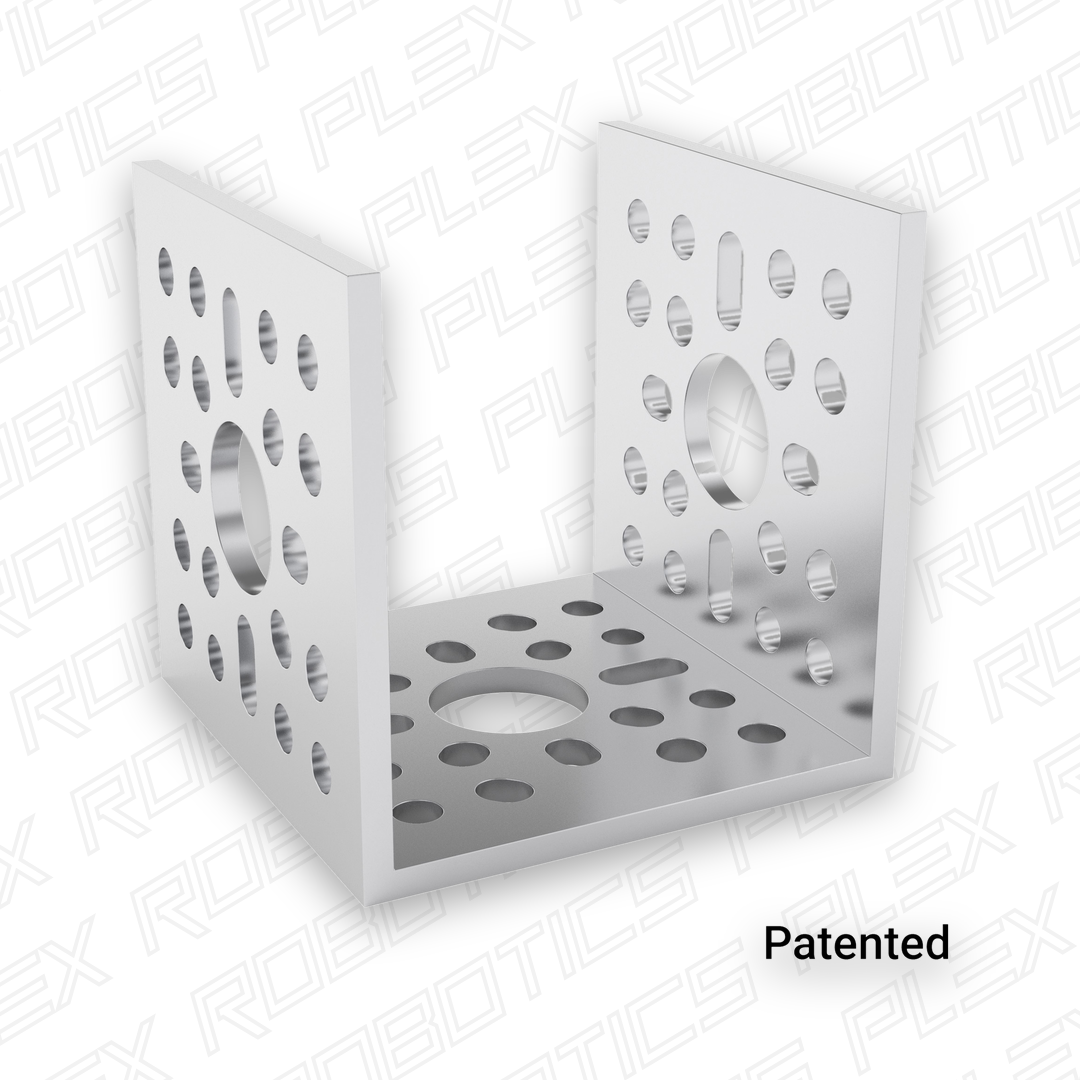

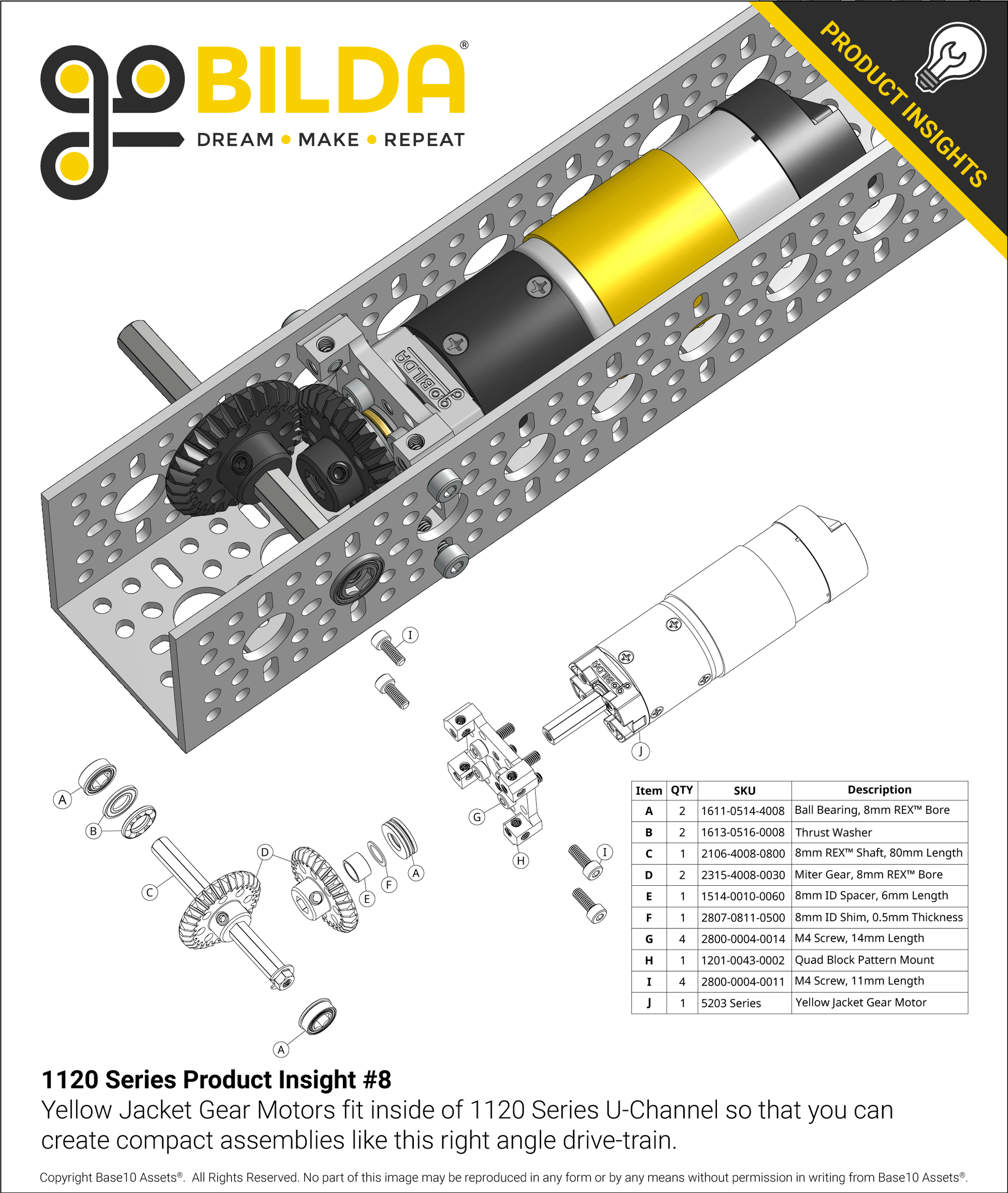

The three-sided profile of 1120 Series U-Channel offers support to axles running perpendicular to your frame as it allows you to seat a bearing on any of its sides to maximize load-bearing capability. Its large central cavity provides protection to motors, batteries and drive components housed within, and its perpendicular sides offer multi-directional support.
Downloads
| Variant | STEP File | Other Files |
|---|---|---|
| 1 - 1 Hole - 48mm Length | STEP File | — |
| 2 - 2 Hole - 72mm Length | STEP File | — |
| 3 - 3 Hole - 96mm Length | STEP File | — |
| 4 - 4 Hole - 120mm Length | STEP File | — |
| 5 - 5 Hole - 144mm Length | STEP File | — |
| 6 - 6 Hole - 168mm Length | STEP File | — |
| 7 - 7 Hole - 192mm Length | STEP File | — |
| 8 - 8 Hole - 216mm Length | STEP File | — |
| 9 - 9 Hole - 240mm Length | STEP File | — |
| 10 - 10 Hole - 264mm Length | STEP File | — |
| 11 - 11 Hole - 288mm Length | STEP File | — |
| 12 - 12 Hole - 312mm Length | STEP File | — |
| 13 - 13 Hole - 336mm Length | STEP File | — |
| 14 - 14 Hole - 360mm Length | STEP File | — |
| 15 - 15 Hole - 384mm Length | STEP File | — |
| 16 - 16 Hole - 408mm Length | STEP File | — |
| 17 - 17 Hole - 432mm Length | STEP File | — |
| 18 - 18 Hole - 456mm Length | STEP File | — |
| 19 - 21 Hole - 528mm Length | STEP File | — |
| 20 - 25 Hole - 624mm Length | STEP File | — |
| 21 - 29 Hole - 720mm Length | STEP File | — |
| 22 - 33 Hole - 816mm Length | STEP File | — |
| 23 - 37 Hole - 912mm Length | STEP File | — |
| 24 - 41 Hole - 1008mm Length | STEP File | — |
| 25 - 45 Hole - 1104mm Length | STEP File | — |
| 26 - 49 Hole - 1200mm Length | STEP File | — |
Specs
| Material | Aluminum |
|---|---|
| Finish | Clear Anodized |
| IP | Patented |
