goBILDA

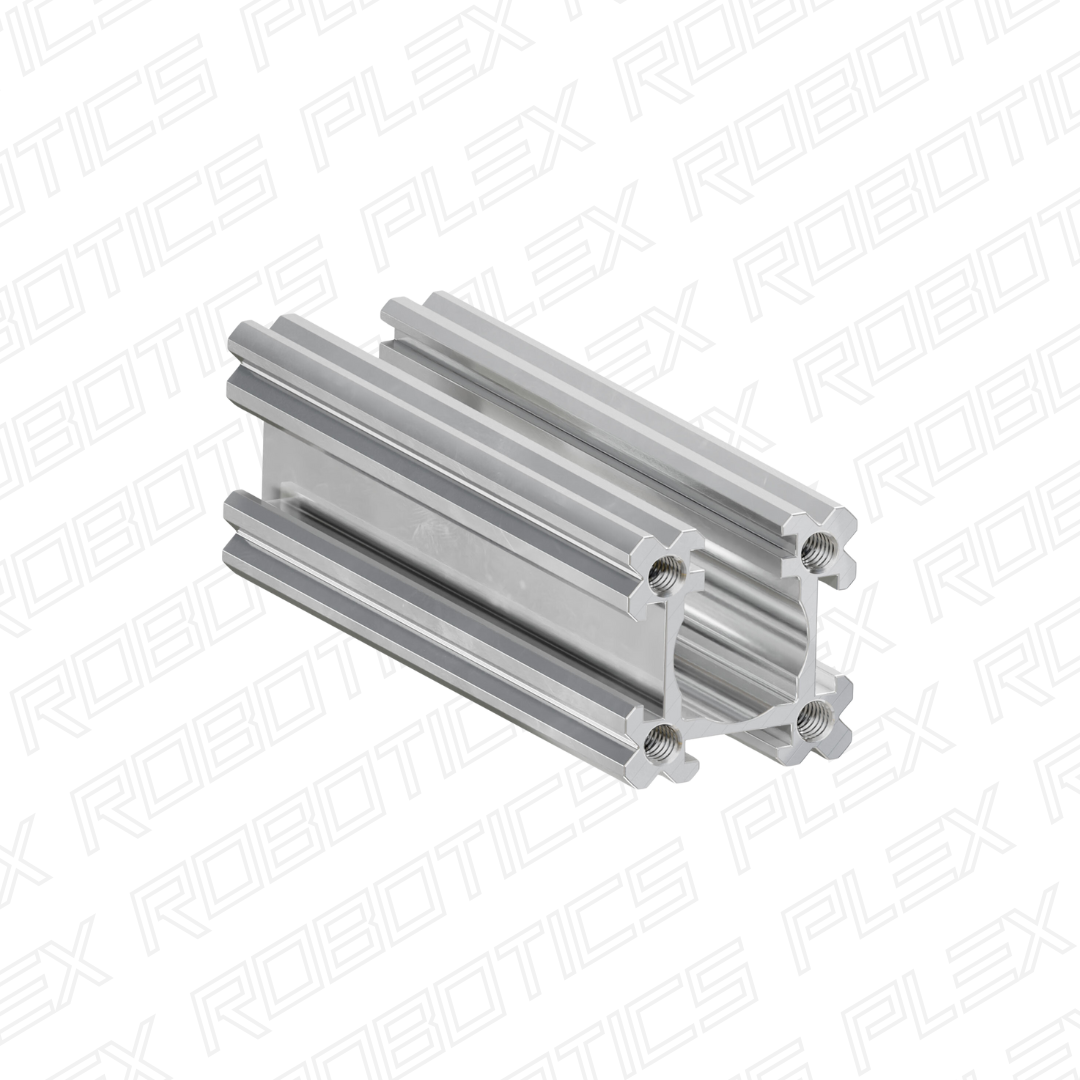

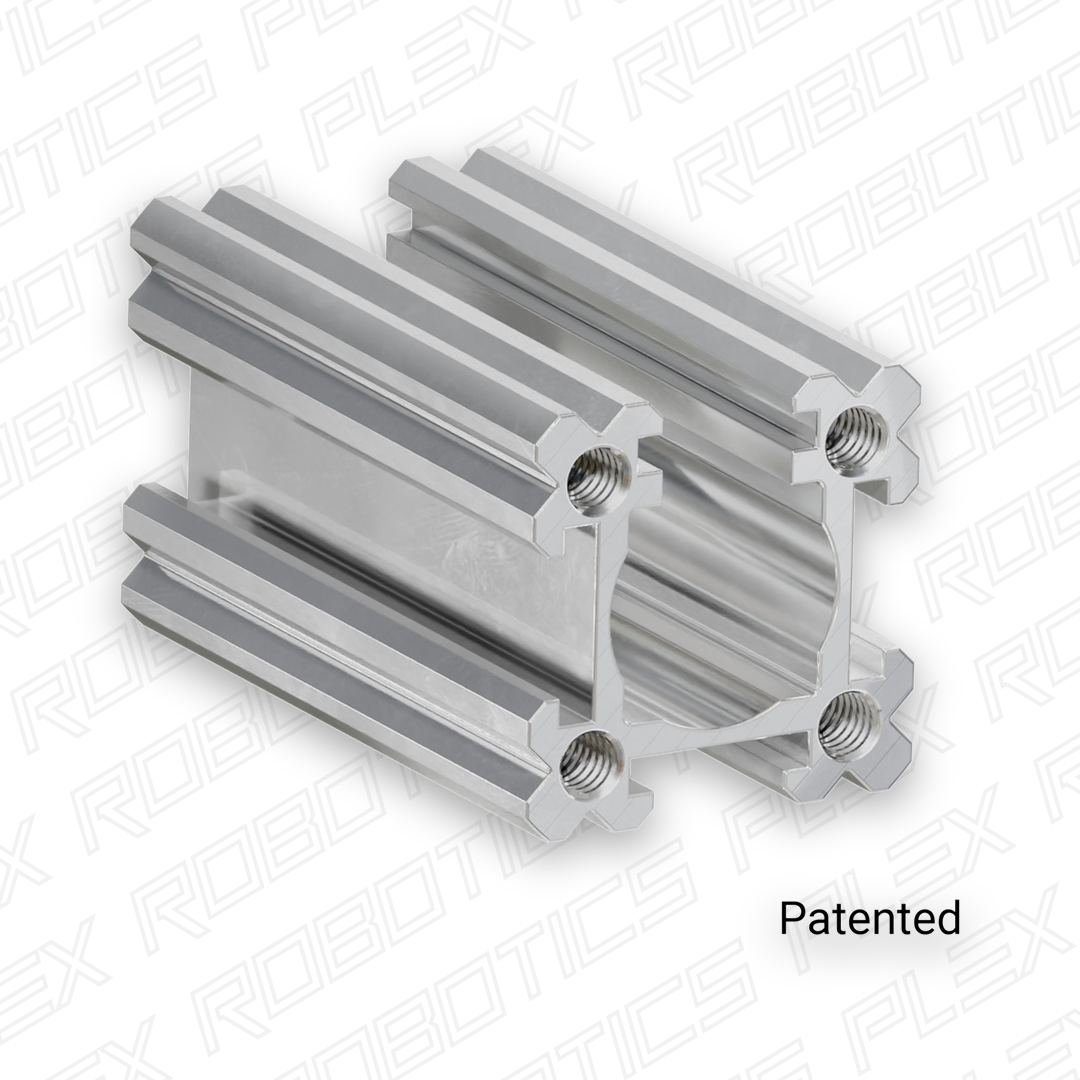

1118 Series Open goRAIL
1118 Series Open goRAIL
1118-0024-0043Regular price
18,10 lei
Sale price
18,10 lei
Unit price
/
per
Tax included.
⚠️ This product is available on backorder. Estimated delivery time is 3-12 business days after payment confirmation, based on the shipping option chosen at checkout (Economy, Standard or Priority).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
📦 Final shipping cost may increase if your cart contains products from multiple vendors (e.g., 2 vendors = 2 shipping charges).
SKU: 1118-0024-0043
Couldn't load pickup availability

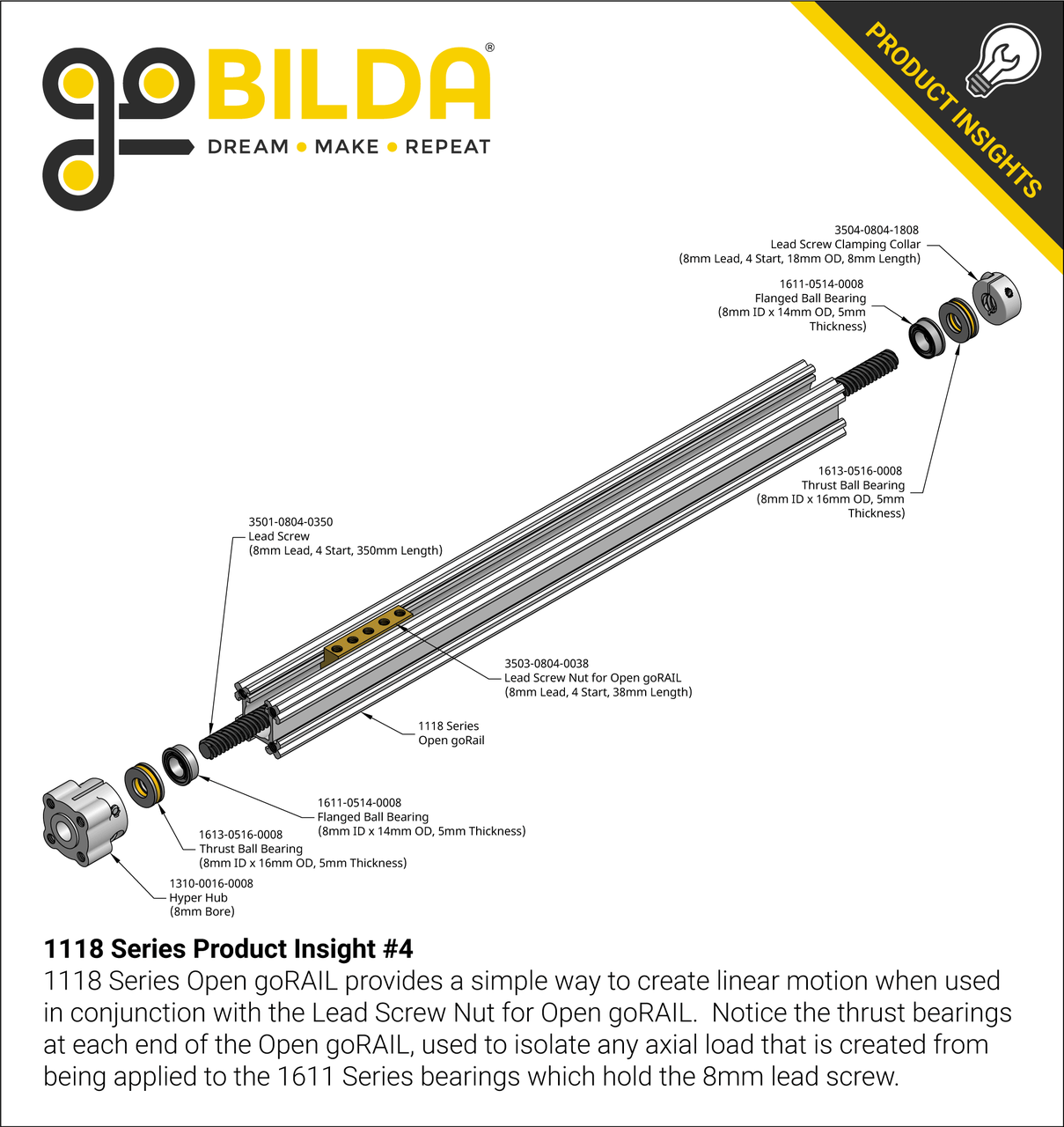

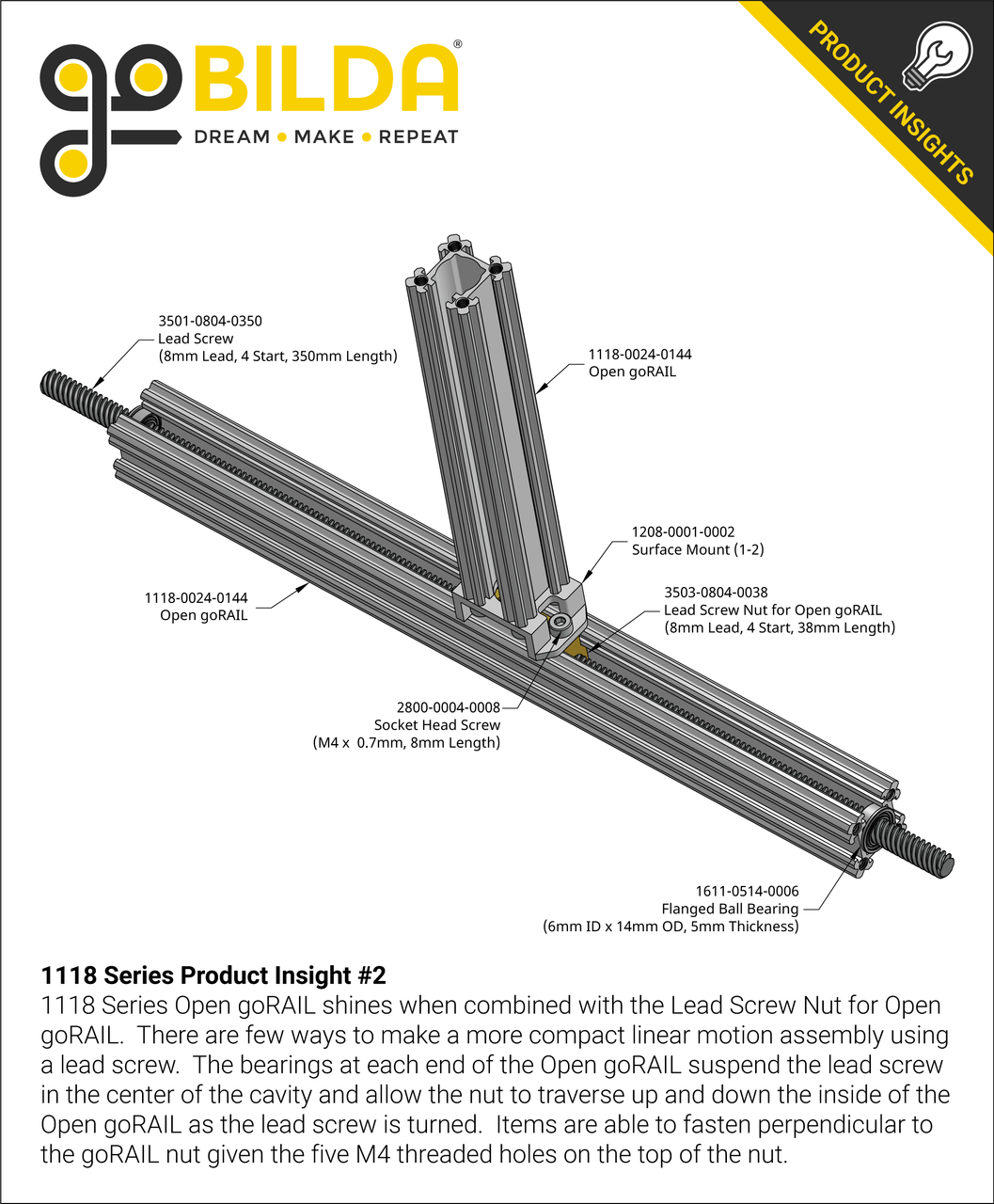

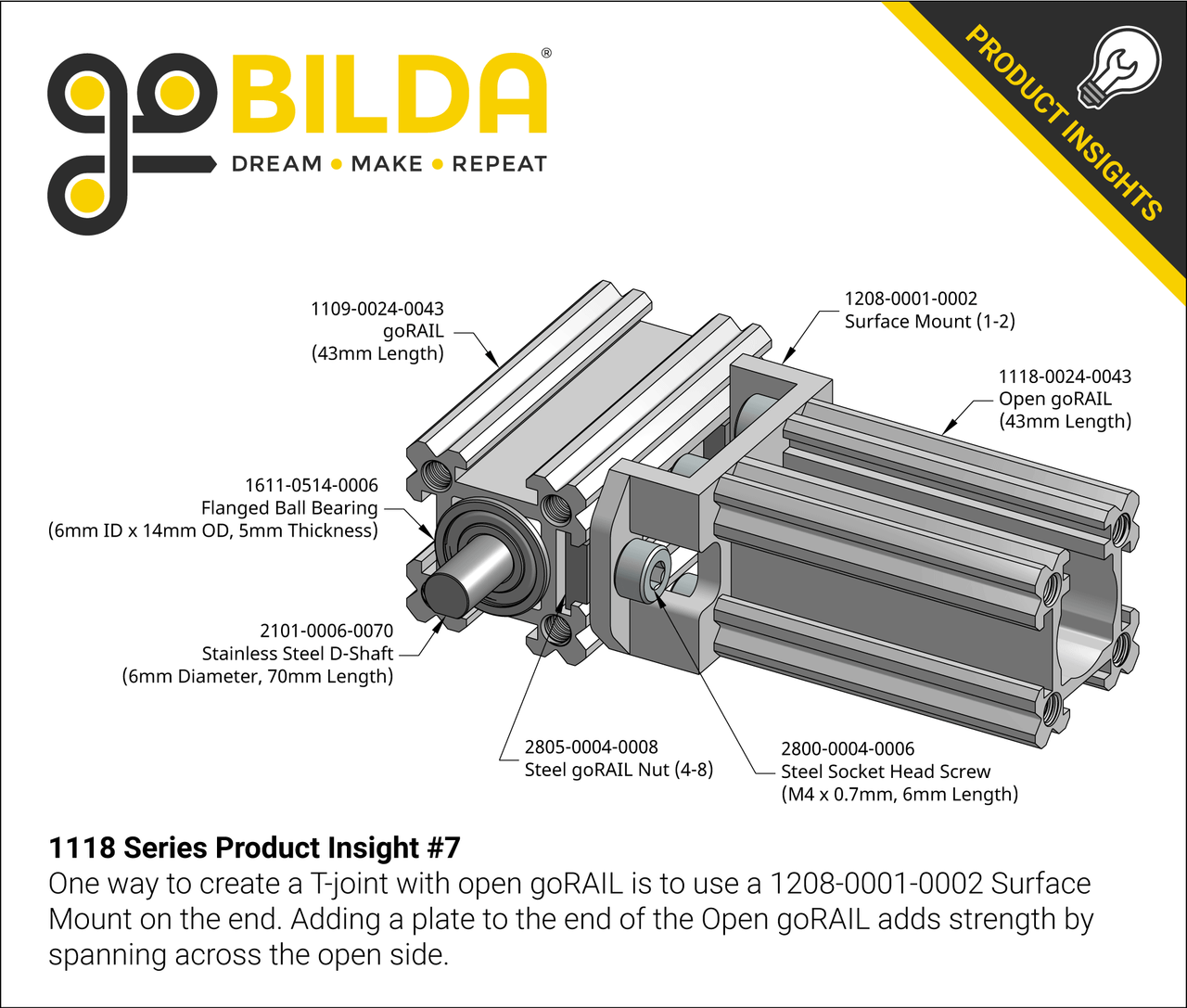

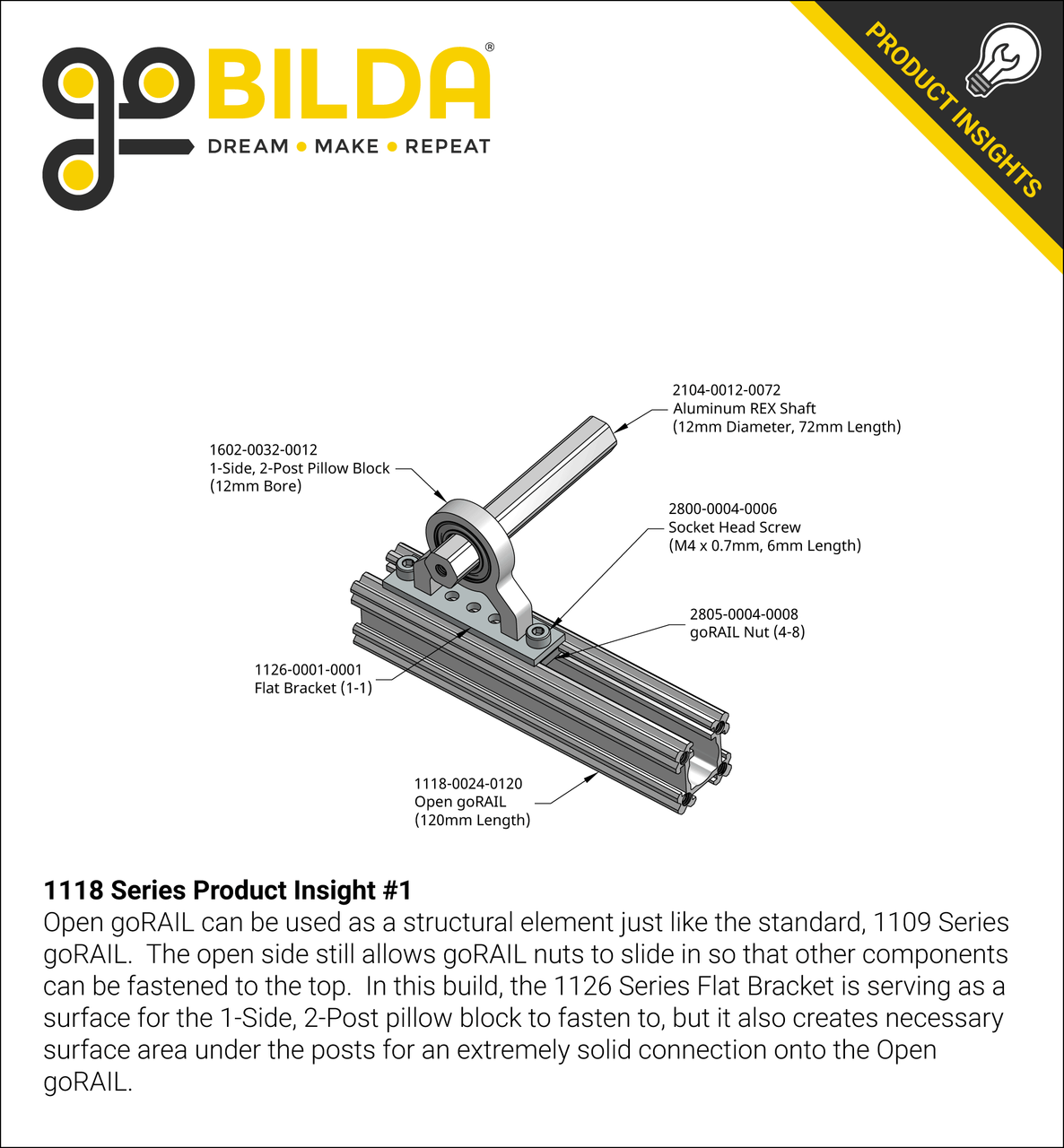

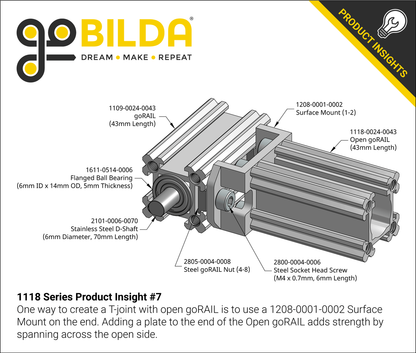

Open goRAIL® is similar in appearance to the 1109 Series goRAIL® with one side opened to allow for a unique style of linear motion. The open slot leaves room for a lead screw nut to protrude so other components can easily be fastened. If you’re building an XY table the Open goRAIL® will simplify the build process immensely.
Downloads
| Variant | STEP File | Other Files |
|---|---|---|
| 1 - 43mm | STEP File | — |
| 2 - 48mm | STEP File | — |
| 3 - 72mm | STEP File | — |
| 4 - 96mm | STEP File | — |
| 5 - 120mm | STEP File | — |
| 6 - 144mm | STEP File | — |
| 7 - 192mm | STEP File | — |
| 8 - 240mm | STEP File | — |
| 9 - 288mm | STEP File | — |
| 10 - 336mm | STEP File | — |
| 11 - 384mm | STEP File | — |
| 12 - 432mm | STEP File | — |
| 13 - 528mm | STEP File | — |
| 14 - 624mm | STEP File | — |
| 15 - 912mm | STEP File | — |
| 16 - 1200mm | STEP File | — |
Specs
| Material | Aluminum |
|---|---|
| Finish | Clear Anodized |
| IP | Patented |
