ServoCity

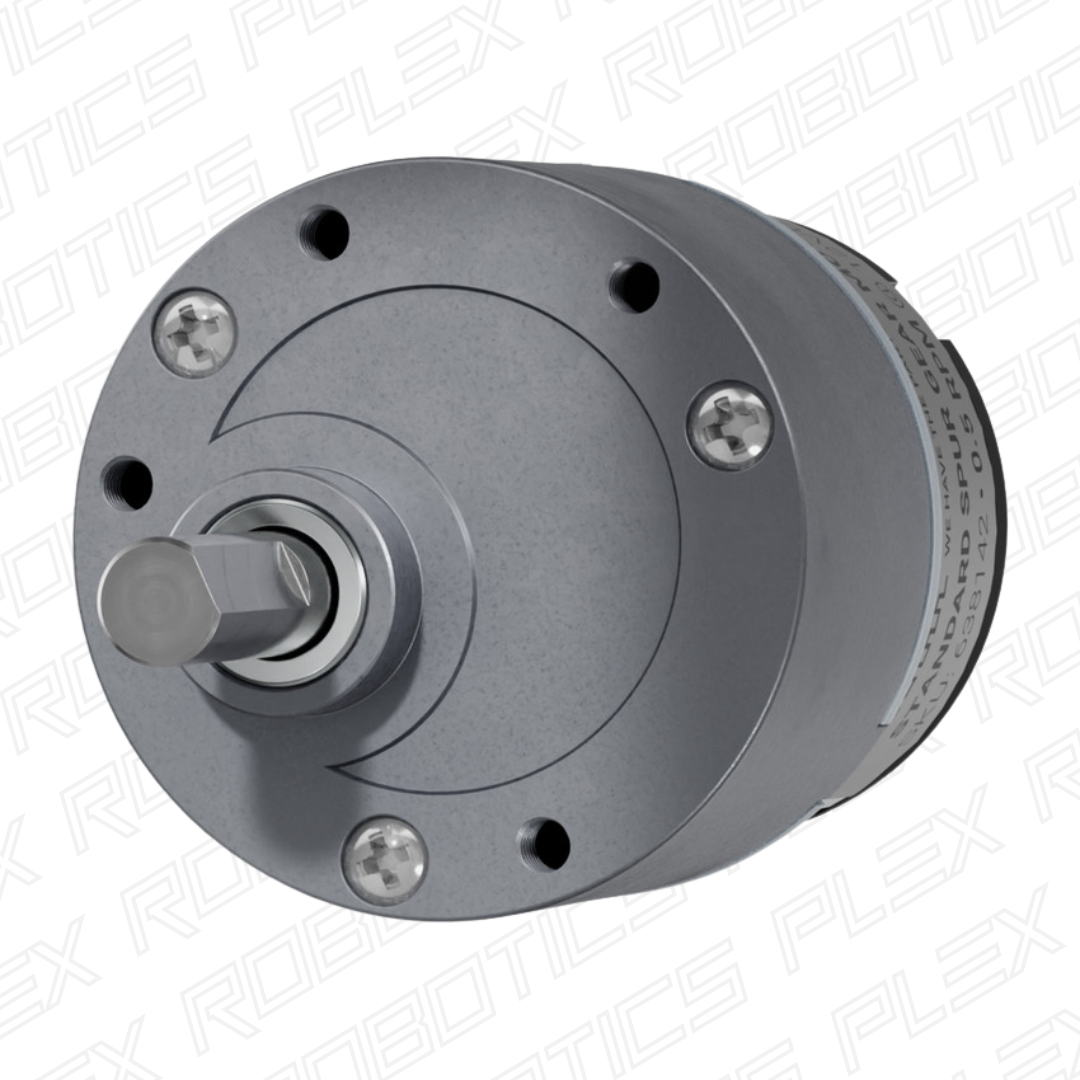

Gear Motor (0.5 RPM - 303 RPM)

Gear Motor (0.5 RPM - 303 RPM)

638142
184,00 lei
184,00 lei
Sale Sold out
Tax included.

SKU: 638142

Tech Tip

Stalling this gearmotor could cause gear damage.

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Bushing
Weight 4.83 oz (137g)
Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load @ 12VDC) 0.5 rpm
Current (No Load @ 12VDC) 45mA
Current (Stall @ 12VDC) 500mA
Torque (Stall @ 12VDC) 2,995 oz-in
Gearbox Style Straight Cut Spur
Connector Type Male Spade Terminal
Gear Ratio 3,000:1
