goBILDA

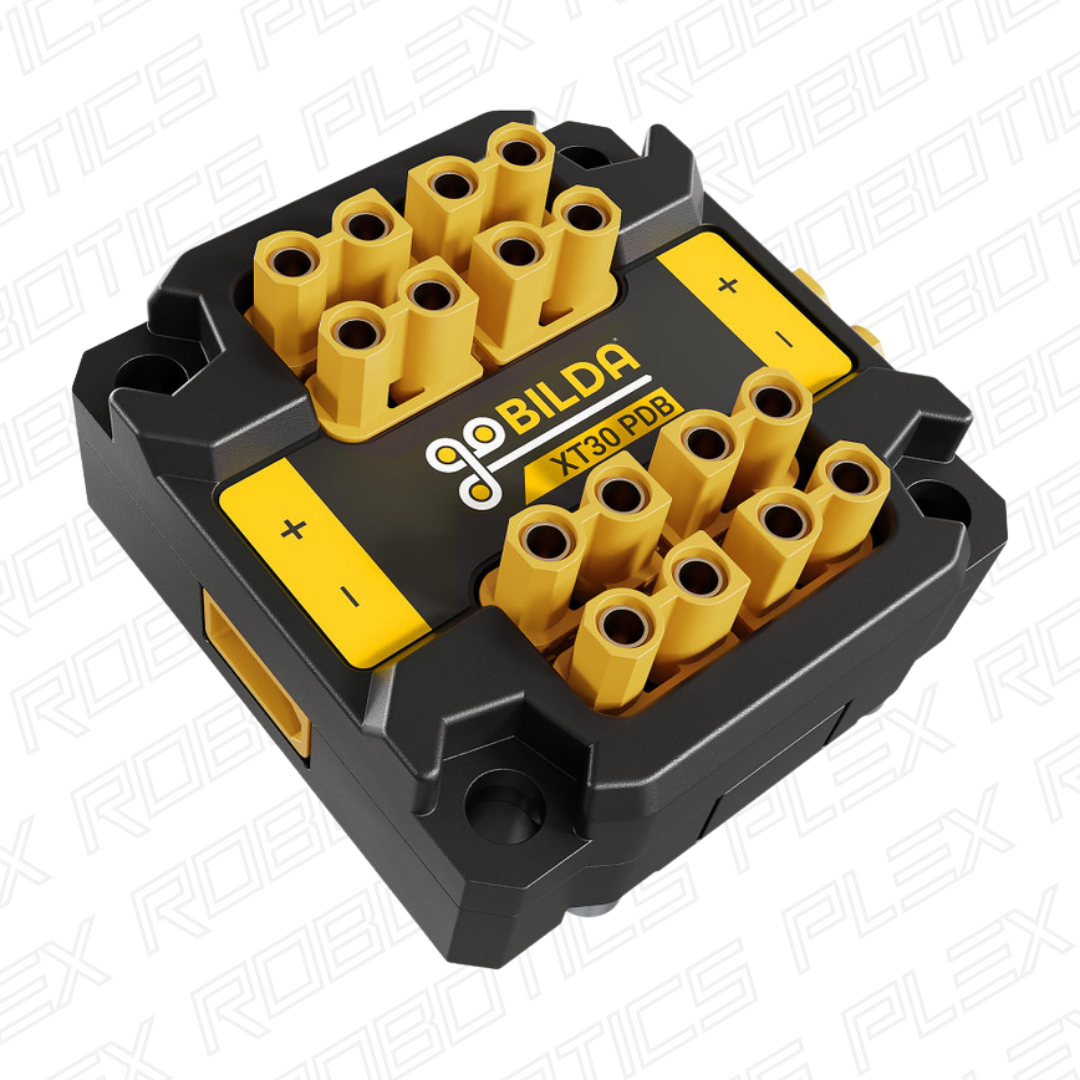

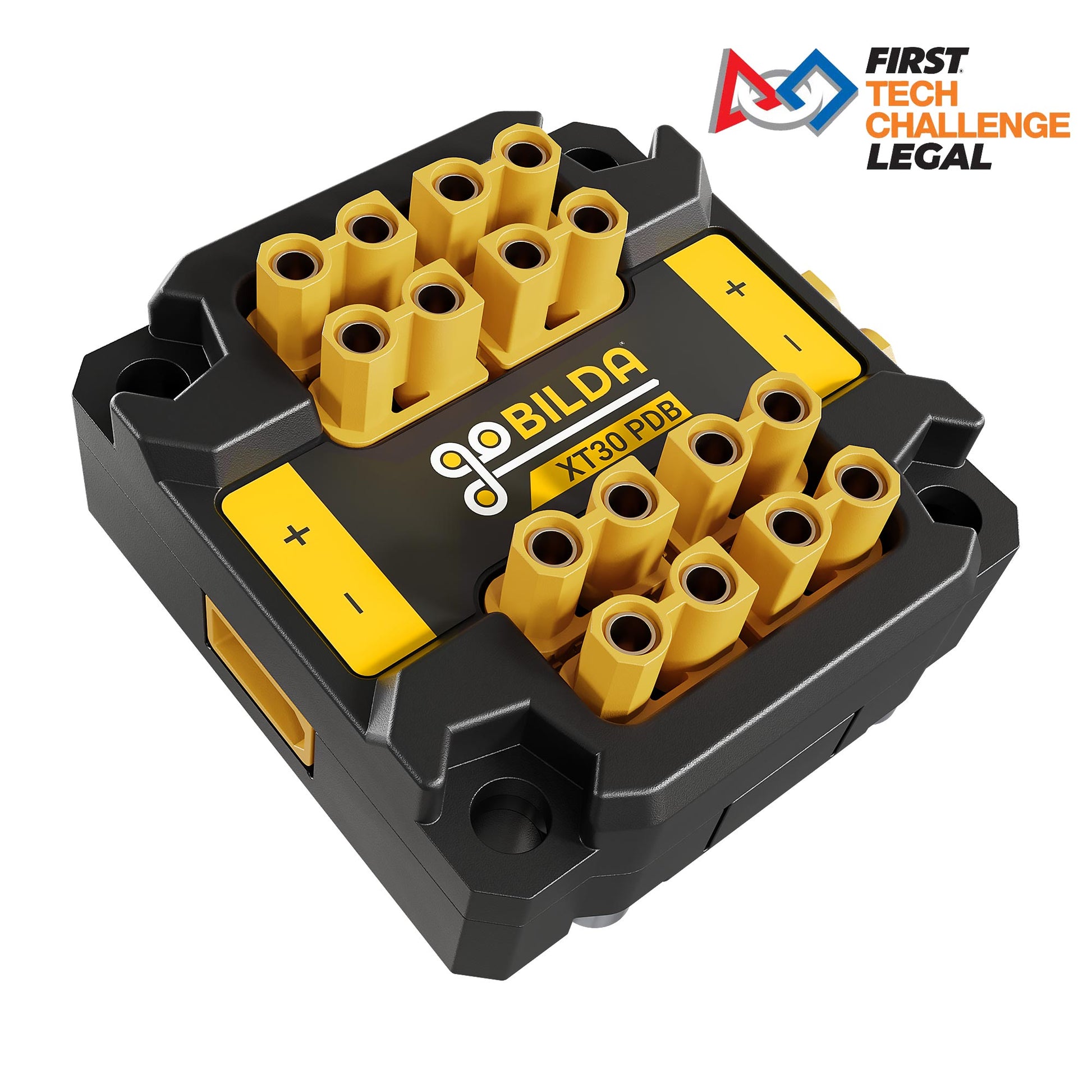

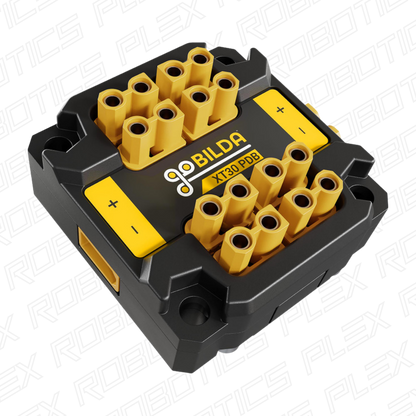

XT30 Power Distribution Board (XT30 Input, 8 x XT30 Outputs)

XT30 Power Distribution Board (XT30 Input, 8 x XT30 Outputs)

3108-2833-0802
Preț obișnuit 129,30 lei
Preț redus 129,30 lei
Reducere Stoc epuizat
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).

SKU: 3108-2833-0802

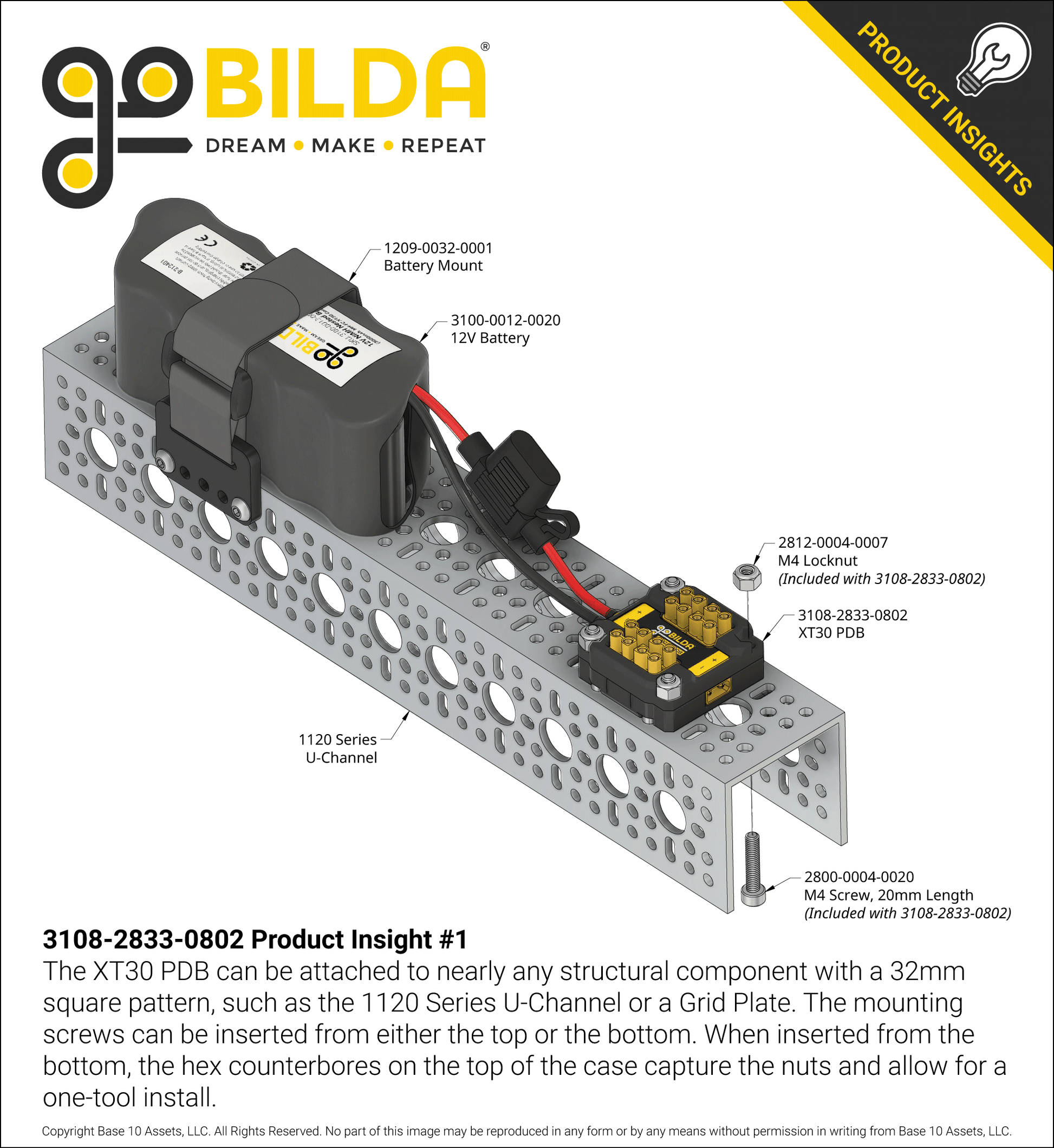

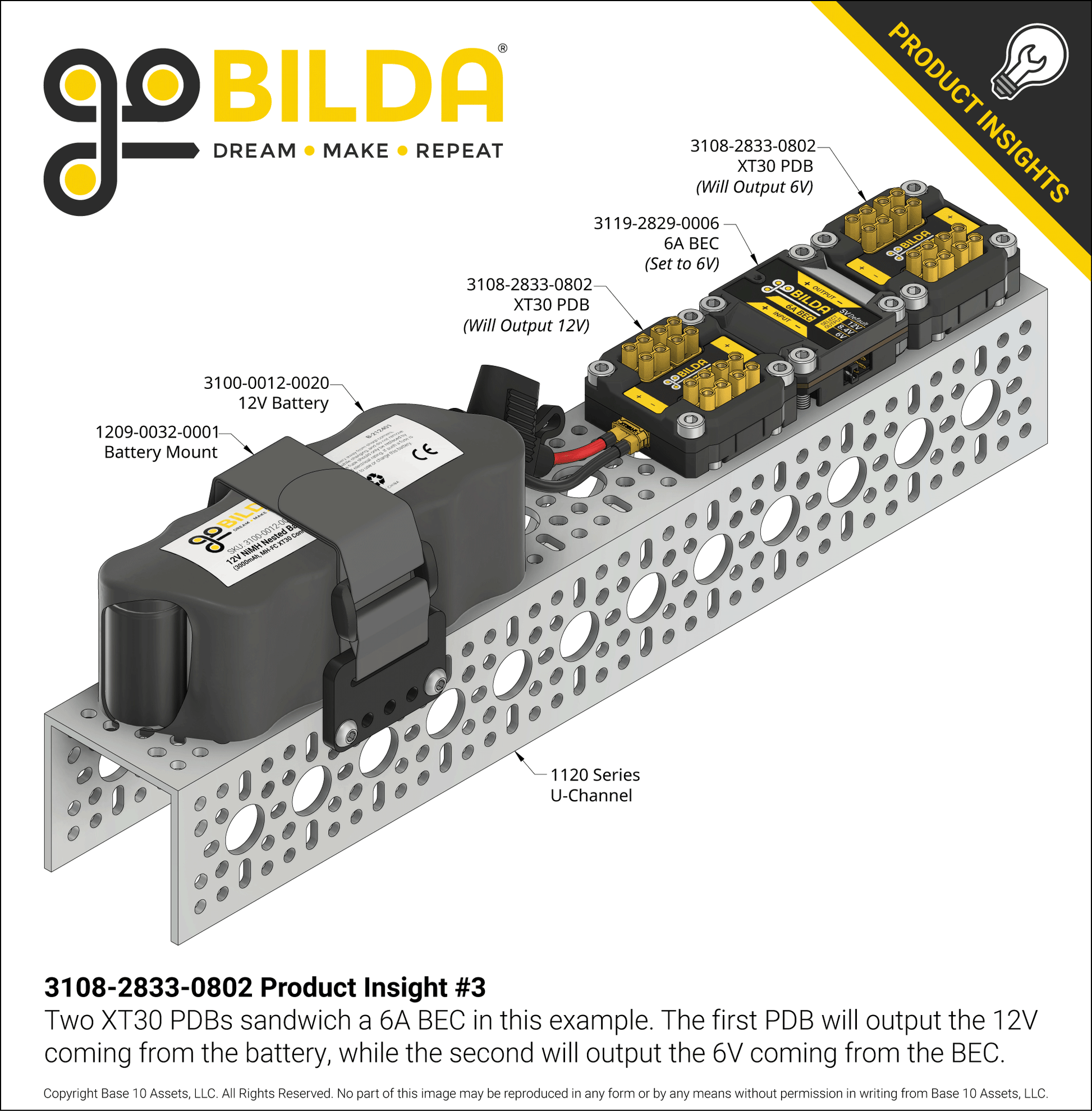

The Power Distribution Board delivers power throughout your build. Simply plug your power source into one of its XT30 connectors to power them all! The voltage is distributed across all of the remaining connectors, including side connectors that are conveniently located to daisy-chain with electrical components. And thanks to thru-holes (with nifty hex counterbores) on the goBILDA® 32mm square pattern, it’s super mountable to almost anything in the goBILDA® system!

Downloads

Specs

Weight 37g (Includes mounting hardware)
Max Total Current 60A
Max Total Current (Continuous) 30A

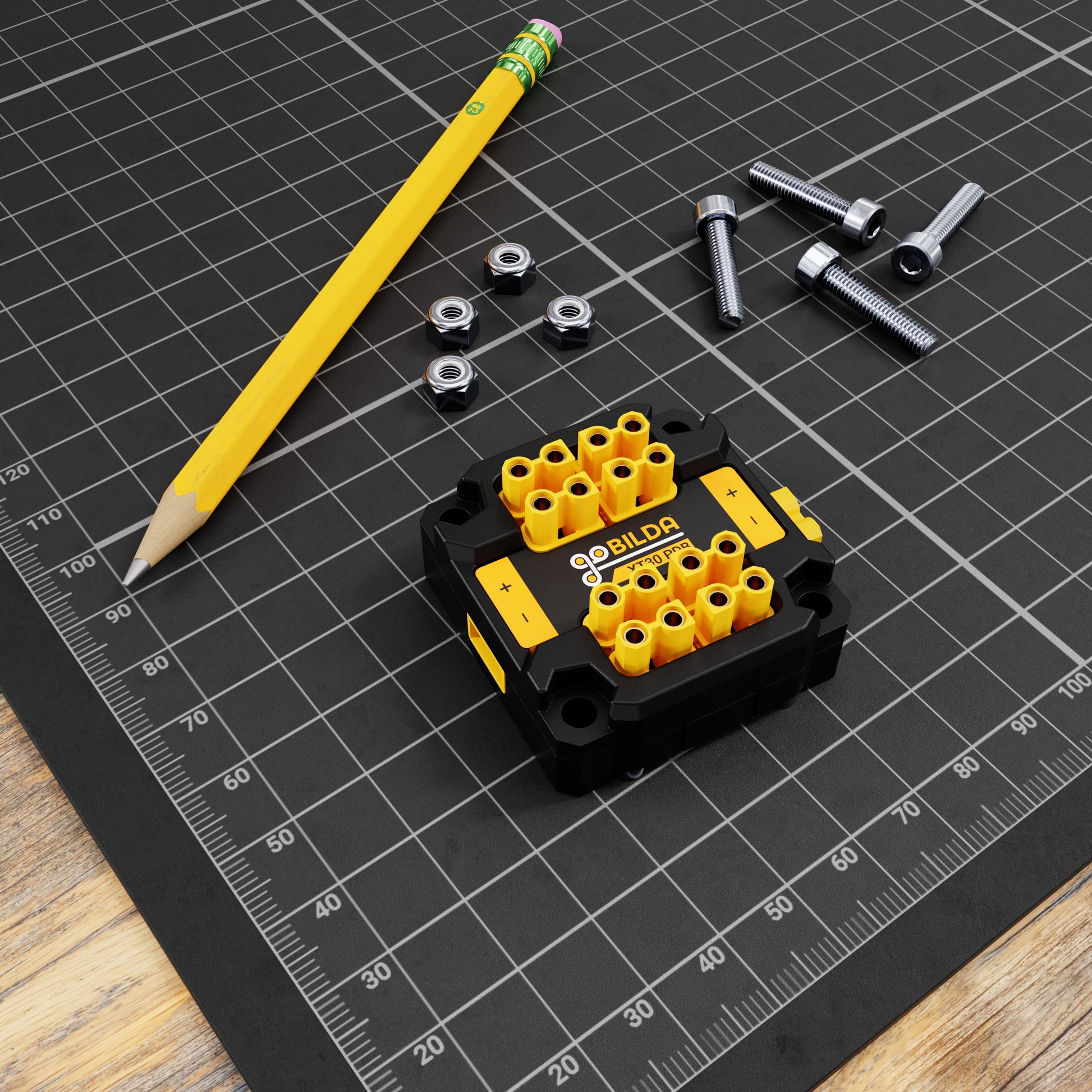

Hardware Included 20mm Length M4 Socket Head Screw x 4, M4 x 0.7mm Nylock Nut x 4
Vedeți detaliile complete
