REV Robotics

Through Bore Bearings

Through Bore Bearings

REV-41-1326-PK12
34,30 lei
42,90 lei 34,30 lei
Reducere Stoc epuizat
Taxe incluse.

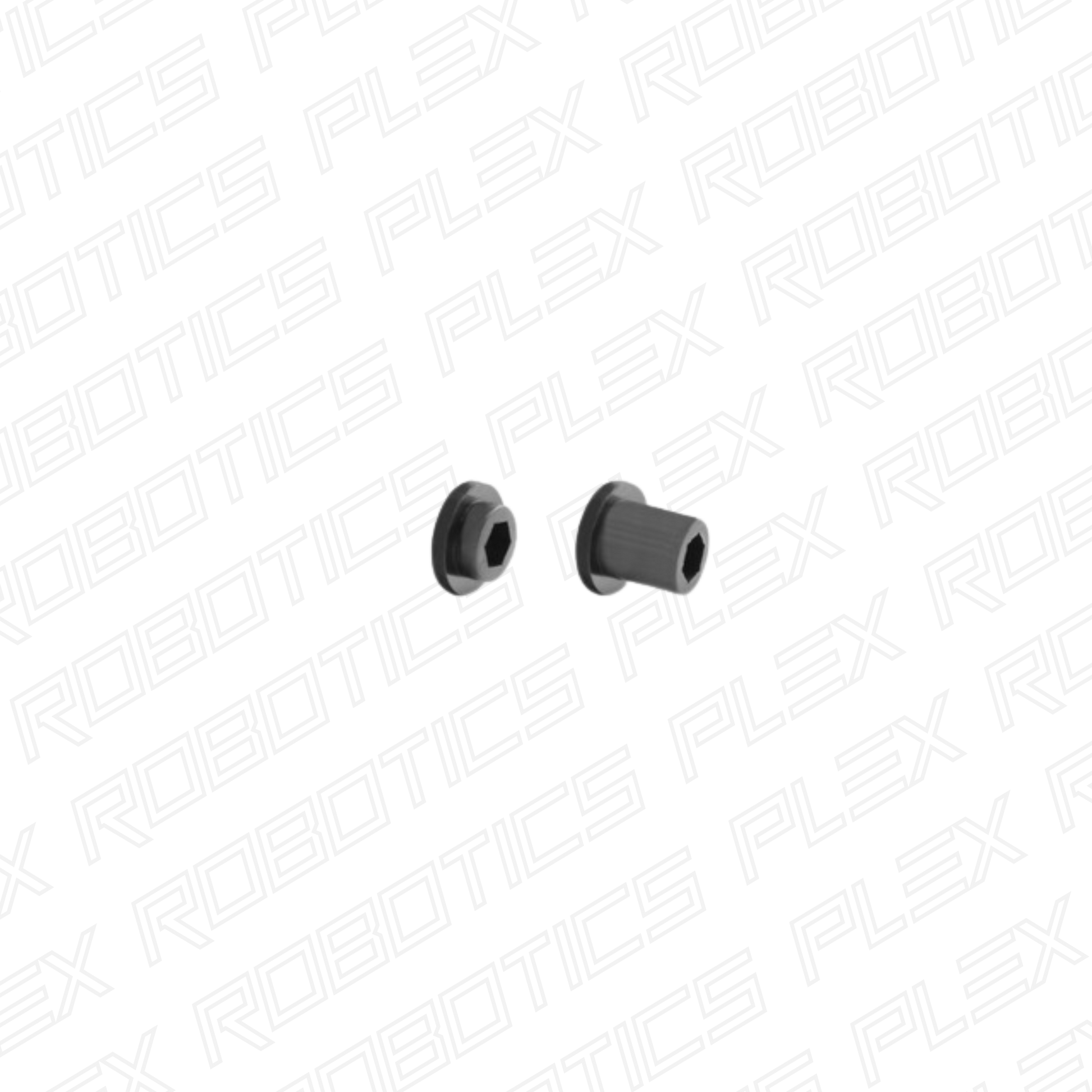

Through Bore Bearings are compatible with the REV DUO System and are used with 5mm Hex Shafts recommend for the DUO Extrusion System to provide a low friction rotating shaft support. These low profile bearings fit in any of the 3mm thick brackets with a the 9mm ID bearing seat including: REV-41-1313, REV-41-1303 and REV-41-1304. Use shaft collars to secure the shaft and the bearings.

Specifications

  • Material: Acetal (Delrin/POM)
  • Bearing Surface OD: 9mm
  • ID: 5mm Hex
  • Bearing Surface Width: 3mm
  • Overall Width: 5mm

Documentation

Product Options

 SKU   PRODUCT NAME   CAD & DRAWINGS
 REV-41-1326-PK12   Through Bore Bearing - Short - 12 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1329-PK12   Through Bore Bearing - Long - 12 Pack   STEP FILE ONSHAPE DRAWING
