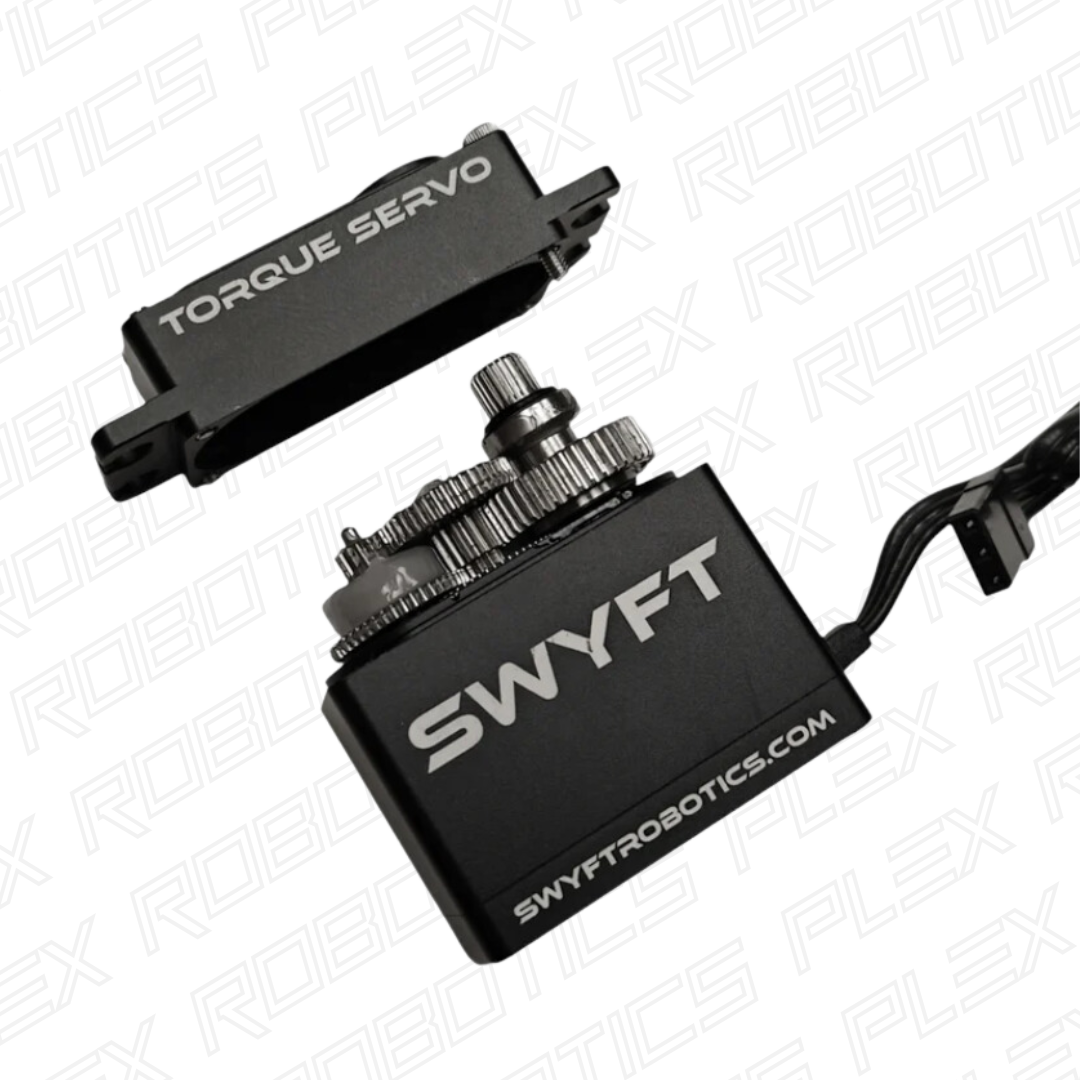

Swyft Servos

Introducing Swyft Servos, engineered for performance and durability, these servos deliver exceptional power and reliability to elevate your robot's capabilities.

Key Features:

• 3 Gear Ratios: Choose from three distinct gear ratios – Speed, Balance, and Torque – to perfectly match your servo's application. Whether you need lightning-fast movements, balanced performance, or maximum torque for those heavy lifts, Swyft Servos have you covered.
• Incredibly Robust Gears: Experience outstanding durability with our robust stainless steel gears, engineered to withstand the intense demands of competitive robotics. While they're not unbreakable, they're significantly stronger than what you'll find in other servos.
• Coreless Efficiency: Coreless motor technology delivers superior efficiency, minimizing power consumption.
• Potted PCB: The servo's internal PCB is protected with potting compound, reducing the chance of failures.
• Type 25 Spline (Aluminum Servo Horn Included)
• Aluminum Billet Body

• Dual Ball Bearings
• 83g

• FTC and FRC legal

• Programmable

Programmable (with Servo Programmer):

• Continuous Rotation (Only supports full speed)

• 320 Degrees Range of Travel: (Ships with 270 degrees)

• PID Coefficients

• Stall Protection: Turns off servo after 10 seconds of stall

• Direction: CW or CWW

Tested Performance: We've tested our servos to ensure they deliver the speed and torque they promise. Check out our testing videos to see them in action here!

Upgrade Your Robot Today: Experience the difference that power and durability can make with Swyft Servos. Choose the perfect gear ratio for your application and unleash the full potential of your robot.

CAD (all servo models are the same)
Drawing (all servo models are the same)
Servo Programming Software (Default values in screenshot)
Servo Programmer Guide
