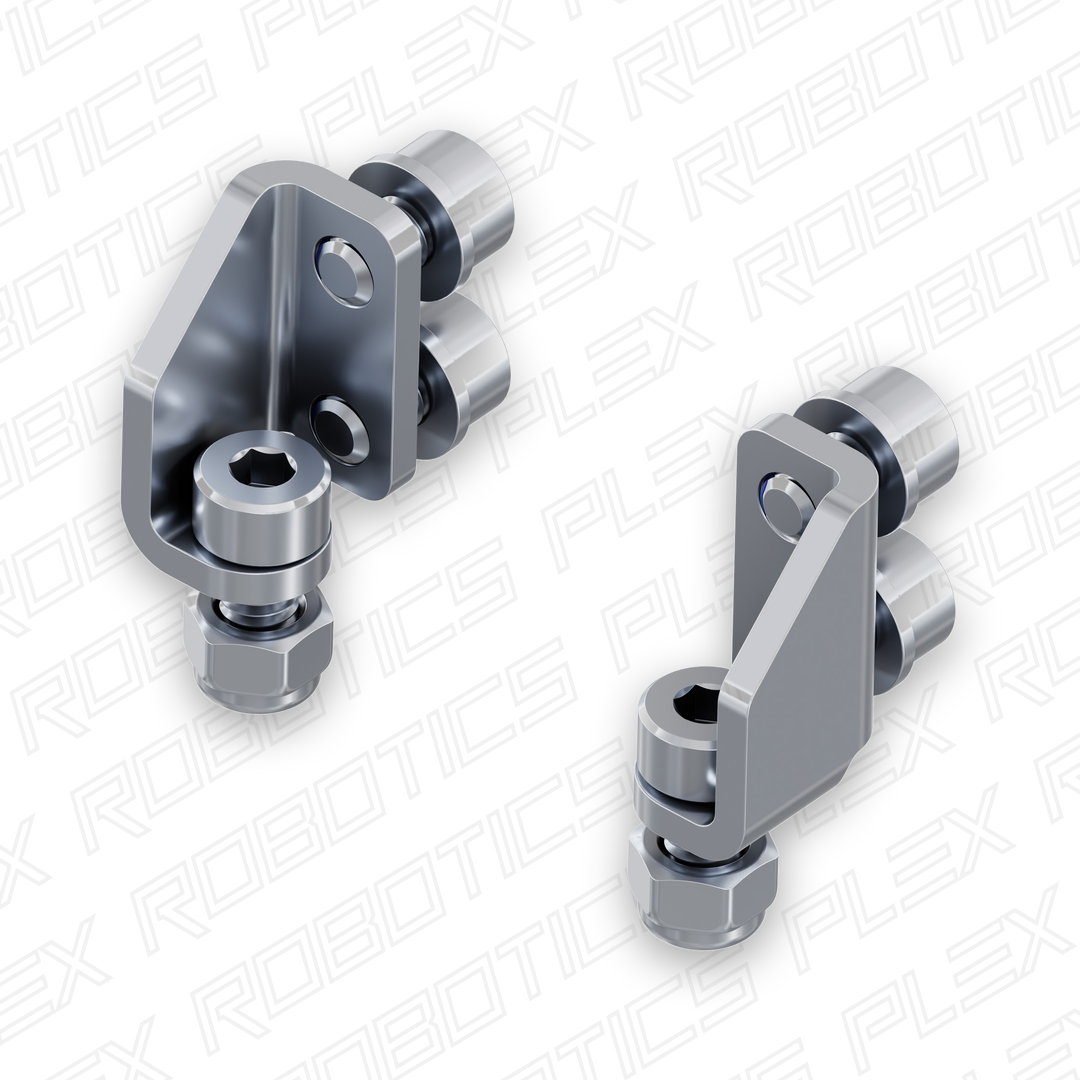

Steel 90° Servo Mounting Brackets (for Standard Size Servo)
Steel 90° Servo Mounting Brackets (for Standard Size Servo)
1806-0001-0001📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 1806-0001-0001
Nu am putut încărca disponibilitatea pentru ridicare

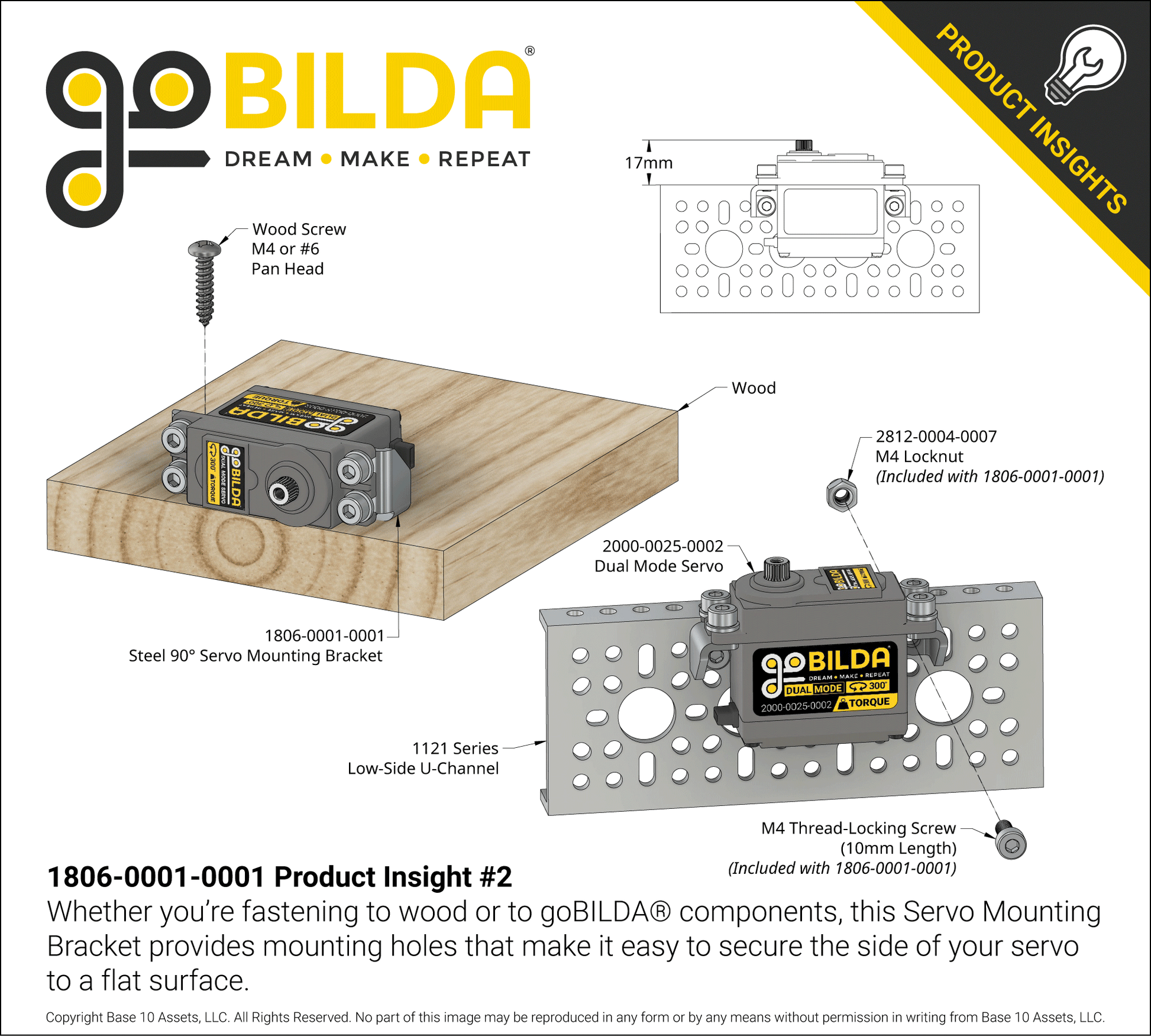

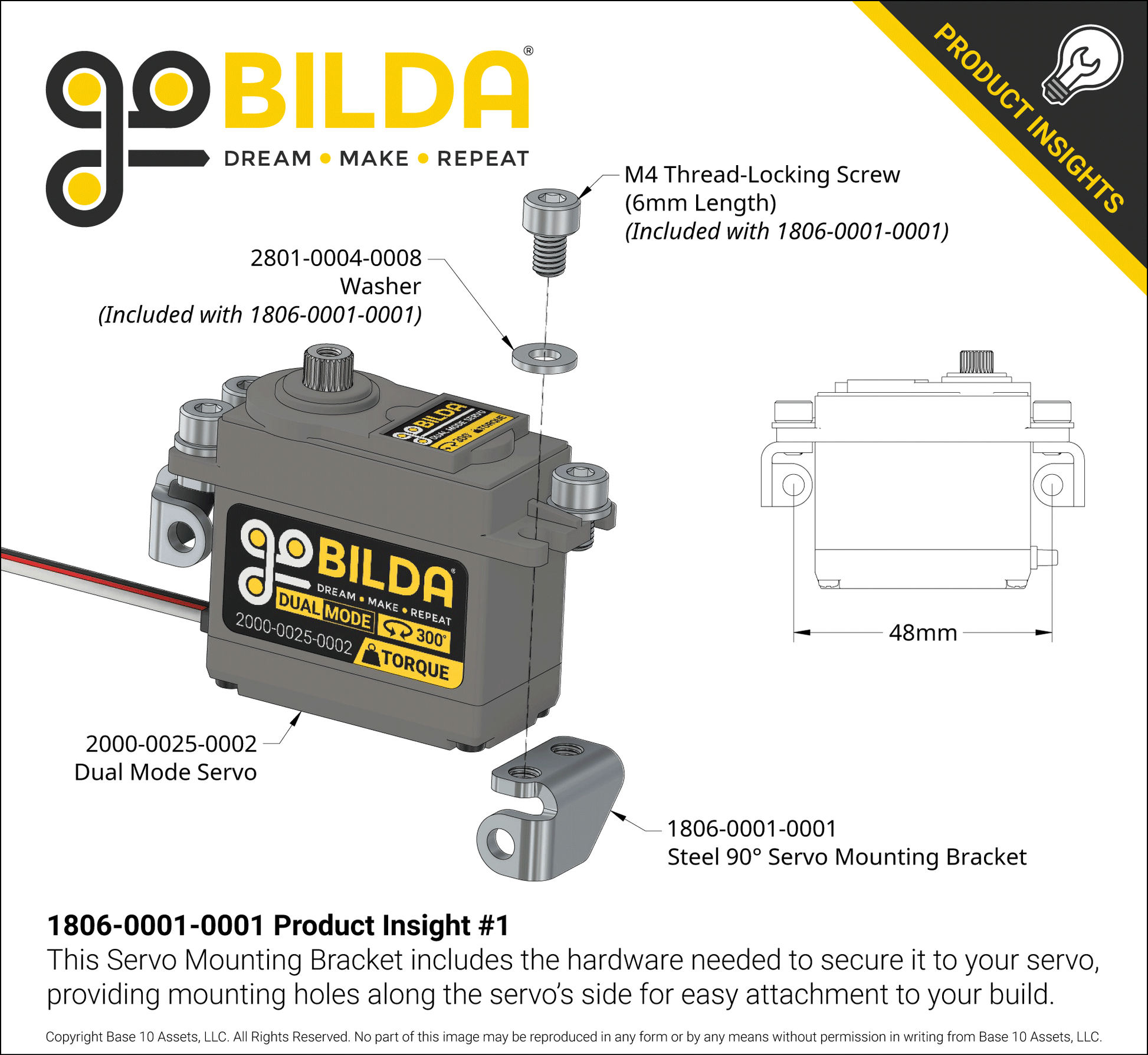

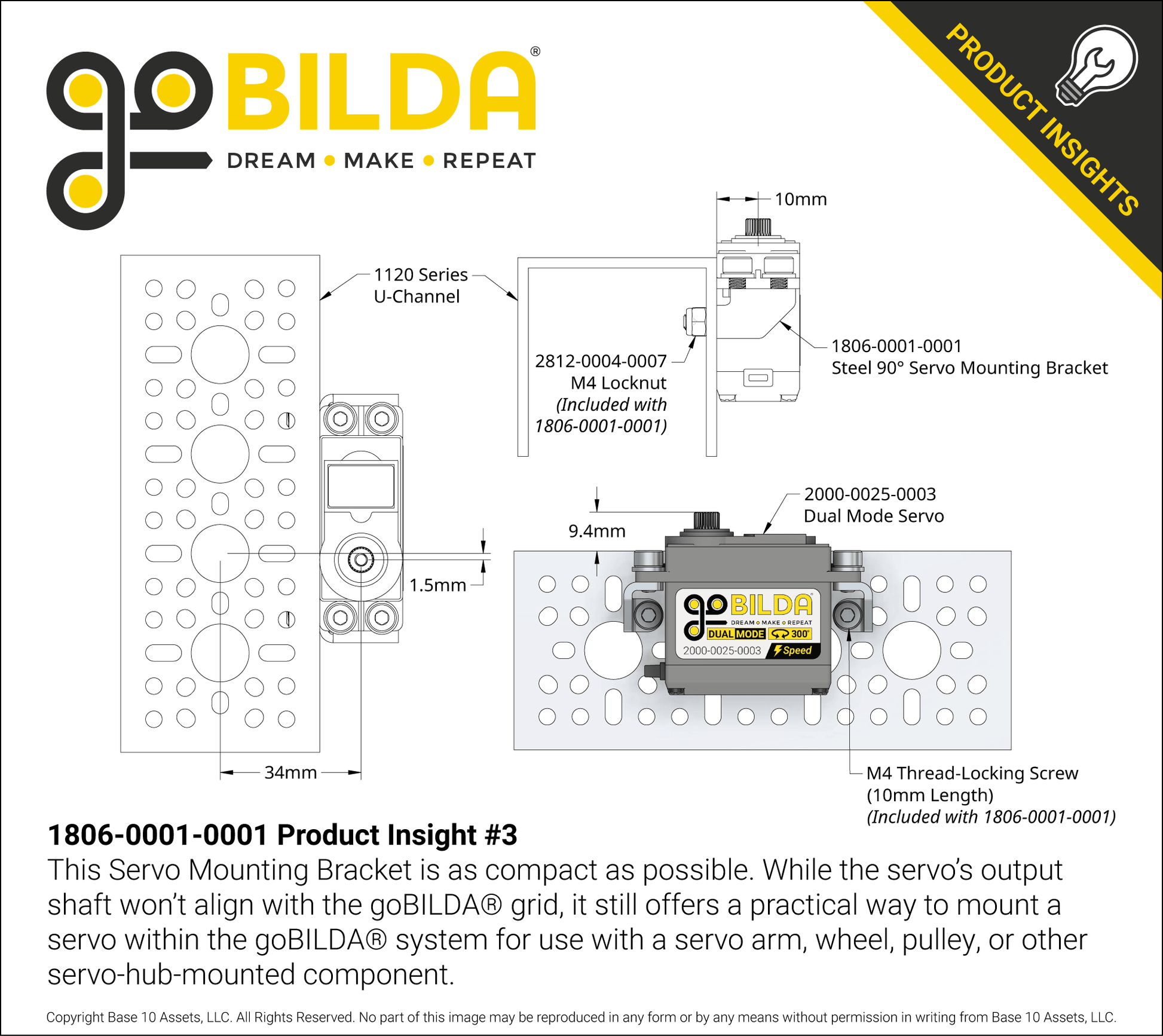

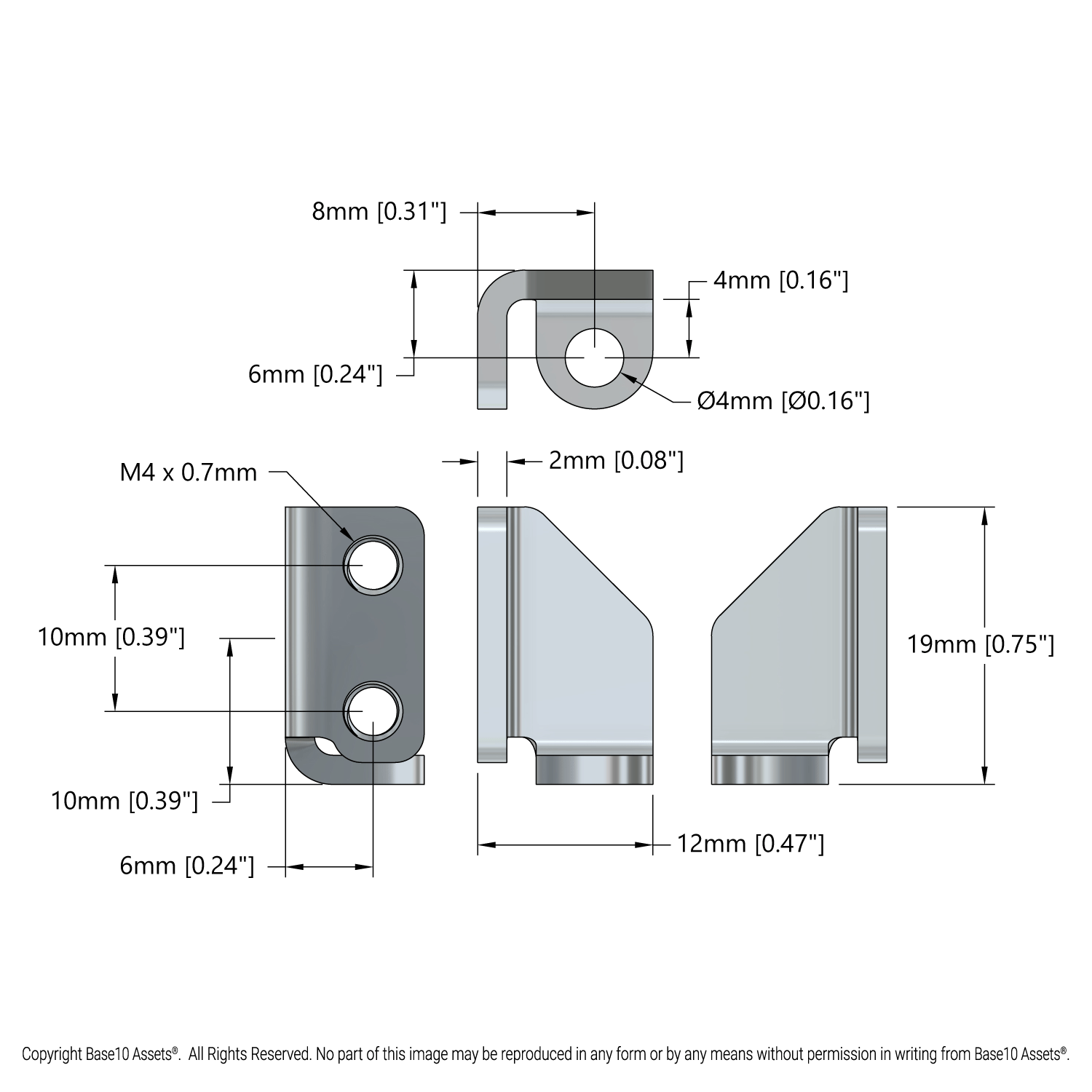

When you call for compactness, these 90° Servo Mounting Brackets answer! Designed specifically for mounting a standard size servo to a flat surface, they leave the servo’s spline a crisp 20mm from that surface; when installed as such, their 4mm mounting holes are a convenient 48mm apart.

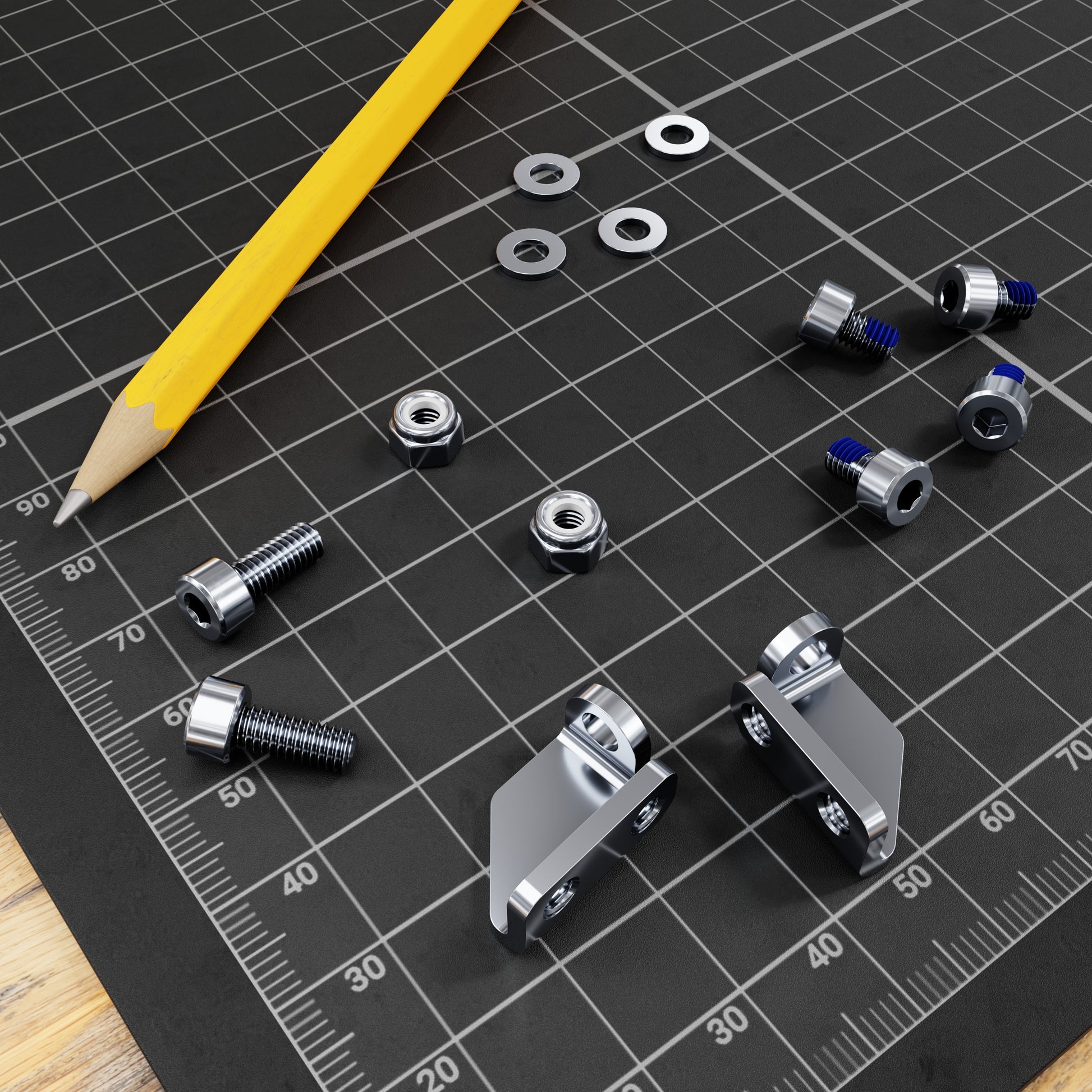

Speaking of convenience: these brackets not only come with the screws and washers to fasten the servo to the brackets, but also with Nylock nuts and 10mm socket head screws so that you don't have to go looking for additional bits of hardware when you’re attaching your servo to a material that’s of 3mm or less thickness.
All of the screws also rock a blue nylon patch—a dollop of thread-locking magic that provides super-security against loosening from vibrations!
Downloads
Specs
| Weight | 22g with included hardware |
|---|---|
| Material | Steel |
| Servo Compatibility | Standard Size |
| Included Screws | 6mm Length M4 Socket Head Thread-Locking Screw x 4, 10mm Length M4 Socket Head Screw x 2 |
| Included Washers | 4mm ID Steel Washer x 2 |
| Included Locknuts | M4 x 0.7mm Nylock Nut x 2 |
