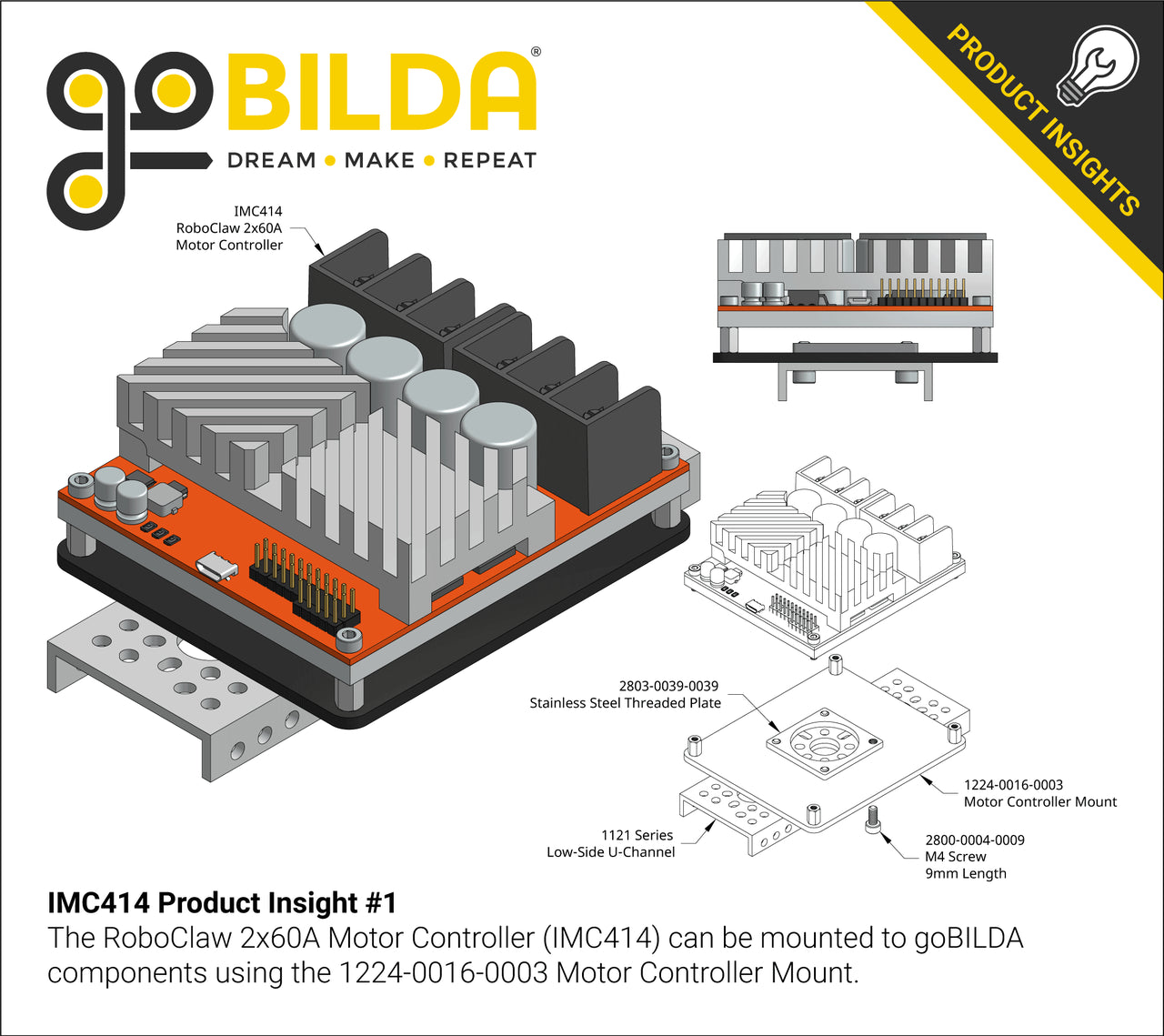

RoboClaw 2x60A Motor Controller

The Roboclaw 2x60A motor controller by Ion Motion Control can supply two brushed DC motors with 60 Amps continuous and up to 120 Amps peak. With its multi mode interface it can be controlled from USB, RC radio, serial devices, analog and or microcontrollers such as an Arduino or Raspberry Pi. Dual quadrature encoders with up to 19.6 million pulses per second are supported. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. Roboclaw's close loop functionality creates absolute control over speed, velocity and direction regardless of loading changes. At the heart of Roboclaw is a high performance motion control intelligence which achieves a higher precision of control while providing better motor performance in open or closed loop modes. With Roboclaw's synchronous regenerative capabilities it will charge a supply battery during slow down or breaking action. With it's advanced circuitry it can also change direction during full throttle without damage! Roboclaw also incorporates a lithium cutoff mode protecting batteries from damage.

Tech Tips:

• Motion Studio Settings:
• General Settings
• PWM Settings
• Velocity Settings
• Position Settings


• Arduino:
• Using the RoboClaw Arduino Library
• Using Encoders with the Arduino Library
• Standard Serial Mode with Arduino
• Standard Serial Bus Operation with Arduino


• Raspberry Pi:
• Using Encoders with the Python Library
• Configuring the Raspberry Pi 3 Serial Port
• Packet Serial with the Raspberry Pi 3

• Standard Serial with the Raspberry Pi 3

• Standard Serial Bus with the Raspberry Pi 3
• Packet Serial Bus Operation with the Raspberry Pi 3
