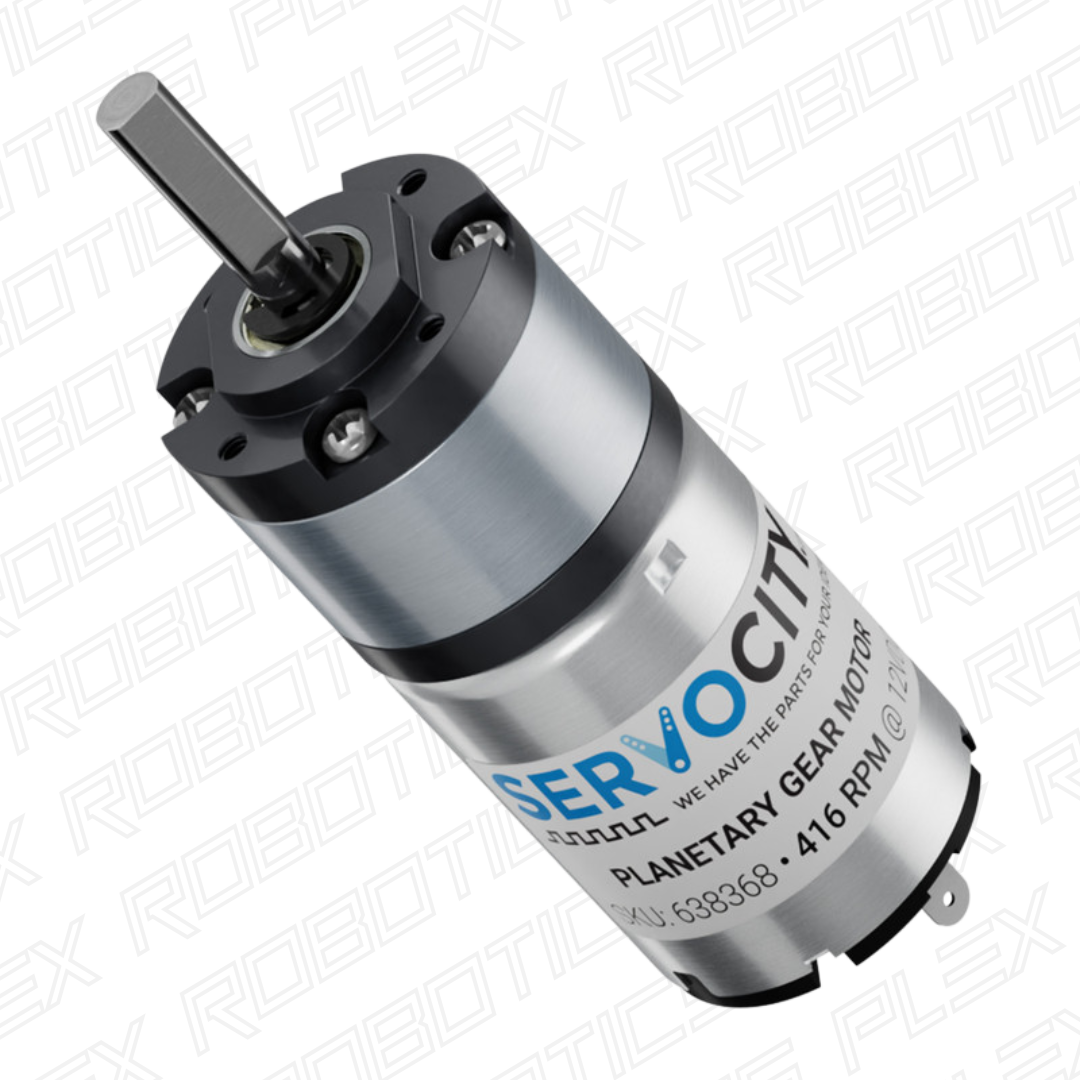

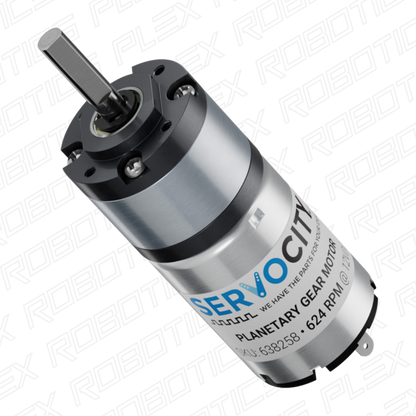

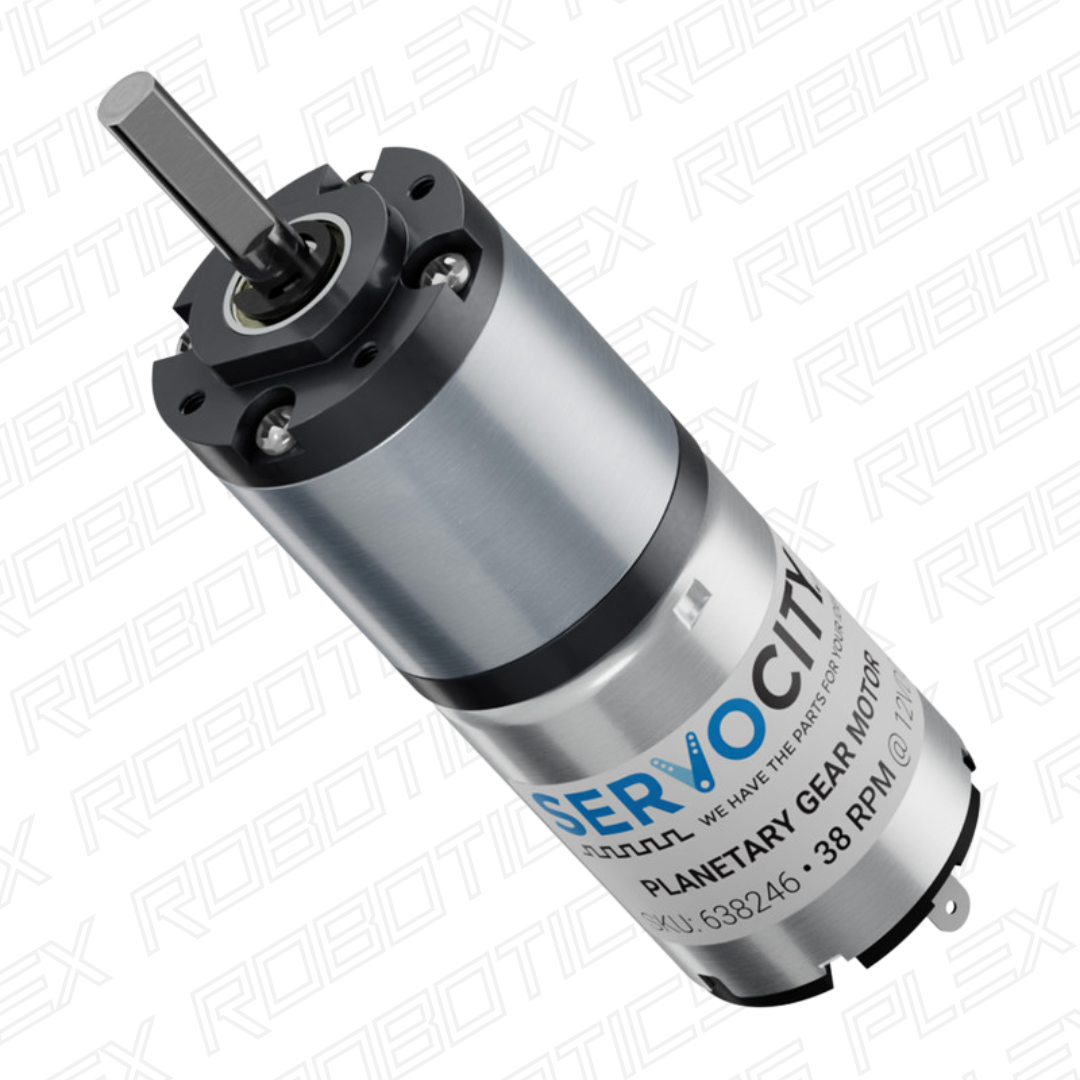

Premium Planetary Gear Motor (26 RPM - 2737 RPM)
Premium Planetary Gear Motor (26 RPM - 2737 RPM)
638242Preț obișnuit
158,00 lei
Preț obișnuit
Preț redus
158,00 lei
Preț unitar
/
pe
Prețul include taxe.
SKU: 638242
Nu am putut încărca disponibilitatea pentru ridicare

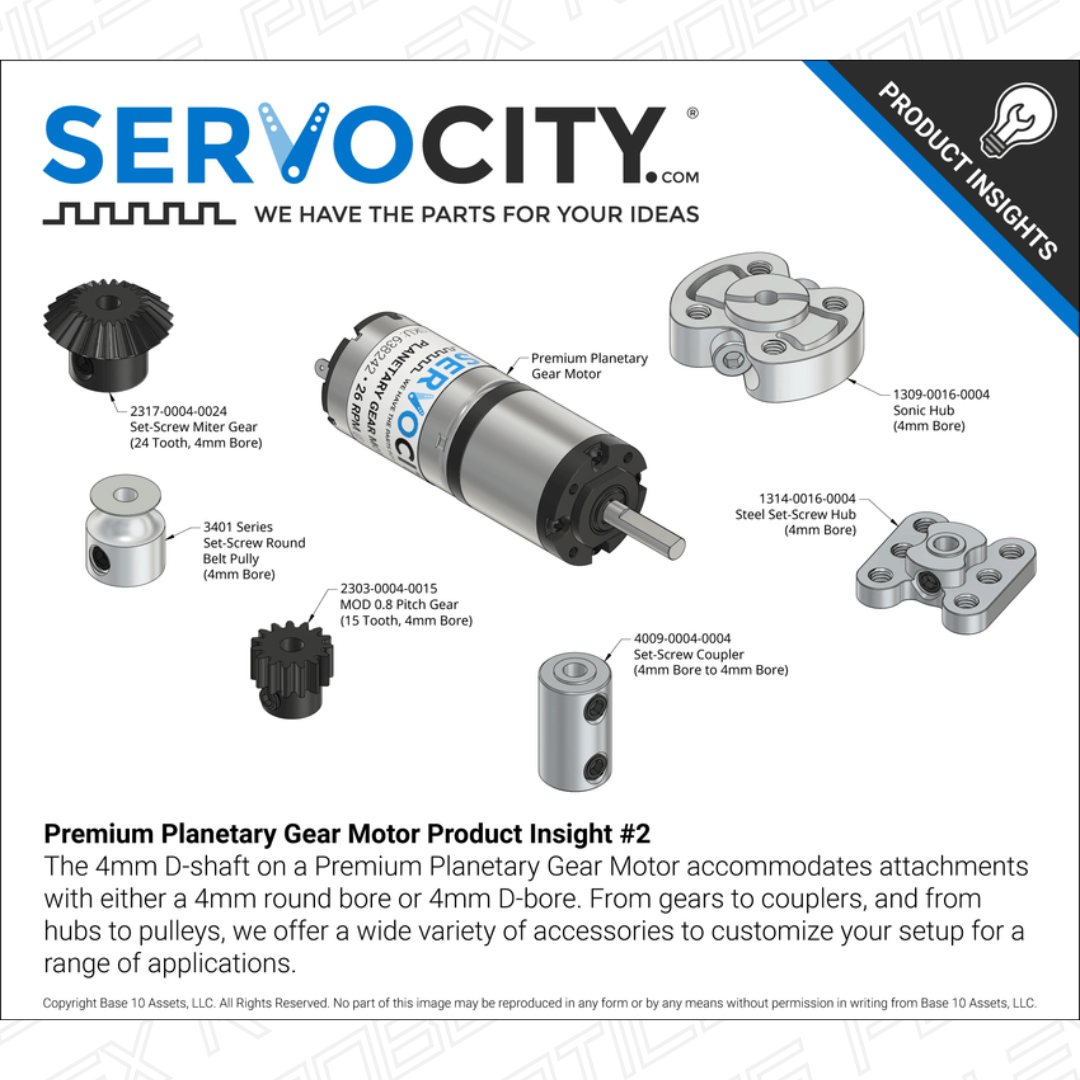

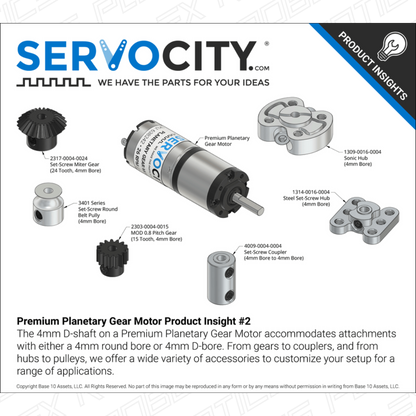

This brushed DC Premium Planetary Gear Motor packages all-metal gears and a 4mm D-shaft to drive your project.

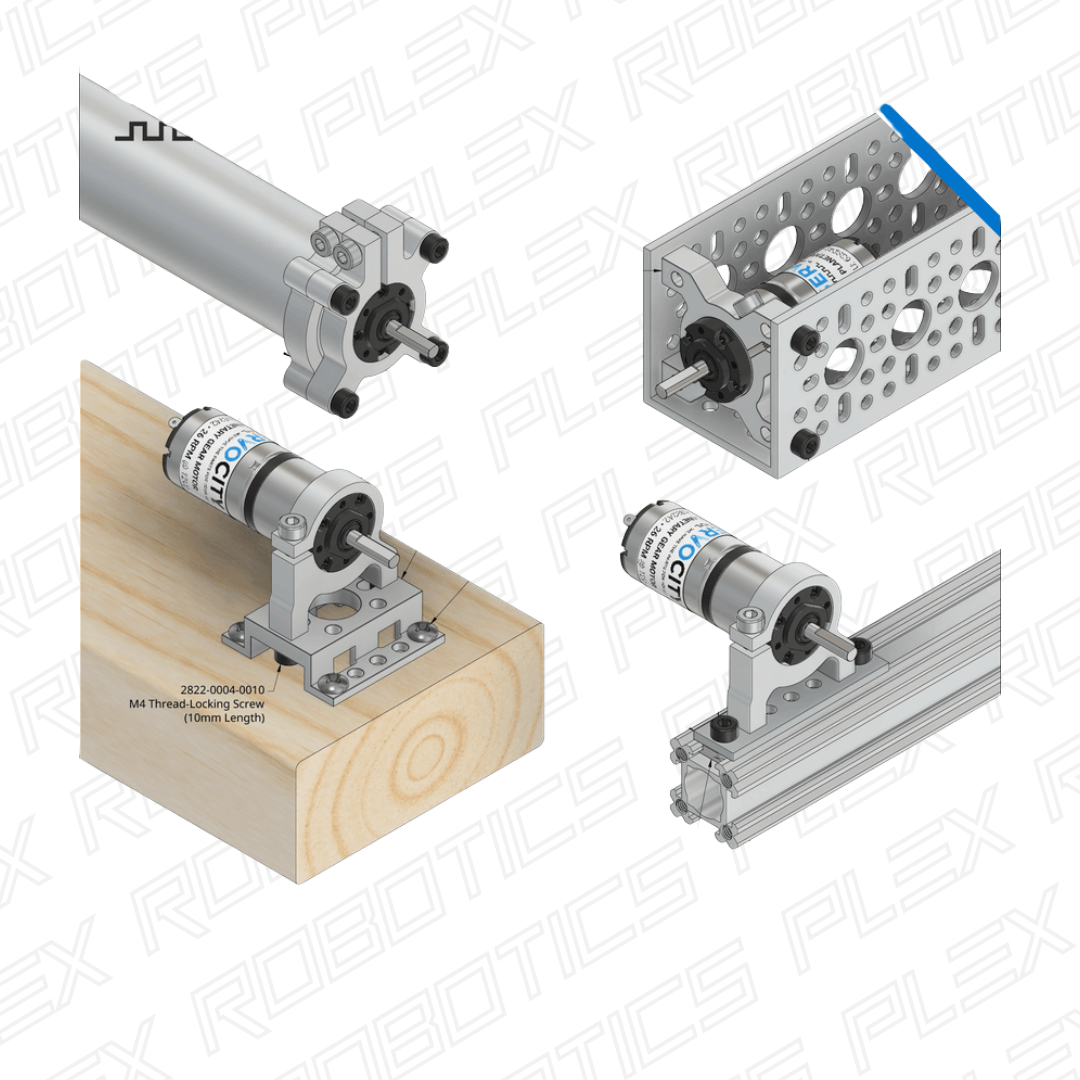

You can use its M2 threaded holes to fasten it to your project with M2 screws. Its 22mm gearbox diameter also provides for implementation with the use of 22mm bore clamping mounts.
Tech Tip
Stalling this gearmotor can cause gear damage.
Downloads
Specs
Output Shaft Style | D-shaft |
---|---|
Motor Type | Brushed DC |
Output Shaft Support | Dual Ball Bearing |
Gear Material | Metal |
Weight | 3.60 oz (102g) |
Voltage (Nominal) | 12V |
Voltage Range (Recommended) | 3V - 12V |
Speed (No Load @ 12VDC) | 26 rpm |
Current (No Load @ 12VDC) | 0.21A |
Current (Stall @ 12VDC) | 4.9A |
Torque (Stall @ 12VDC) | 583 oz-in (42 kgf-cm) |
Gearbox Style | Planetary |

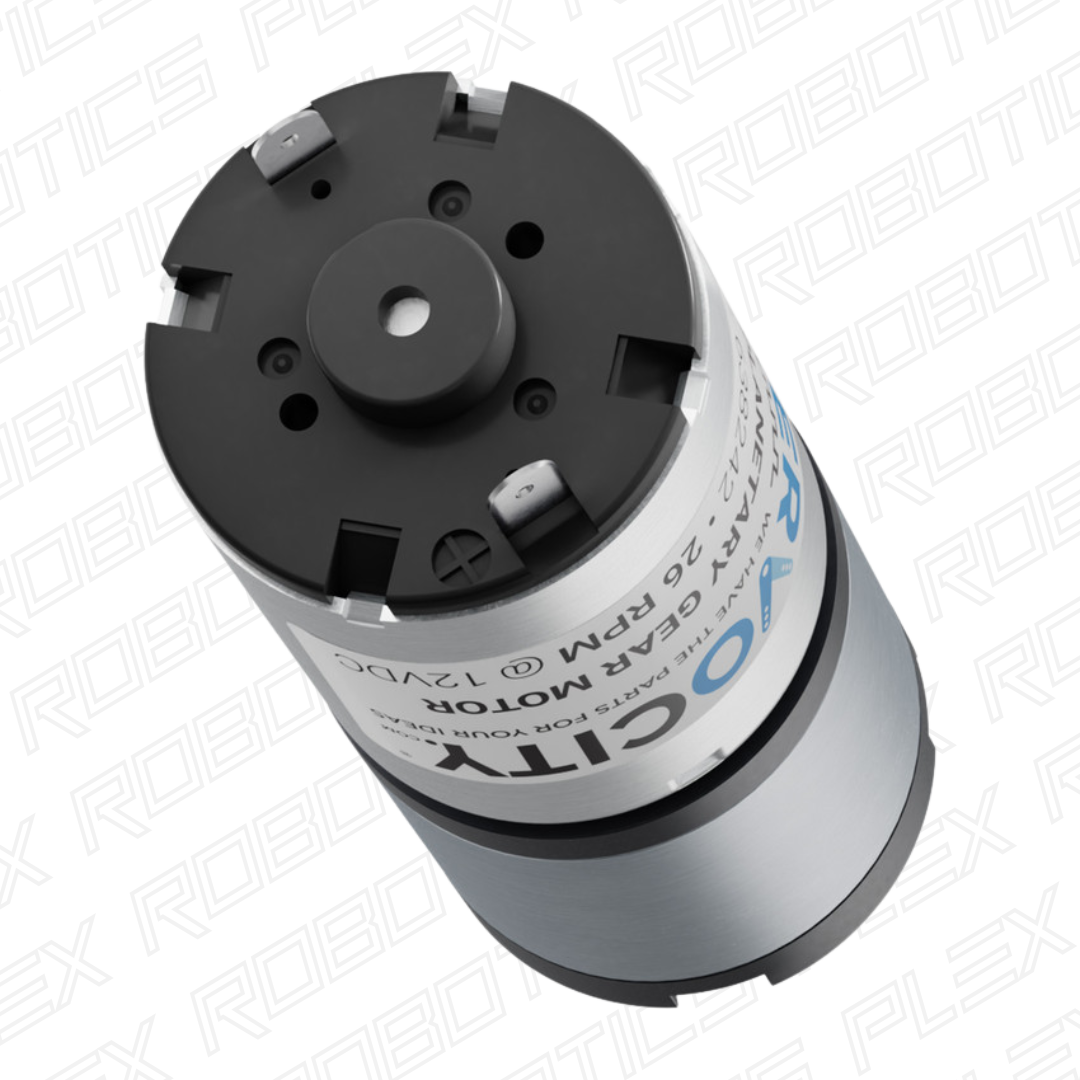

Connector Type | Male Spade Terminal |
Gear Ratio | 455:1 |
