Offset NanoLift – Box Tube Slide Kit
Offset NanoLift – Box Tube Slide Kit
Preț obișnuit
1.880,00 lei
Preț redus
1.880,00 lei
Preț unitar
pe
Prețul include taxe.
SKU:
Nu am putut încărca disponibilitatea pentru ridicare
Need a compact way to get your robot off the ground without using up your motor budget? Meet NanoLift – an ultra-lightweight, high-rigidity linear actuator specifically designed for FTC teams.
CAD:
DOCUMENTS:

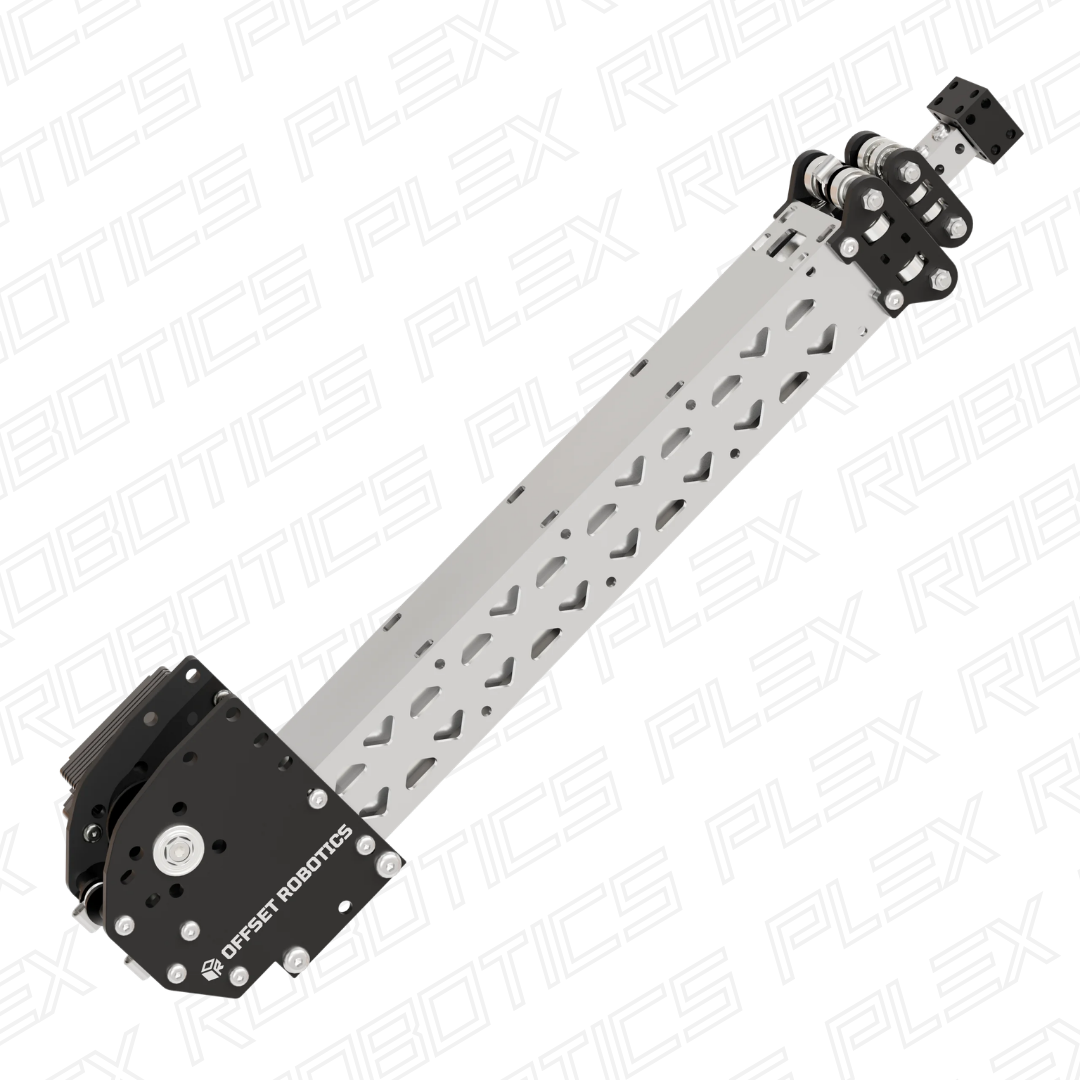

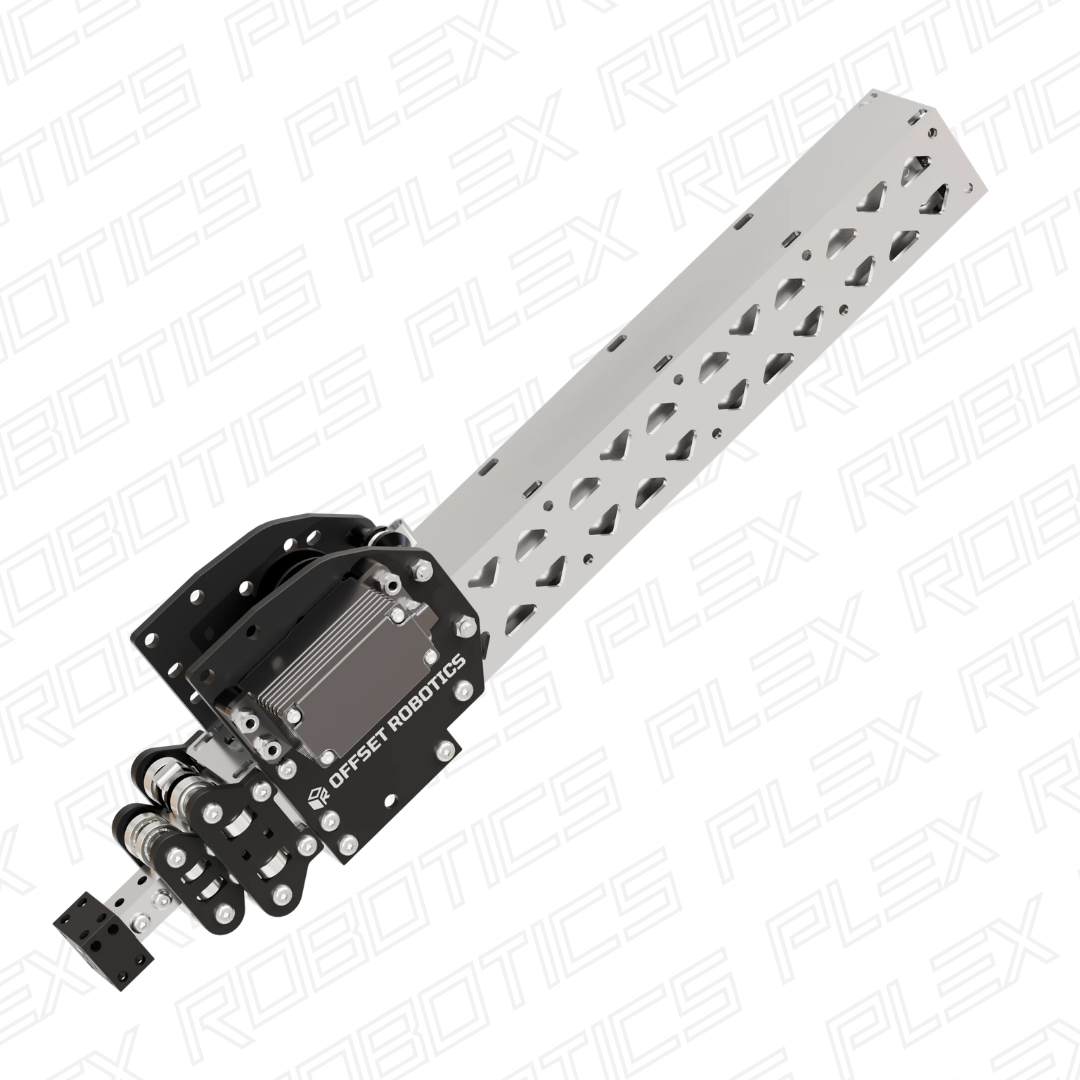

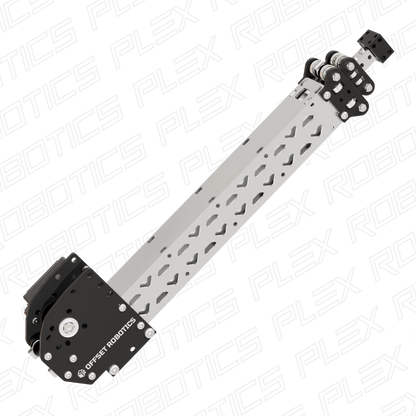

Introducing NanoLift, a powerful, yet compact linear actuator that can be powered by a motor or a servo. It includes ALL mounting plates, a 5 axis machined threaded end-block, while utilizing the same reliable box tube design as before.

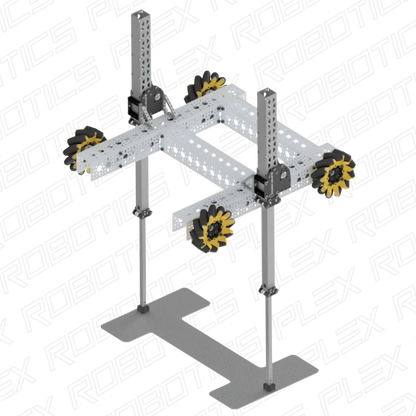

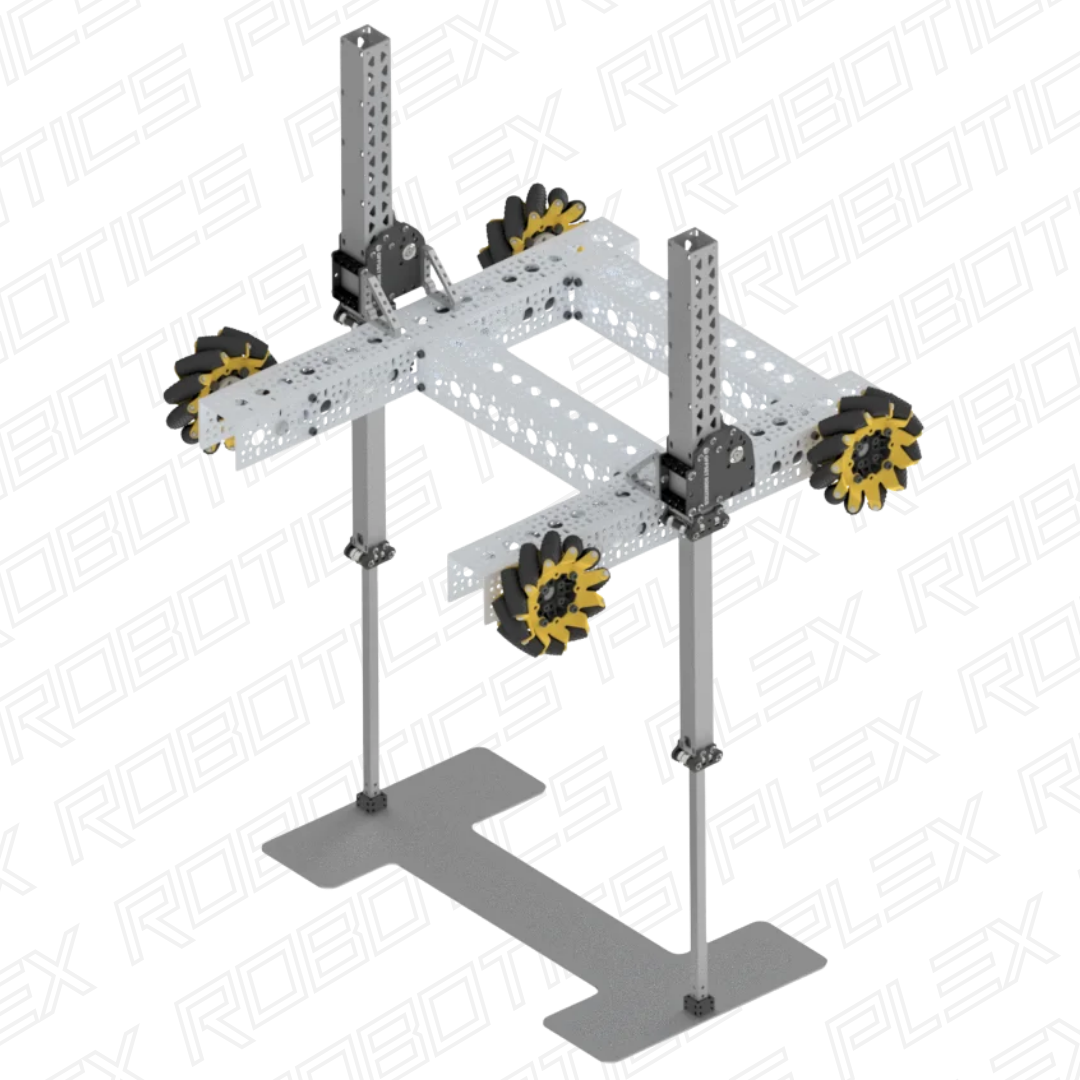

- 5 Second lift with Axon/Swyft Servos (with 12kg Robot)
- Short enough to avoid blocking shooters and turrets
- 18.5 inch max stroke length
- 350 grams (Without Mounting), 450 Grams with Mounting !
- 30x30mm form factor
- Strong, smooth, ball bearing based motion
- Custom machined 4/5 axis parts – ALL aluminum inserts
- Can be powered by either a Servo or Motor
The kit includes:
- All Ball Bearings Needed
- V-bearings
- Bearing shields
- Fasteners (Using now upgraded torx hardware)
- Custom CNC manufactured tubes
- Custom Sandblasted, and Anodized plates with 0.03mm tolerances
- Mounting Plates
- 3d Printed Pulleys, Parts
- 64mm Hex axle
- 14mm OD, 8mm ID Bearings

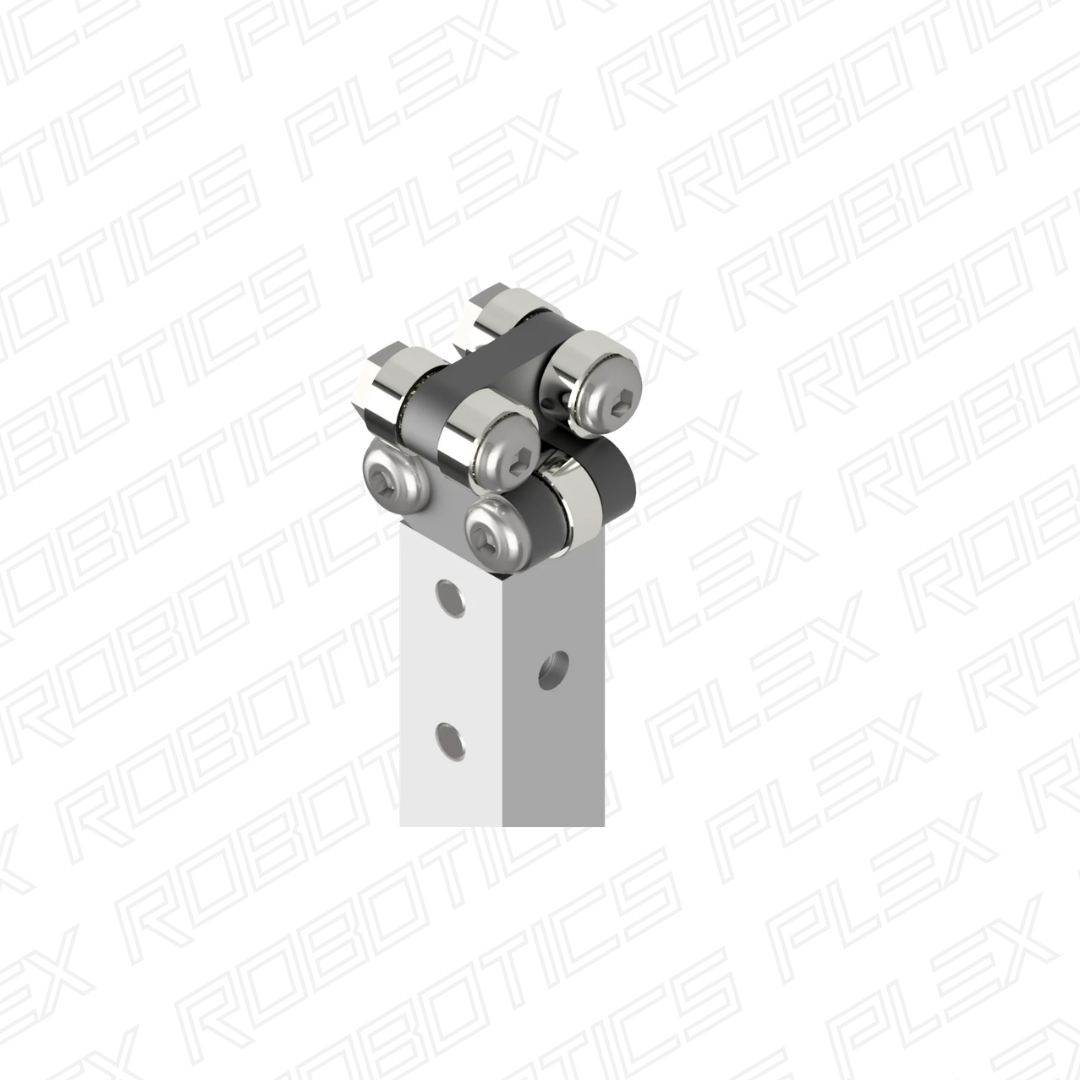

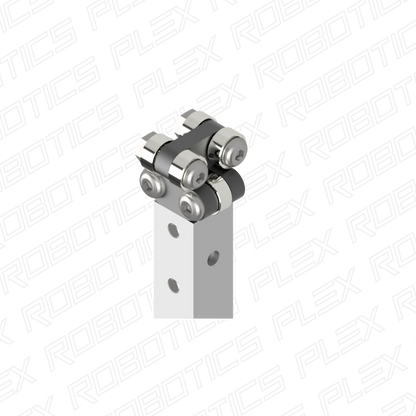

- 5 Axis threaded end-of-tube mounting block
- 4-axis 10mm bottom insert
- Nut Holder Tool
Not included:
- Servo/Motor
- Servo Shaft
- Assembly tools
