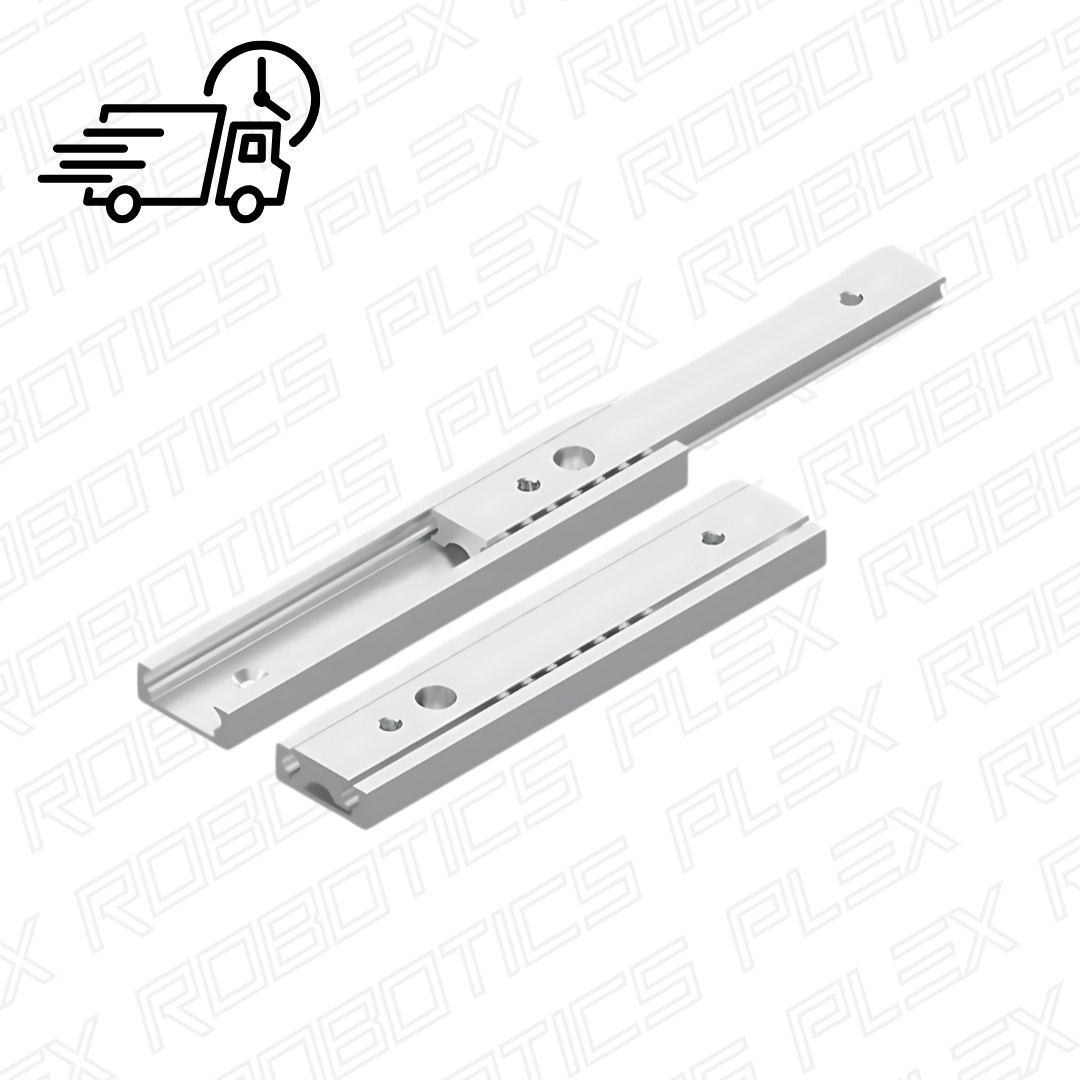

MISUMI Telescopic Slide Rail

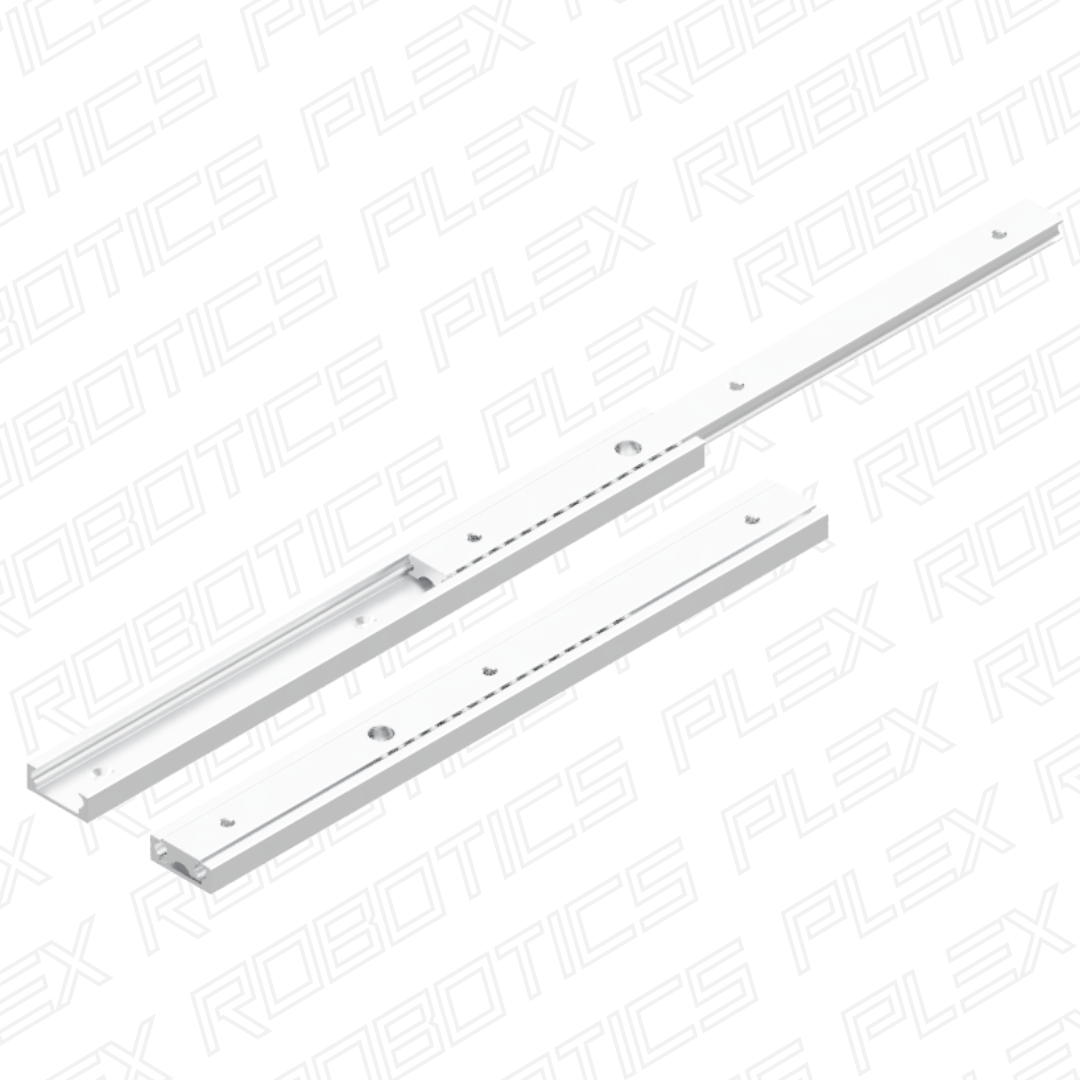

The MISUMI SAR Series aluminum telescopic rails are designed for compact and precise linear motion applications in robotics, automation systems, and mechanical assemblies. Built from lightweight anodized aluminum alloy and featuring high-durability stainless steel ball bearings (EN 1.4125 equivalent), these rails offer smooth extension and retraction with minimal friction. Available in two-stage (SAR2XX) or three-stage (SAR3XX) configurations, they provide various stroke lengths to suit a wide range of installation scenarios.

Thanks to their low profile and lightweight build, the SAR rails are ideal for space-constrained applications where consistent linear guidance and structural reliability are essential.

Technical Specifications

• Manufacturer: MISUMI
• Country of Origin: Japan
• Product Codes: SAR 210 / 220 / 230 / 240 / 310 / 320 / 330 / 340
• Rail Type: Two-stage (SAR2XX) or Three-stage (SAR3XX)
• Rail Length / Extension:

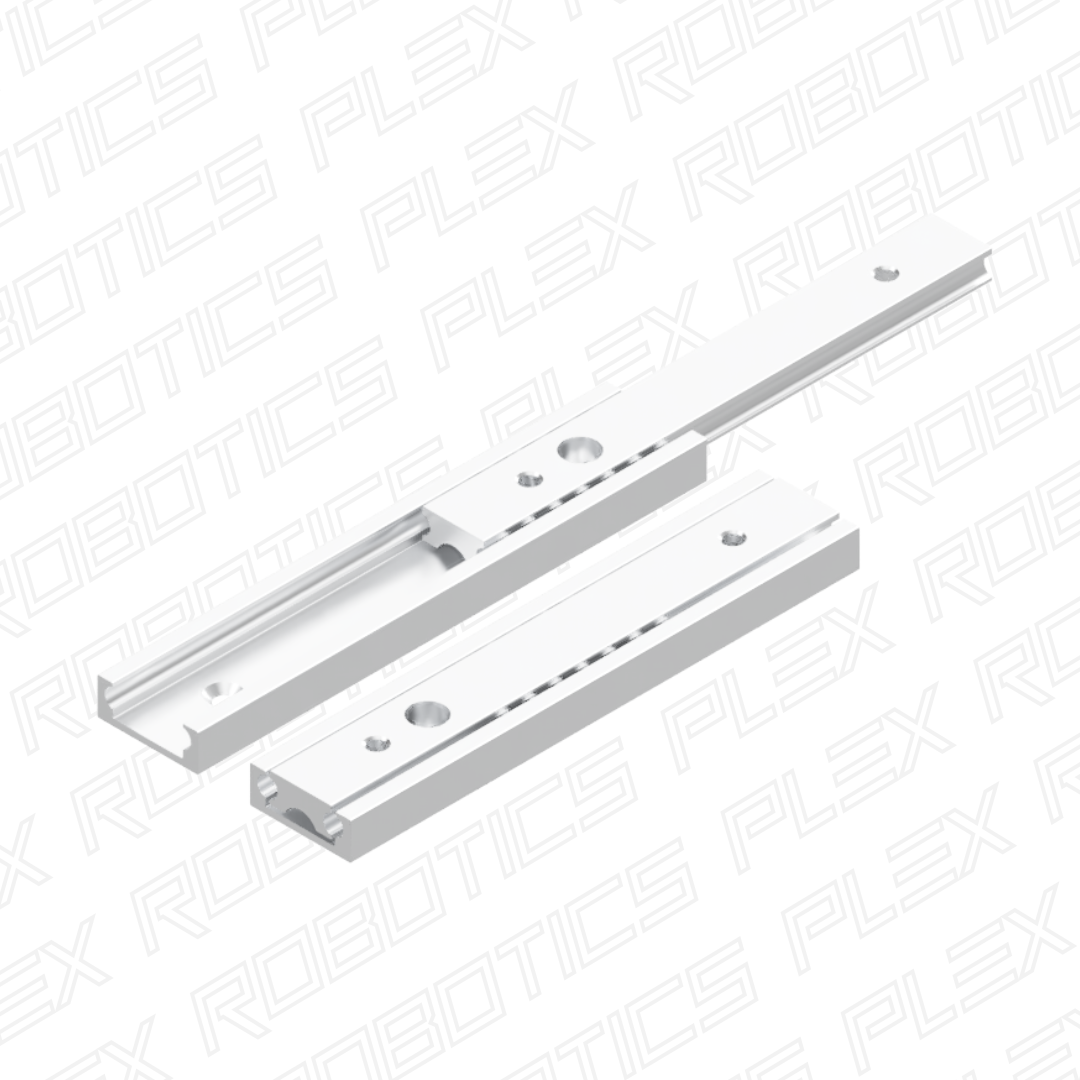

  • SAR 210: 100 mm / 60 mm
  • SAR 220: 200 mm / 120 mm

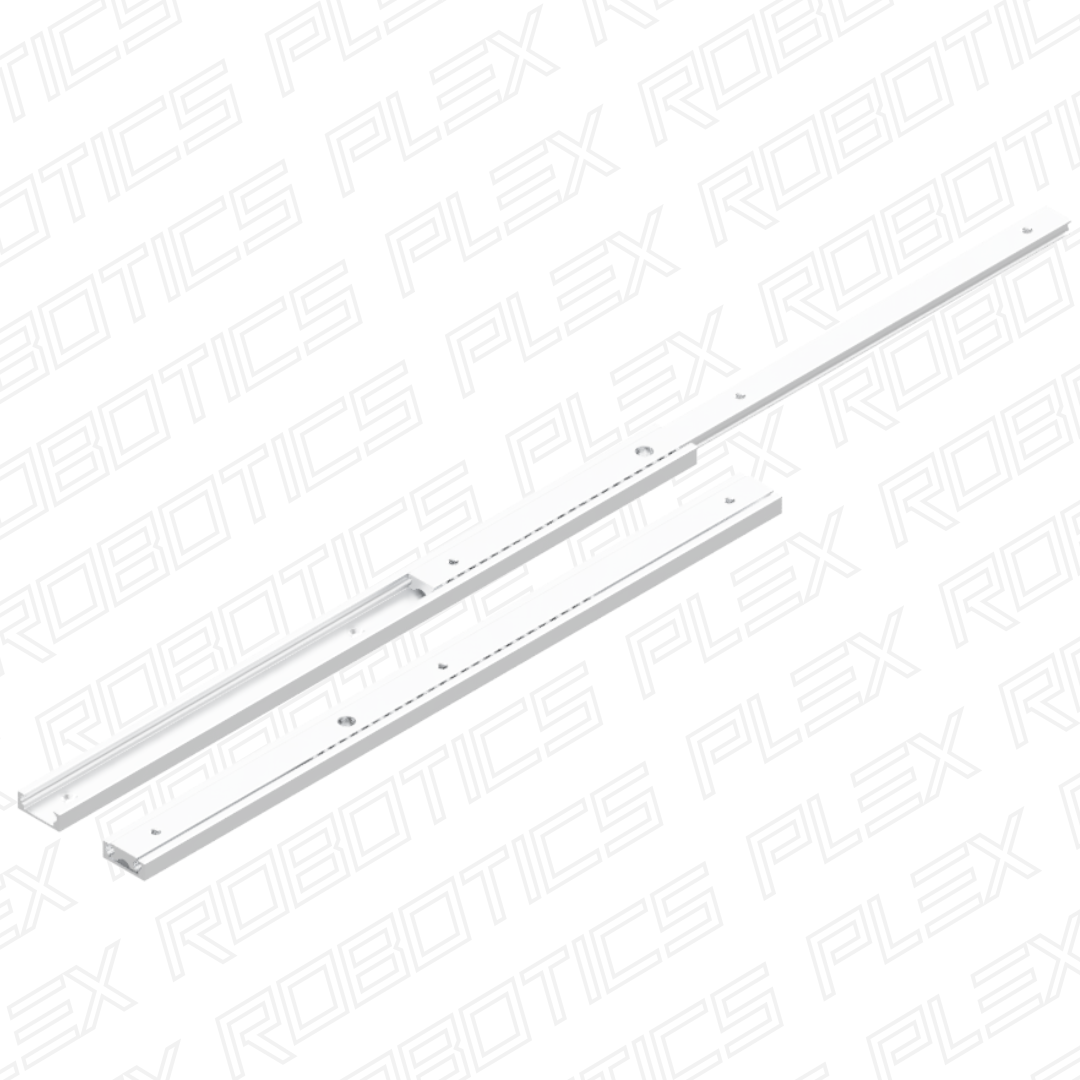

  • SAR 230: 300 mm / 180 mm

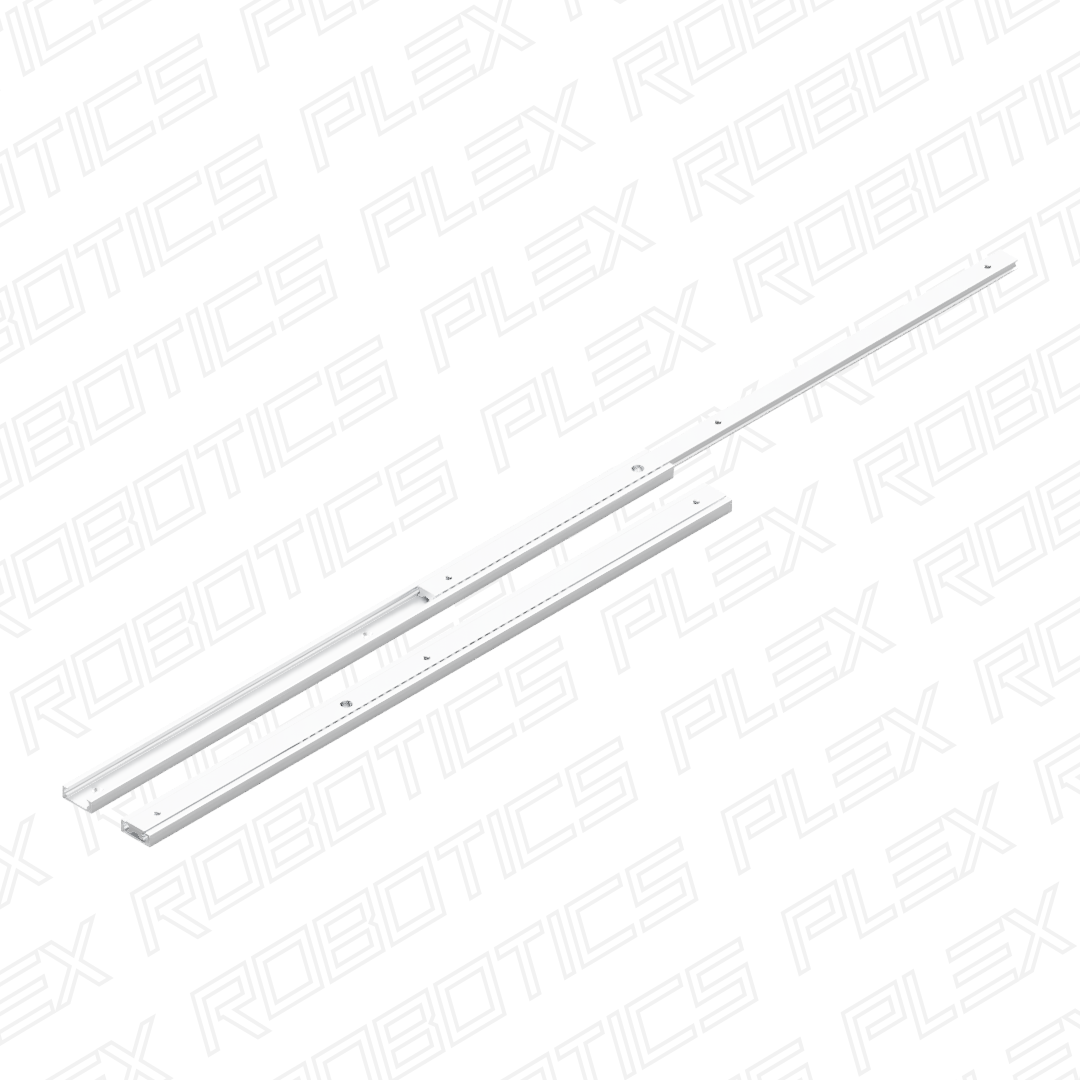

  • SAR 240: 400 mm / 240 mm

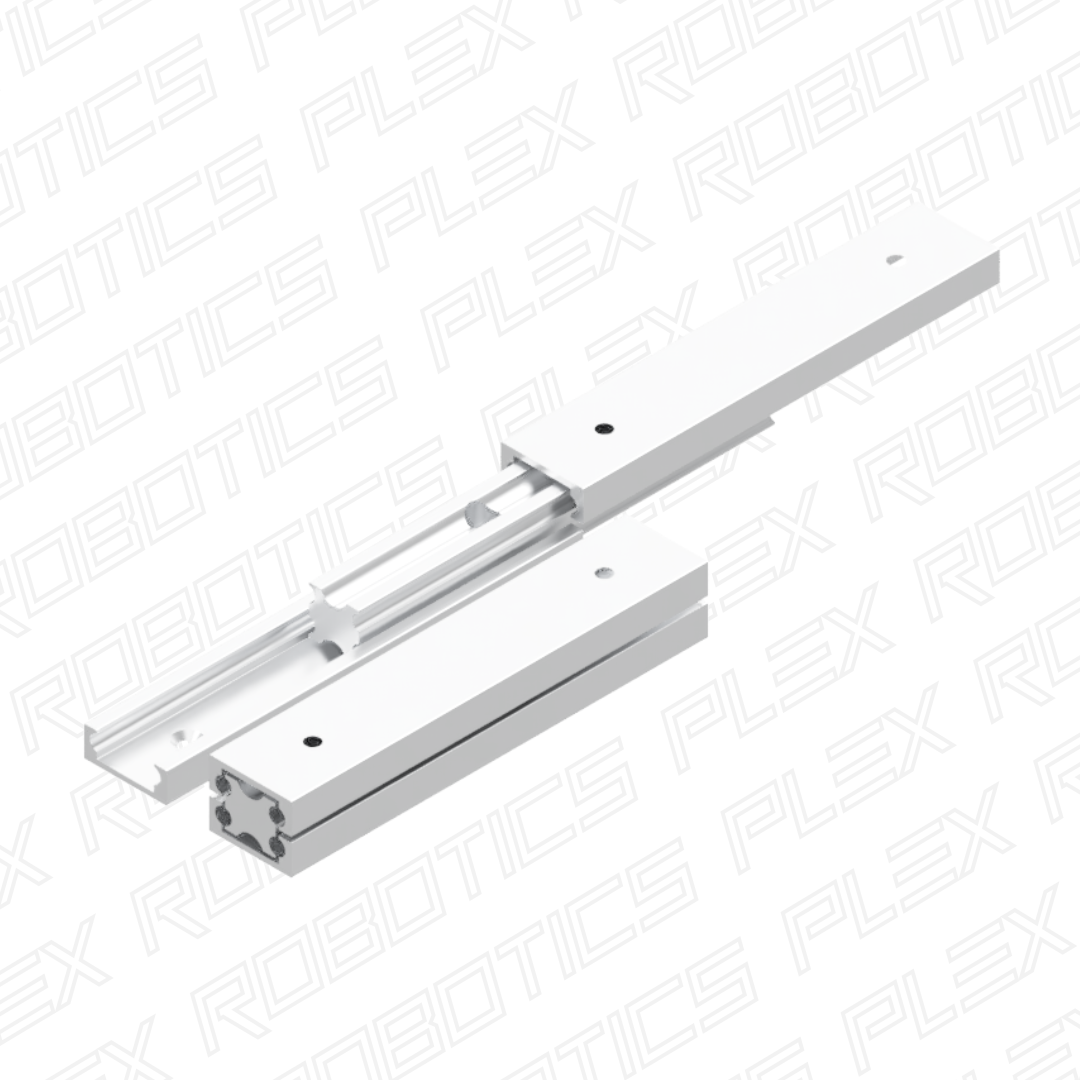

  • SAR 310: 100 mm / 100 mm

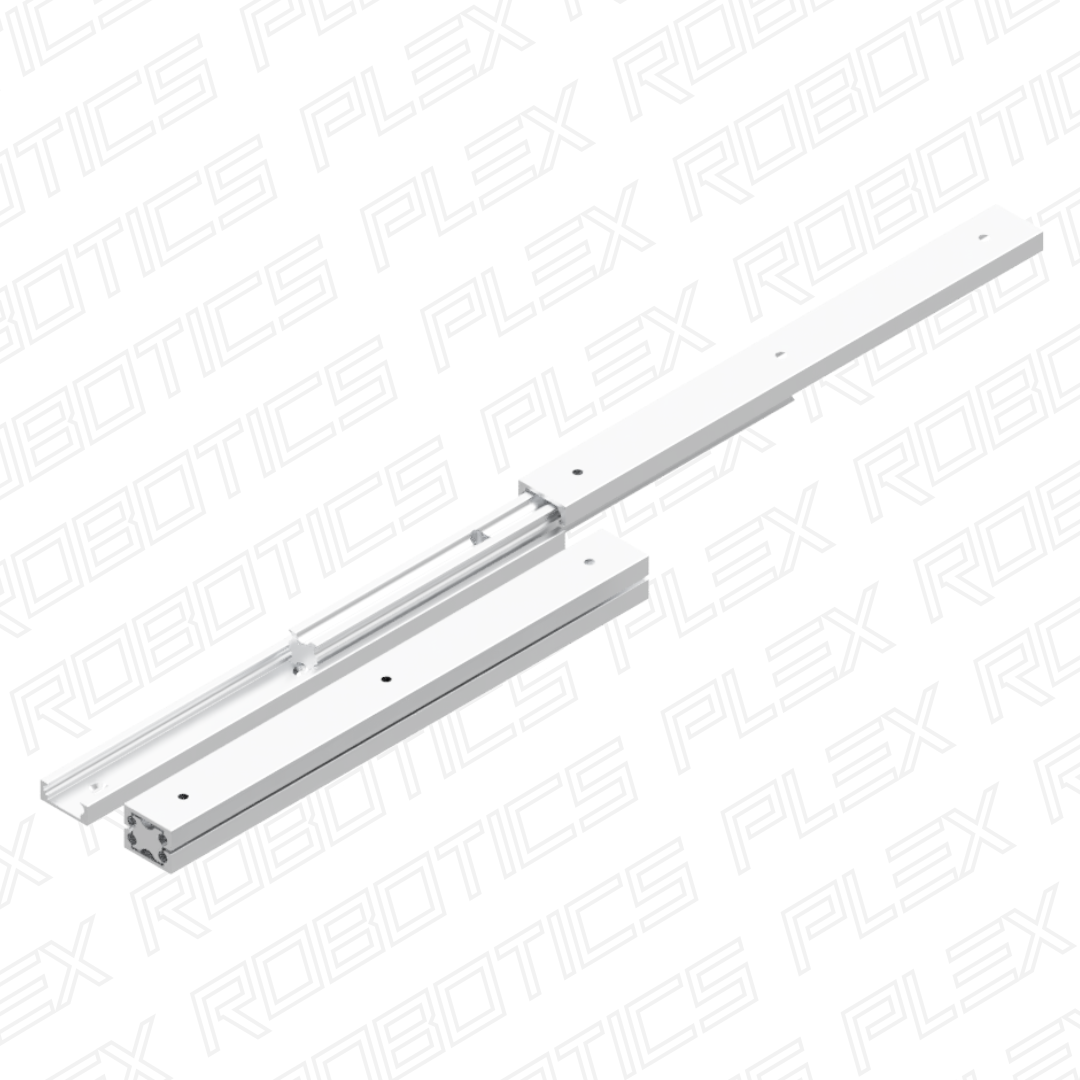

  • SAR 320: 200 mm / 223 mm

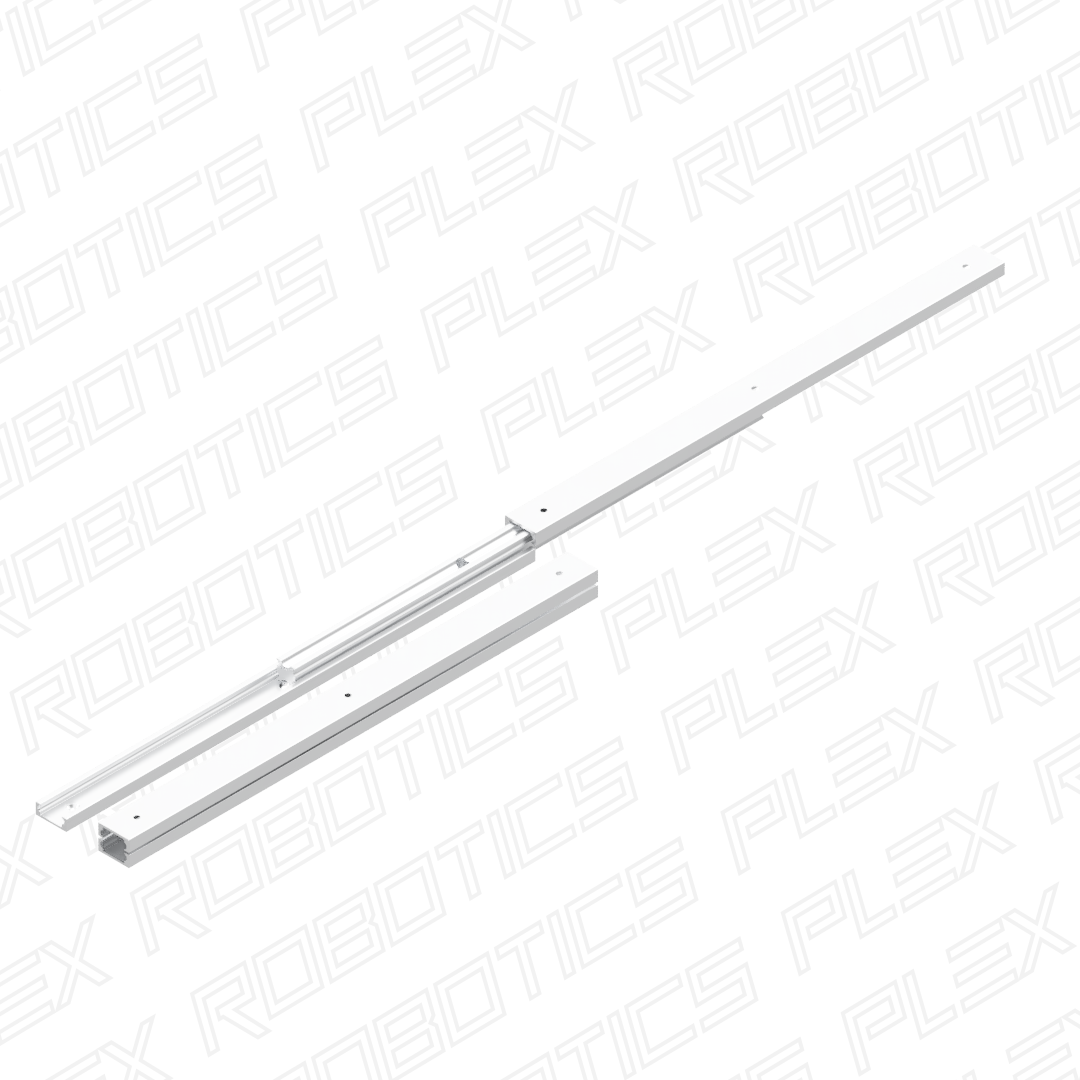

  • SAR 330: 300 mm / 345 mm

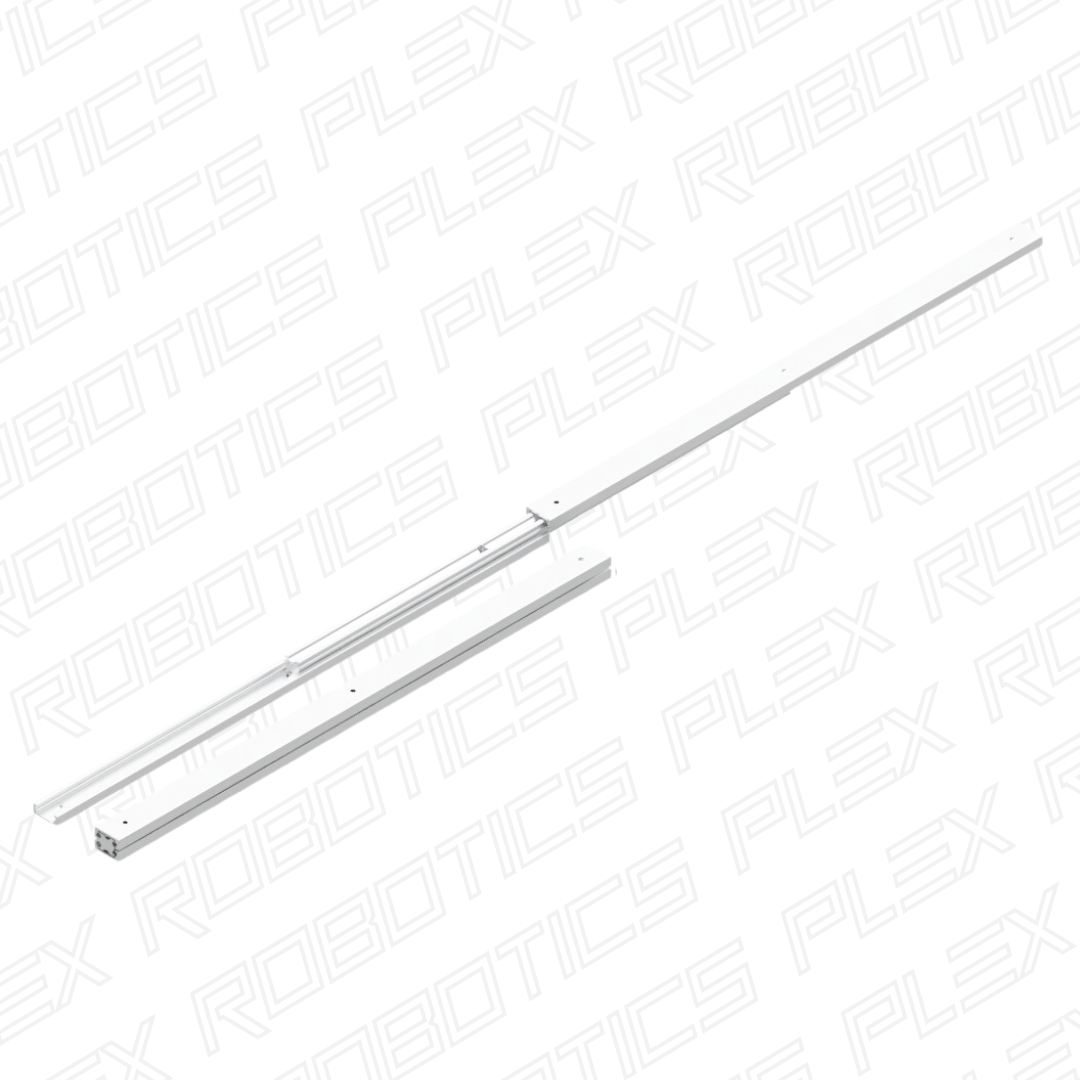

  • SAR 340: 400 mm / 460 mm
• Height: 8 mm
• Width: 20 mm
• Rail Material: Aluminum Alloy (Anodized Clear Finish)
• Ball Material: Stainless Steel (EN 1.4125 equivalent)
• Recommended Force Limits:
  • SAR 210: <147 N
  • SAR 220: <117 N
  • SAR 230: <98 N
  • SAR 240: <88 N
  • SAR 310: <107 N
  • SAR 320: <88 N
  • SAR 330: <68 N
  • SAR 340: <49 N
• External Mounting Holes Thread: M4
• Internal Countersunk Mounting Holes Thread: M3
