REV Robotics

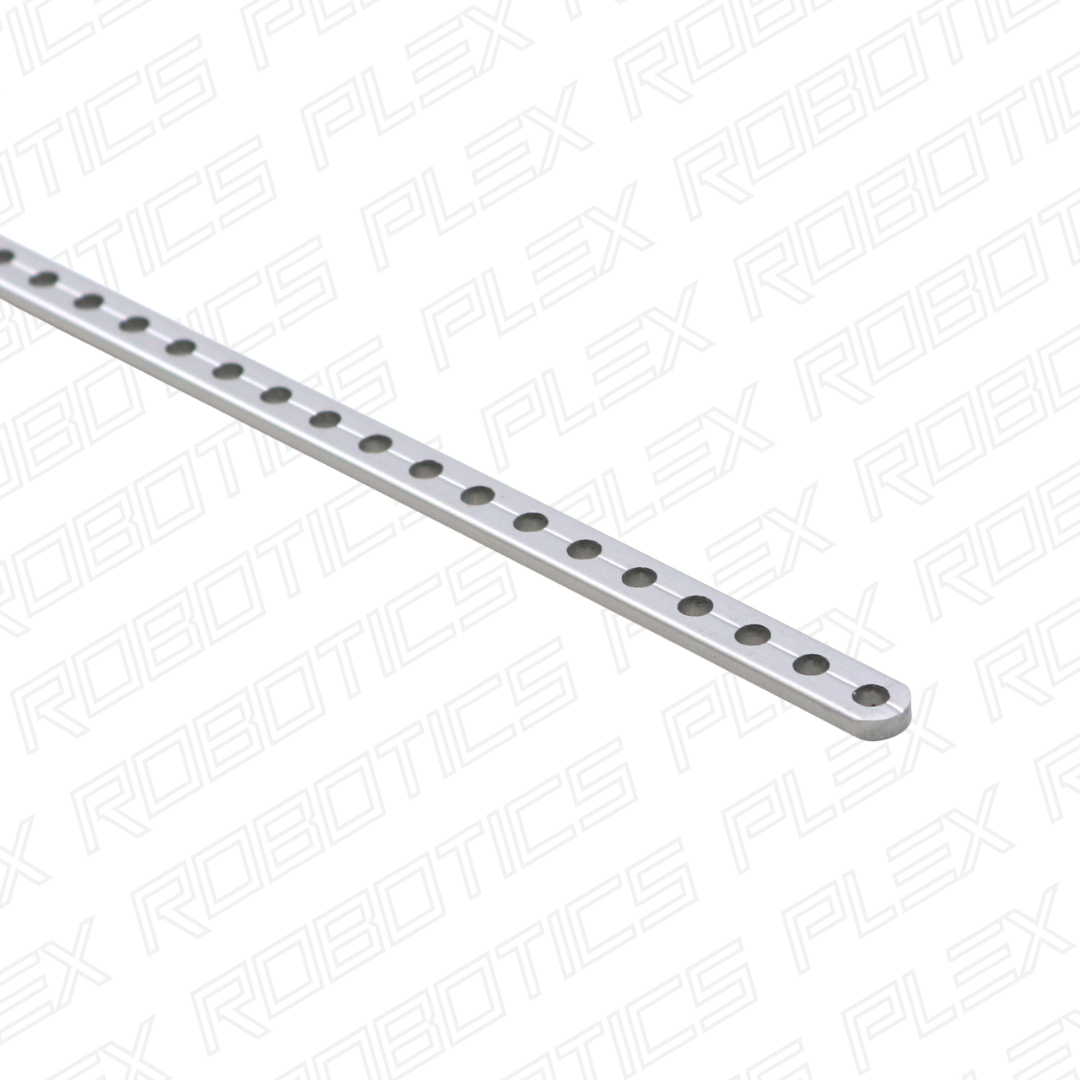

DUO Flat Beams (2 Pack)

DUO Flat Beams (2 Pack)

REV-41-1698-PK2
17,10 lei
21,40 lei 17,10 lei
Reducere Stoc epuizat
Taxe incluse.

DUO Flat Beams are compatible with the REV DUO System and are easy to use. Having an 8mm width, 3mm height, and 8mm hole pattern makes them perfect as a support for an upright or using them as a linkage.

Specifications

  • Material: 6063 Aluminum
  • Width: 8mm
  • Thickness: 3mm
  • Length: Varies Based on Product Selection (see table below)
  • Hole Pattern Spacing: 8mm
  • 3mm Screw Clearance Hole Size: 3.4mm

Documentation

Product Options

 SKU   PRODUCT NAME   CAD & DRAWINGS
 REV-41-1698-PK2   Flat Beam - 40mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1697-PK2   Flat Beam - 72mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1696-PK2   Flat Beam - 104mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1695-PK2   Flat Beam - 152mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1694-PK2   Flat Beam - 216mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1693-PK2   Flat Beam - 312mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1692-PK2   Flat Beam - 408mm - 2 Pack   STEP FILE ONSHAPE DRAWING
 REV-41-1691-PK2   Flat Beam - 504mm - 2 Pack   STEP FILE ONSHAPE DRAWING
