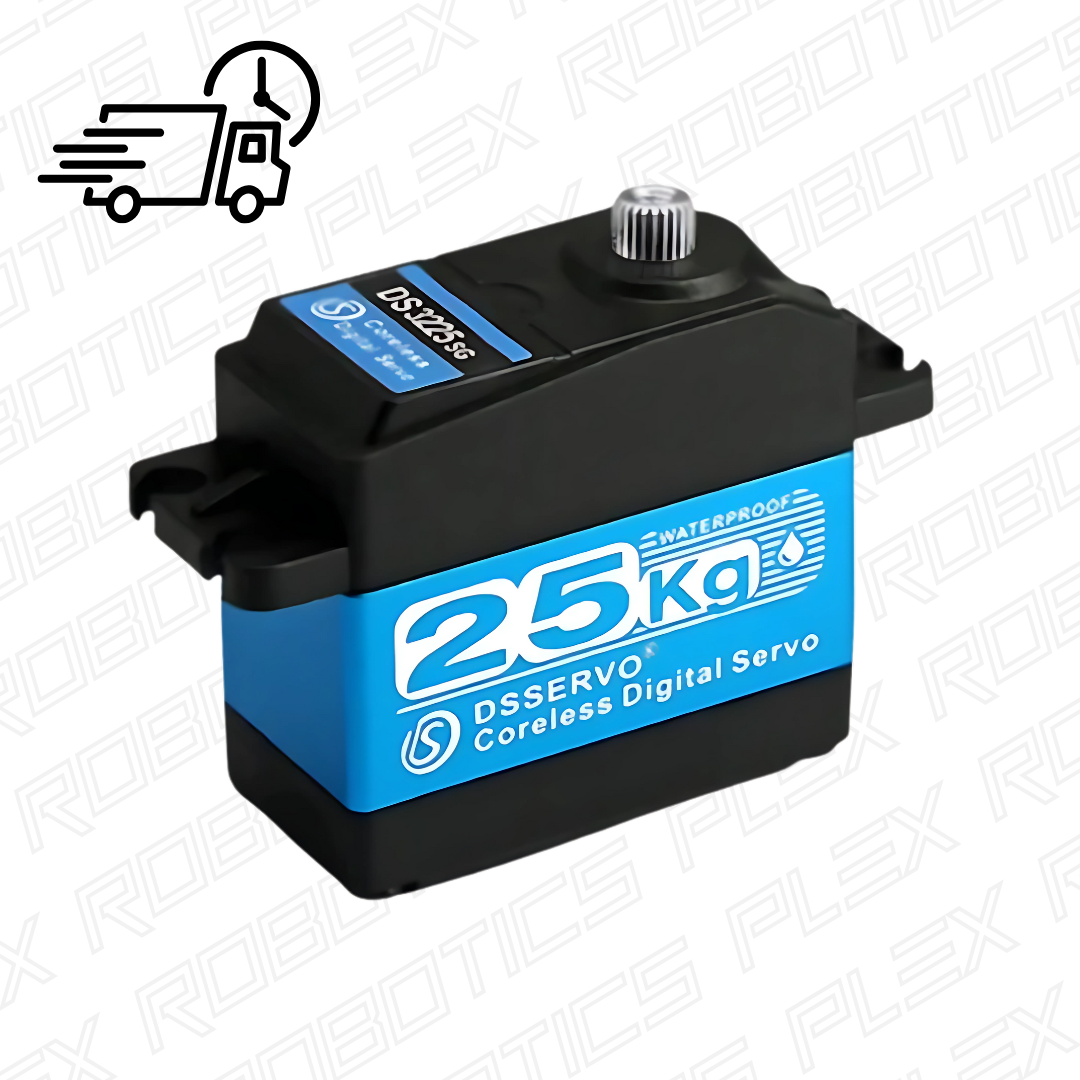

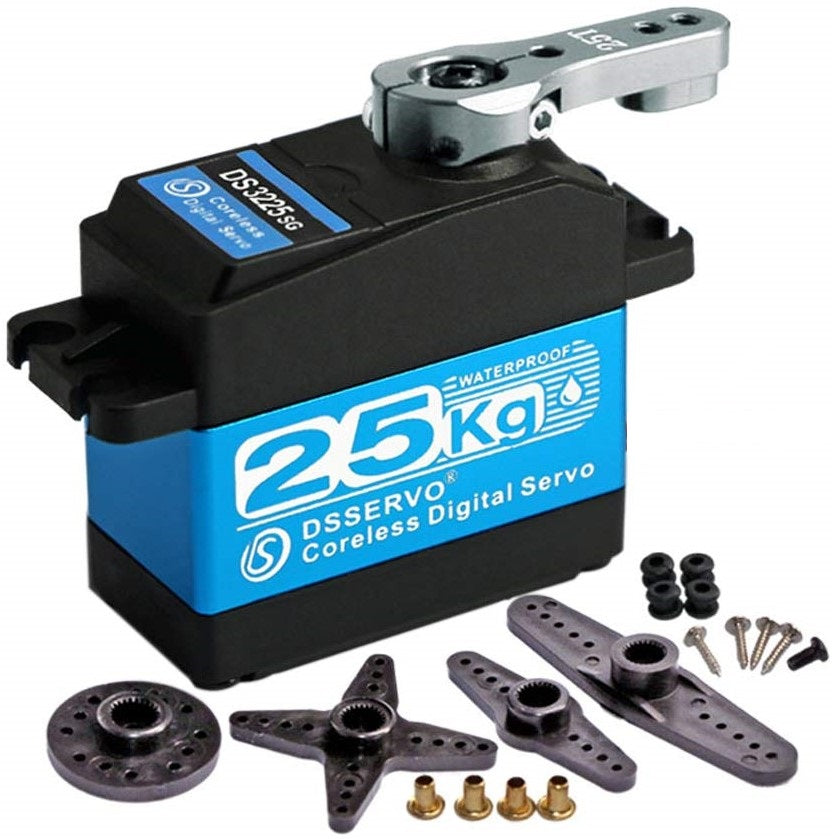

DSServo DS3225SG 25Kg Servo

FTC-Legal for FIRST Tech Challenge competition robots

The DSServo DS3225SG is a high-performance waterproof servo designed for 1/10 and 1/8 scale RC vehicles, including crawlers, buggies, and trucks. It features precision potentiometers and a high-resolution digital control chip for smooth, interference-free motion. With a fully waterproof IP66 rating, this servo is ideal for water games and wet environments. The stainless steel and aluminum geartrain delivers high durability, while the coreless motor ensures faster response, improved speed, excellent efficiency, and low power consumption—making it a reliable choice for both RC and FTC robotics applications.

If continuously powered after initialization (such as through a dedicated servo power module), the servo will retain its last known position. To reset its state, simply power cycle the robot.

Technical Specifications

• Operating Voltage: 5.0 ~ 7.4V DC
• Torque (kg-cm): 22 kg-cm (5V), 24 kg-cm (6V), 25.5 kg-cm (7.4V)
• Torque (oz-in): 305 oz-in (5V), 333 oz-in (6V), 354 oz-in (7.4V)
• Speed: 0.1 sec/60° (5V), 0.08 sec/60° (6V), 0.07 sec/60° (7.4V)
• Stall Current: 1.9A (5V), 2.1A (6V), 2.3A (7.4V)
• PWM Range: 500~2500 μsec
• Operating Angle: 270°
• Dead Band: 3 μsec
• Rotation Direction: Counterclockwise (500–2500 μsec)
• Motor Type: Coreless
• Gearbox: Stainless Steel and Aluminum
• Output Spline: 25T, M3 thread
• Weight: 60g
• Cable Length: 45 mm (1.77 in)

Note: Speed and torque values do not account for internal transmission inefficiency.

.STEP (CAD)
