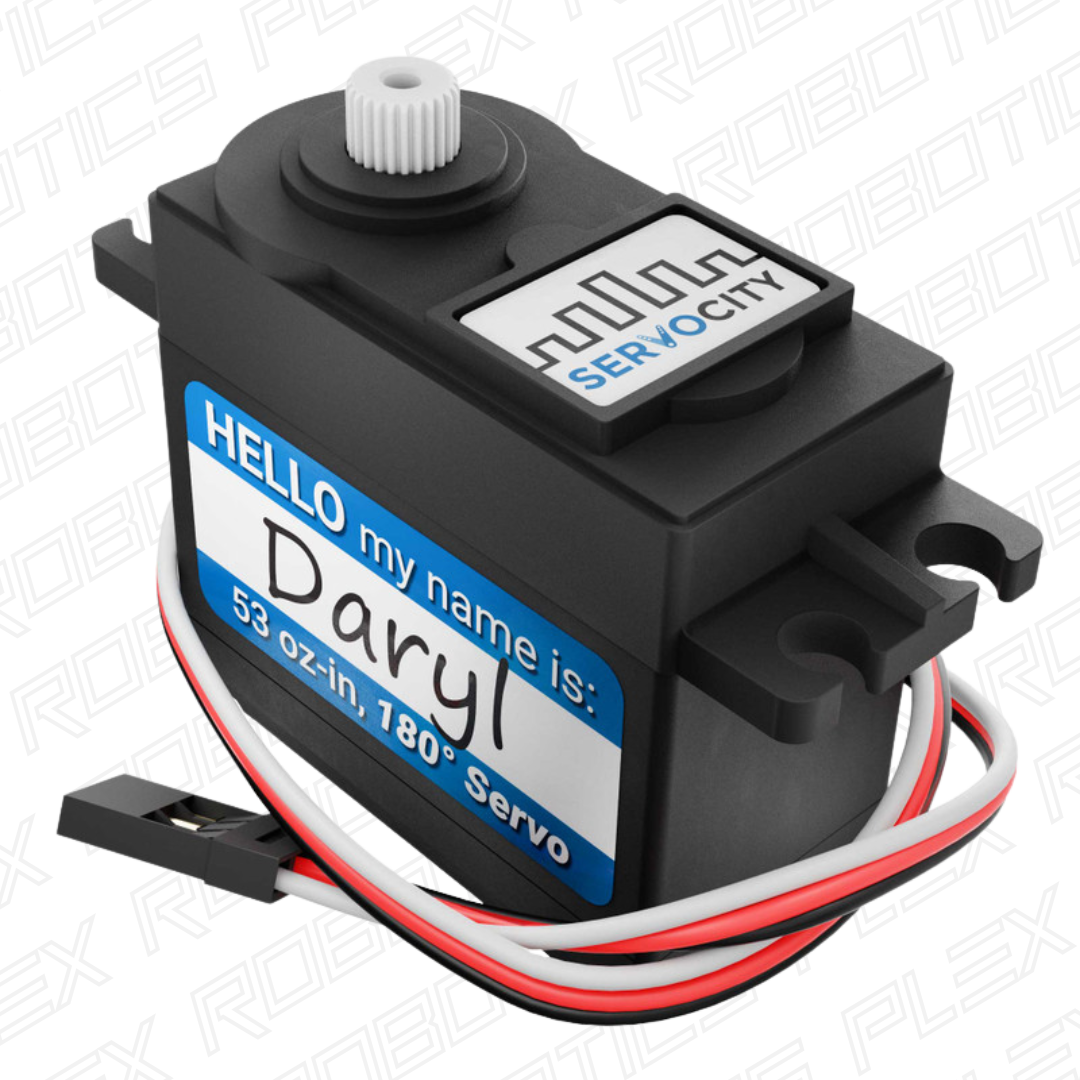

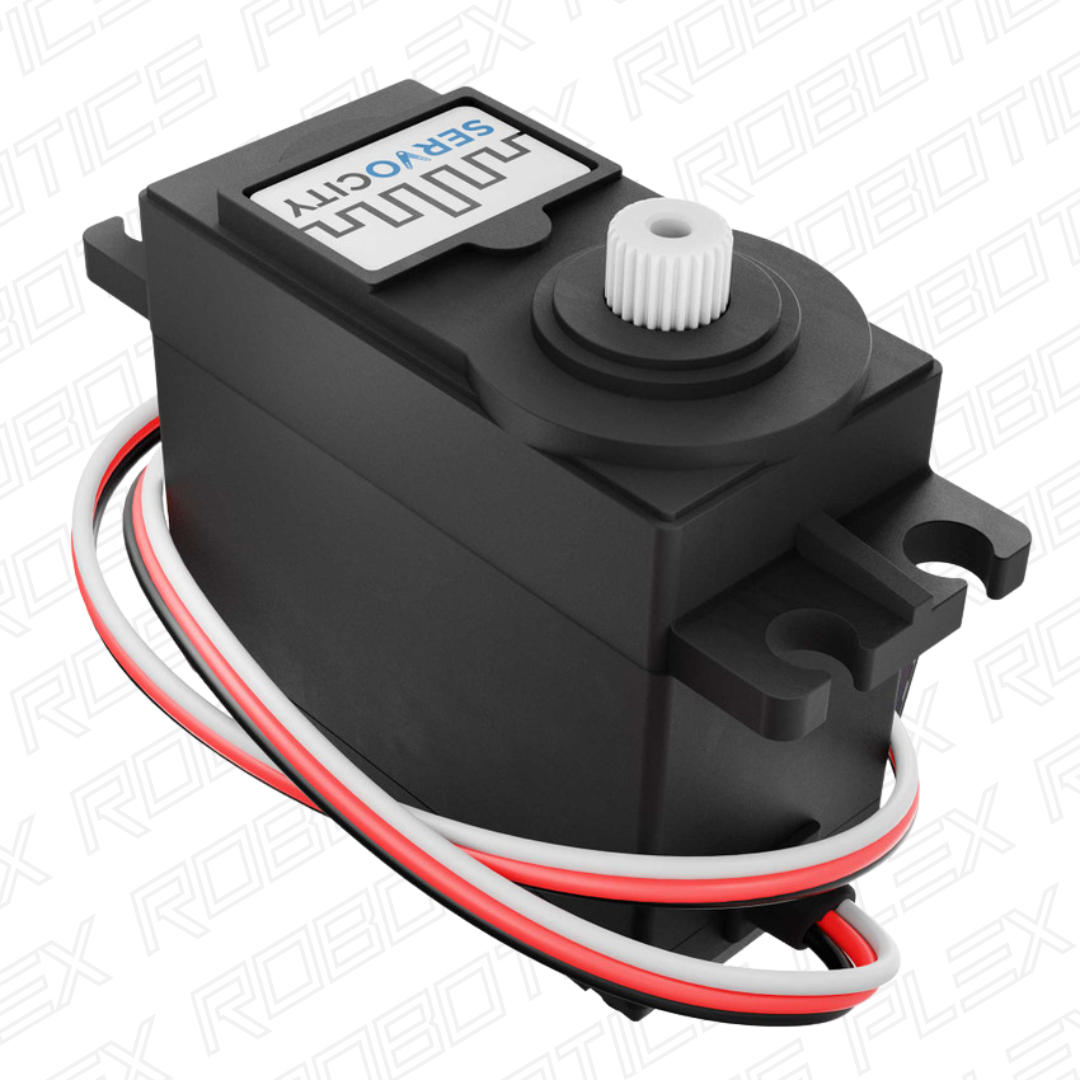

Daryl (Nylon Gears, 180° Rotation, 0.15s/60°, 53 oz-in)
Daryl (Nylon Gears, 180° Rotation, 0.15s/60°, 53 oz-in)
2003-0180-0001SKU: 2003-0180-0001
Nu am putut încărca disponibilitatea pentru ridicare

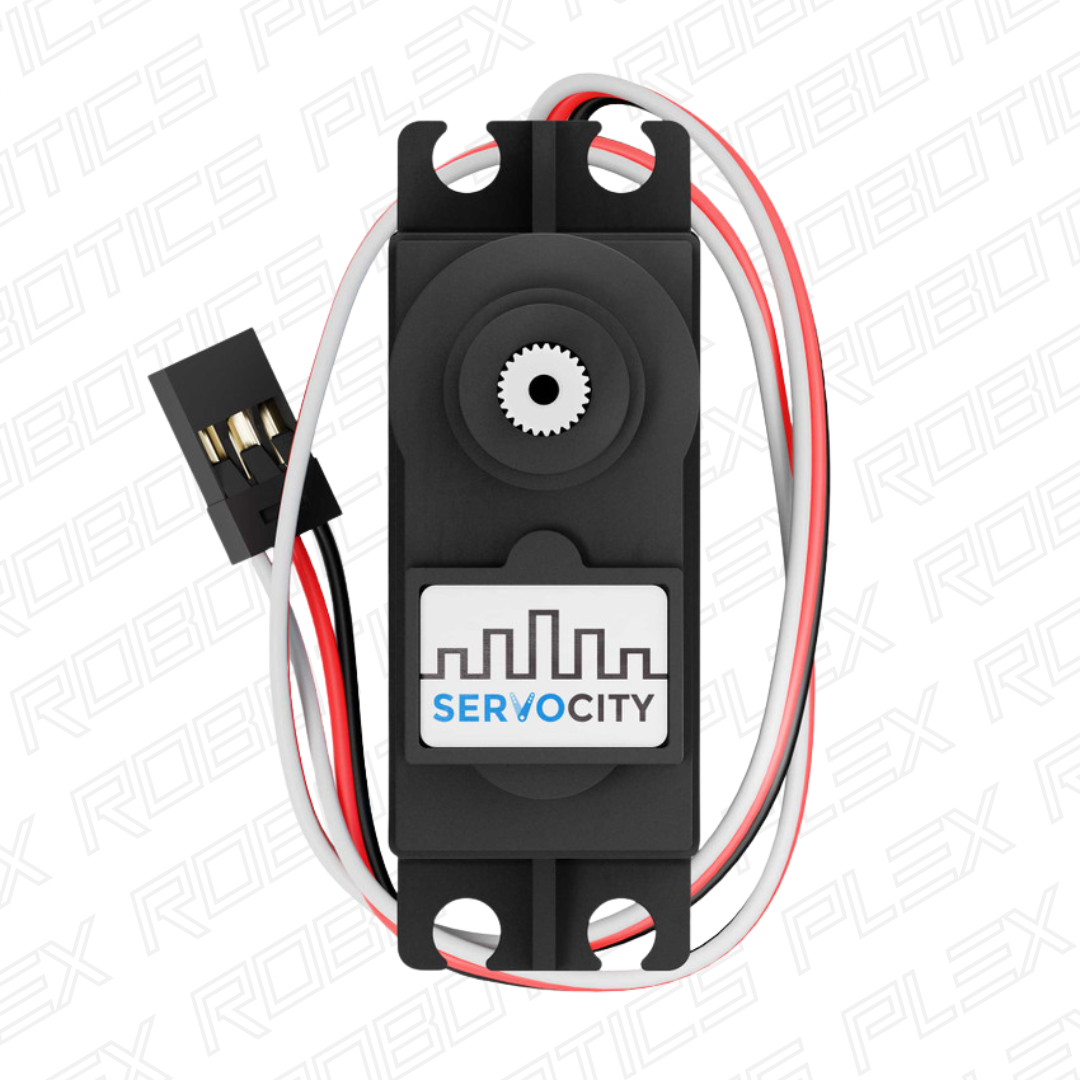

Meet Daryl: an everyman servo for every maker! By being pared-down to perform essential servo functions, he’s able to meet the needs of your wallet as much as your projects.
Whether you’re looking for a quick hobby solution for R/C action, a bit of mechanical muscle to finish up a project, or a quirky component to inspire students to learn more about servo motion, you can depend on Daryl to provide the goods:
- 180° of rotation to revolutionize your mechanisms!
- 53 oz-in of torque to get your project dreams moving!

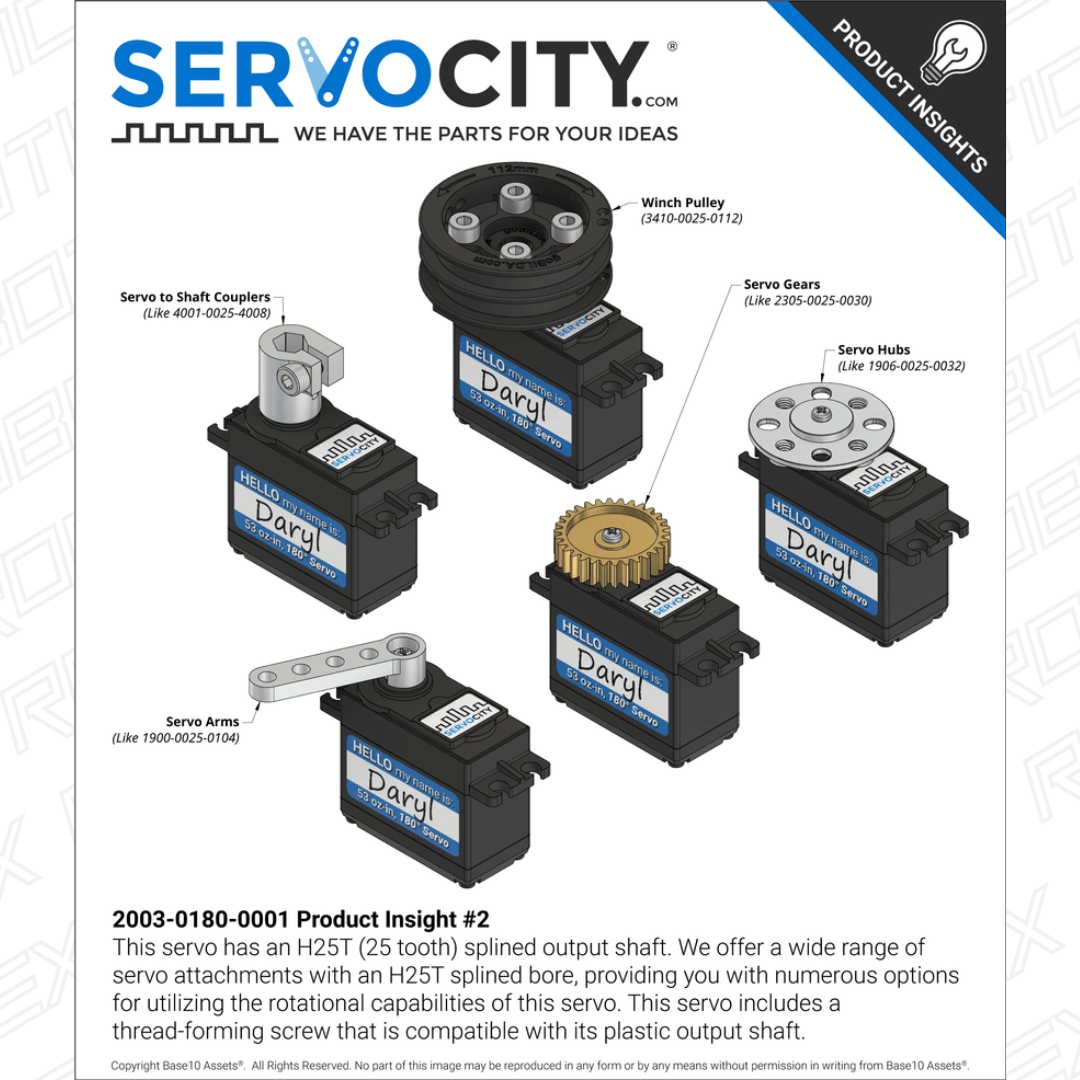

- an H25T spline to crown Daryl with components across the hobby market, including the goBILDA® build system!

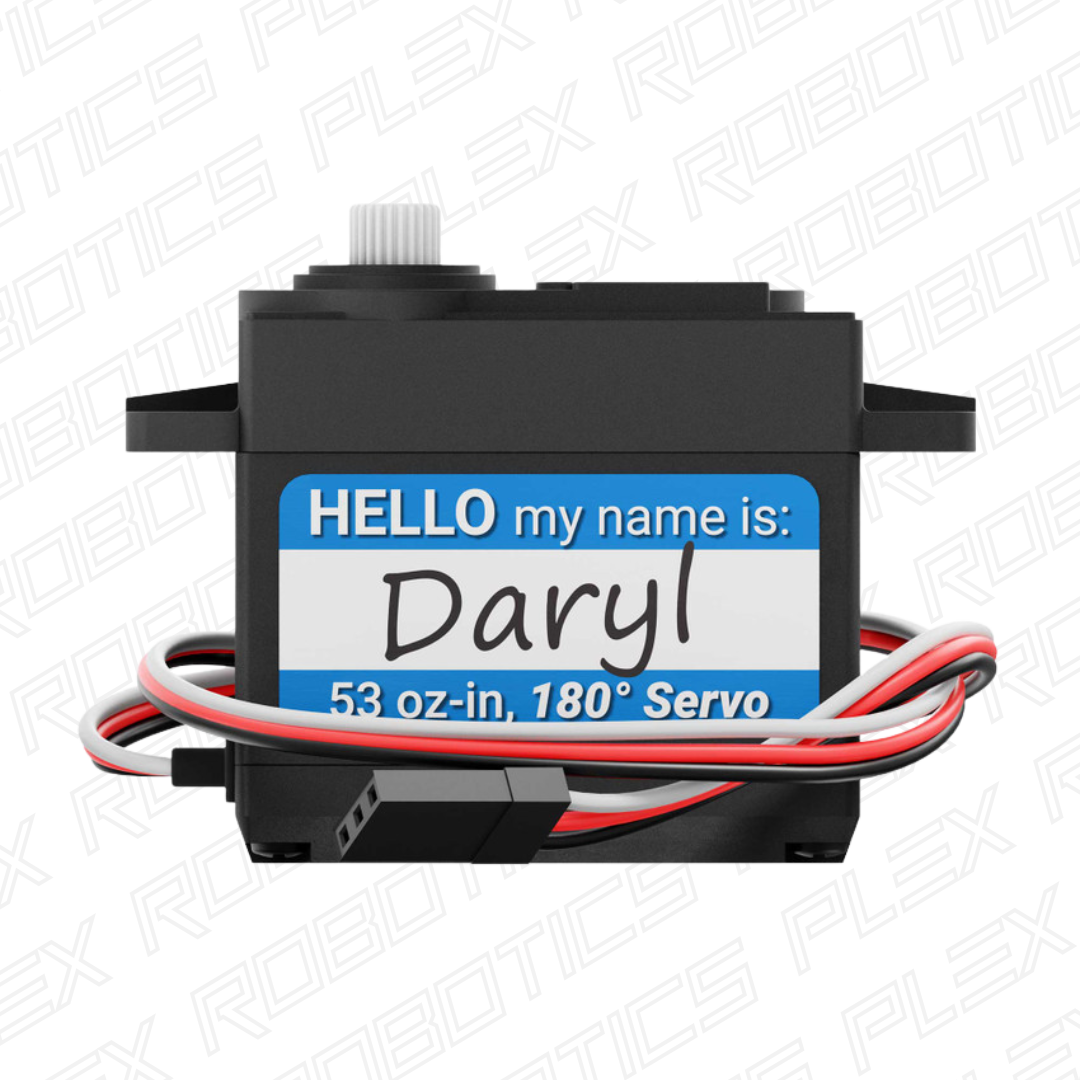

Daryl comes with a friendly flourish: his label proclaims his noble name to a wide world that’s been waiting for a standard size servo like him.
Verily is this the Daryl! Get yourself a Daryl today to realize a new version of the ServoCity slogan: we have the Daryl for your ideas!
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
94.5°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
189°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
189°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Downloads
Specs
| Weight | 40g |
|---|---|
| Output Shaft Style | H25T Spline |
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.15 sec/60° (67RPM) |
| No-Load Speed (6.0V) | 0.13 sec/60° (78RPM) |
| Stall Torque (4.8V) | 53 oz-in (3.82 kg.cm) |
| Stall Torque (6.0V) | 65 oz-in (4.68 kg.cm) |
| No-Load Current (4.8V) | 120mA |
| No-Load Current (6.0V) | 130mA |
| Stall Current (4.8V) | 800mA |
| Stall Current (6.0V) | 1,000mA |
| Max PWM Range | 600-2400μsec |
| Pulse Amplitude | 3-5V |
| Deadband Width | 5µsec |

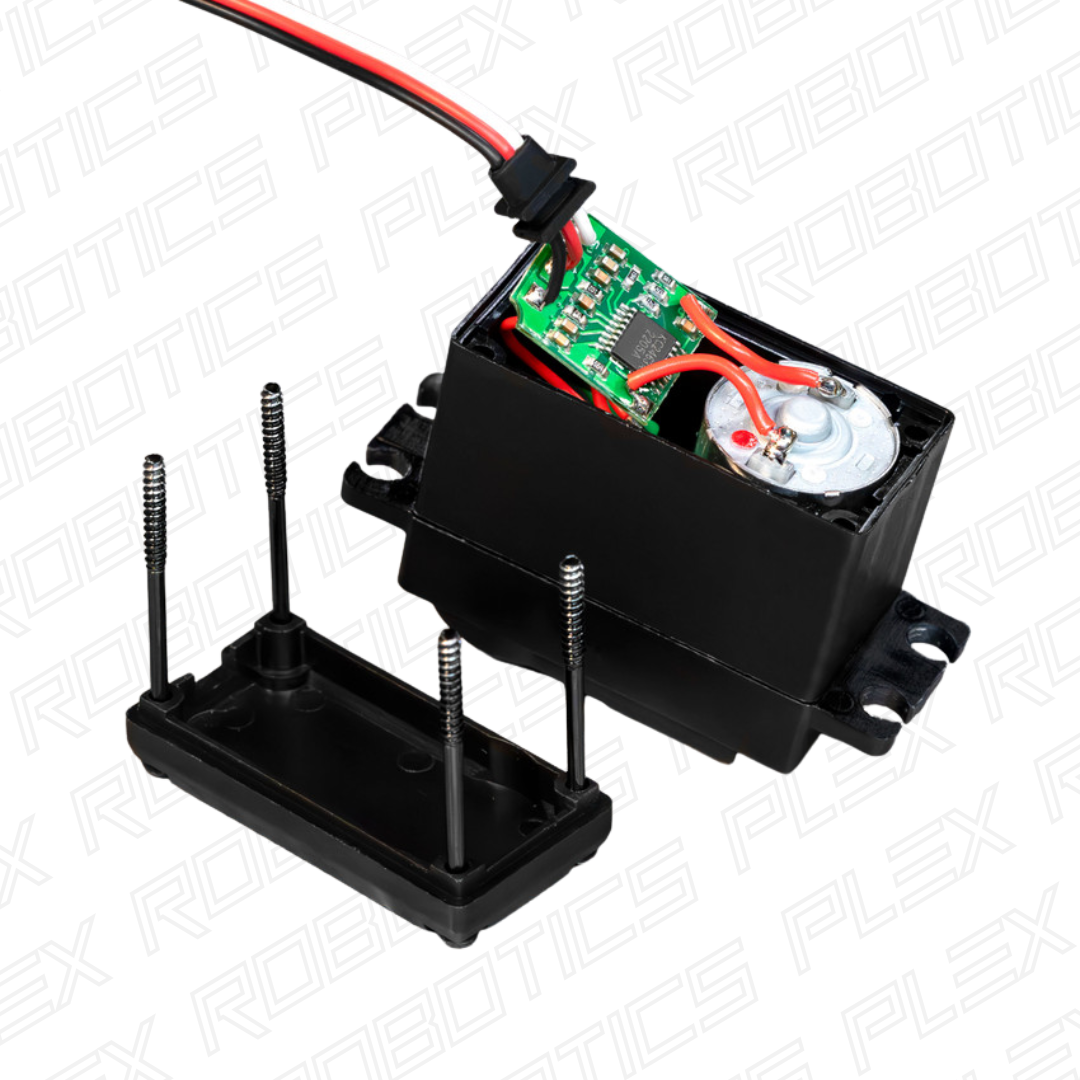

| Motor Type | Brushed DC |
| Feedback Style | 2.5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |

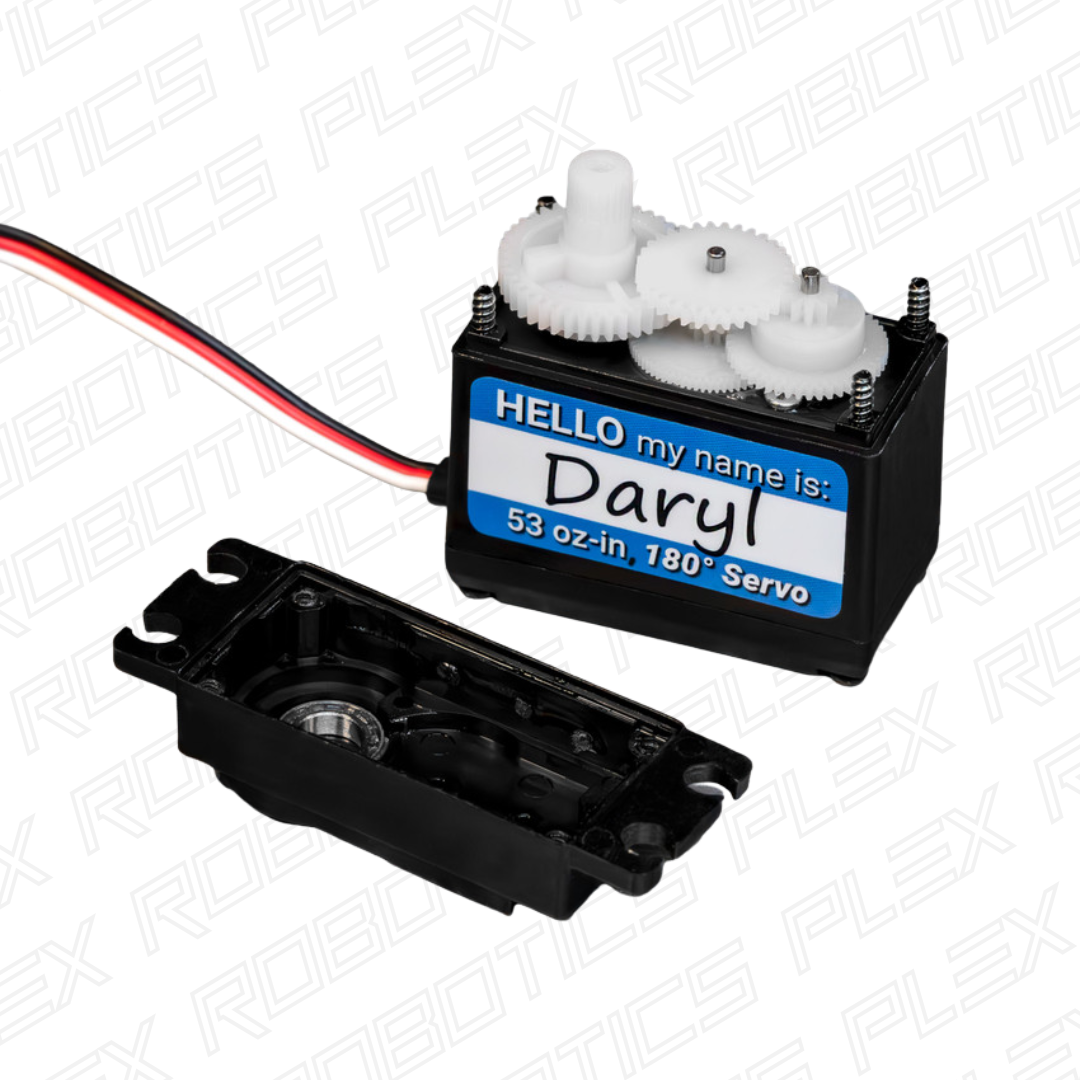

| Gear Material | Plastic |
| Wire Length | 11.81" (300mm) |
| Wire Gauge | 24AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Standard |
| Direction with Increasing PWM Signal | Clockwise |
| Travel per μsec | 0.105°/μsec |
| Max Rotation | 189° |
