PLEX Robotics

D71MH Servo

D71MH Servo

36071S00
0,00 lei
0,00 lei
Reducere Stoc epuizat
Prețul include taxe.

SKU: 36071S00

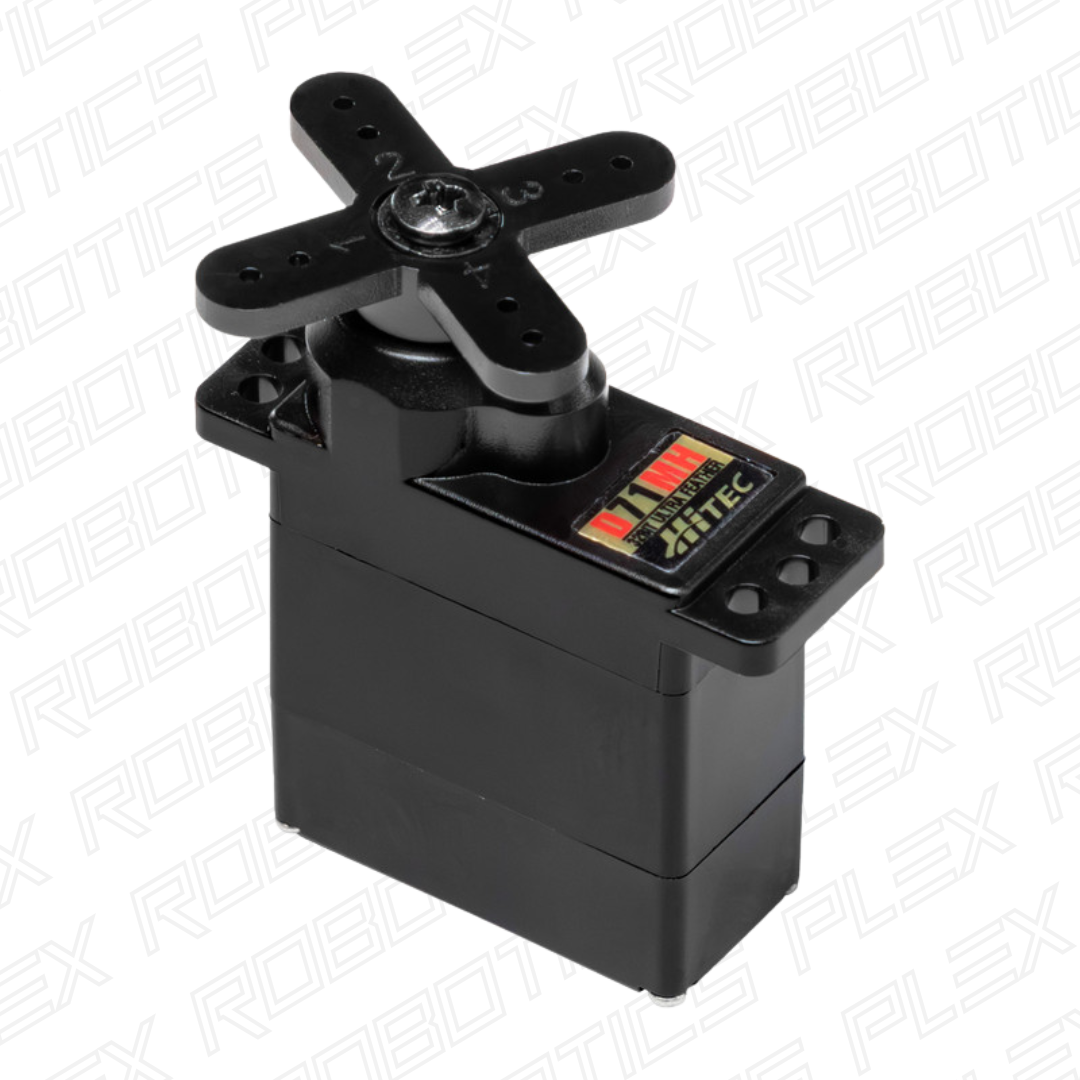

The micro-sized, metal-geared D71MH is part of Hitec's D-Series Servo Line with a longer life Carbon Brushed Motor. The D71MH is a more powerful option than the HS-5065MG. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 3.5 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adaptors or regulators.

While this servo’s spline is known as M25T in Hitec’s nomenclature, it is the same spline profile we’ve known as B25T for many years.

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • Long Life Potentiometer
  • Wide Operating Voltage (3.5. ~ 8.4 Volts DC)
  • Ball Bearing Supported Output Shaft
  • M25T-Tooth Output Spline
  • Cored Carbon Brush Motor
  • Nylon Reinforced Plastic Case
  • Dust Resistant and Splash Proof Case

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

How Far Will This Servo Rotate?

The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.

Stock:

With an Average Radio System:
90°
Your average transmitter and receiver will output a relatively narrow PWM signal range.

Radio System + Travel Tuner:
120°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.

Wide Signal Controllers:
120°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.

Reprogrammed:

Whether you purchase the reprogrammed option or get a servo programmer and do it yourself, a reprogrammed version of this servo will be able to achieve greater travel than it can in stock form.

With an Average Radio System:
131°
Your average transmitter and receiver will output a relatively narrow PWM signal range.

Radio System + Travel Tuner:
175°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.

Wide Signal Controllers:
175°
Controllers such as the Servo Commmander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.

Tech Tips

Specs

Weight 12.5g
Output Shaft Style B25T Spline
Voltage Range 3.5V ~ 8.4V
No-Load Speed (6.0V) 0.16sec/60°
No-Load Speed (7.4V) 0.13sec/60°
Stall Torque (6.0V) 3.7 kg.cm (51 oz-in)
Stall Torque (7.4V) 4.1 kg.cm (57 oz-in)
No-Load Current (6.0V) 200mA
No-Load Current (7.4V) 220mA
Stall Current (6.0V) 1,300mA
Stall Current (7.4V) 1,500mA
Max Rotation 120°
Max Rotation (Reprogrammed) 175°
Max PWM Range 900 - 2100 µsec
Travel per µsec 0.10°/µsec
Travel per µsec (Reprogrammed) 0.15°/µsec
Direction Clockwise
Deadband Width 2µsec
Motor Type Brushed DC
Feedback Style Potentiometer
Output Shaft Support Single Ball Bearing
Gear Material Metal
Wire Length 160mm (6.29")
Wire Gauge 28AWG
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Servo Size Micro
