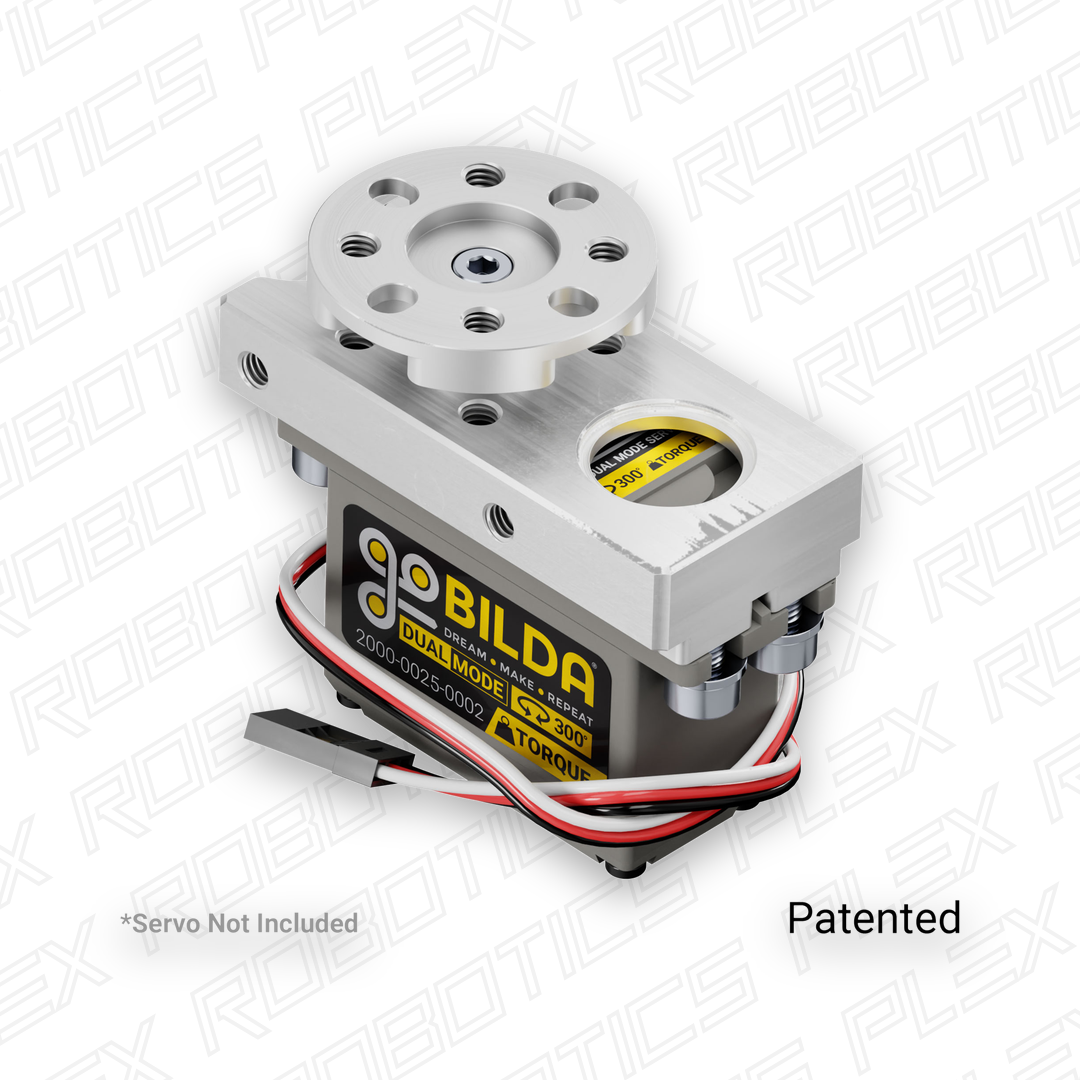

Compact ServoBlock® (27mm Width, For Standard Size H25T Spline Servo, Hub-Shaft)
Compact ServoBlock® (27mm Width, For Standard Size H25T Spline Servo, Hub-Shaft)
3217-2701-2501📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 3217-2701-2501
Nu am putut încărca disponibilitatea pentru ridicare

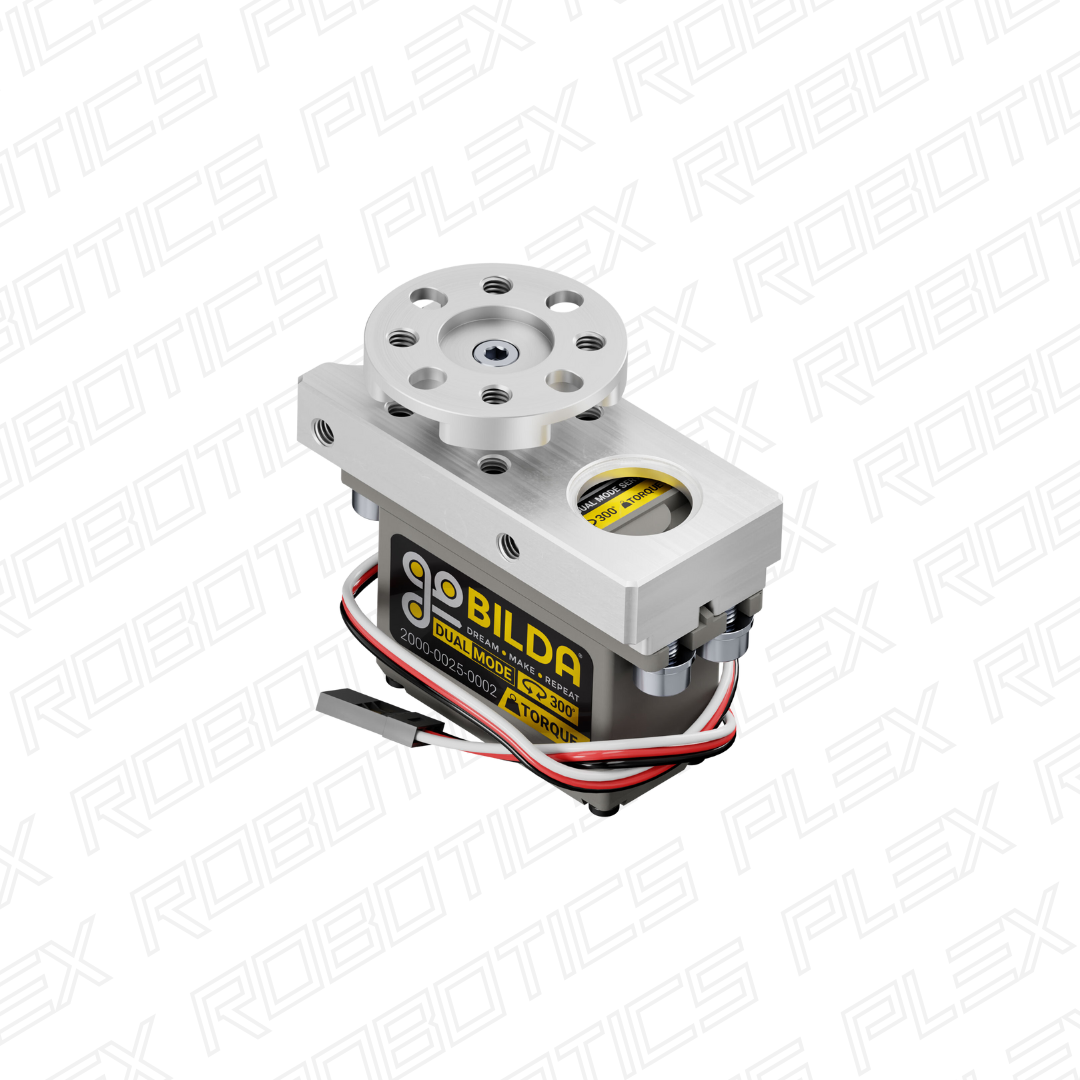

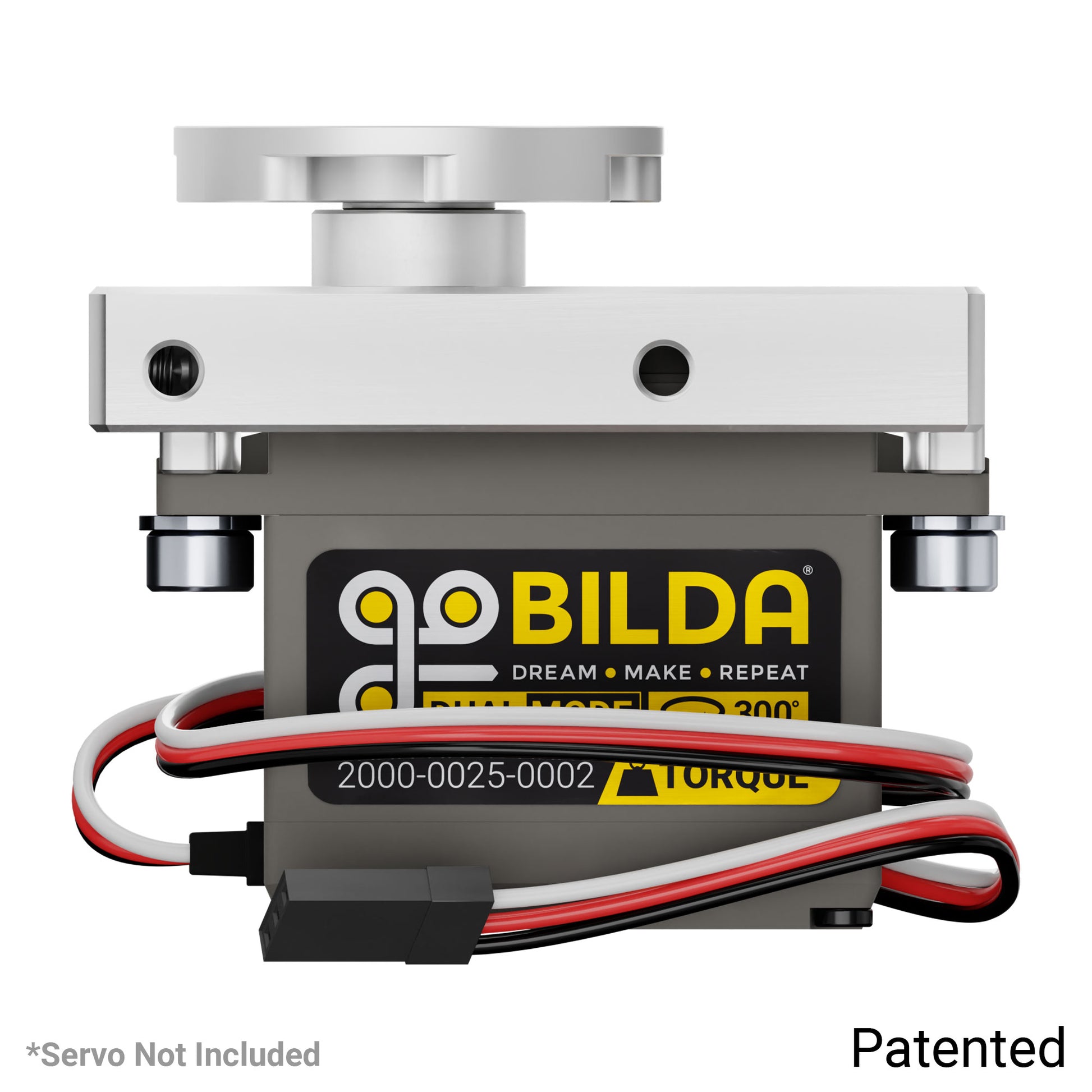

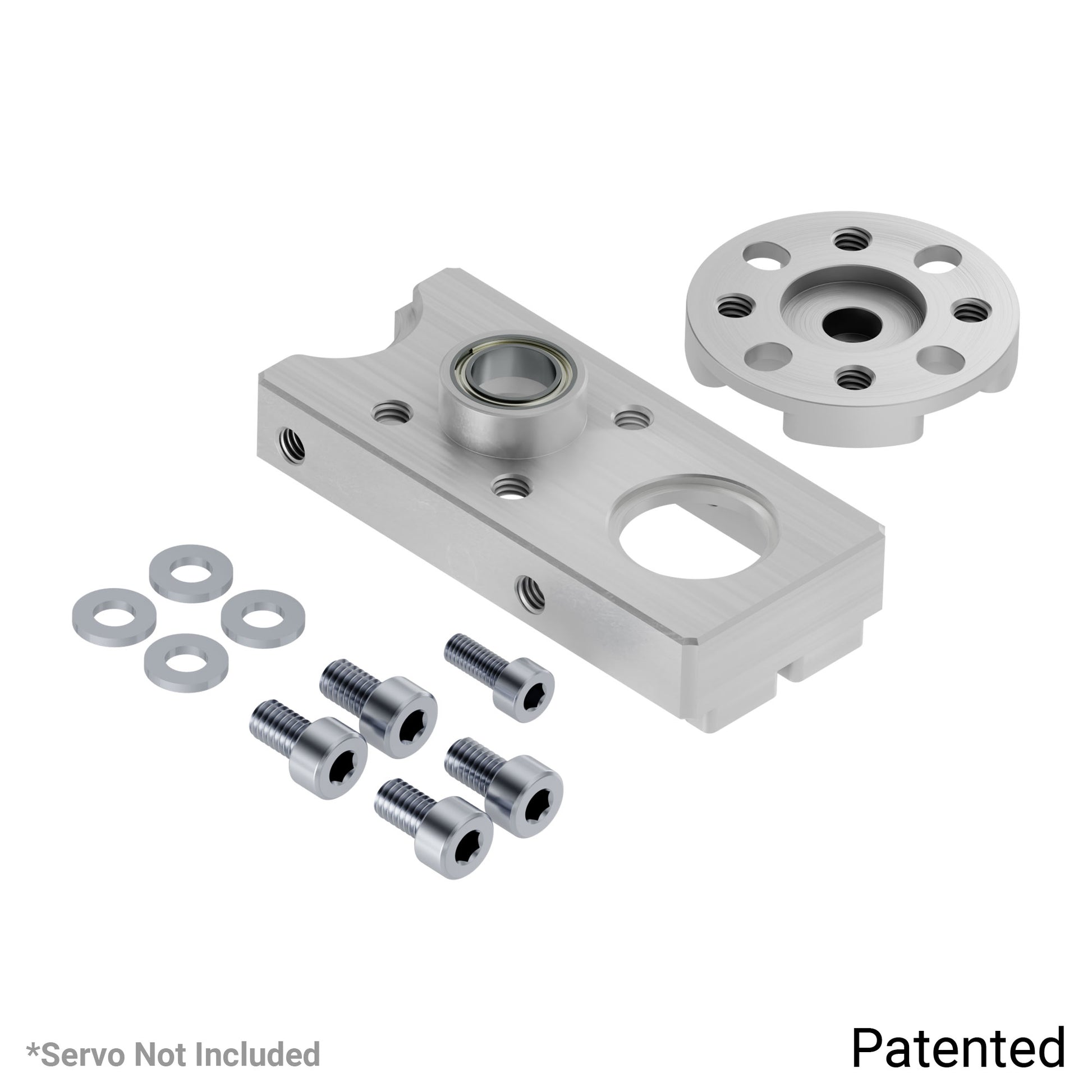

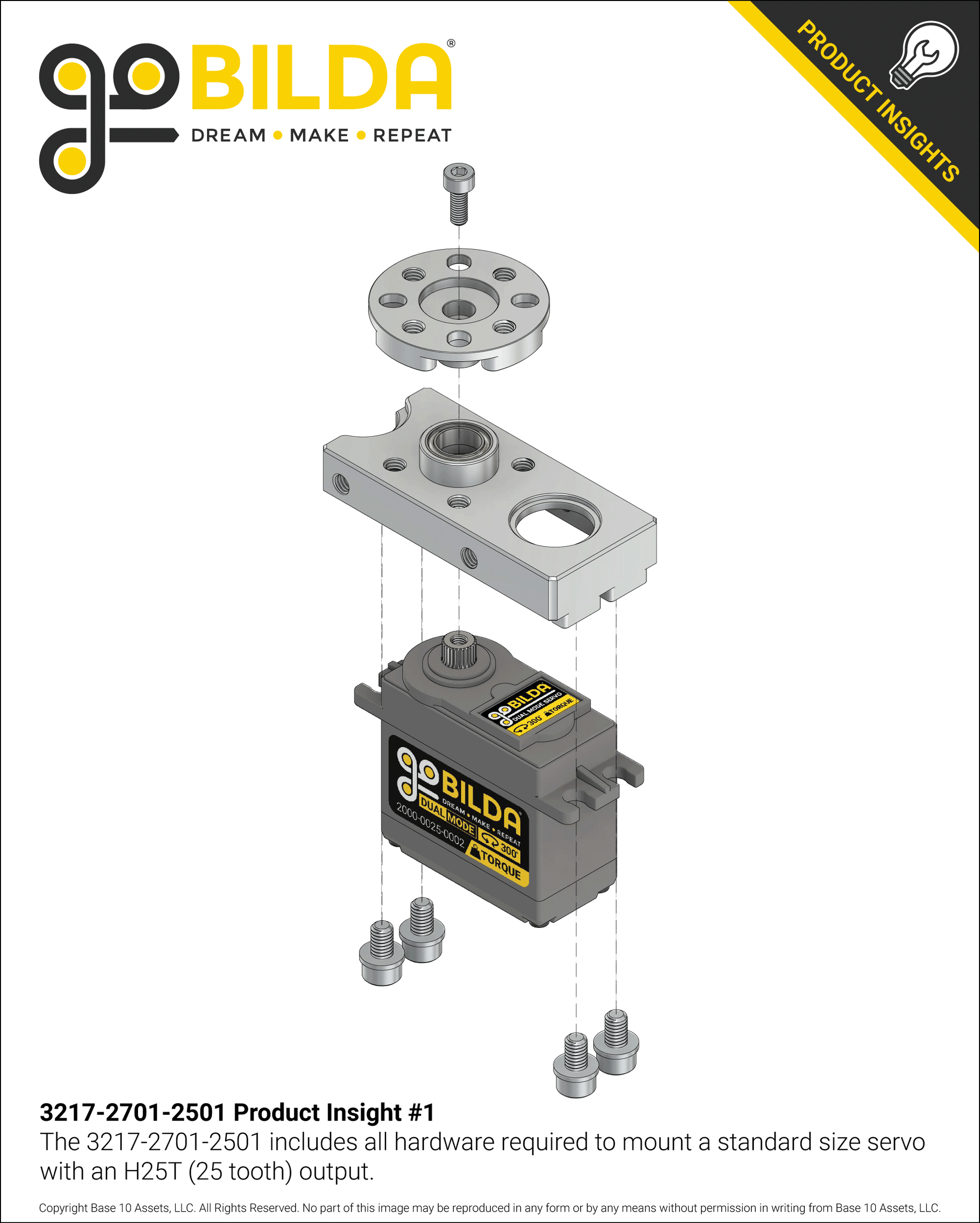

This 25 tooth ServoBlock® isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an integrated bearing to support its Hub-Shaft.

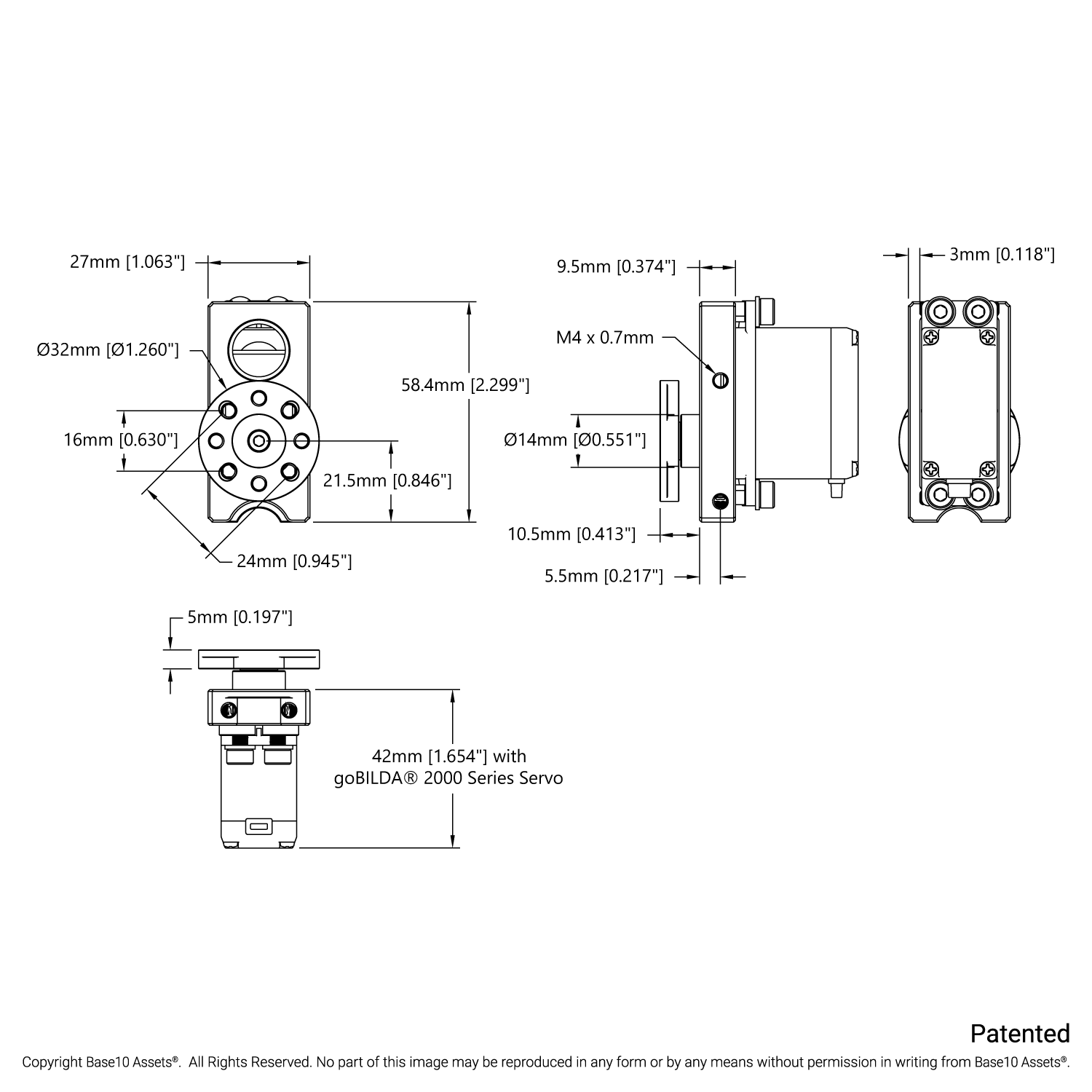

Compared to the 43mm Width Compact ServoBlock (SKU: 3217-0001-2501), this ServoBlock™ is even more abbreviated in its design, boasting a 27mm width that helps it fit just right in 1143 Series Mini Low-Side U-Channel.

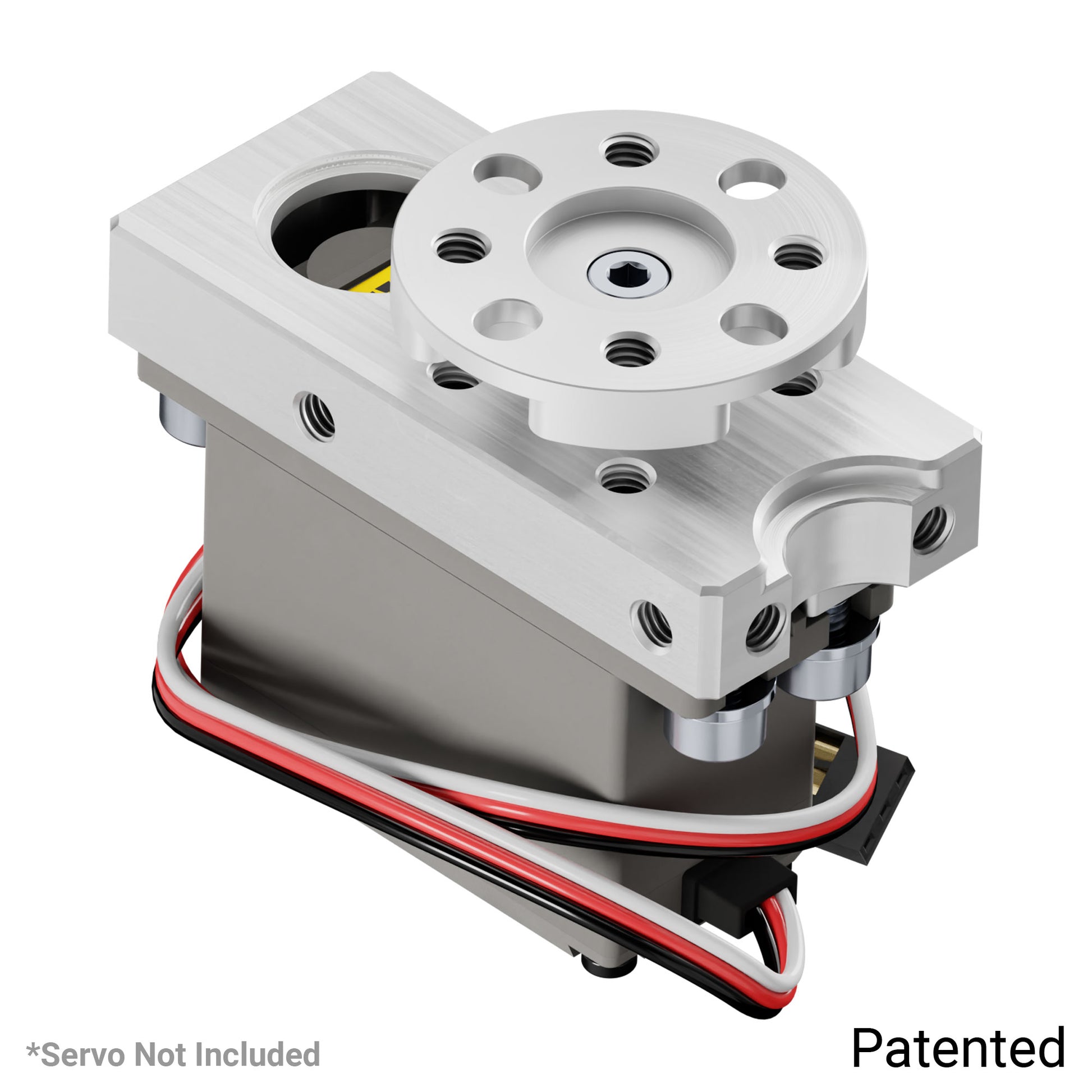

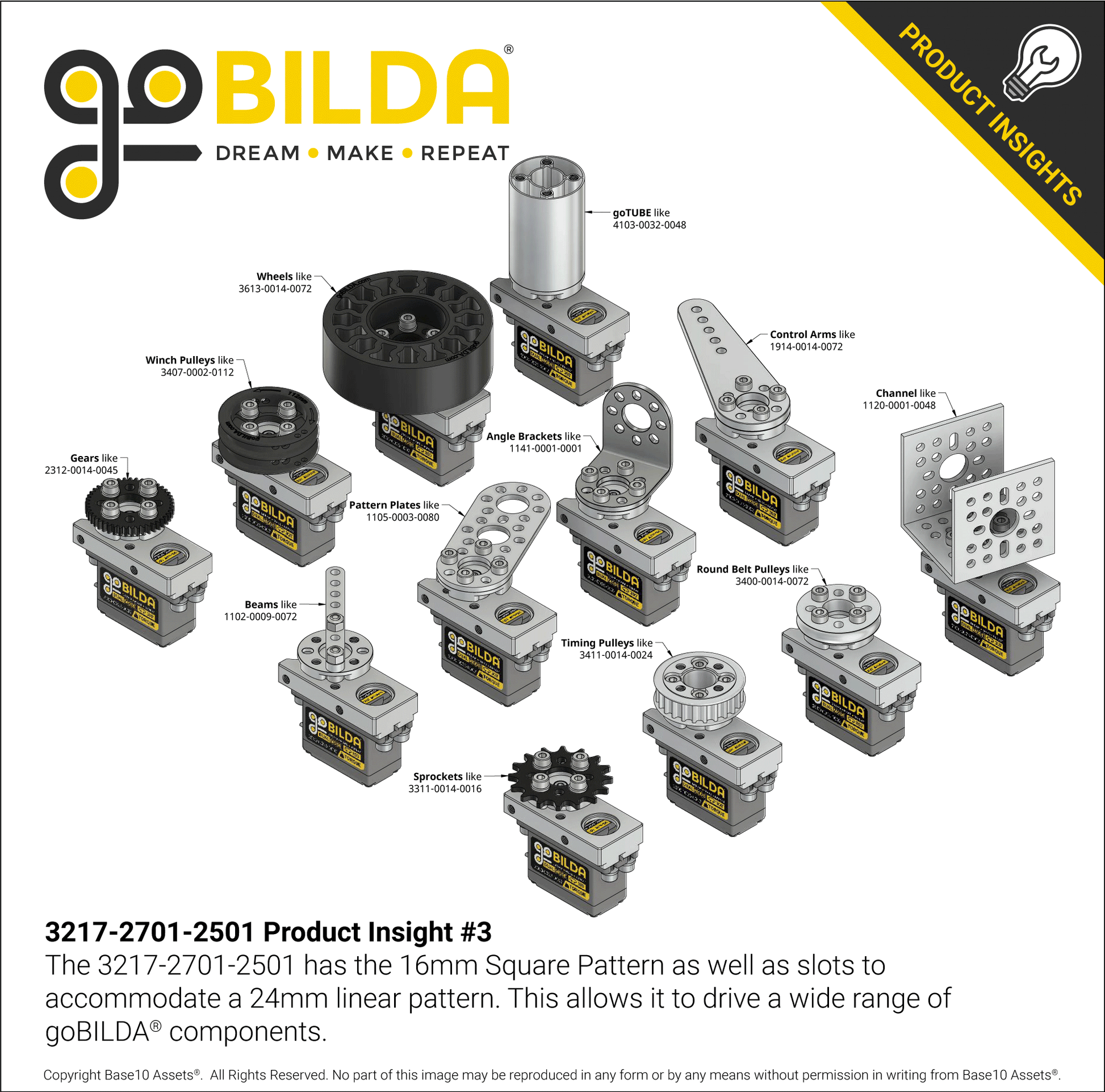

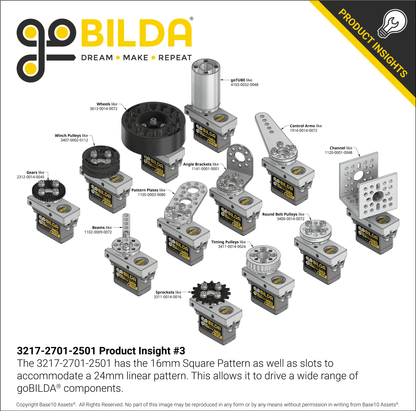

The threaded holes on the face and sides provide for secure attachment via M4 screws. The hub-shaft, meanwhile, maintains the goBILDA® 16mm square pattern of surrounding structure with thru-holes and threaded holes to provide for easy attachment of almost any goBILDA® component.

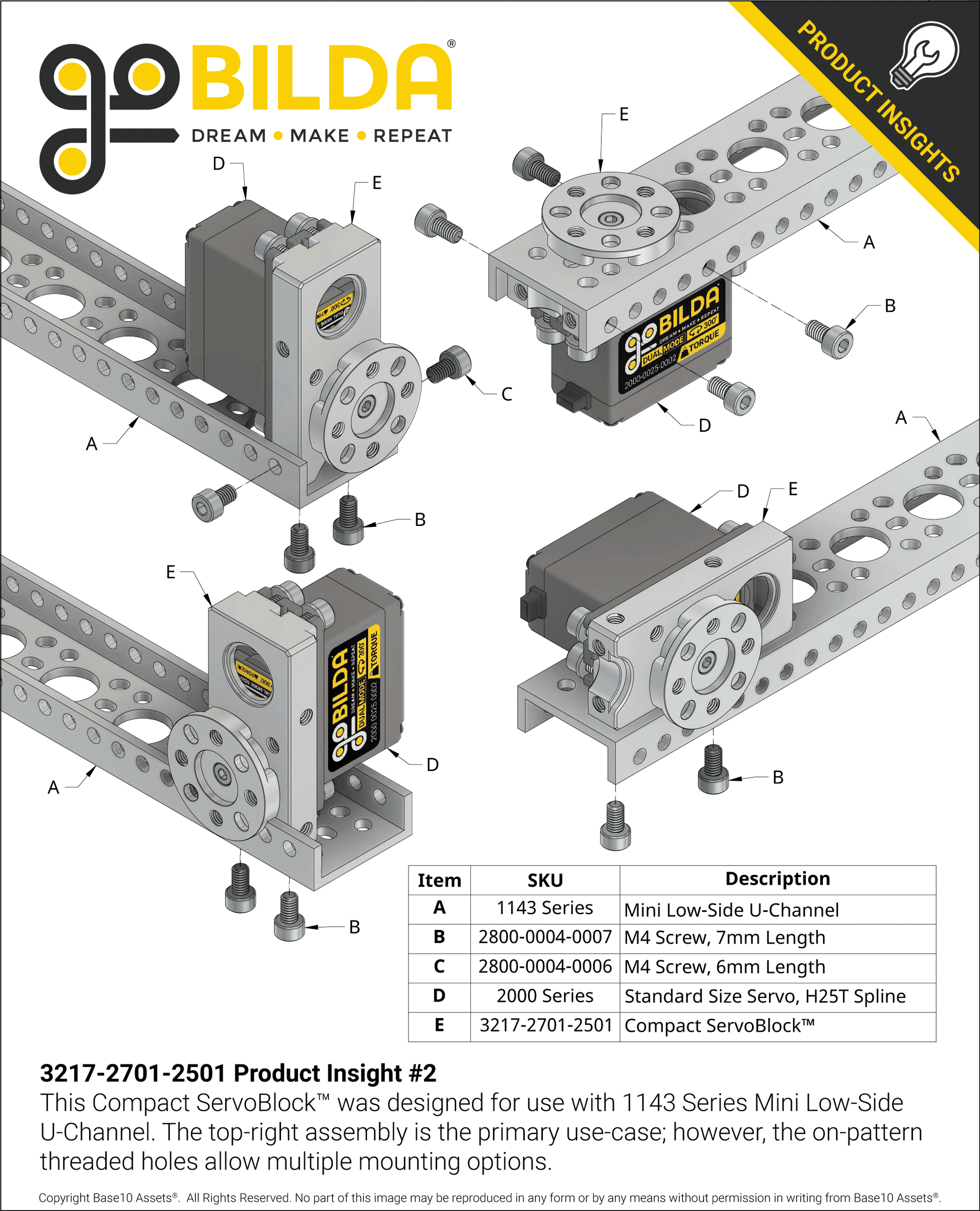

Importantly, the 14mm diameter protrusion of the integrated pillow block fits through the 14mm diameter holes of Mini Low-Side U-Channel. As a result, when you’re using this ServoBlock® with a goBILDA® 2000 Series Servo, its Hub-Shaft rises 8mm from the face of channel!
