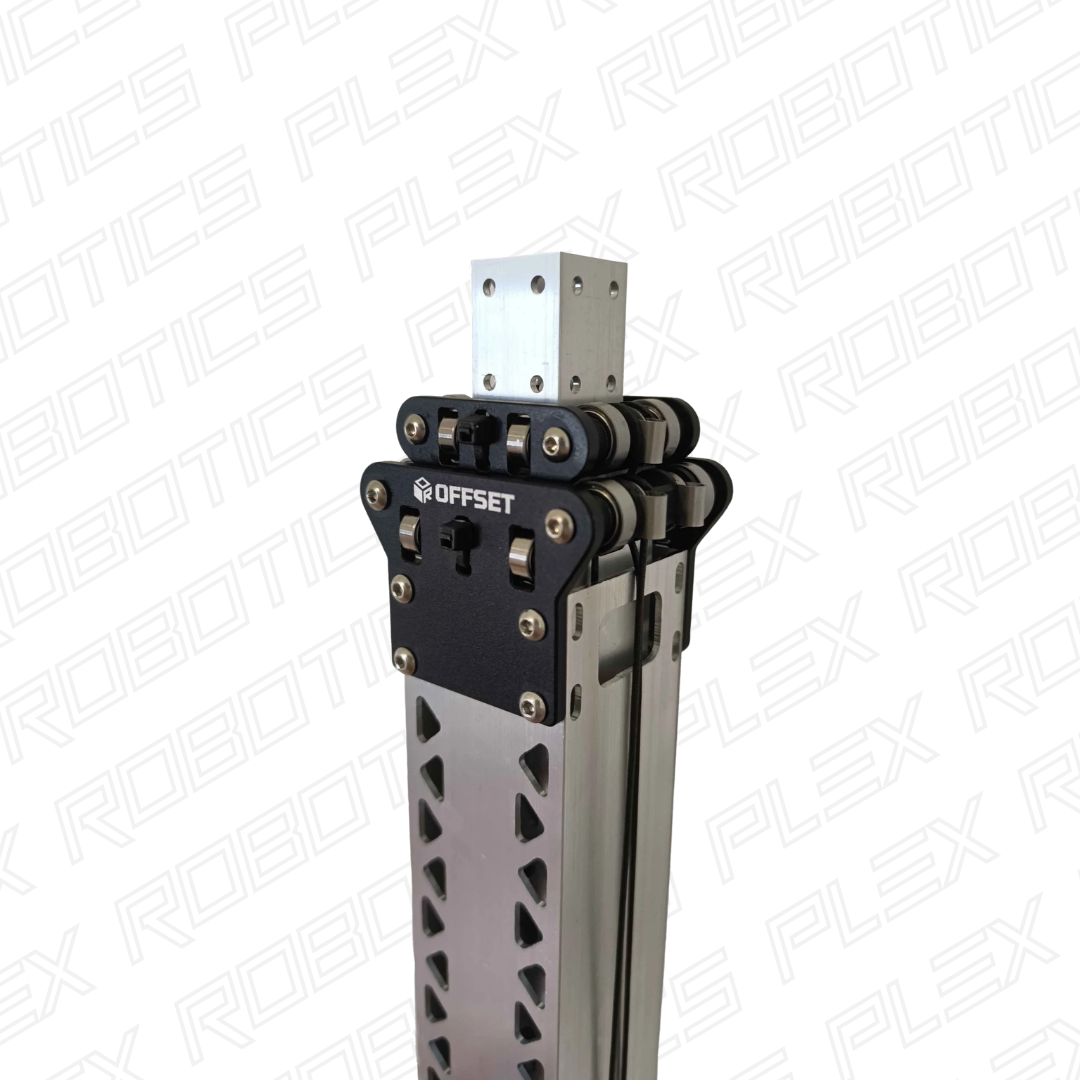

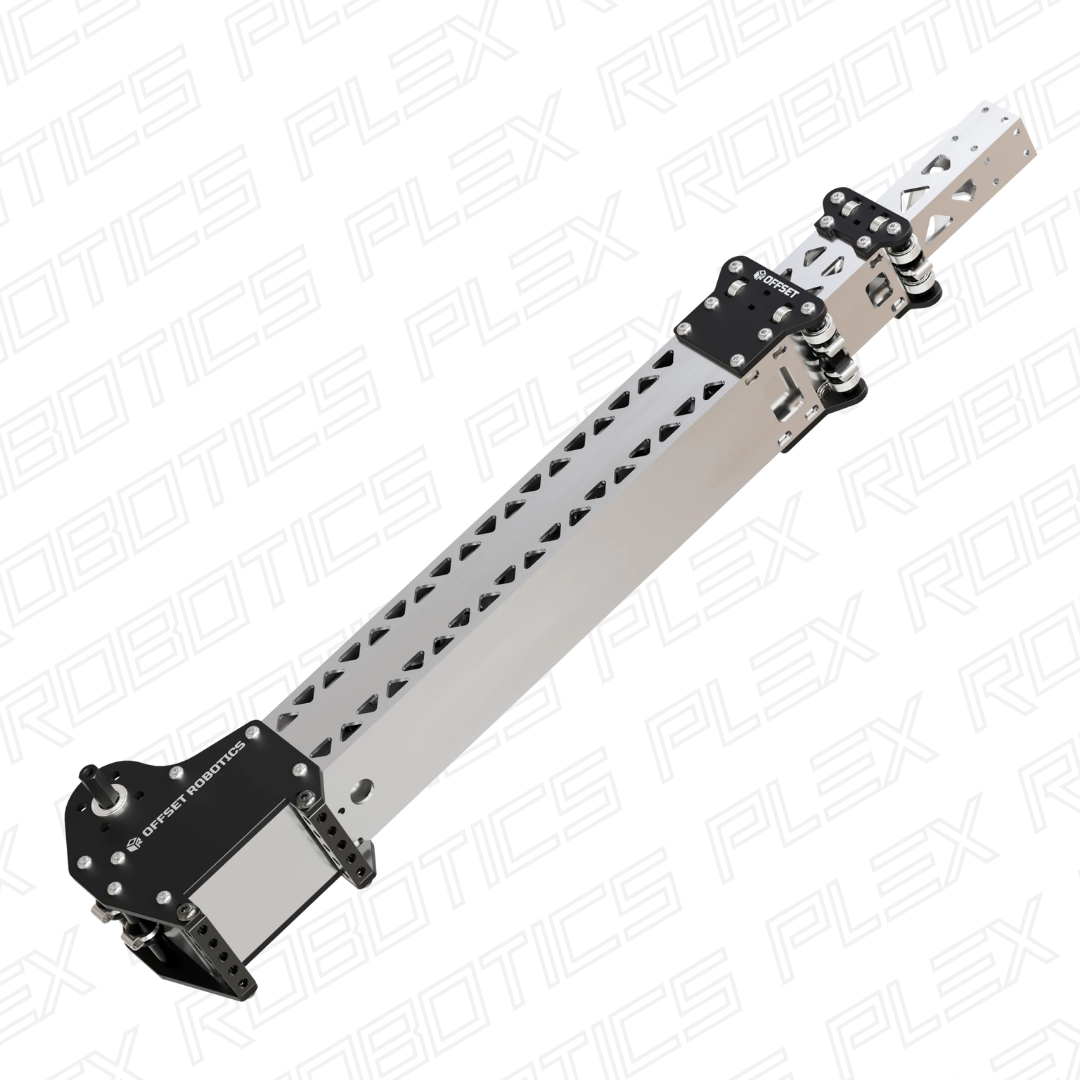

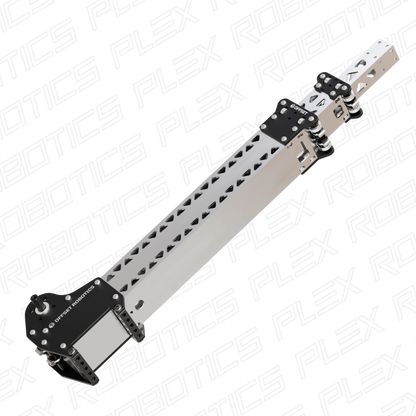

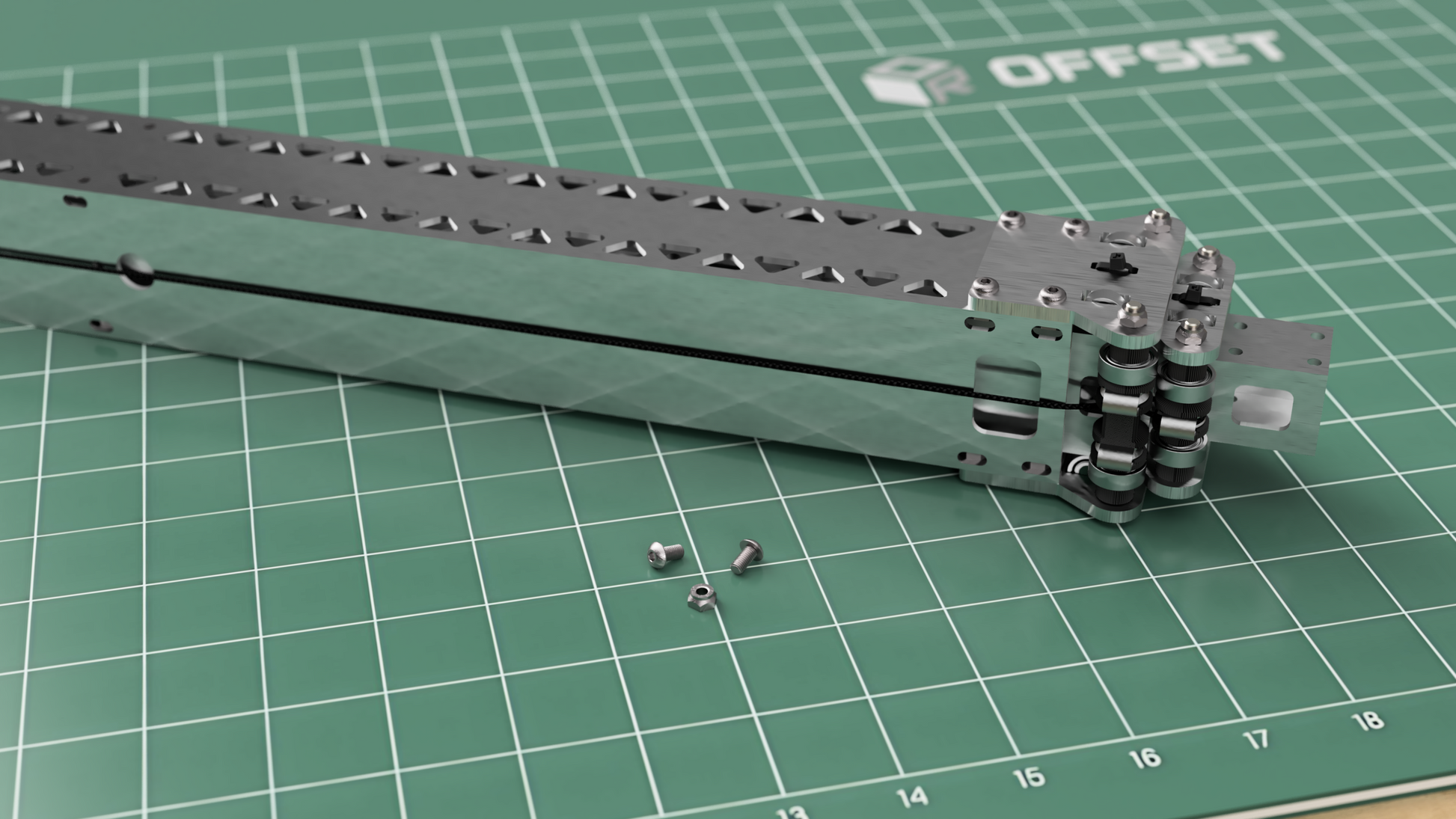

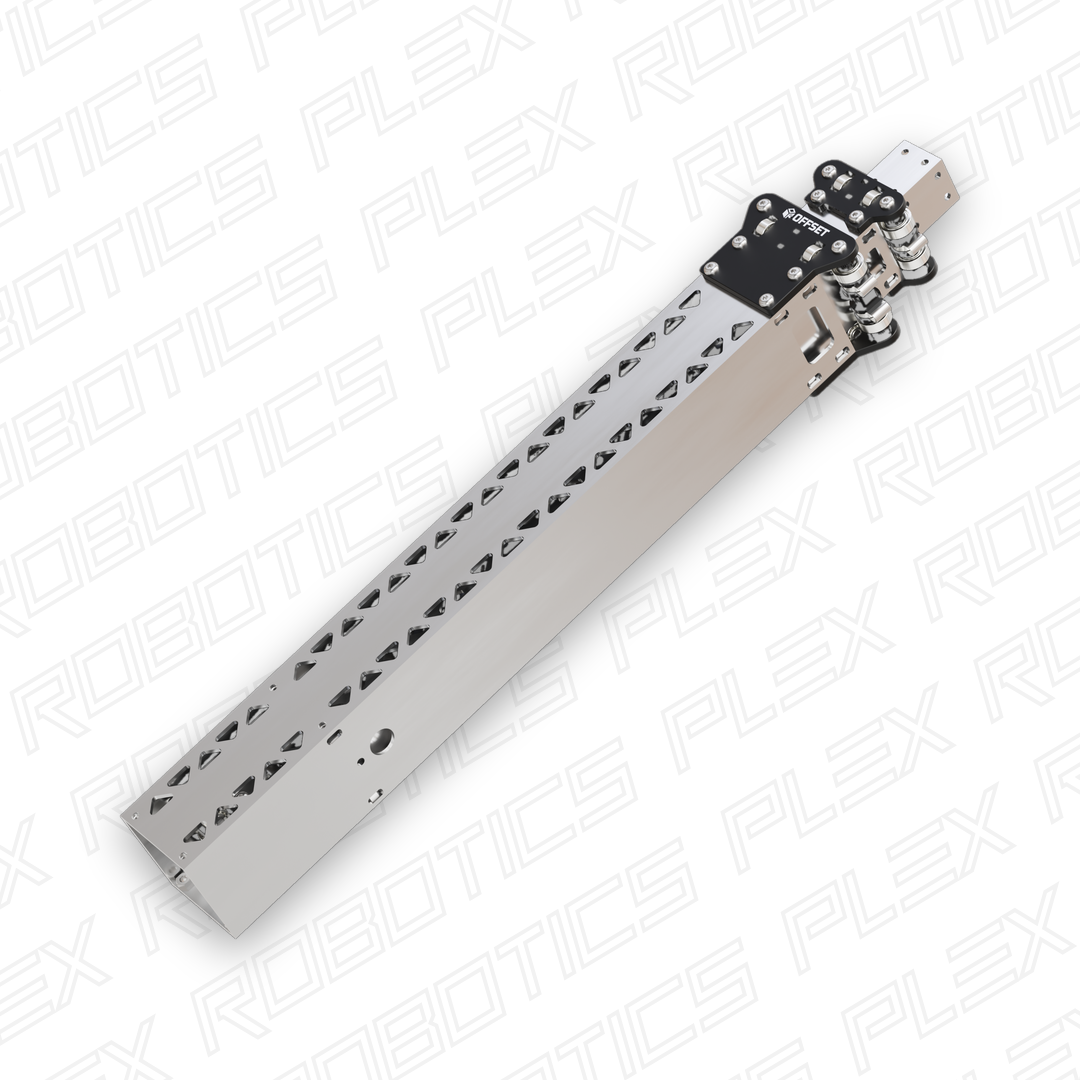

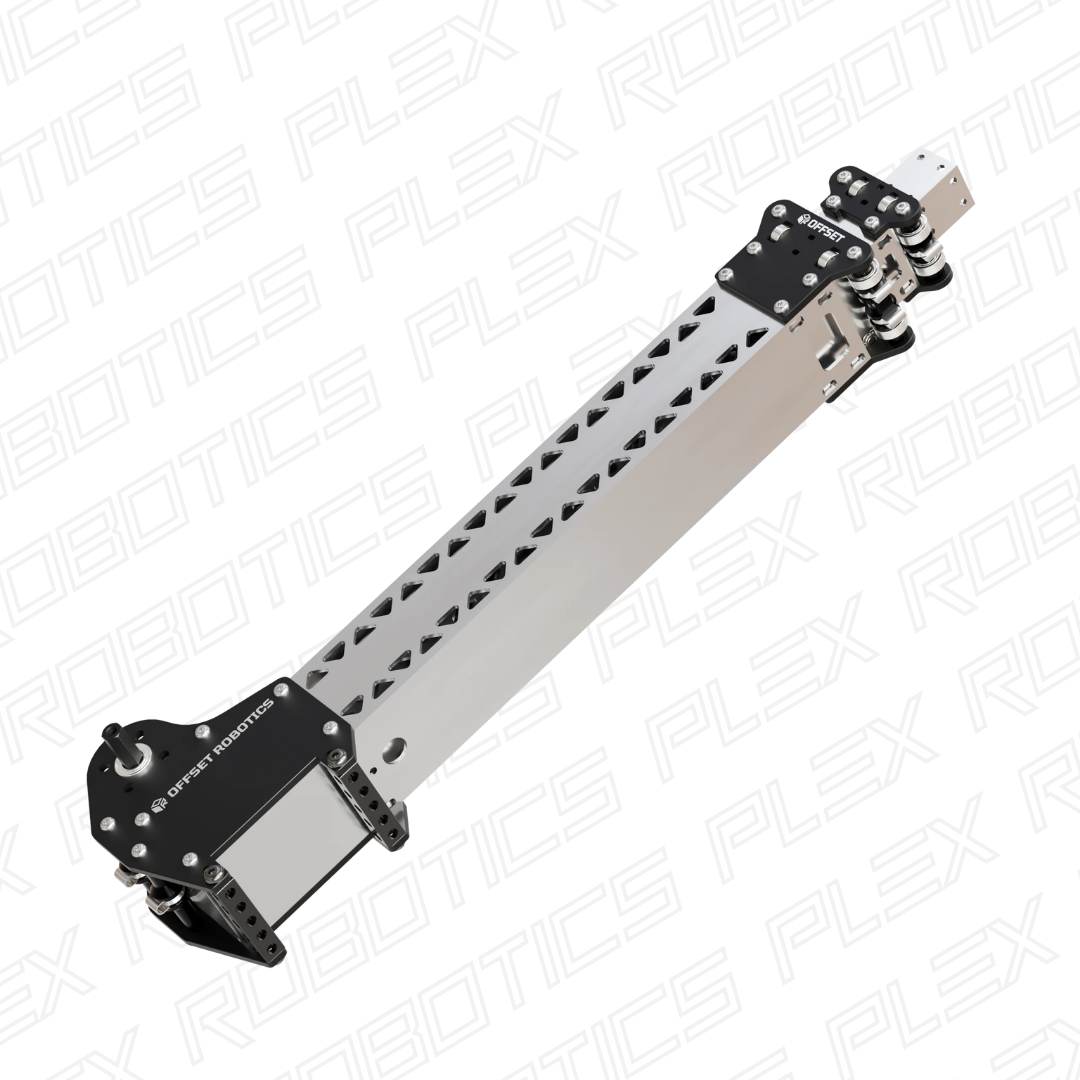

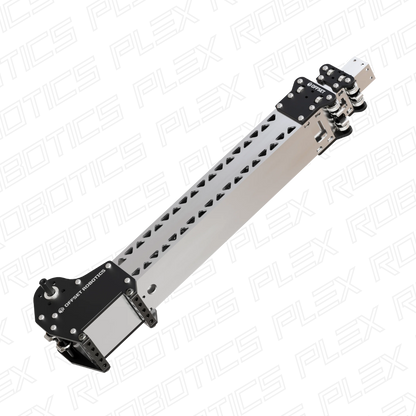

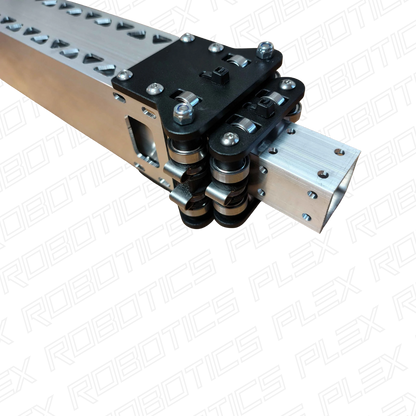

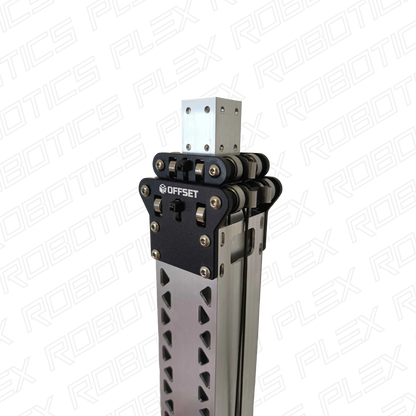

The Offset Robotics Box Tube Slide Kit is a 2-stage telescoping linear slide solution designed to give your team a competitive edge. Built for stability, weight reduction, and compactness, this kit is perfect for teams looking to incorporate an optimised and reliable box tube lift. Due to the telescopic nature of the lift, each stage is optimised to hold its inner stages, resulting in minimal wasted structural material (and therefore weight). This setup offers benefits over drawer slides, especially when your end effector is mounted at the end of your lift.

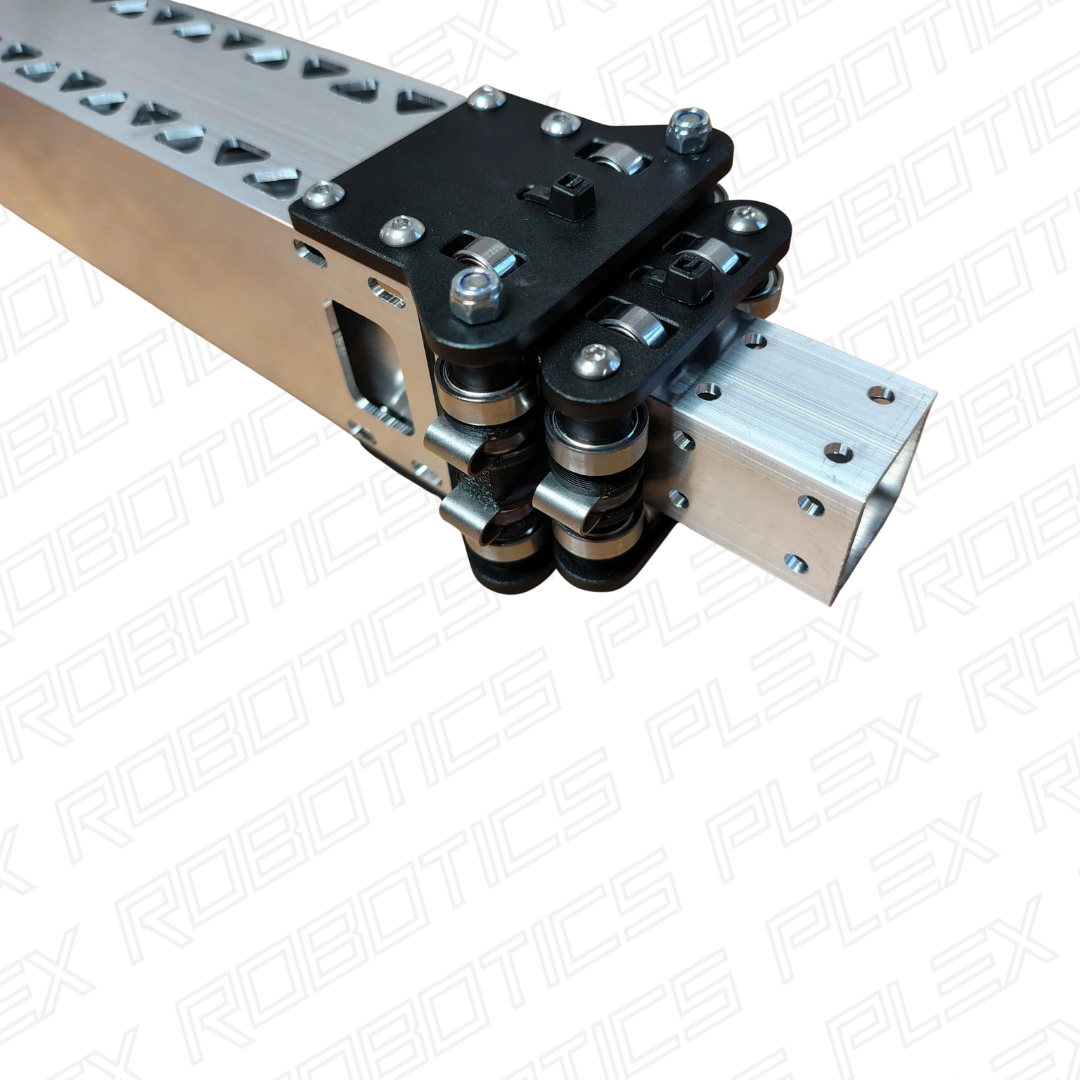

Stability Redefined: All inserts are aluminum, so no dealing with snapped 3d prints. Our kit features a 100% ball-bearing system to ensure low friction and high stability, even under heavy loads. The robust design prevents wobble, making it more rigid than other extension options.
Impressive Stroke-Length: For the standard 300mm outer-stage you will get an whopping extended length of 885mm! This 2-stage Box Tube Slide Kit uses less material, weight, and space for extension you get.
300 Stroke Length: 530mm
330 Stroke Length: 590mm
Lightweight but Strong: Engineered using high strength aluminum tubing, the Box Tube Slide Kit provides a perfect balance between rigidity and weight, coming in at 525g (330mm pocketed) or 580g (330mm unpocketed), With a moving mass of only 275 grams (300 pocketed). Over 67% less moving mass than a similar setup with misumi slides! This makes it perfect for a fixed or rotating extension, especially a pitching system, or turret.
String Powered Efficiency: Powered by a reliable string system with custom bearing shields, this kit ensures smooth extension and retraction with minimal wear and tear. It’s designed for quick setup and low maintenance, while still allowing for easy implantation of custom powering options.
