Plates are CNC machined and have extremely precise (±0.05mm) tolerances. Over 5+ different mounting and powering arrangements.
Parts Included:
- Spool – qty 1
- 3d printed Spacers – qty 7

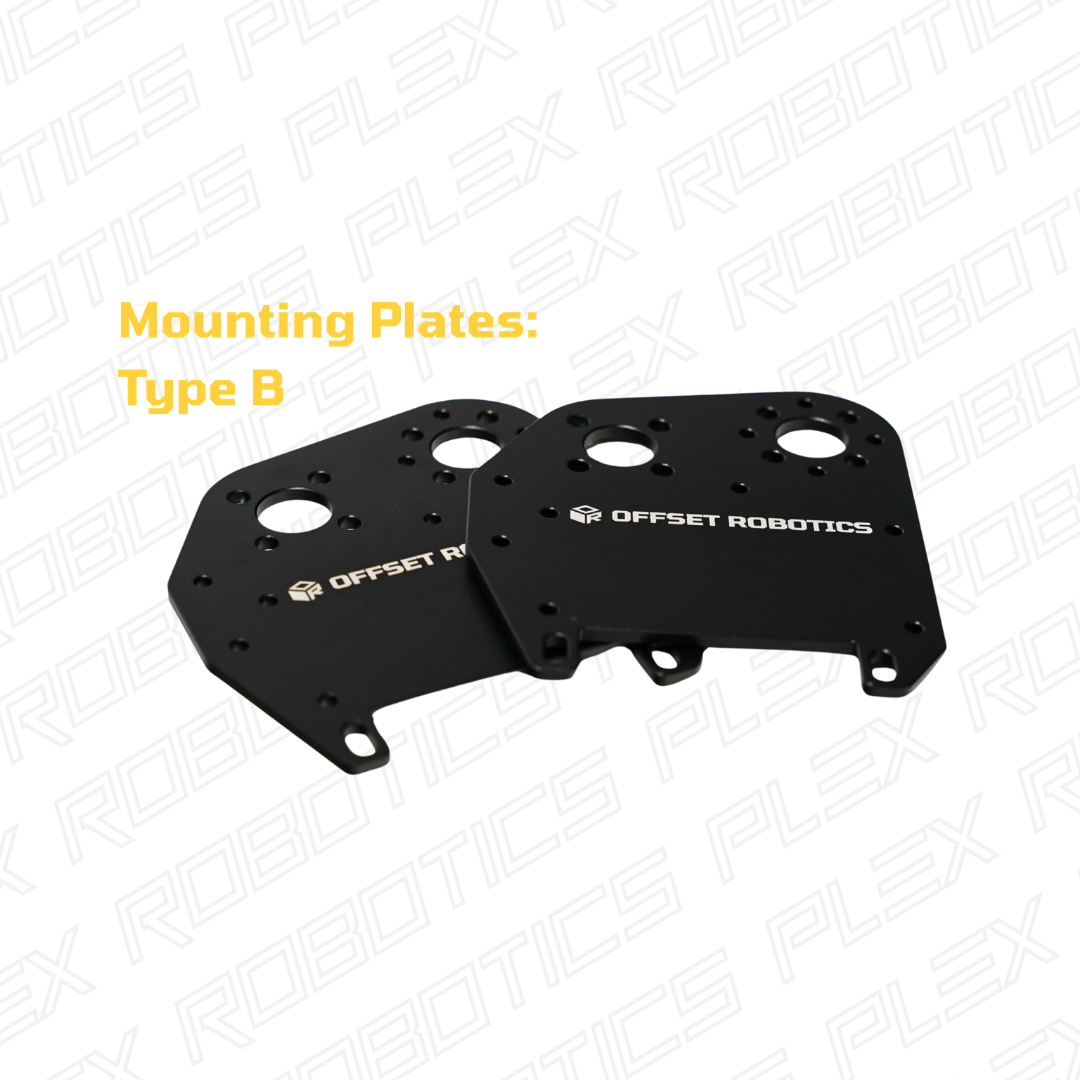

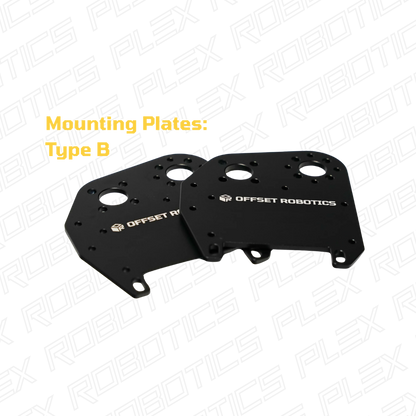

- Mounting Plates (Type A, Type B, or ALL) – qty varies
- M3 6mm Screws – qty 8
- M4 5mm Screws – qty 4
- M3 50 mm Screws – qty 3
- M3 Lock Nut – qty 3
- M3 Thin Nut – qty 8
- Shims (0.2 mm) – qty 8
- Flanged Bearings (8×14×4 mm) – qty 4
- V-Bearings (10×3×3 mm) – qty 4
- V-Bearing Shields – qty 4
Not Included:
- FTC Legal Motor
- Gears, Sprockets etc
If Selected:

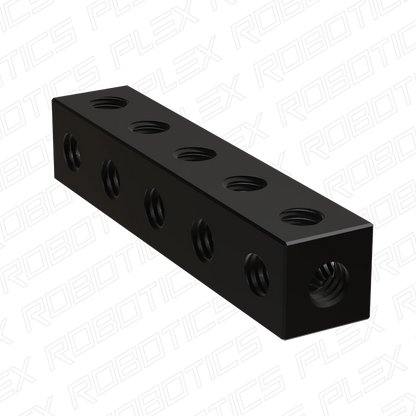

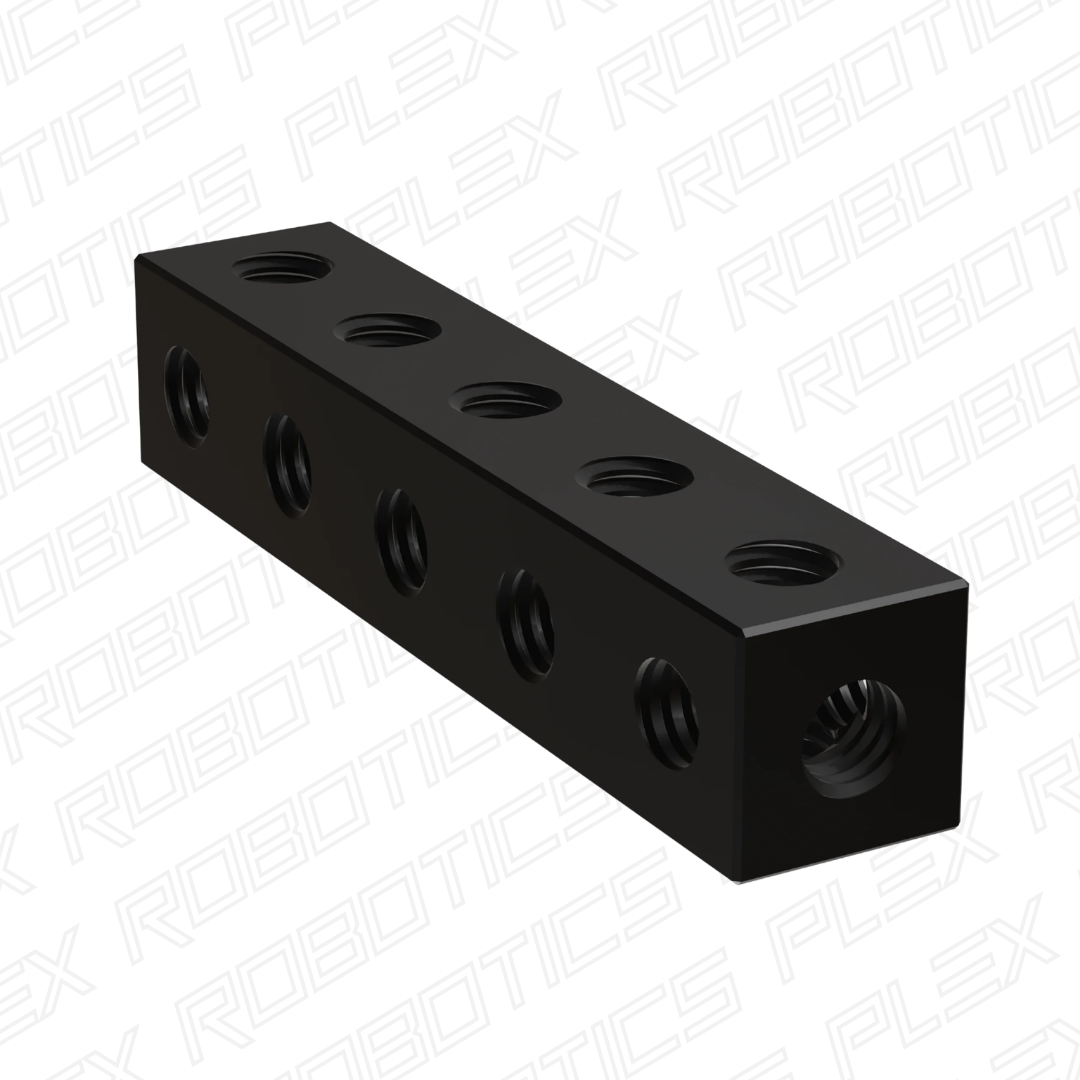

- 5 Hole Threaded Square Beam – qty 2
- 64mm Hex Axle – qty 2
ALL plates includes:

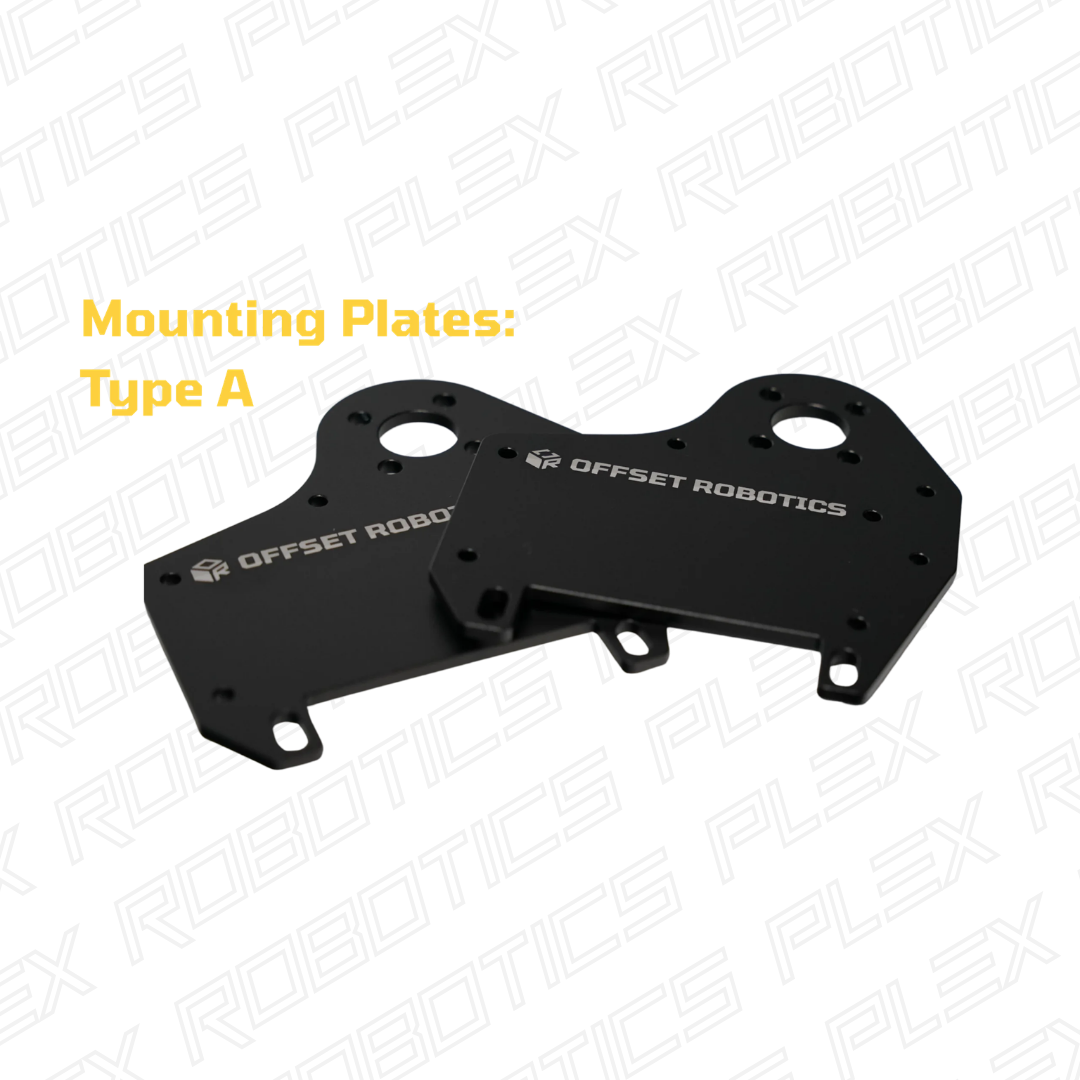

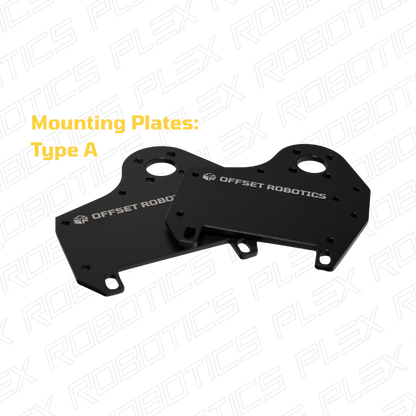

- Type A Plates – qty 2
- Type B Plates – qty 2

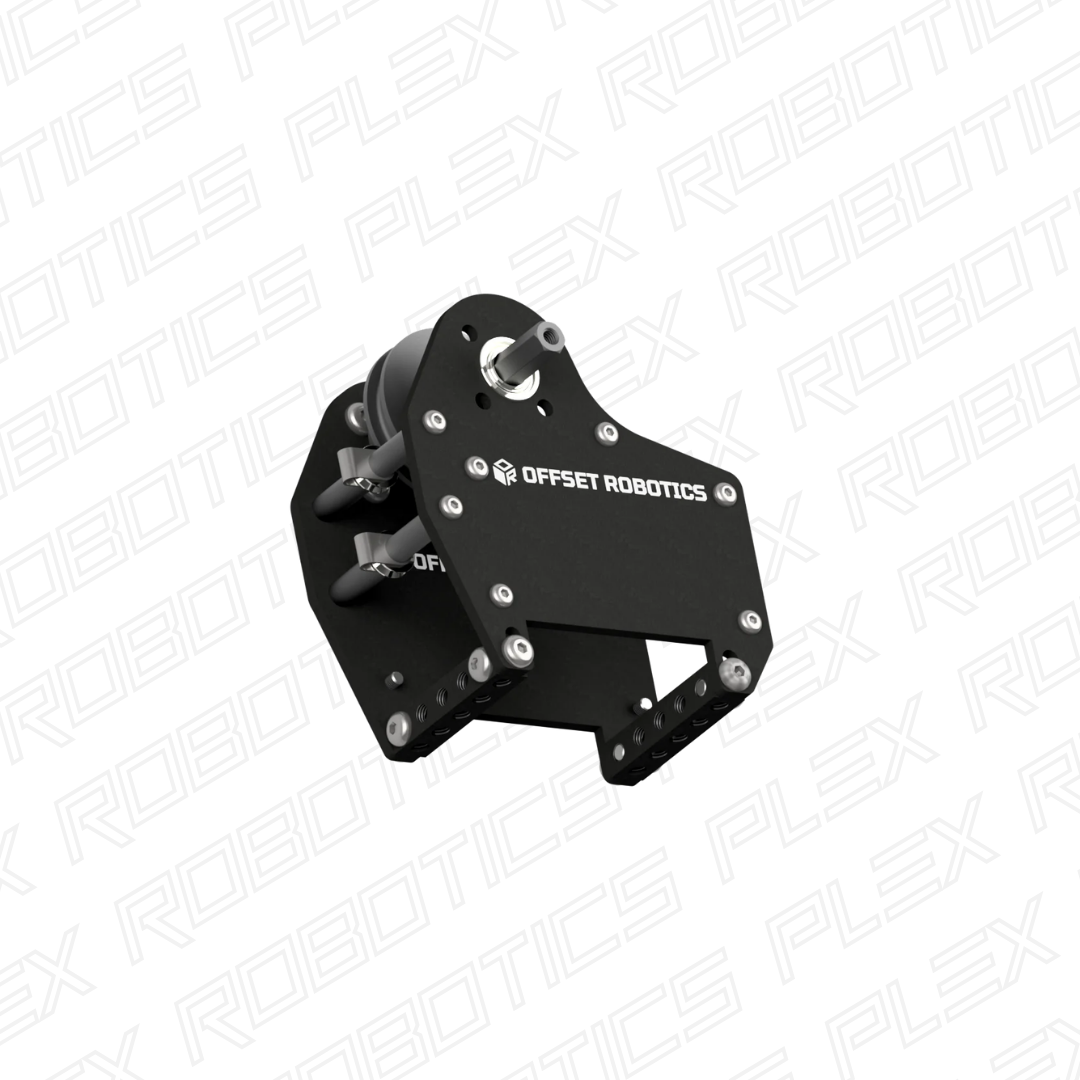

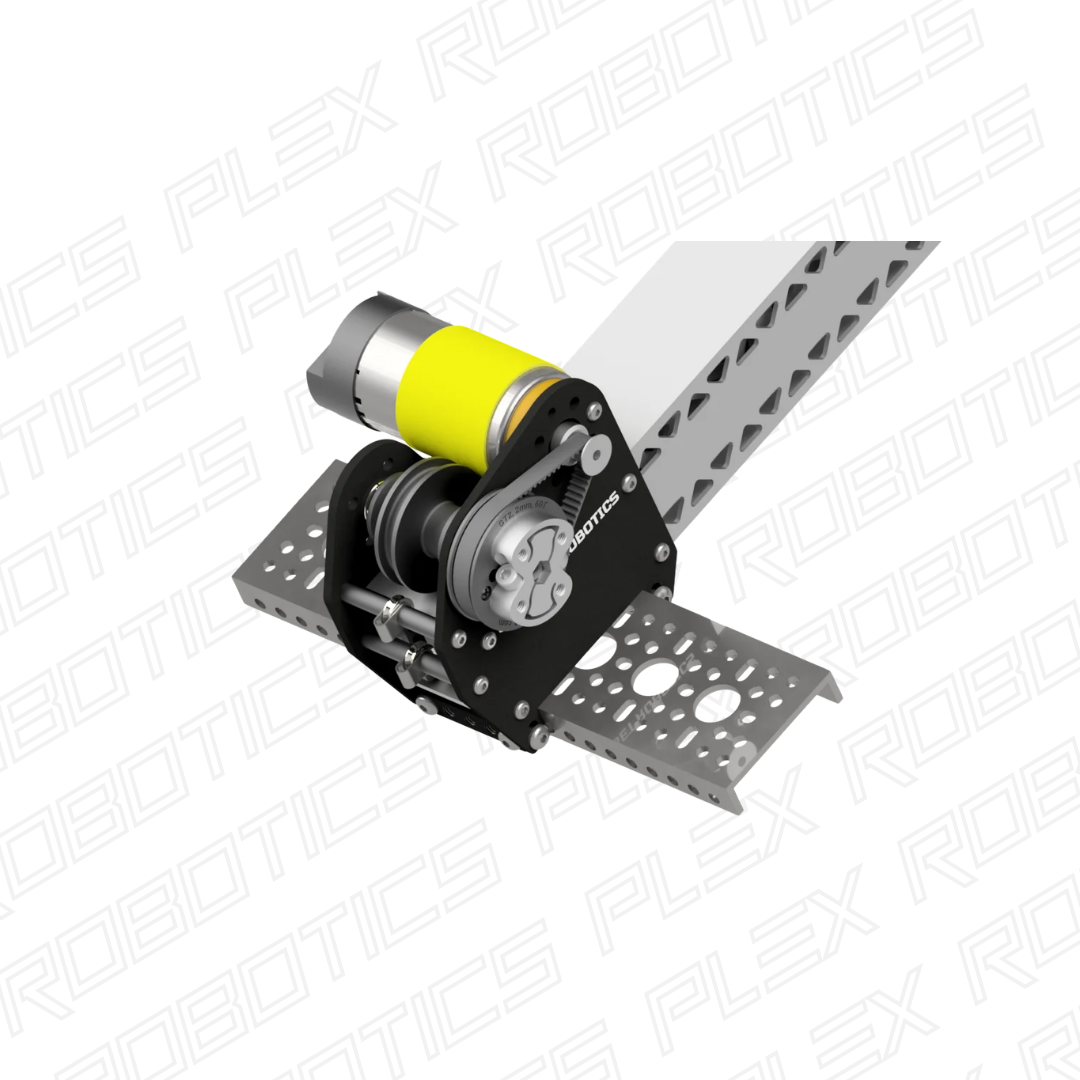

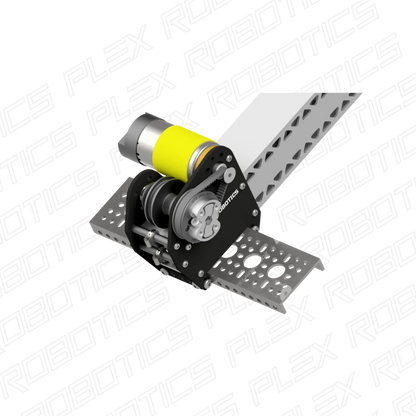

Mounting Kit Bare Motor Example
