Auxiliary Switch for goBILDA® Smart Dock (with Mounting Plate)
Auxiliary Switch for goBILDA® Smart Dock (with Mounting Plate)
3103-0004-0001📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 3103-0004-0001
Nu am putut încărca disponibilitatea pentru ridicare

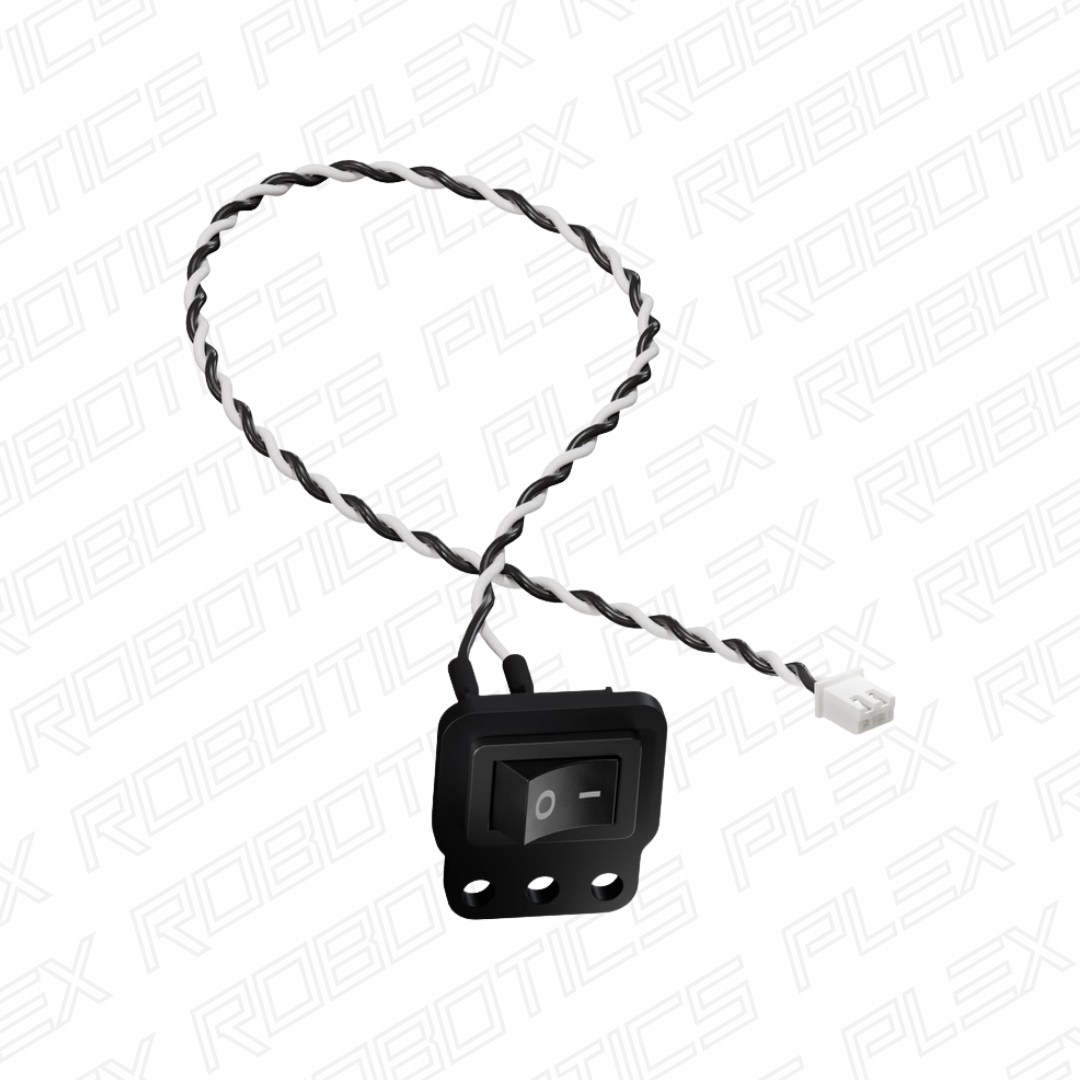

This remote switch is useful when your battery is nestled down inside your project. The switch simply plugs into the side of the goBILDA® Smart Dock via the auxiliary “SWITCH” connector and allows you to turn the Dock’s power on and off from afar.
A mounting plate with holes on the goBILDA® 8mm linear pattern is included to help you implement this switch directly into the structure of your project!
If you're using the switch without the included mounting plate, the spring-tabs of the panel mount switch allow the switch to securely snap down in a rectangular cutout for a clean and finished appearance. While that rectangular cutout will always be 12.9 - 13.1mm wide, its length required will vary according to the thickness of your material:
- 18.9 - 19.1mm length for 0.7 - 1.25mm thick
- 19.1 - 19.2mm length for 1.25 - 2.0mm thick
- 19.3 - 19.4mm length for 2.0 - 3.0mm thick
