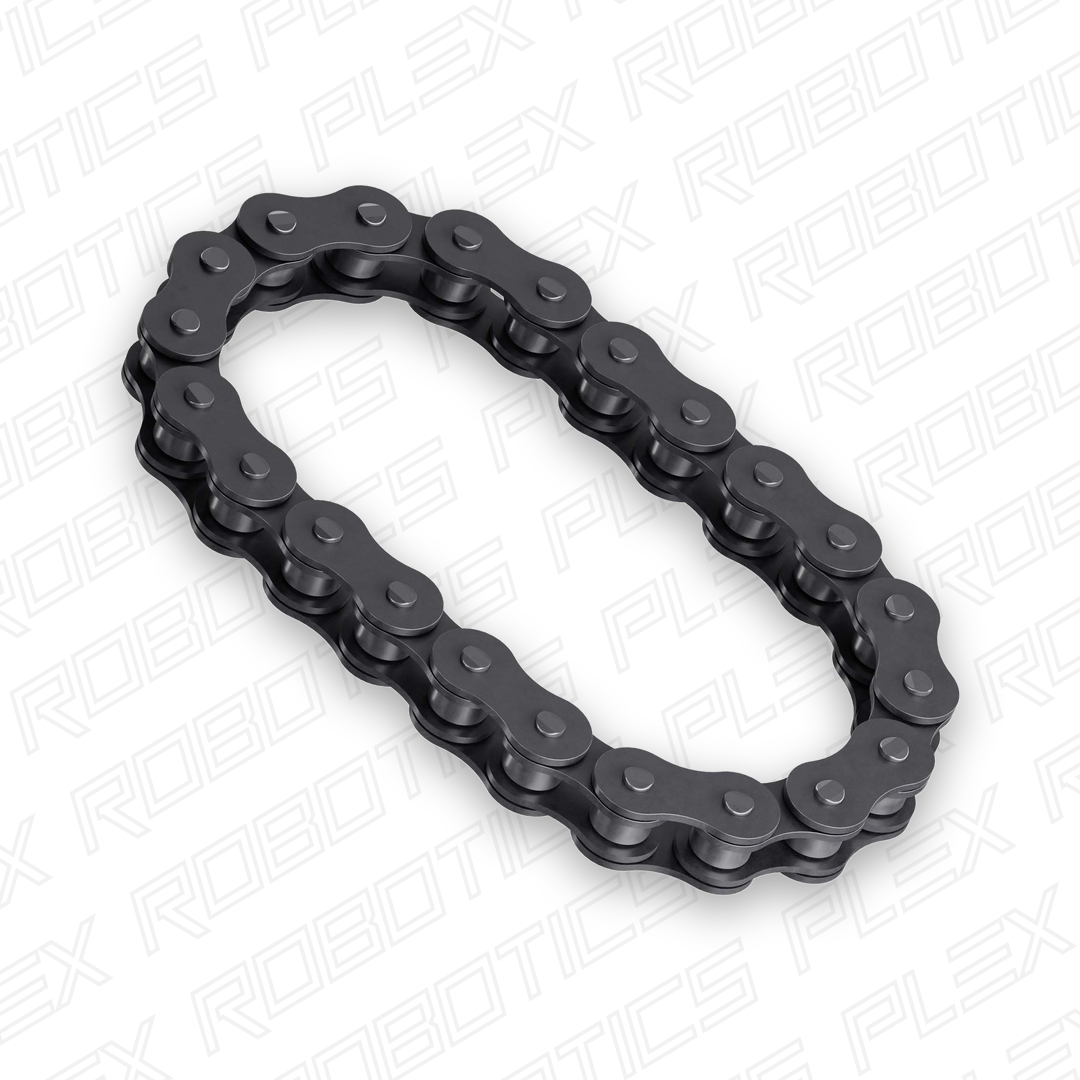

8mm Pitch Steel Chain Loop
8mm Pitch Steel Chain Loop
3315-0008-0022Preț obișnuit
11,20 lei
Preț redus
11,20 lei
Preț unitar
/
pe
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 3315-0008-0022
Nu am putut încărca disponibilitatea pentru ridicare
A continuous loop chain is helpful when you know exactly the length of chain your project needs. It also saves you the hassle of chain construction! As such, the absence of the unique “master link” you’d need to connect the ends of your chain means that every link is identical.

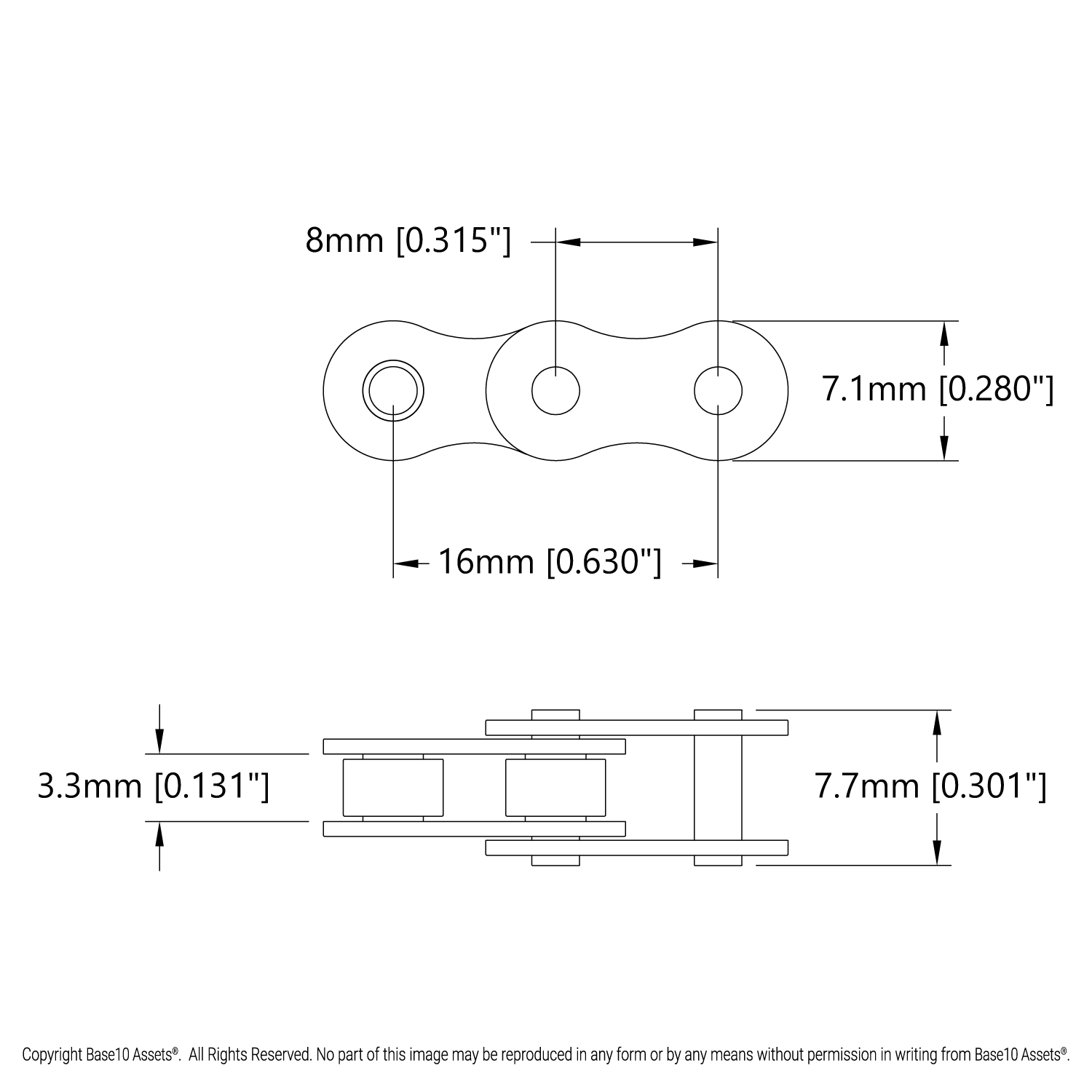

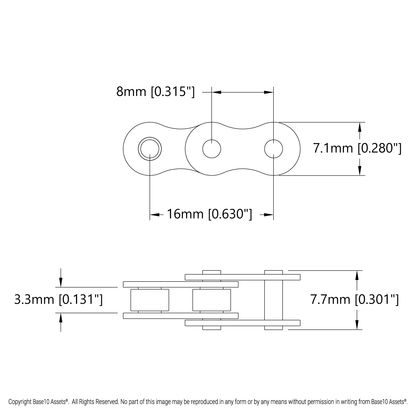

This 8mm pitch steel chain has an impressive 120kg working load: more than triple what #25 (0.250") chain is able to handle! The 8mm pitch of the chain coincides with the 8mm grid used throughout the goBILDA® build system and provides for easy integrations with goBILDA® components.
Downloads
| Variant | STEP File | Other Files |
|---|---|---|
| 1 - 22 Links - 176mm Pitch Length | STEP File | — |
| 2 - 26 Links - 208mm Pitch Length | STEP File | — |
| 3 - 28 Links - 124mm Pitch Length | STEP File | — |
| 4 - 32 Links - 256mm Pitch Length | STEP File | — |
| 5 - 34 Links - 272mm Pitch Length | STEP File | — |
| 6 - 38 Links - 304mm Pitch Length | STEP File | — |
| 7 - 40 Links - 320mm Pitch Length | STEP File | — |
| 8 - 44 Links - 352mm Pitch Length | STEP File | — |
| 9 - 46 Links - 368mm Pitch Length | STEP File | — |
| 10 - 50 Links - 400mm Pitch Length | STEP File | — |
| 11 - 52 Links - 416mm Pitch Length | STEP File | — |
| 12 - 56 Links - 448mm Pitch Length | STEP File | — |
| 13 - 58 Links - 464mm Pitch Length | STEP File | — |
| 14 - 62 Links - 496mm Pitch Length | STEP File | — |
| 15 - 64 Links - 512mm Pitch Length | STEP File | — |
| 16 - 68 Links - 544mm Pitch Length | STEP File | — |
| 17 - 70 Links - 560mm Pitch Length | STEP File | — |
| 18 - 74 Links - 592mm Pitch Length | STEP File | — |
| 19 - 80 Links - 640mm Pitch Length | STEP File | — |
| 20 - 86 Links - 688mm Pitch Length | STEP File | — |
| 21 - 92 Links - 736mm Pitch Length | STEP File | — |
| 22 - 98 Links - 784mm Pitch Length | STEP File | — |
| 23 - 110 Links - 880mm Pitch Length | STEP File | — |
