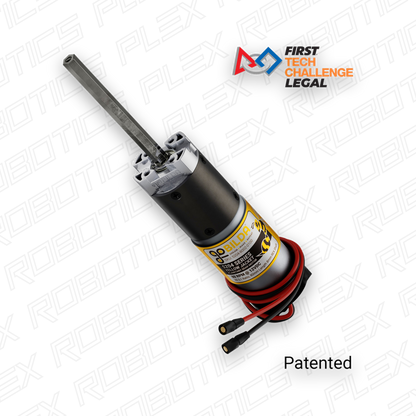

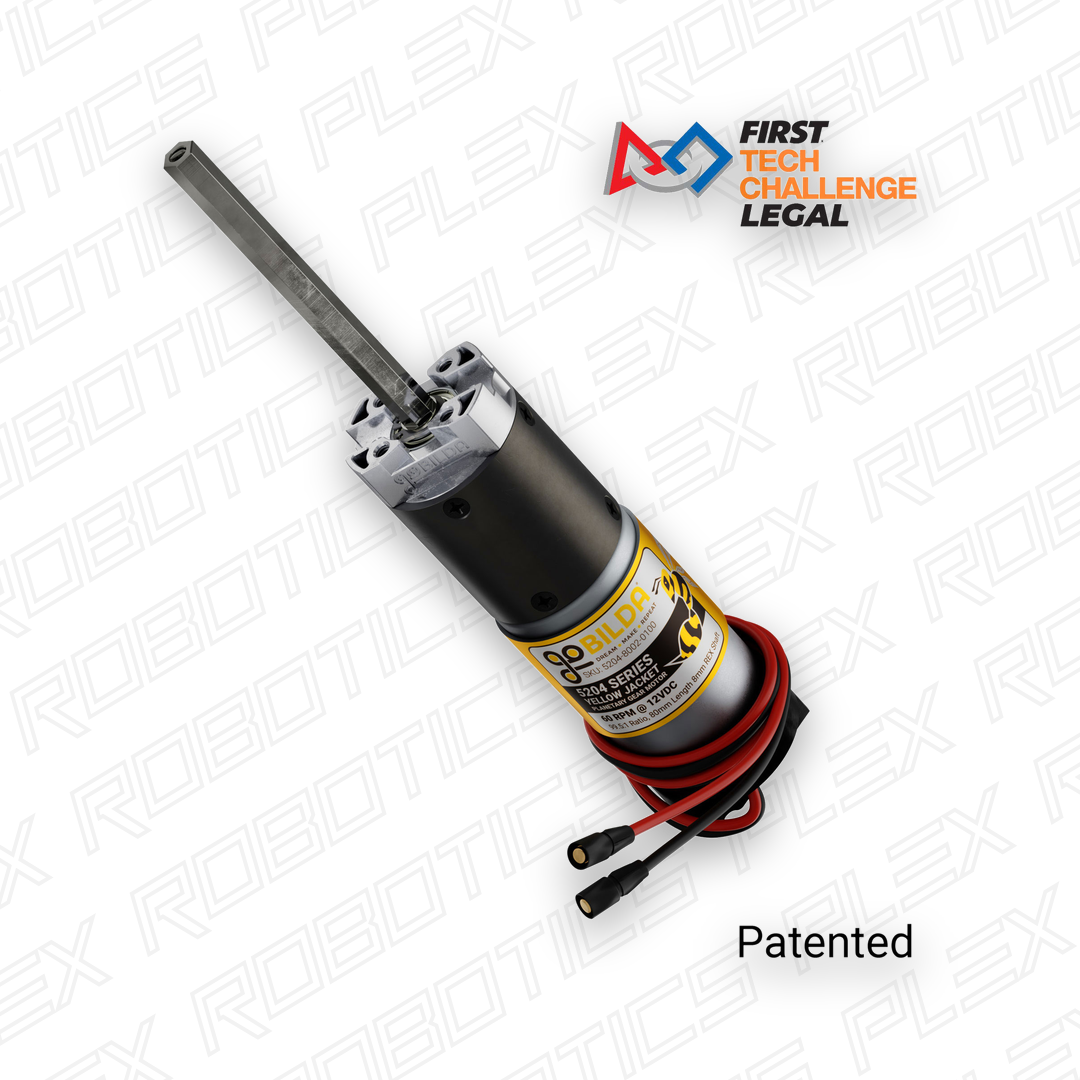

5204 Series Yellow Jacket Planetary Gear Motor (99.5:1 Ratio, 80mm Length 8mm REX® Shaft, 60 RPM, 3.3 - 5V Encoder)

5204 Series Yellow Jacket Planetary Gear Motor (99.5:1 Ratio, 80mm Length 8mm REX® Shaft, 60 RPM, 3.3 - 5V Encoder)

5204-8002-0100
309,90 lei
309,90 lei
Reducere Stoc epuizat
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).

SKU: 5204-8002-0100

Downloads

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC
Output Shaft 8mm REX®, 80mm Length
Gearbox Style Planetary
Gear Ratio 99.5:1
Gear Ratio Formula (((1+(46/17))) * (1+(46/11))) * (1+(46/11))
Gear Material Steel
No-Load Speed @ 12VDC 60 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 133.2 kg.cm (1,850 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 2,786.2 PPR at the Output Shaft
Encoder Resolution Formula ((((1+(46/17))) * (1+(46/11))) * (1+(46/11)) * 28)
Weight 501
IP Patented
