goBILDA
2910 Series Aluminum Clamping Collar (8mm REX™ ID x 20mm OD, 9mm Length)
2910 Series Aluminum Clamping Collar (8mm REX™ ID x 20mm OD, 9mm Length)
2910-0920-4008Preț obișnuit
25,80 lei
Preț obișnuit
32,30 lei
Preț redus
25,80 lei
Preț unitar
/
pe
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 5 zile lucrătoare de la confirmarea plății.
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 2910-0920-4008
Nu am putut încărca disponibilitatea pentru ridicare

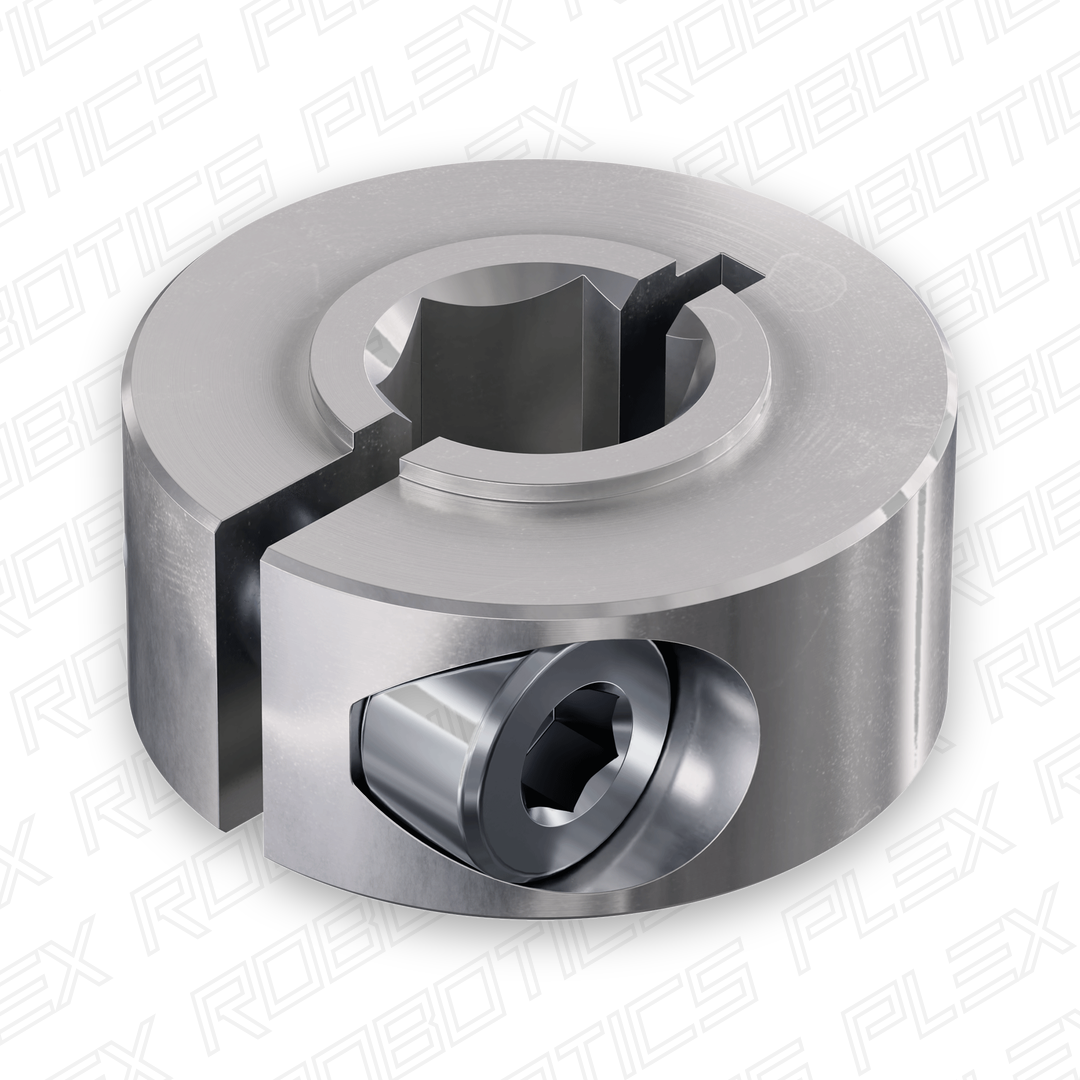

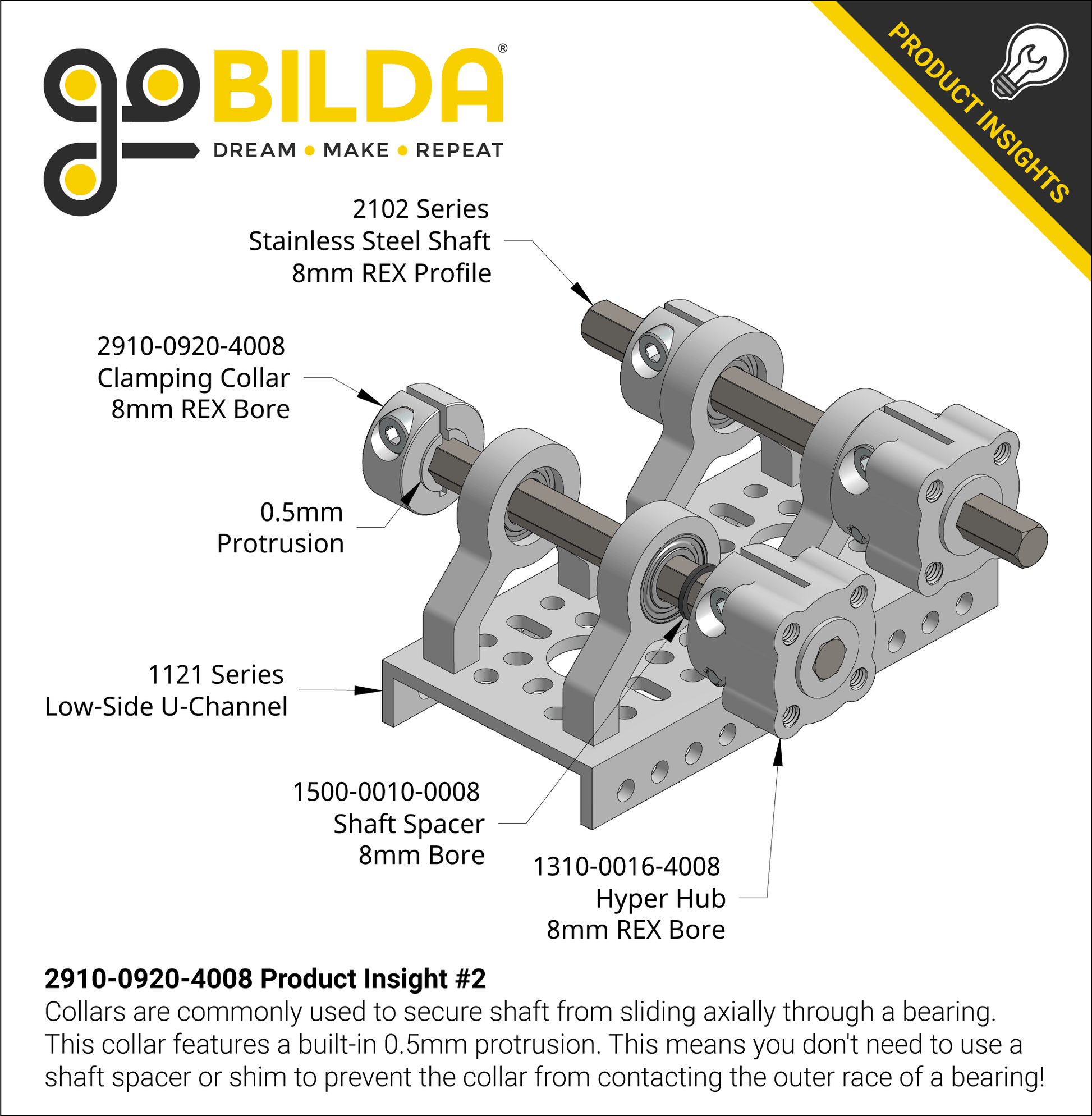

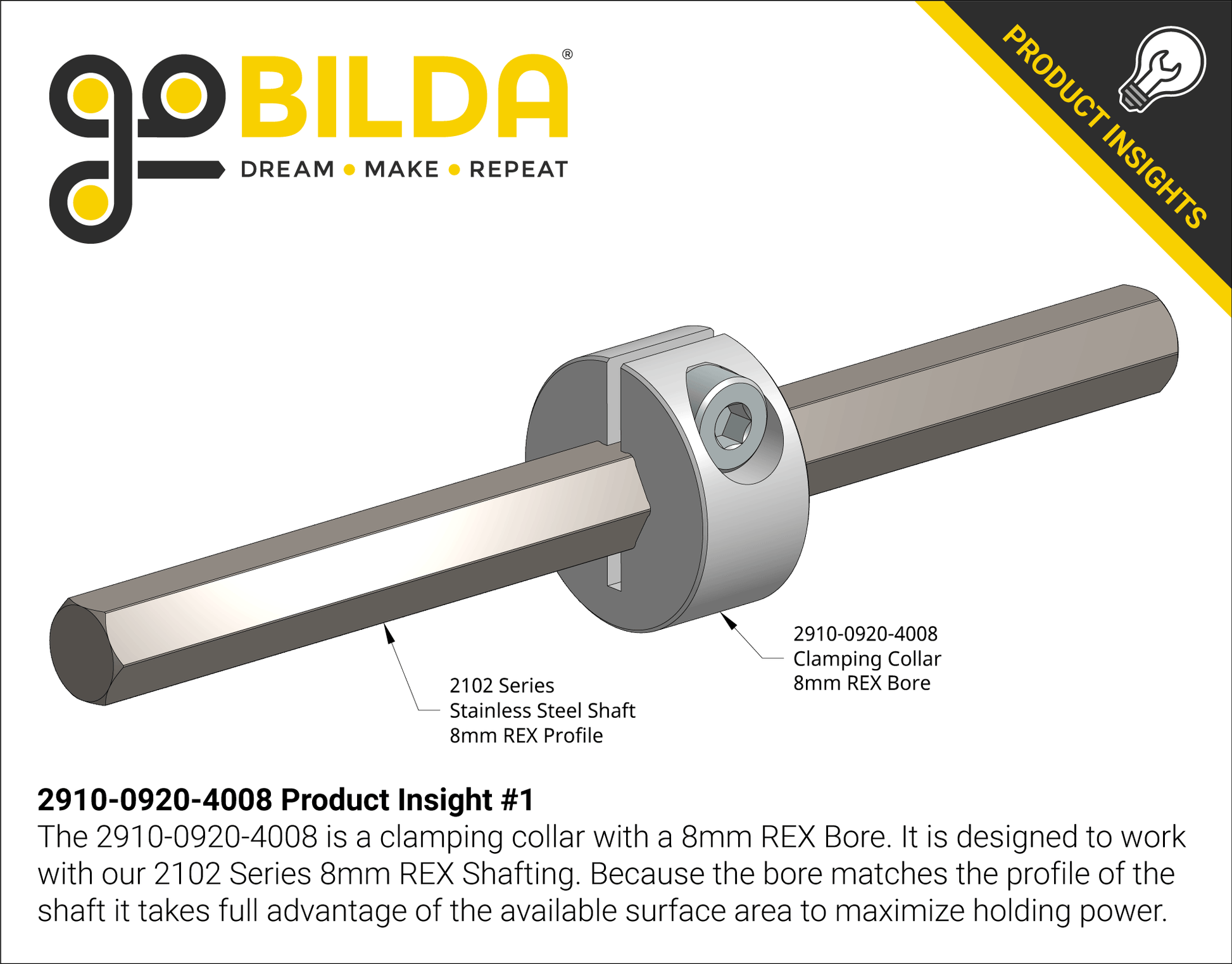

This 8mm REX™ Bore Clamping Collar has a profile-matched bore in order to maximize holding force on the 8mm REX™ Shaft. The 11mm diameter, 0.5mm protrusion on one side of the collar negates the need for a shim or shaft spacer between the collar and a bearing. The protrusion will rest against the inner-race of the bearing, creating a little necessary space between the collar and the outer-race. The M4 pinch bolt uses the same tool as you’ll use with 2800 Series Socket Head Screws that we use throughout the build system.
