ServoCity

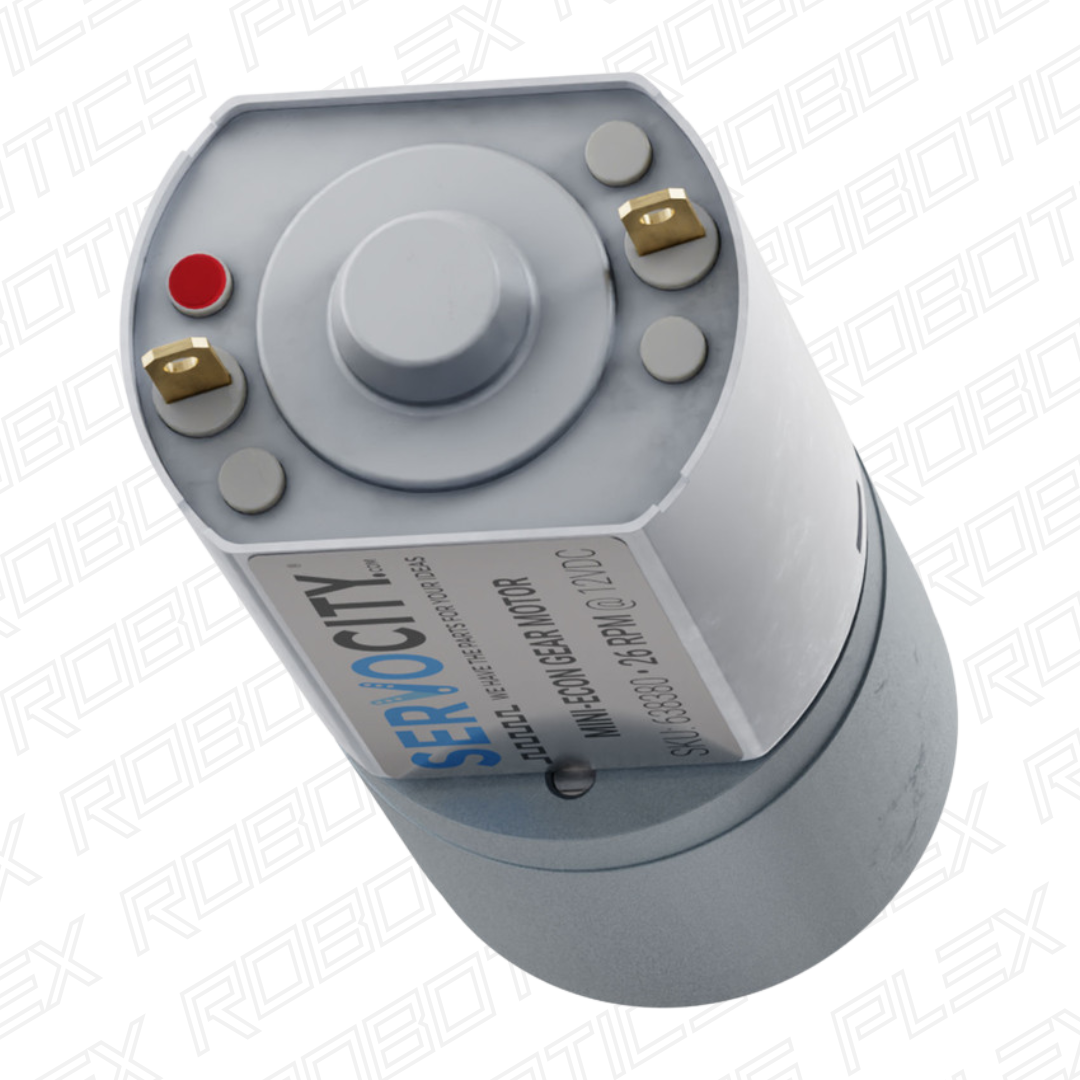

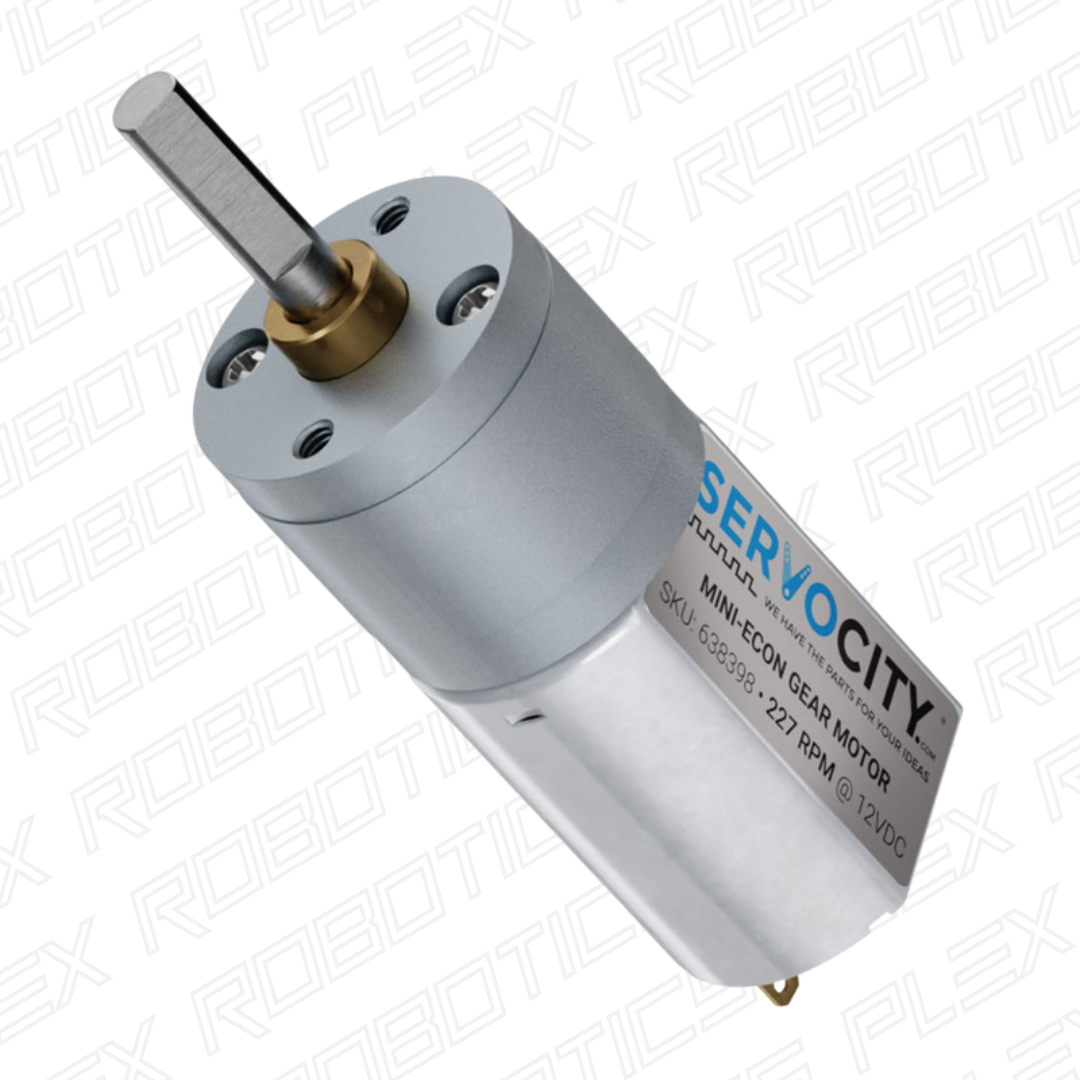

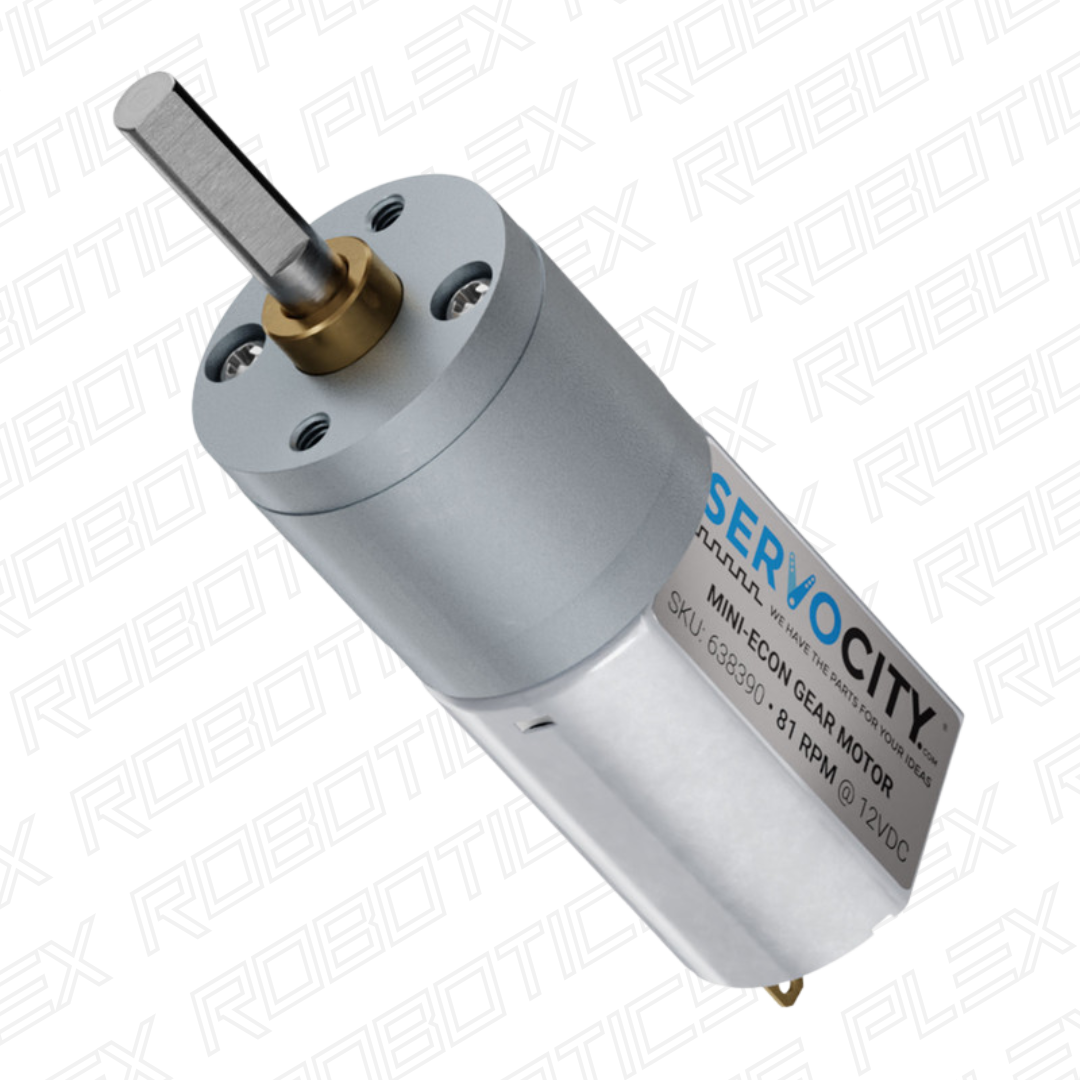

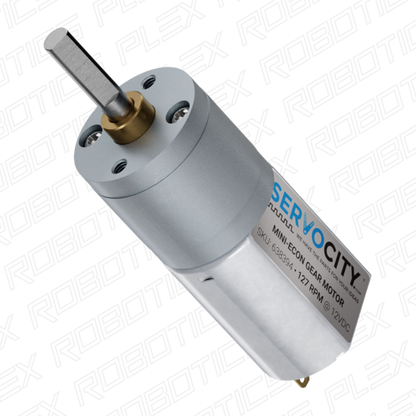

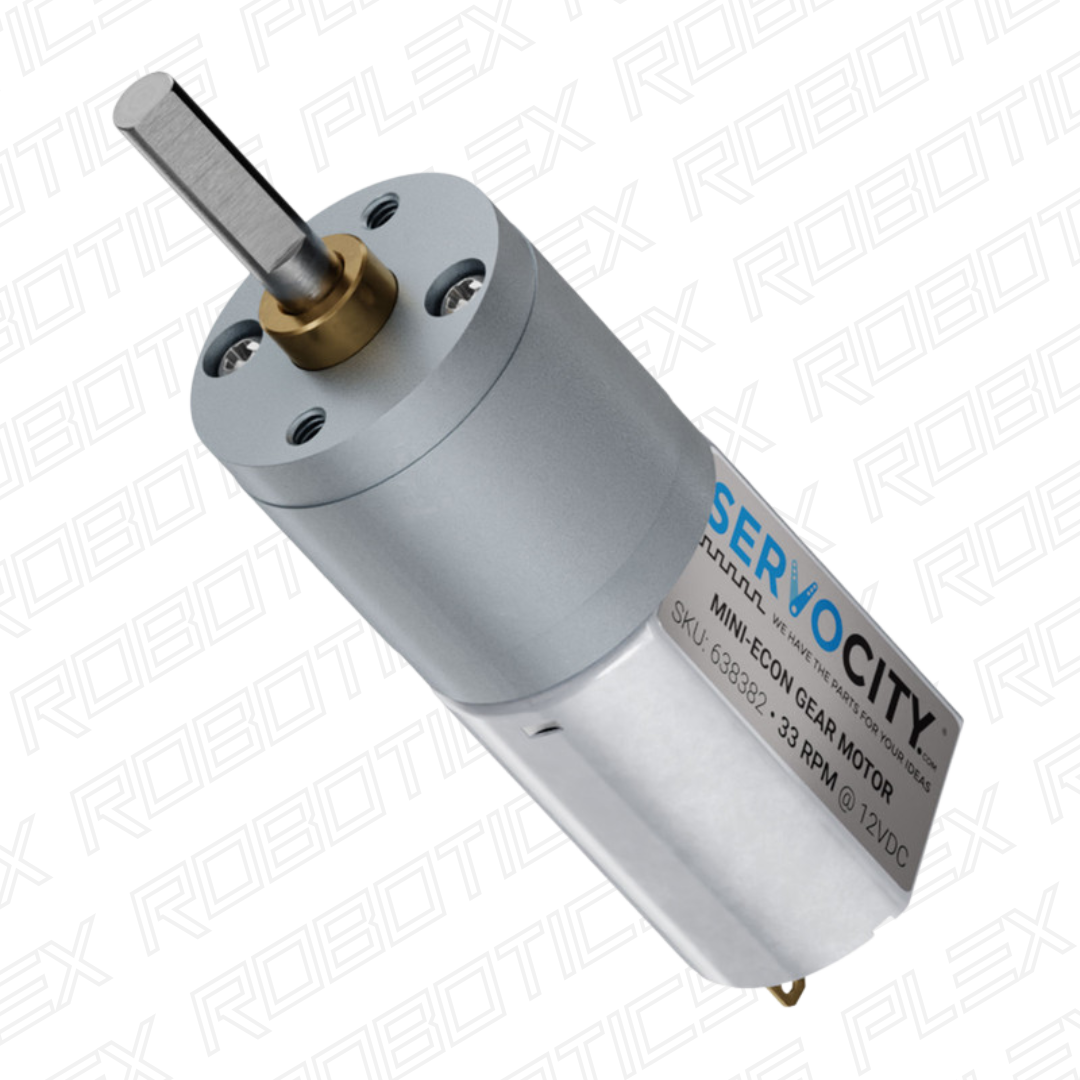

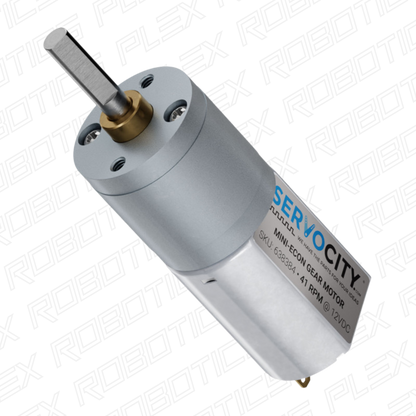

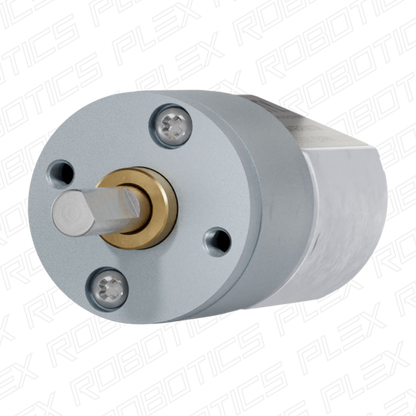

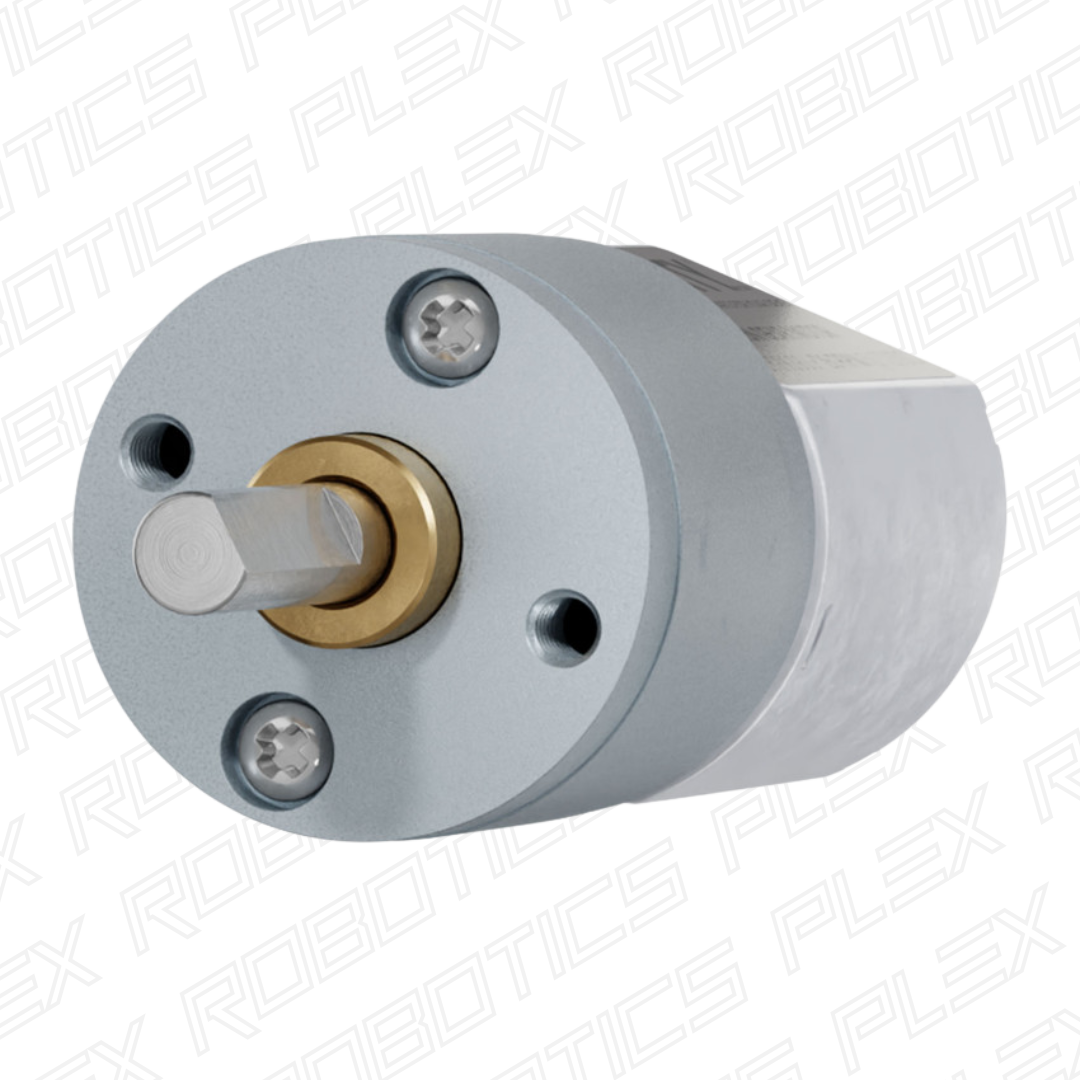

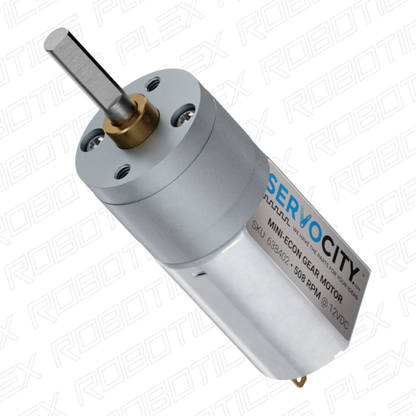

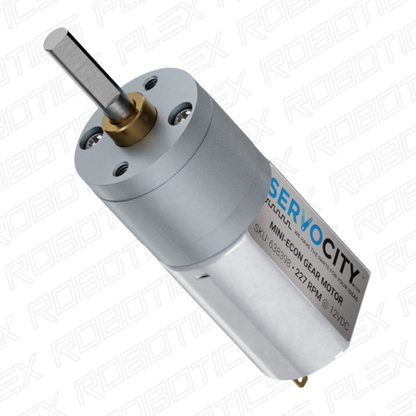

Mini Econ Gear Motor (26 RPM - 508 RPM)

Mini Econ Gear Motor (26 RPM - 508 RPM)

638380
68,50 lei
68,50 lei
Reducere Stoc epuizat
Prețul include taxe.

SKU: 638380

Tech Tip

Stalling this gearmotor could cause gear damage.

Downloads

Specs

Output Shaft Style D-shaft
Motor Type Brushed DC
Output Shaft Support Bushing
Gear Material Metal
Weight 1.55 oz (44g)
Voltage (Nominal) 12V
Speed (No Load @ 12VDC) 26 rpm
Current (No Load @ 12VDC) 0.1A
Current (Max Load @ 12VDC) 0.35A
Current (Stall @ 12VDC) 1.5A
Torque (Stall @ 12VDC) 651 oz-in (46.9 kgf-cm)
Gearbox Style Straight Cut Spur

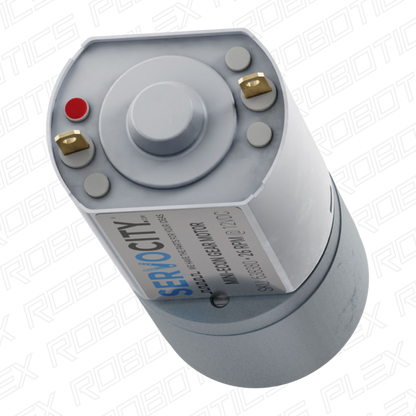

Connector Type Male Spade Terminal
Gear Ratio 488:1
Vedeți detaliile complete
