goBILDA

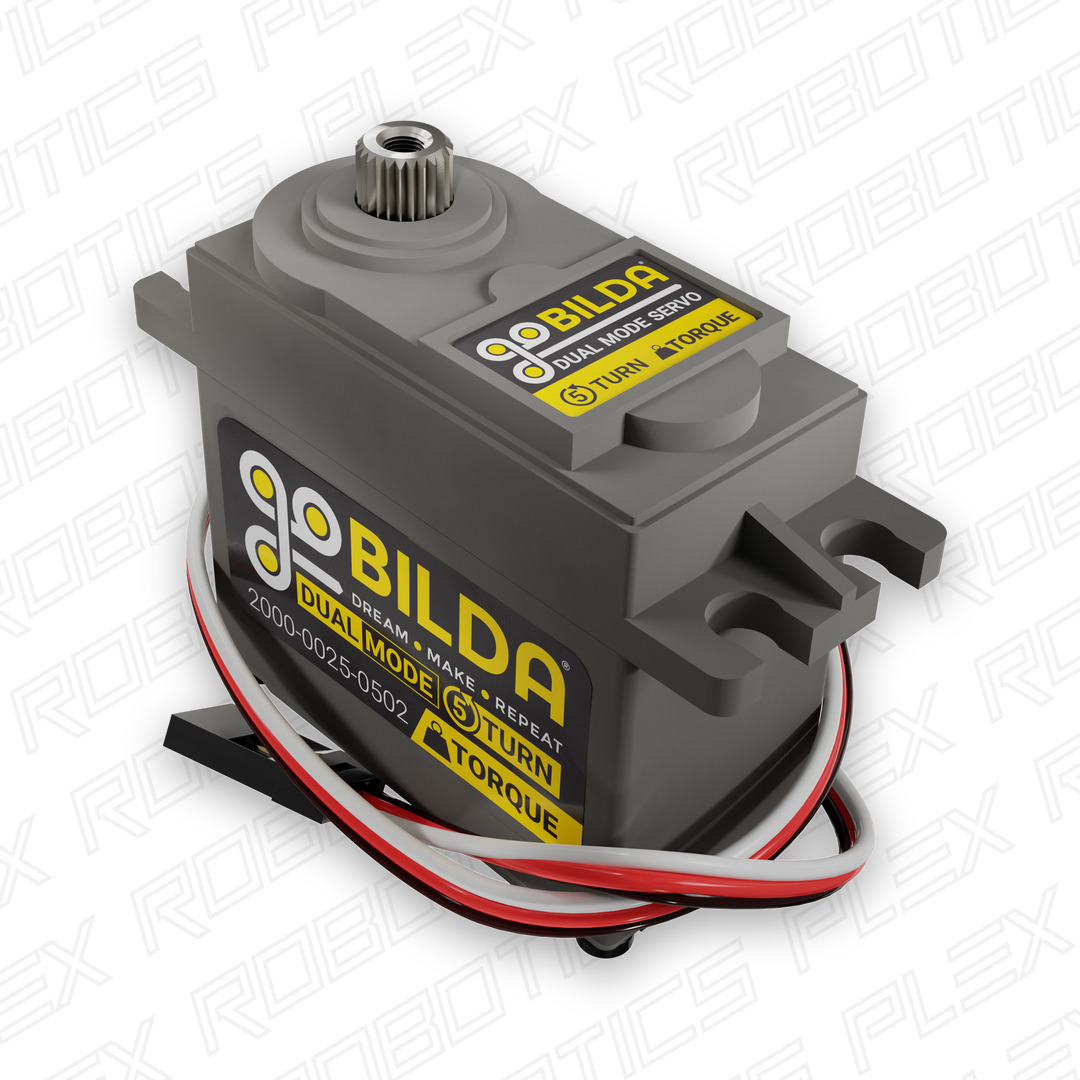

2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
2000-0025-0502Preț obișnuit
258,40 lei
Preț redus
258,40 lei
Preț unitar
/
pe
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 2000-0025-0502
Nu am putut încărca disponibilitatea pentru ridicare
Like the other 2000 Series goBILDA Servos, the 2000-0025-0502 boasts two different modes. In the default mode, the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
Downloads
Specs
| Weight | 64g |
|---|---|
| Gear Ratio | 300:1 |
| Output Shaft Style | 25 Tooth Spline |
| Voltage Range | 4.8V ~ 7.4V |
| No-Load Speed (4.8V) | 0.25sec/60° (40RPM) |
| No-Load Speed (6.0V) | 0.20sec/60° (50RPM) |
| No-Load Speed (7.4V) | 0.17sec/60° (60RPM) |
| Stall Torque (4.8V) | 17.2 kg.cm (240 oz-in) |
| Stall Torque (6.0V) | 21.6 kg.cm (300 oz-in) |
| Stall Torque (7.4V) | 25.2 kg.cm (350 oz-in) |
| No-Load Current (4.8V) | 150mA |
| No-Load Current (6.0V) | 160mA |
| No-Load Current (7.4V) | 200mA |
| Stall Current (4.8V) | 2,000mA |
| Stall Current (6.0V) | 2,500mA |
| Stall Current (7.4V) | 3,000mA |
| Max PWM Range | 500 - 2500 µsec |
| Max PWM Range (Continuous) | 900 - 2100 µsec |
| Travel per µsec (out of box) | 0.90°/µsec |
| Pulse Amplitude | 3-5V |
| Direction | Clockwise w/ Increasing PWM Signal |
| Deadband Width | 4 μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Steel |
| Wire Length | 300mm |
| Wire Gauge | 22 AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Max Rotation (Default Mode) | 5 Turns (1800°) |
| Max PWM Range (Continuous) | 900-2100µsec |
