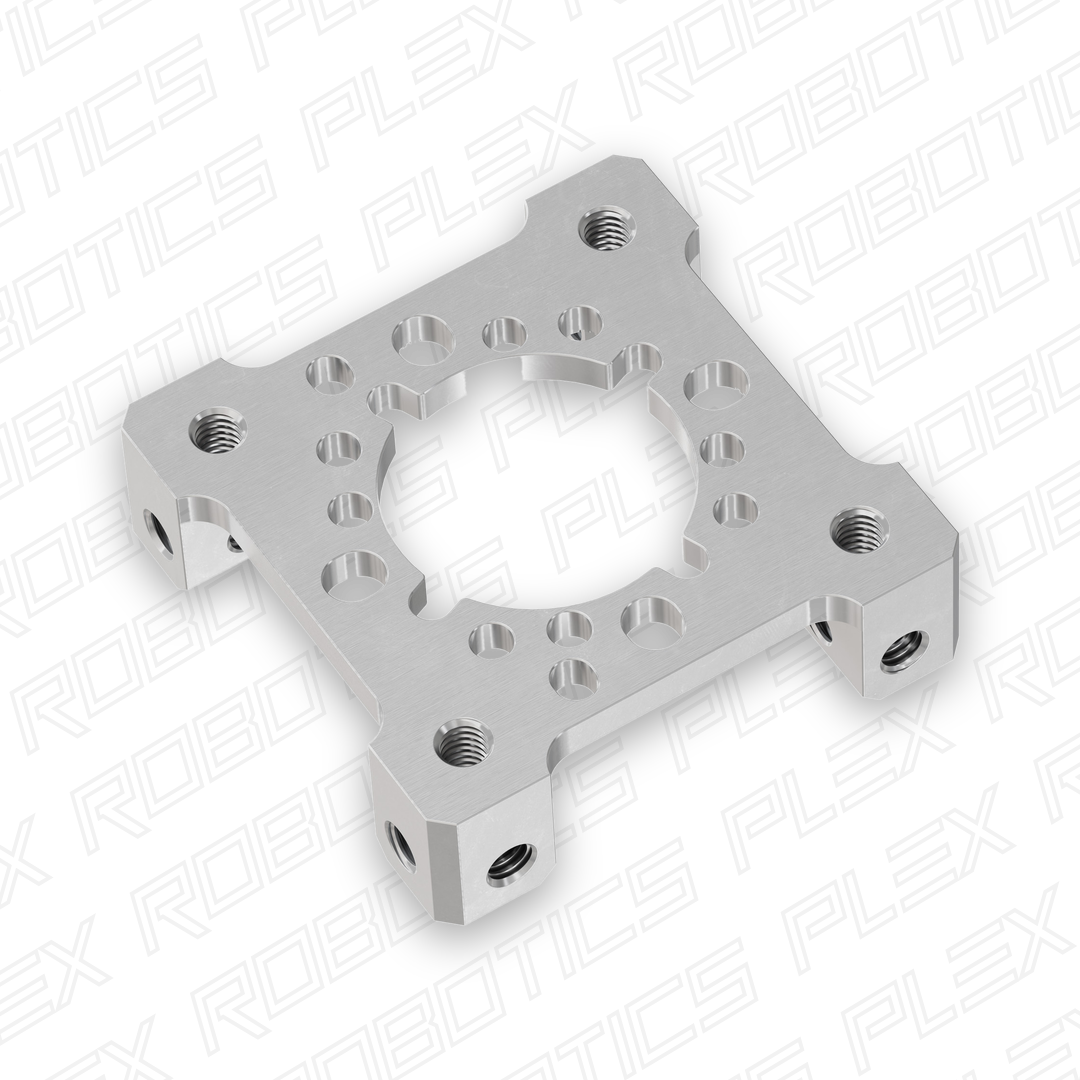

1702 Series Quad Block Motor Mount (43-1)

1702 Series Quad Block Motor Mount (43-1)

1702-0043-0001
42,90 lei
42,90 lei
Reducere Stoc epuizat
Prețul include taxe.
⚠️ Acest produs este disponibil în regim de precomandă. Timpul estimat de livrare este de 3-12 zile lucrătoare de la confirmarea plății, în funcție de opțiunea aleasă la checkout (Economy, Standard sau Priority).
📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).

SKU: 1702-0043-0001

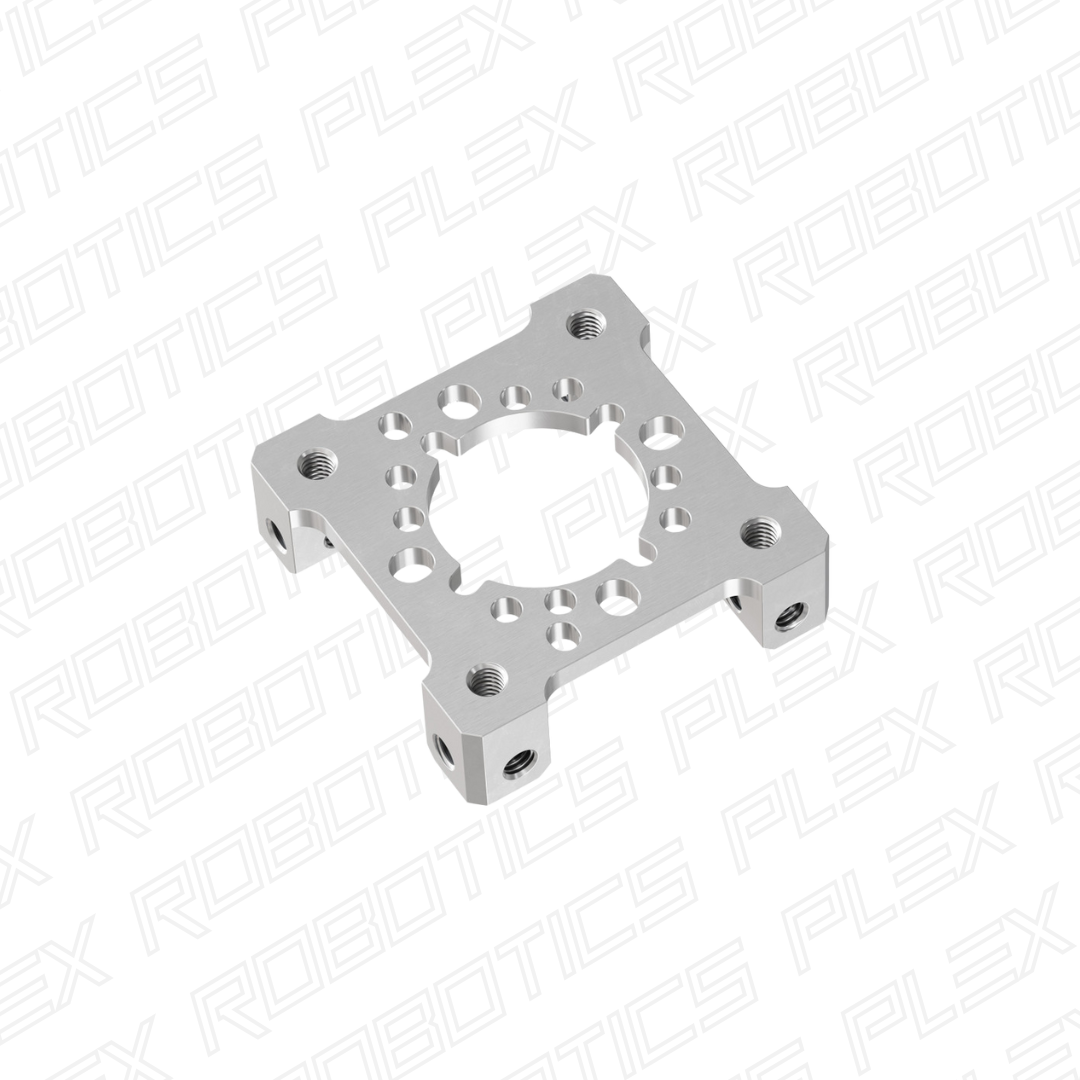

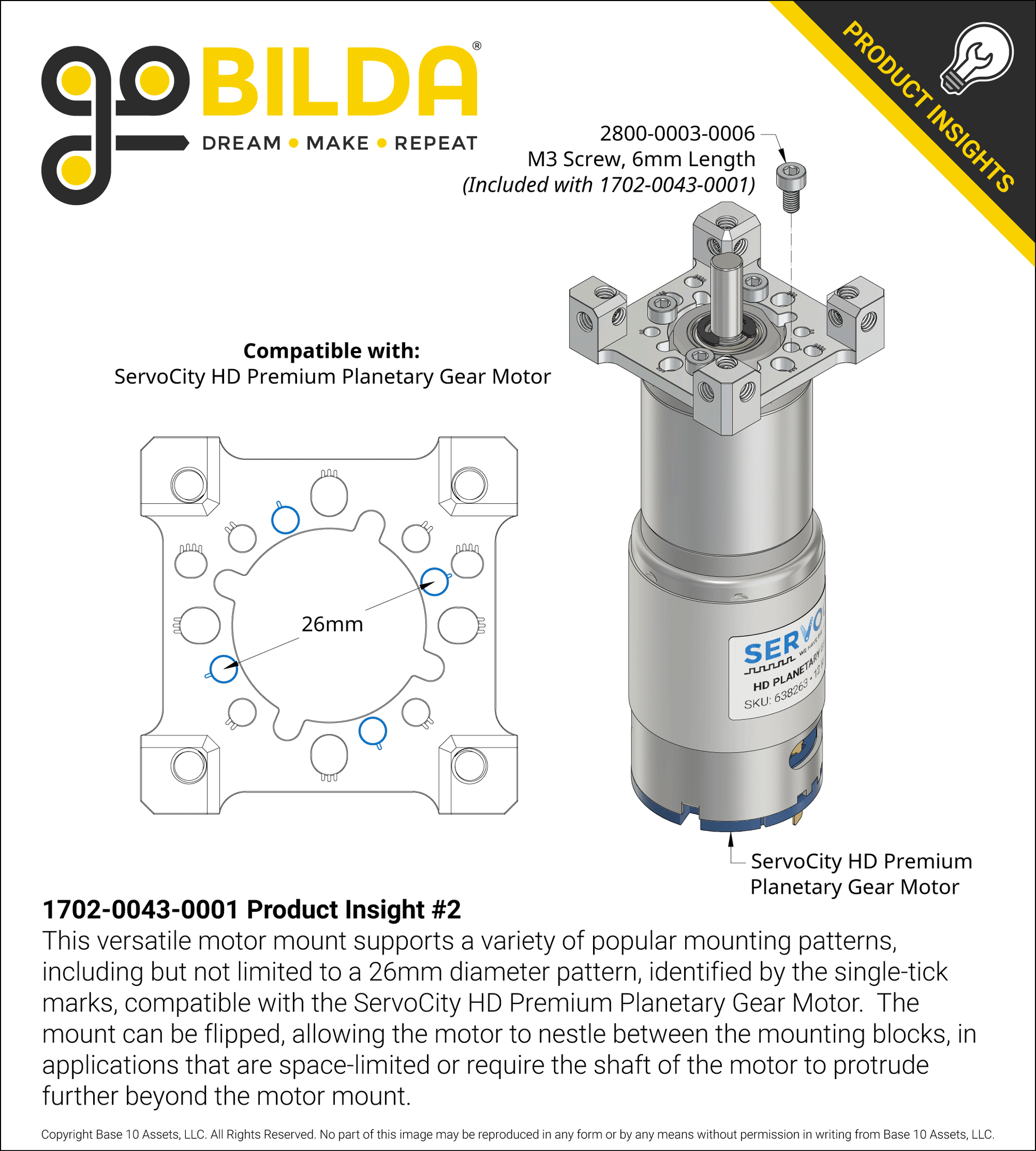

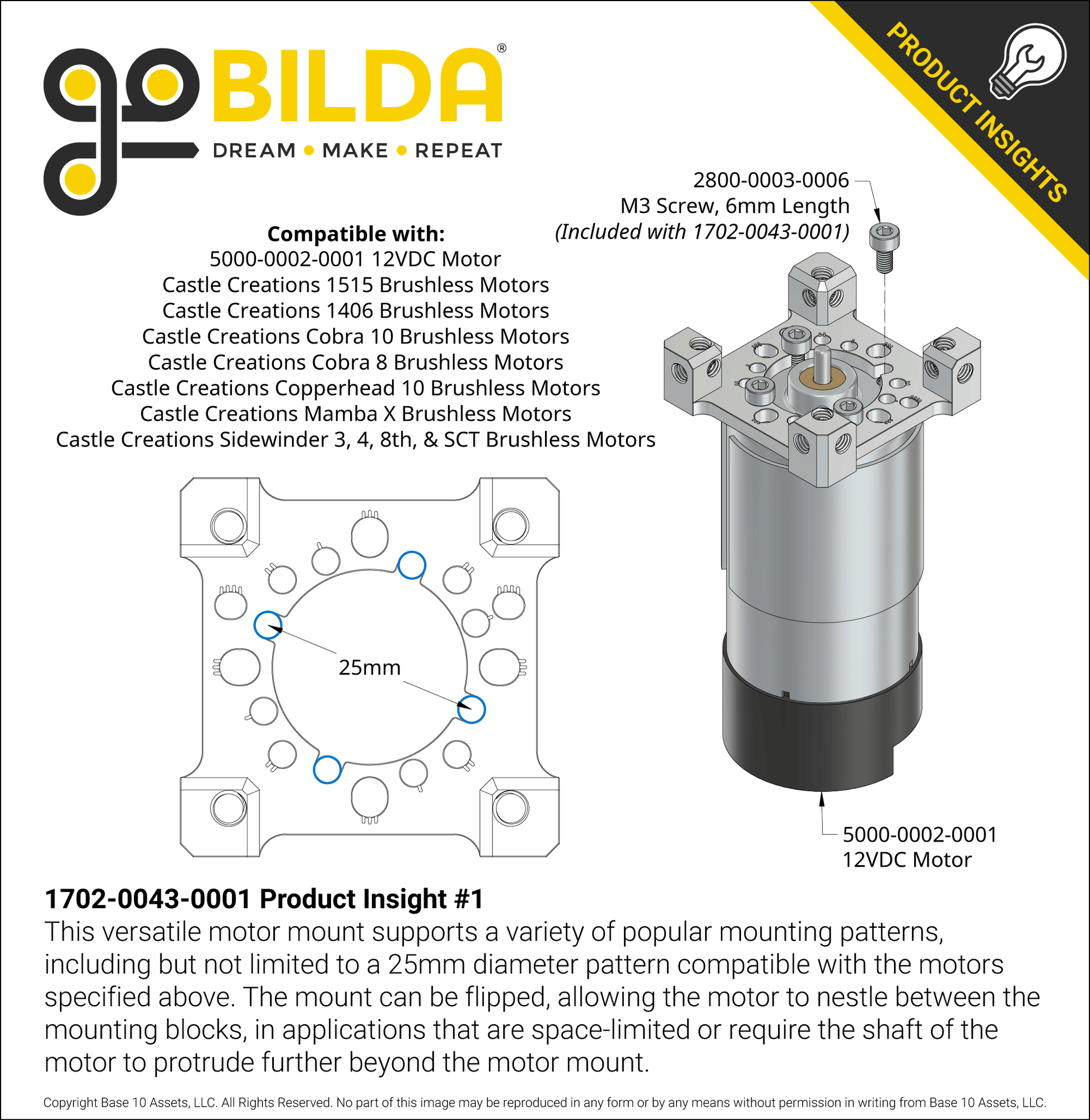

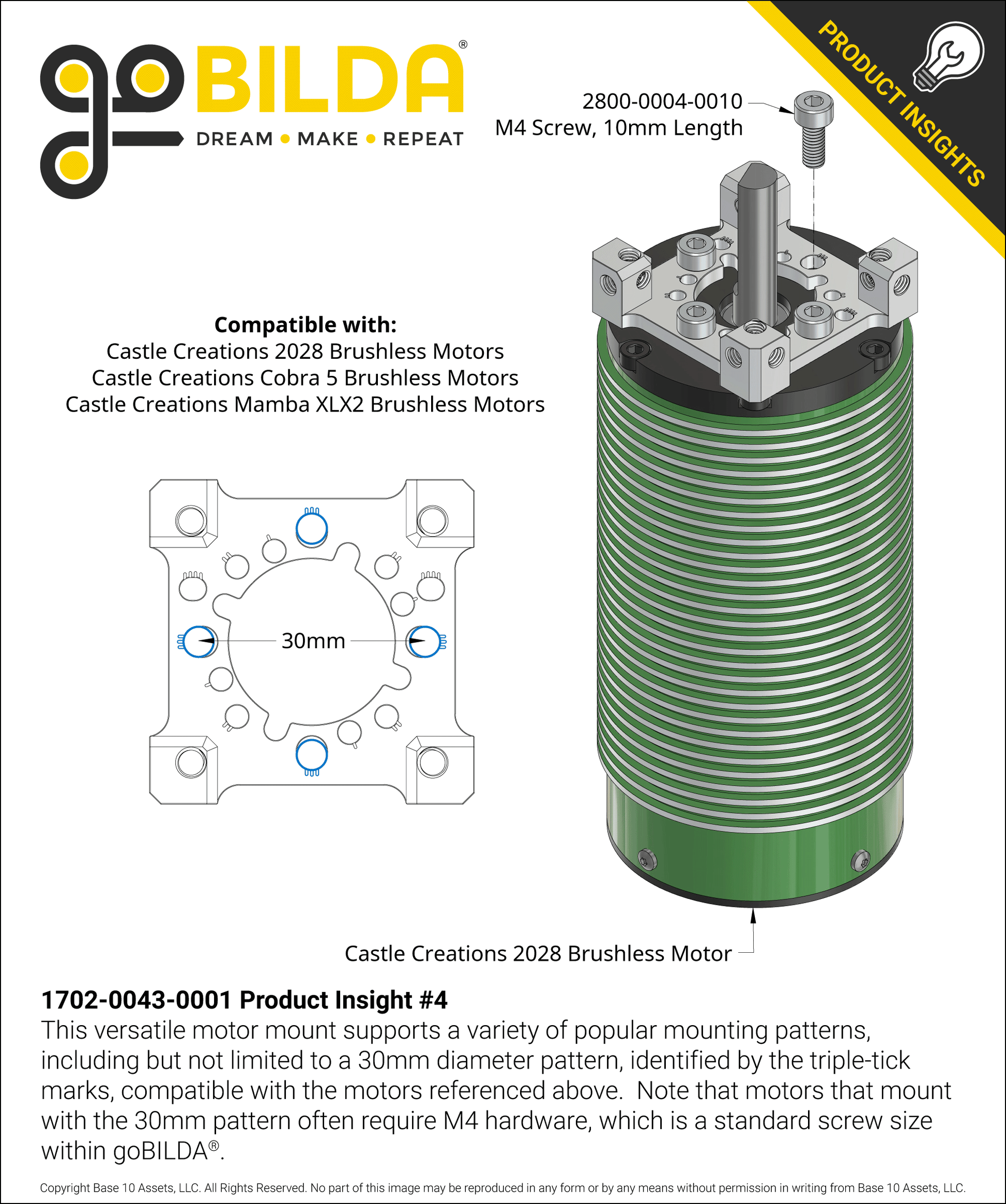

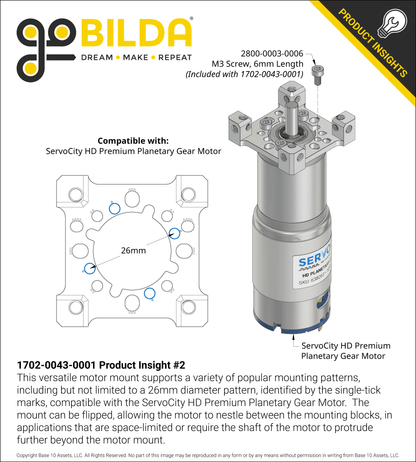

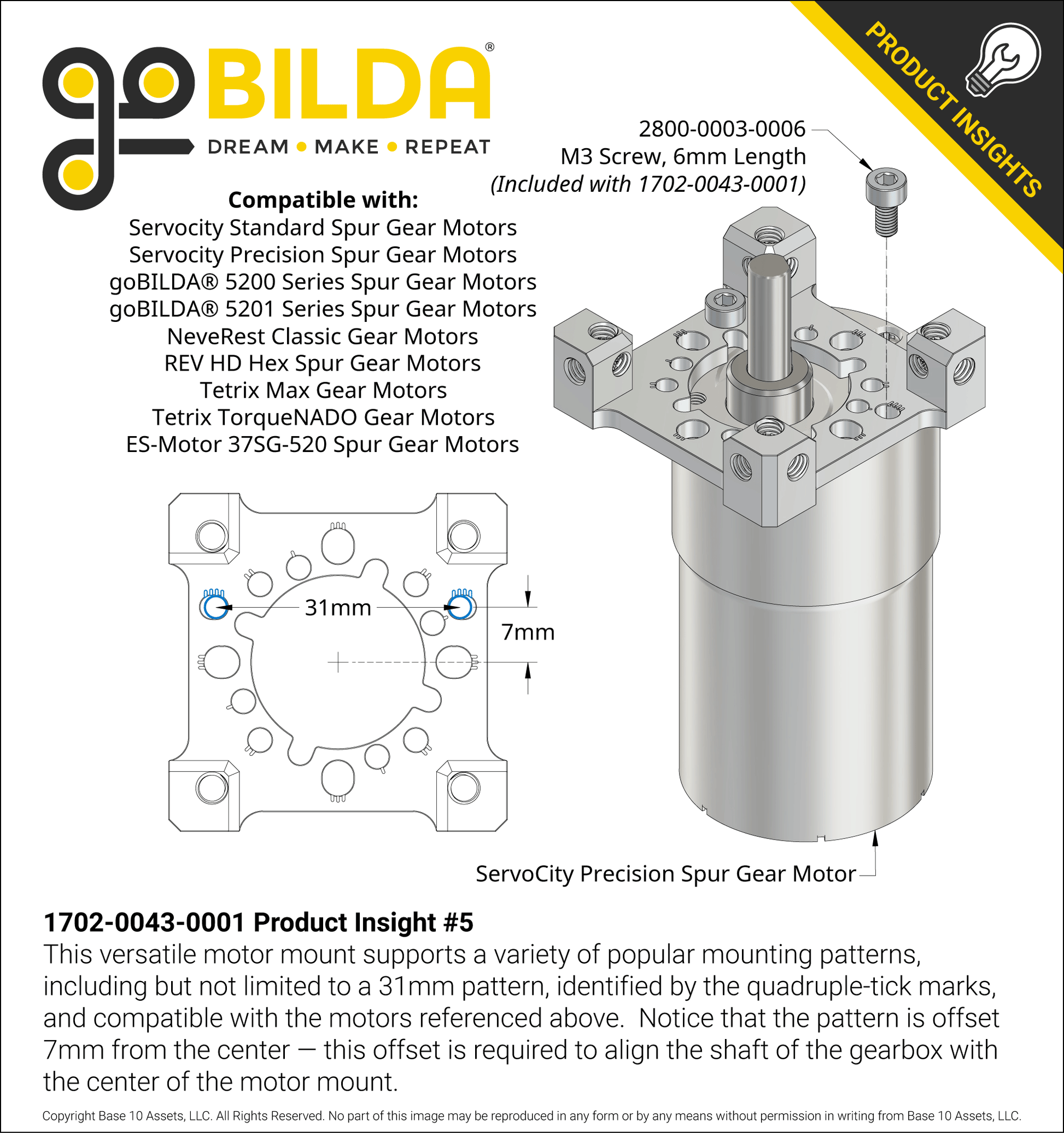

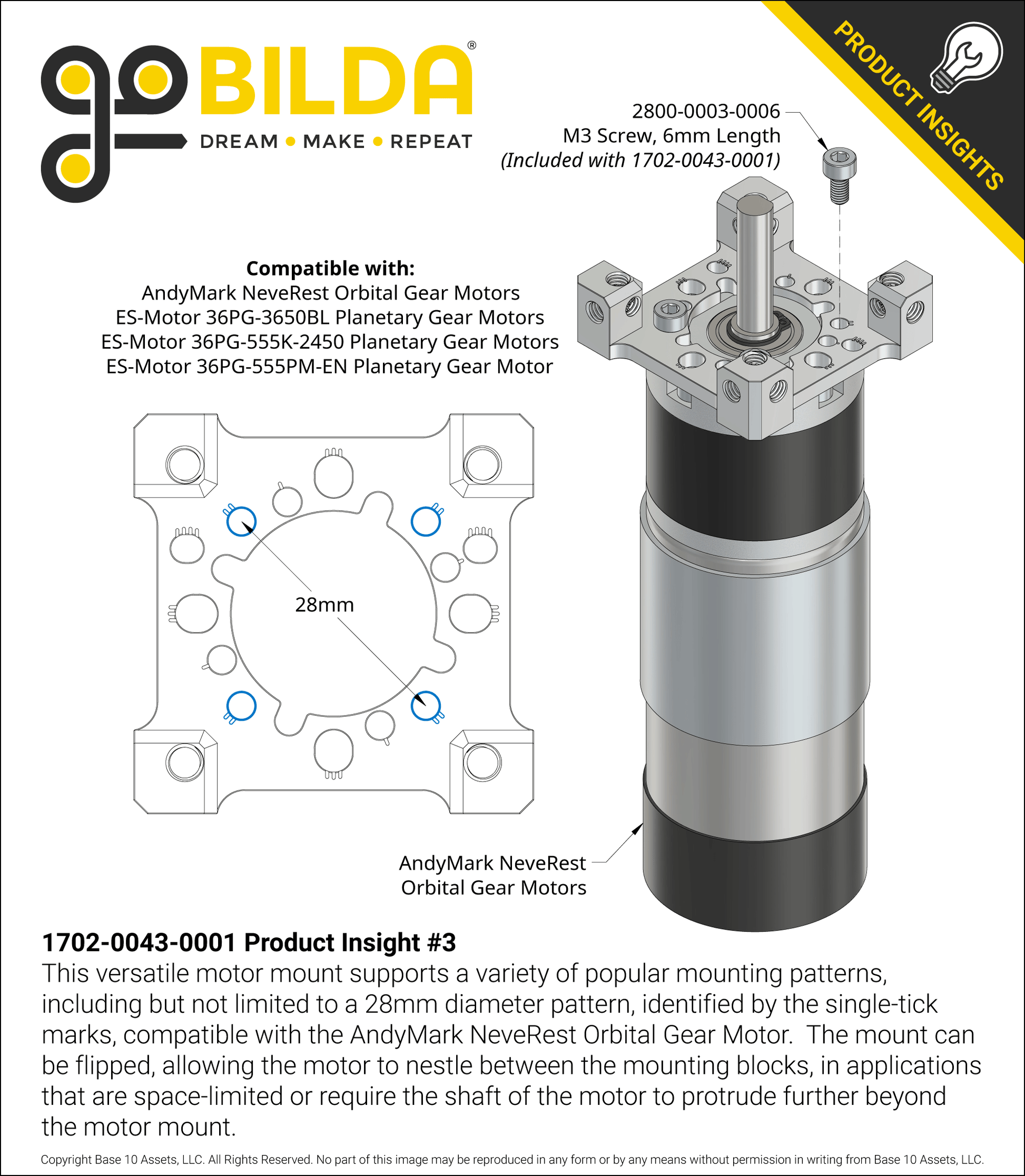

This Quad Block Motor Mount is an adaptor with a vast range of compatibility. Featuring a variety of different hole patterns in its face, it provides for the attachment of many motors (such as Neverest Orbital and REV motors) to structure components within the goBILDA® build system.

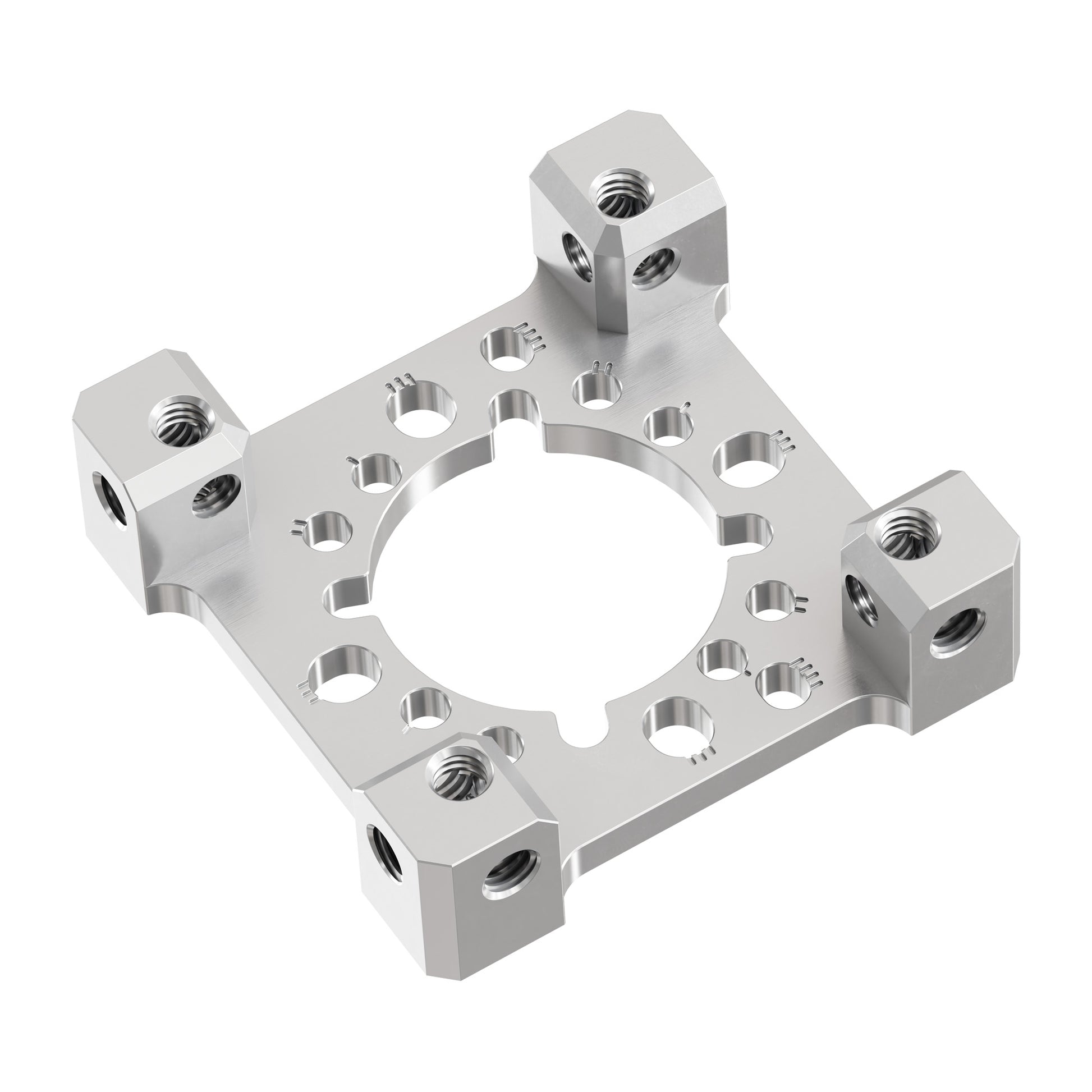

Threaded holes in the face and sides of the mount allow for versatile installations, especially within 1120 Series U-Channel. The “posts” provide clearance and adjustability—in the majority of use-cases where your project calls for a finite change in how far the shaft protrudes from the motor, you can install this mount from either side!

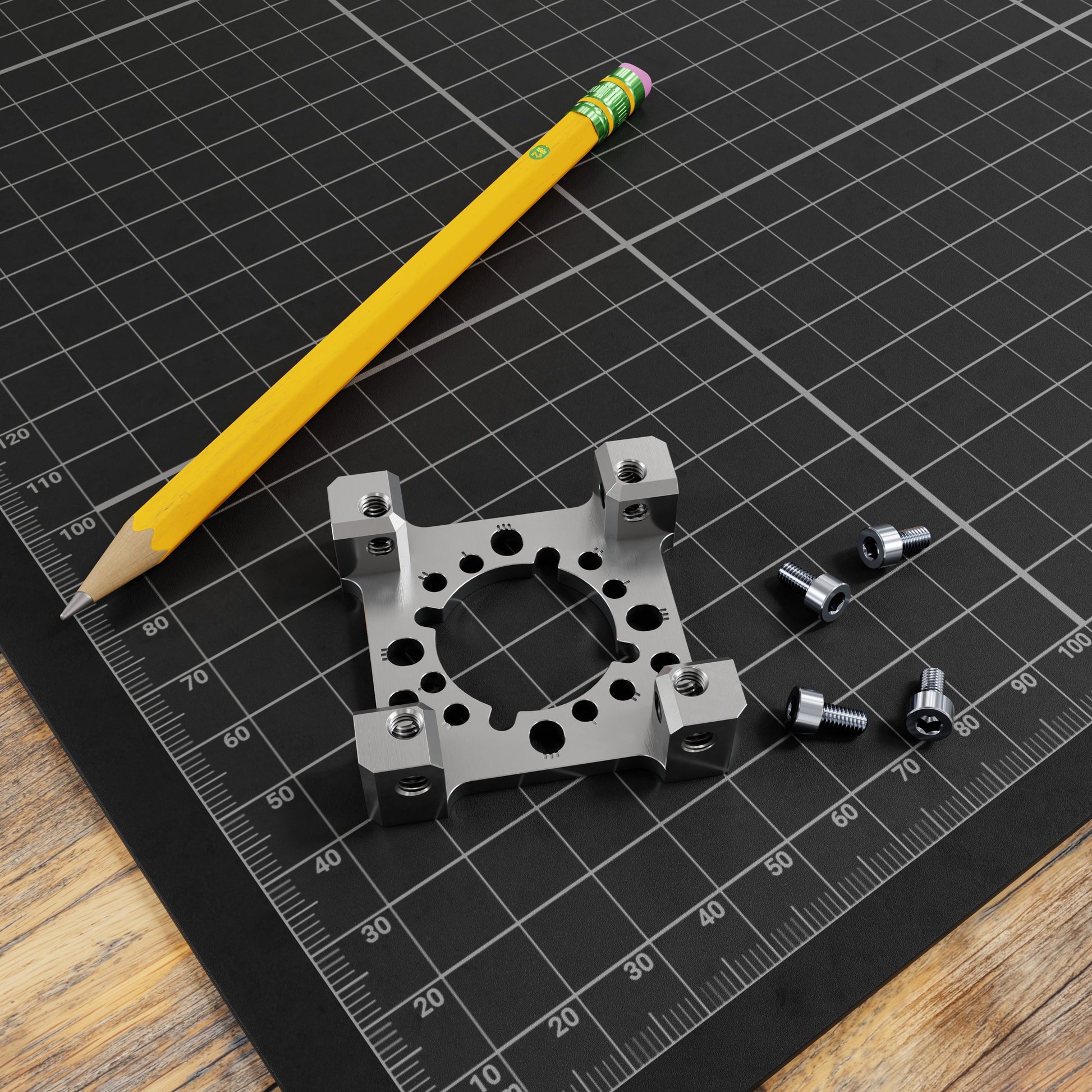

Four 6mm Length M3 Socket Head Screws are included.

Downloads

Specs

Weight 16g with Included Hardware
Material Aluminum
Included Hardware 4 x Zinc-Plated Steel Socket Head Screw (M3 x 0.5mm, 6mm Length)
