goBILDA

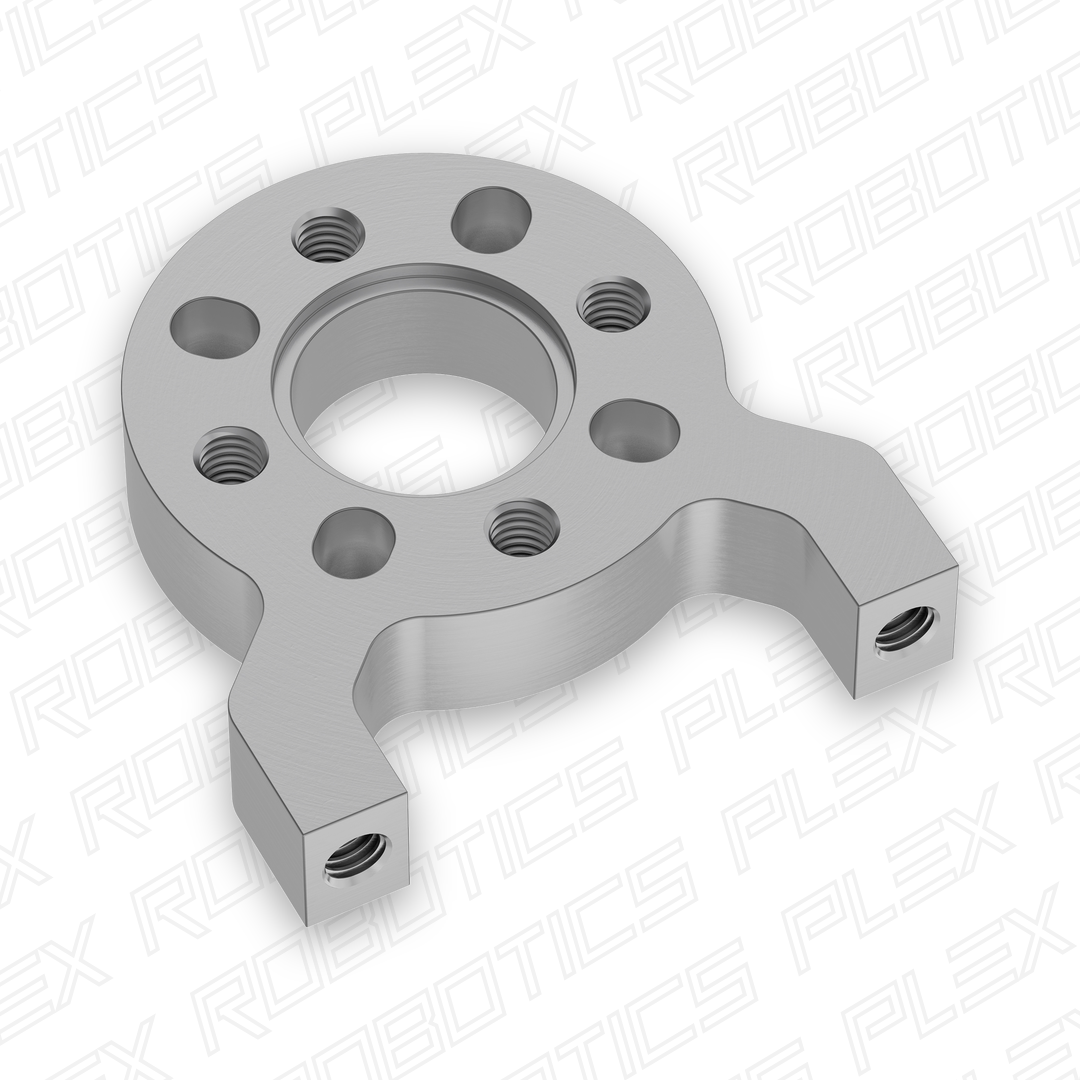

1200 Series 1-Side, 2-Post Pattern Mount (32-1)
1200 Series 1-Side, 2-Post Pattern Mount (32-1)
1200-0032-0001Preț obișnuit
31,00 lei
Preț obișnuit
38,80 lei
Preț redus
31,00 lei
Preț unitar
/
pe
Taxe incluse.
Nu am putut încărca disponibilitatea pentru ridicare

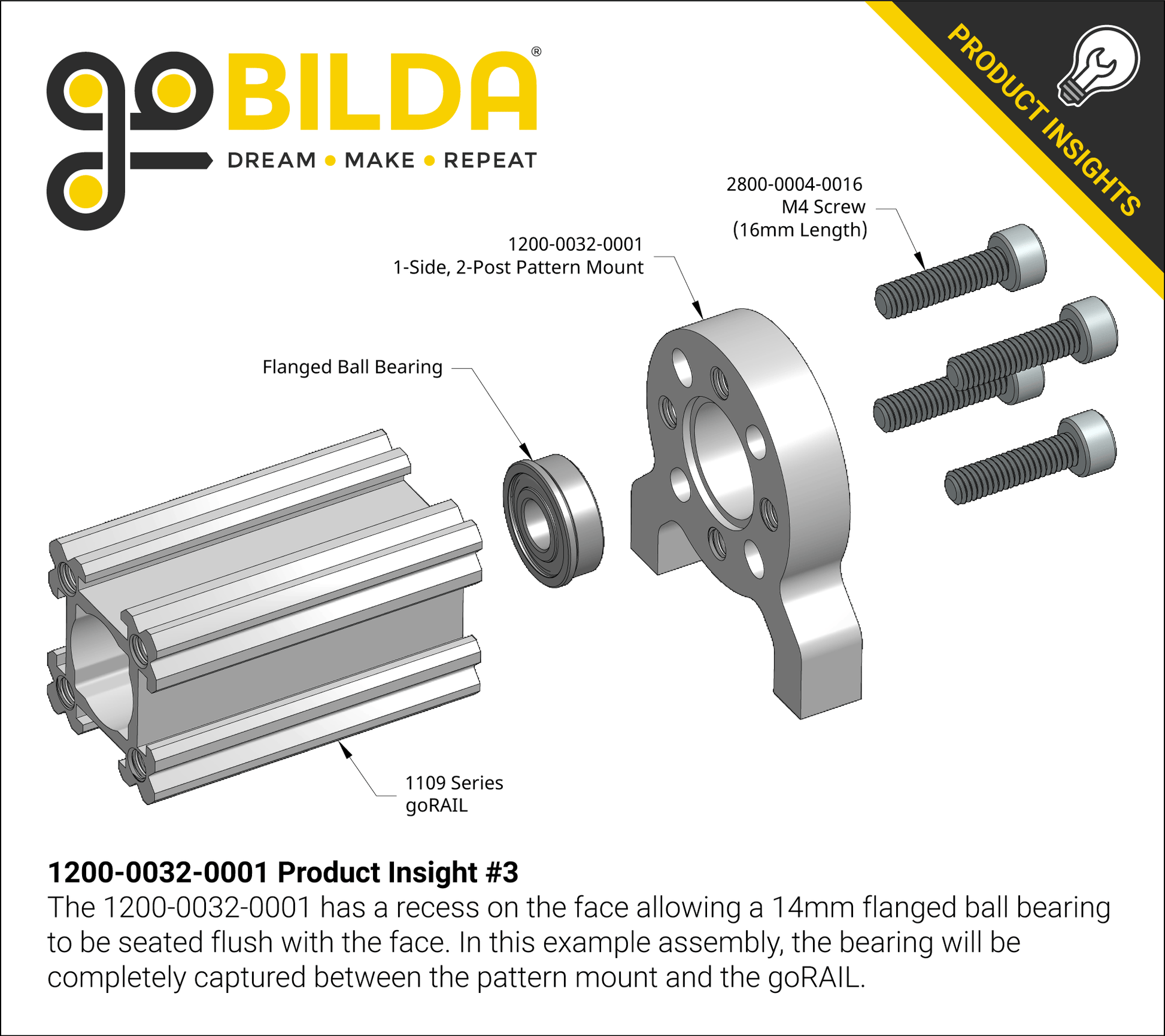

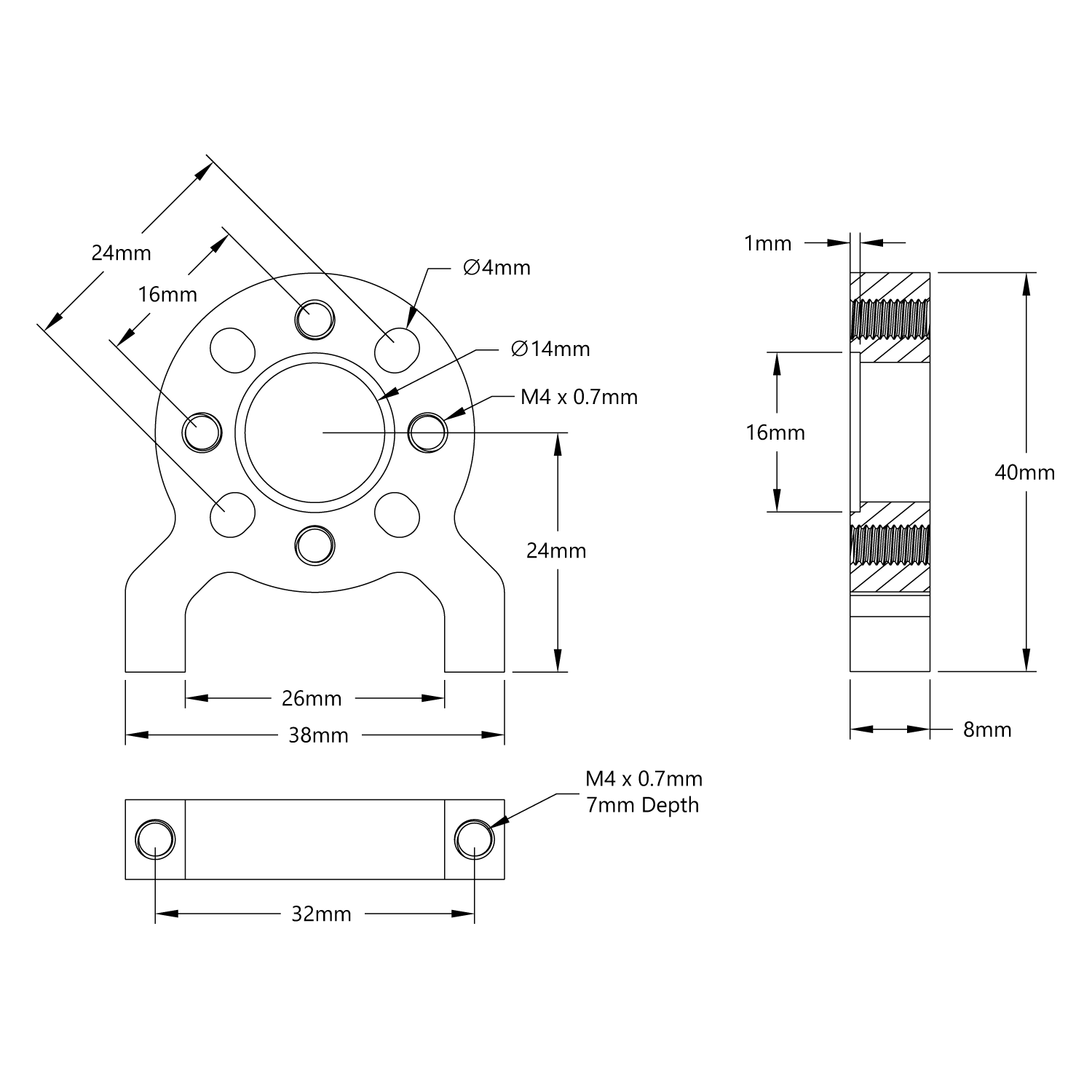

This pattern mount fastens to structure with the threaded posts, spaced 32mm apart, and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. The 1mm deep recess around the bore allows a 1611 Series Bearing to nest down into the bore, leaving the surface completely flush.
