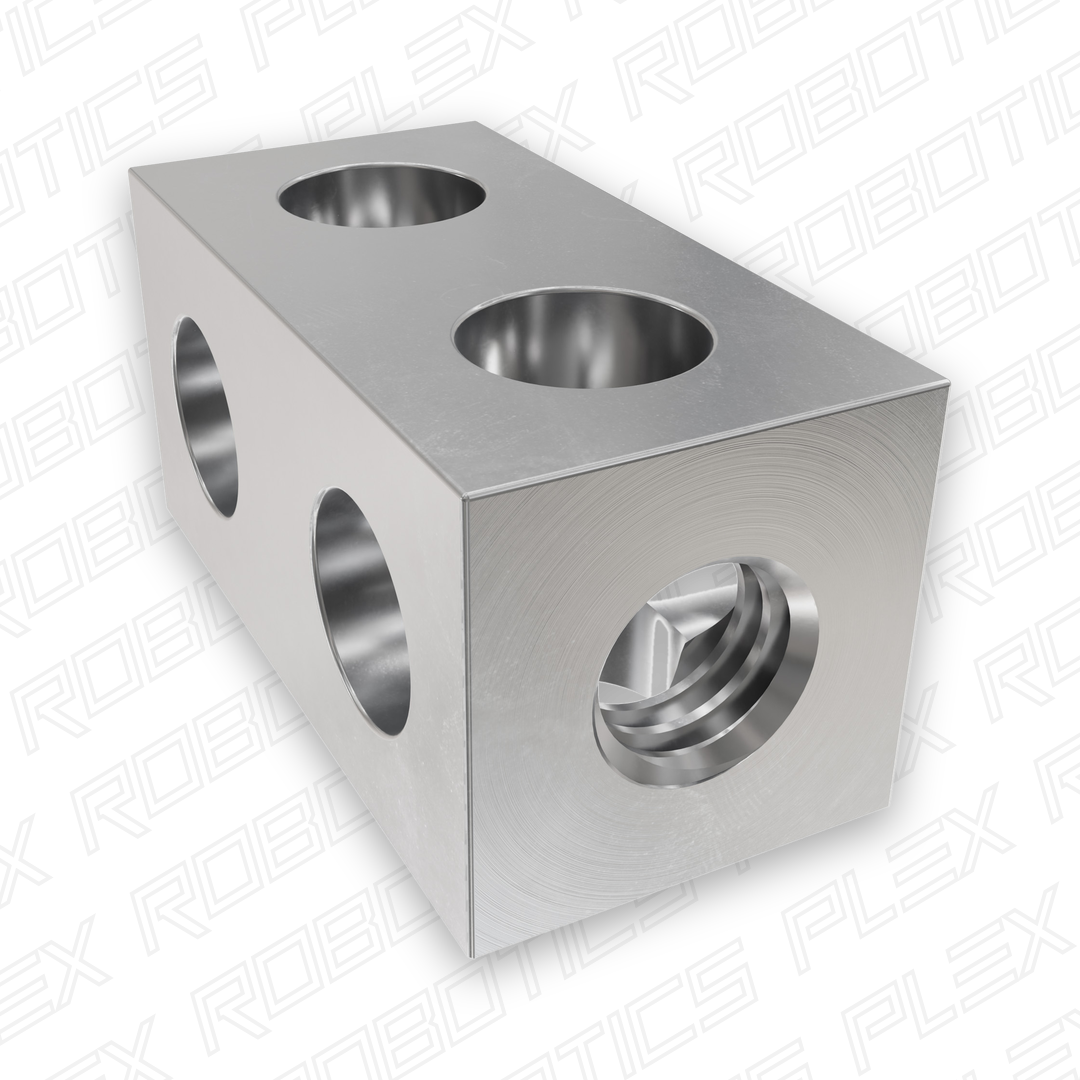

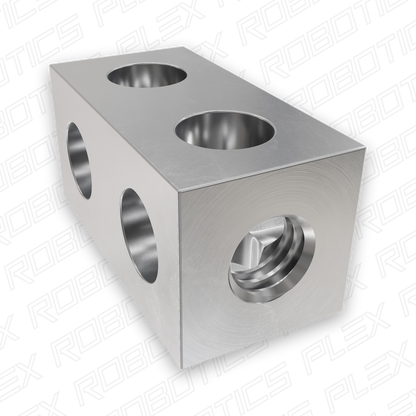

1106 Series Square Beam
1106 Series Square Beam
1106-0002-0016📦 Costul final de transport poate crește dacă în coș se află produse de la mai mulți furnizori (ex: 2 furnizori = 2 taxe de transport).
SKU: 1106-0002-0016
Nu am putut încărca disponibilitatea pentru ridicare

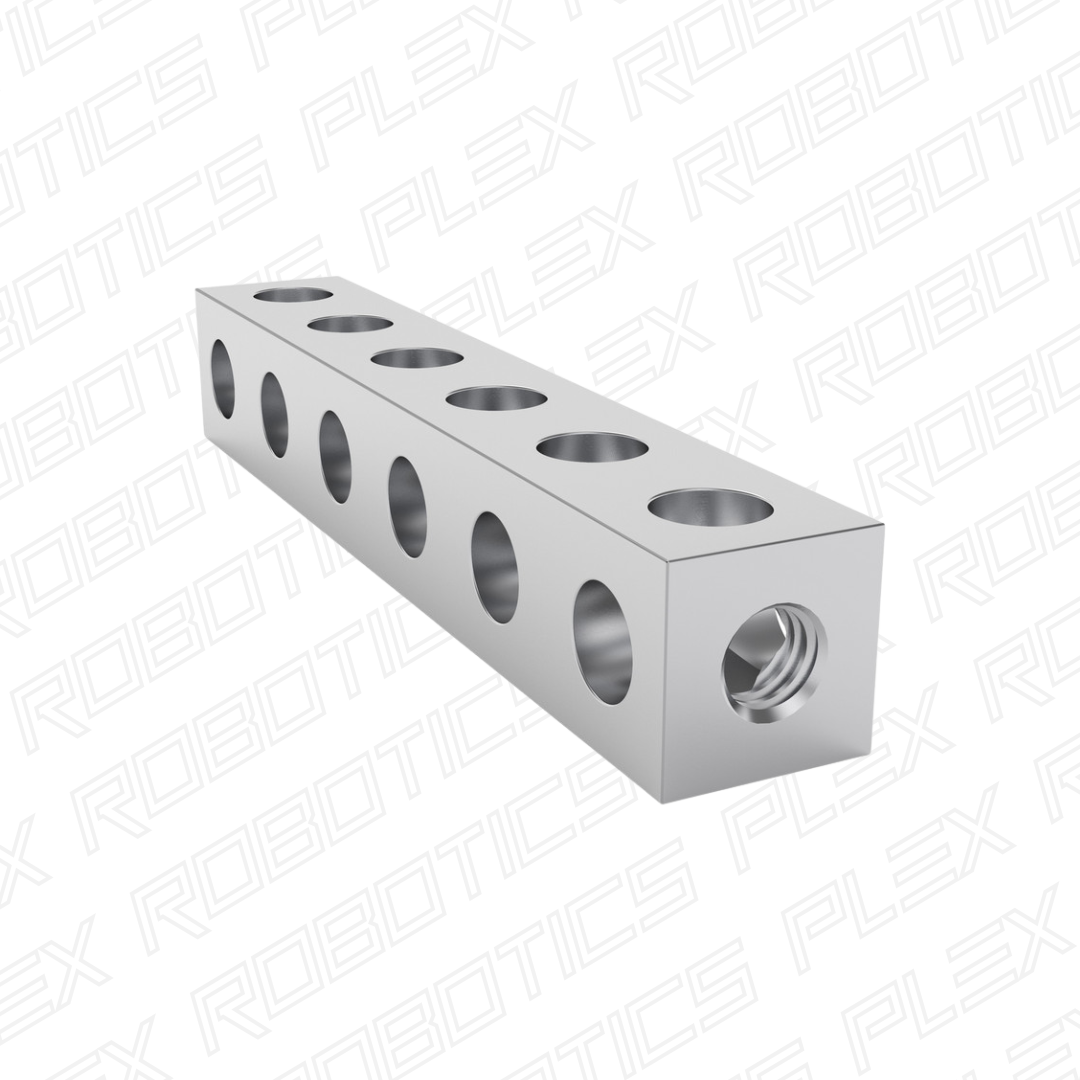

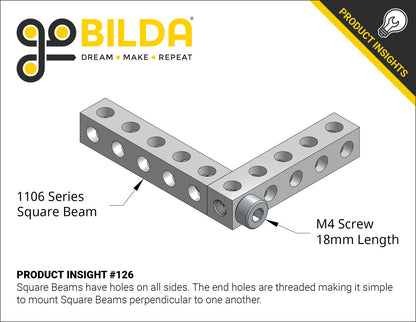

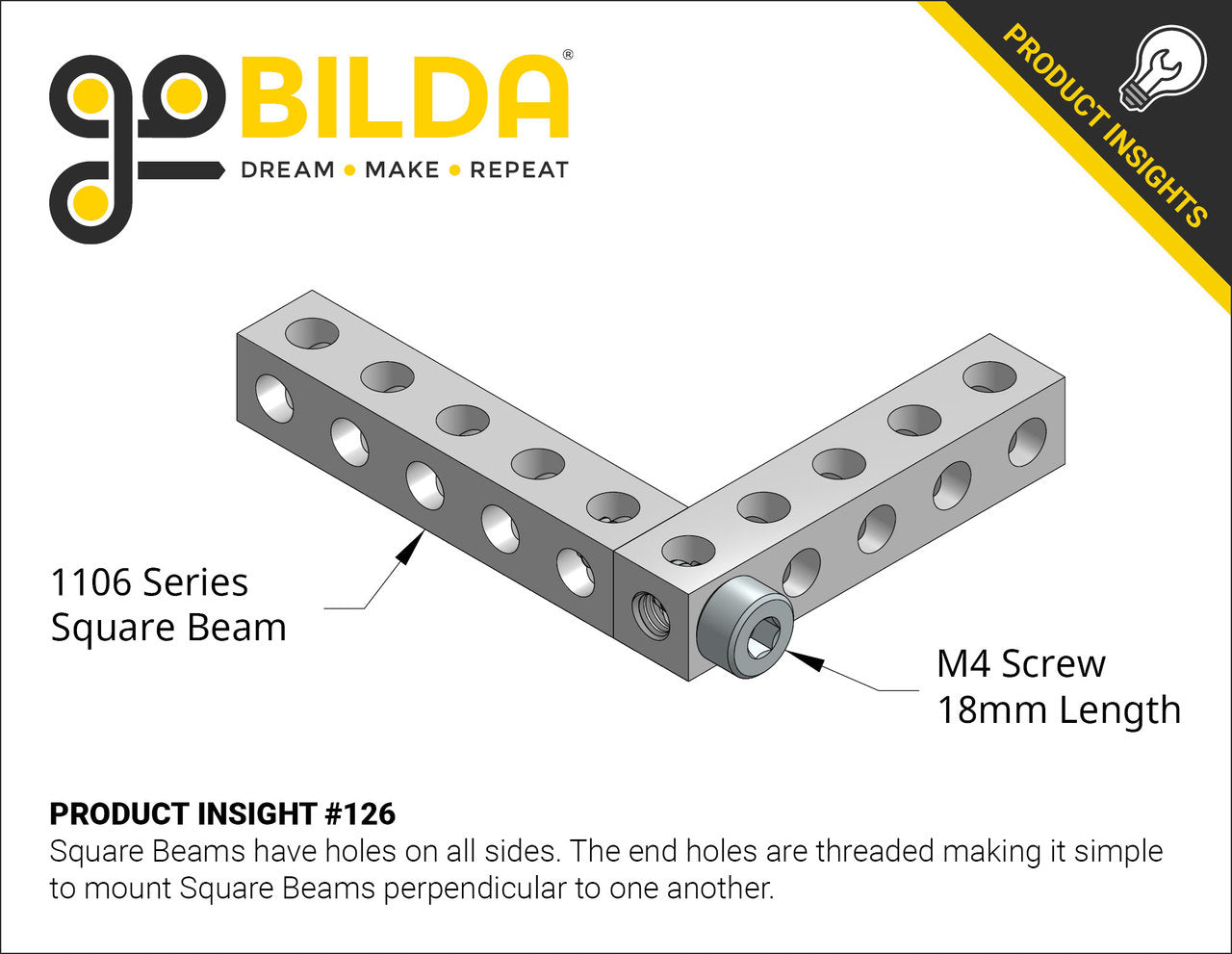

Square Beams may be one of the most versatile structural elements on the 8mm linear pattern. Thru-holes from every side allow screws to pass thru the beams and tie into other components. Each end is threaded so that connecting one square beam to another only requires a single screw. Whether they get stacked side by side, end to end or fastened perpendicular to one-another they’ll remain on grid.

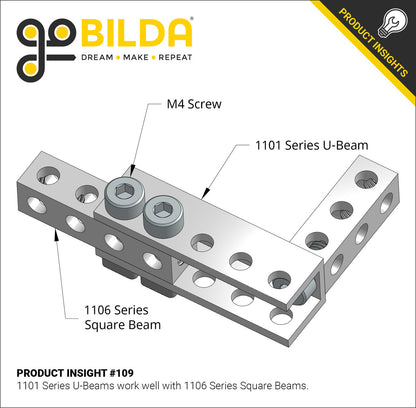

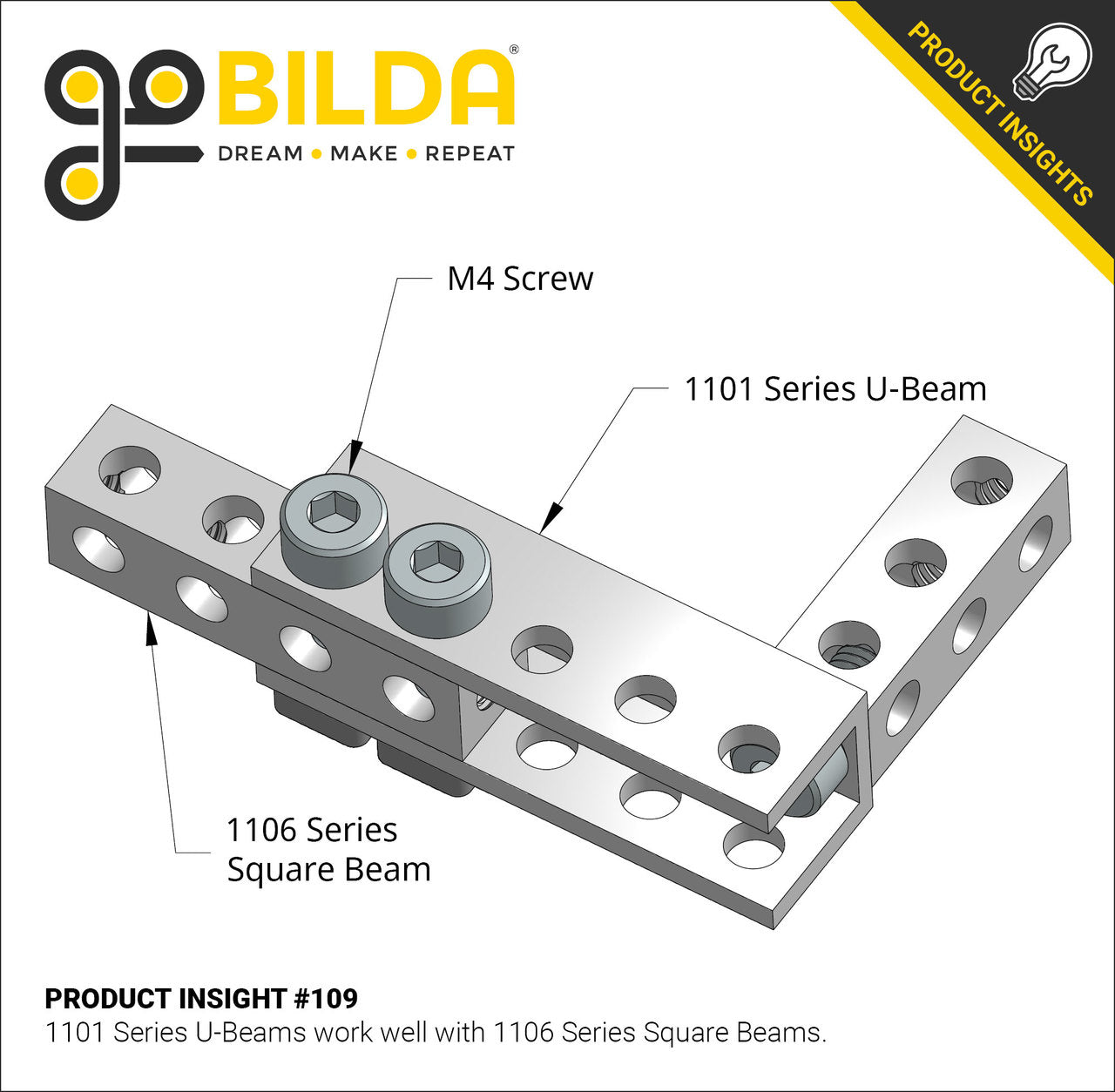

The on-pattern thru-holes along all four sides allow screws to pass through the Square Beam and fasten into other components—and both ends of a Square Beam are threaded, which means that attaching one Square Beam to another only requires a single screw.

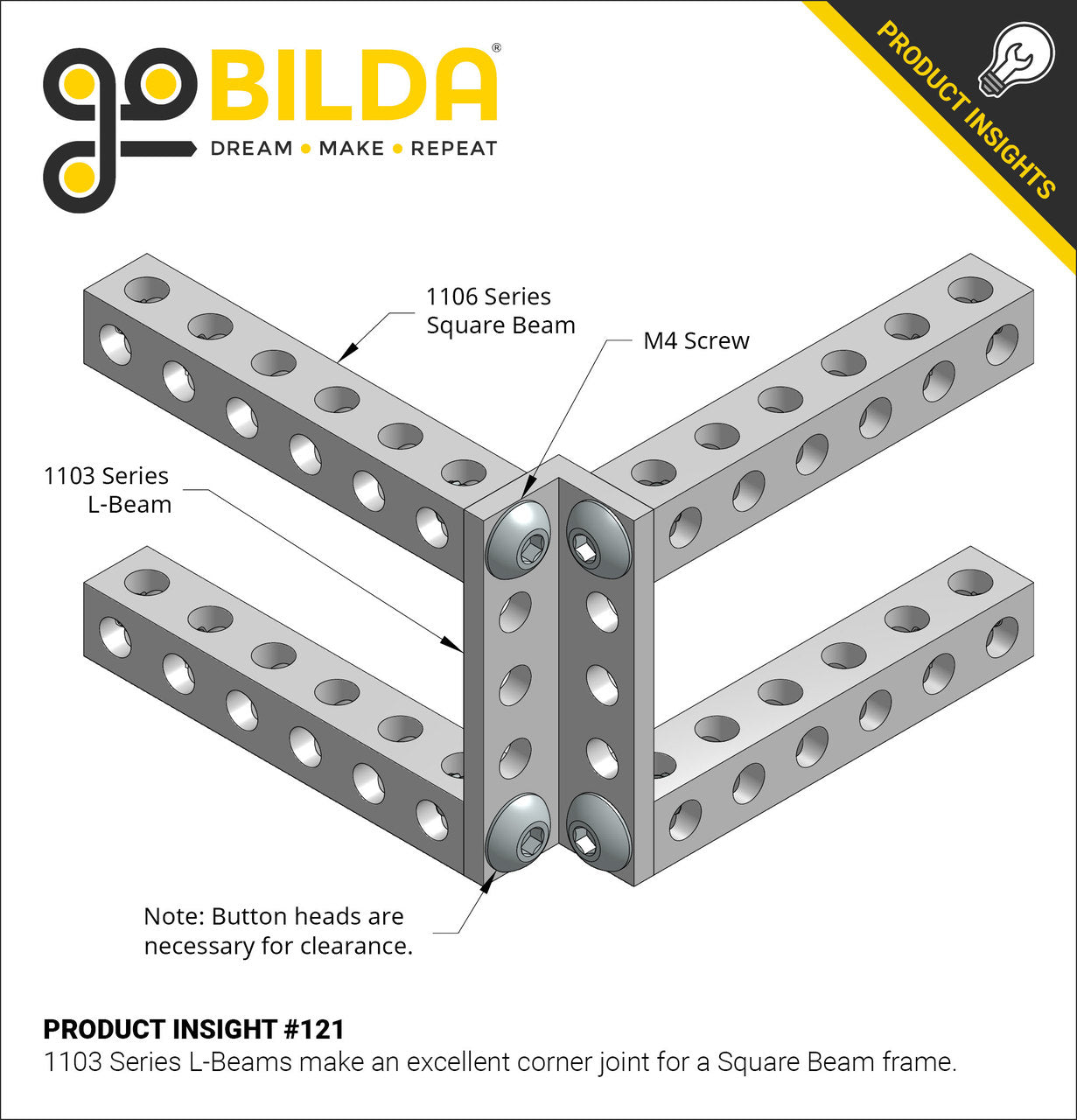

And thanks to their on-pattern design, Square Beams remain on-grid in a huge variety of attachment configurations—whether they’re stacked side-by-side, end-to-end, or fastened perpendicular to one another!
Downloads
| Variant | STEP File | Other Files |
|---|---|---|

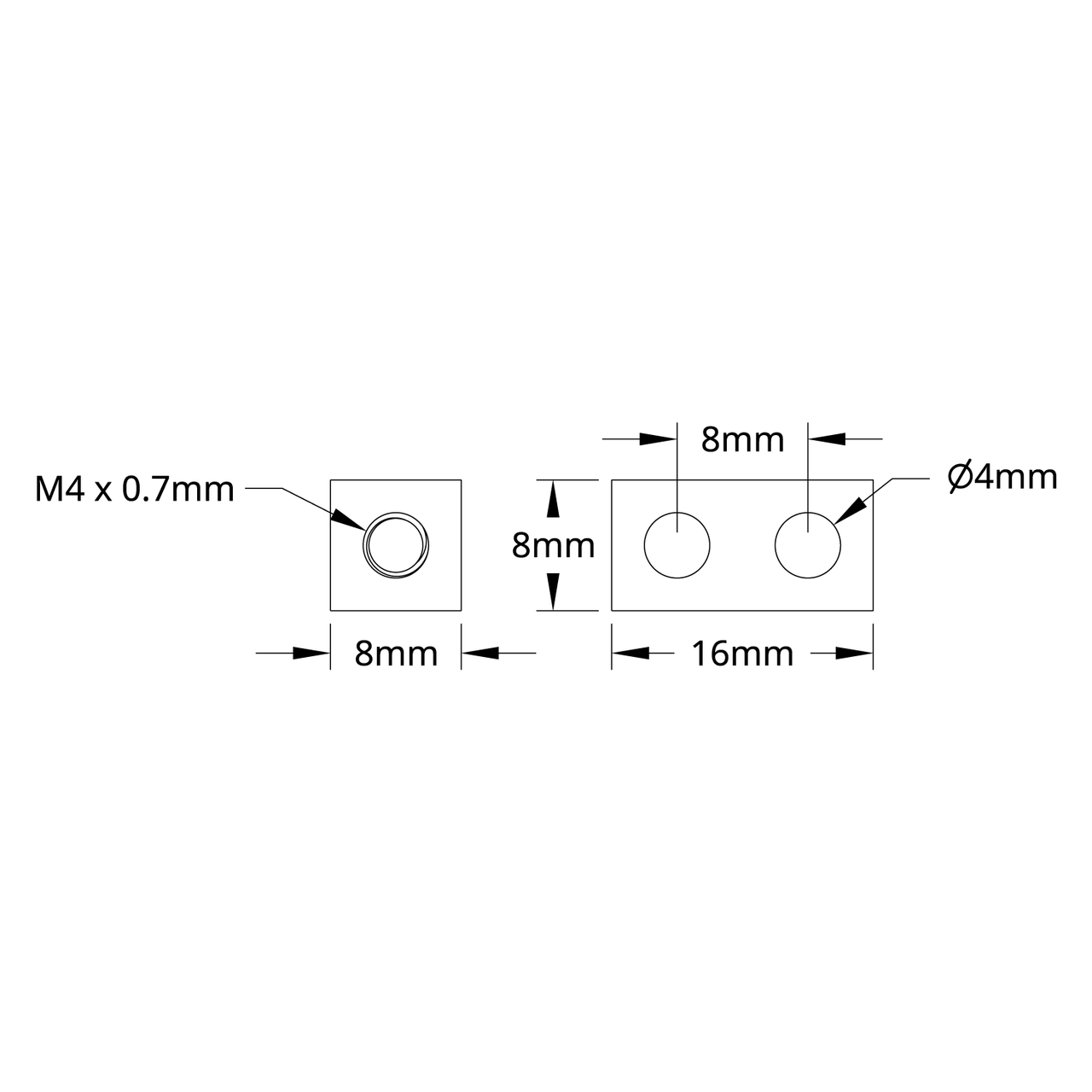

| 1 - 2 Hole - 16mm Length | STEP File | — |
| 2 - 3 Hole - 24mm Length | STEP File | — |
| 3 - 4 Hole - 32mm Length | STEP File | — |
| 4 - 5 Hole - 40mm Length | STEP File | — |
| 5 - 6 Hole - 48mm Length | STEP File | — |
| 6 - 7 Hole - 56mm Length | STEP File | — |
| 7 - 8 Hole - 64mm Length | STEP File | — |
| 8 - 9 Hole - 72mm Length | STEP File | — |
| 9 - 10 Hole - 80mm Length | STEP File | — |
| 10 - 11 Hole - 88mm Length | STEP File | — |
| 11 - 12 Hole - 96mm Length | STEP File | — |
| 12 - 13 Hole - 104mm Length | STEP File | — |
| 13 - 15 Hole - 120mm Length | STEP File | — |
| 14 - 17 Hole - 136mm Length | STEP File | — |
| 15 - 19 Hole - 152mm Length | STEP File | — |
| 16 - 21 Hole - 168mm Length | STEP File | — |
| 17 - 23 Hole - 184mm Length | STEP File | — |
| 18 - 29 Hole - 232mm Length | STEP File | — |
| 19 - 33 Hole - 264mm Length | STEP File | — |
| 20 - 35 Hole - 280mm Length | STEP File | — |
| 21 - 41 Hole - 328mm Length | STEP File | — |
Specs
| Material | Aluminum |
|---|---|
| Finish | Clear Anodized |
